Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine

154KW Hydraulic Core Drilling Rig

1600C Hydraulic Core Drilling Rig

Crawler Mounted Hydraulic Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ1600C

Contact Us
Request A Quote
Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine
Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine
Product Details
Model:
RCJ1600C
Diesel Engine:
154KW Cummins Engine
BTW (m):
1800
NTW (m):
1600
HTW (m):
1400
PQ(m):
1200
Highlight:

154KW Hydraulic Core Drilling Rig

,

1600C Hydraulic Core Drilling Rig

,

Crawler Mounted Hydraulic Core Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$35000-$38000
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining 154KW Cummins Engine online Video

Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining 154KW Cummins Engine

Get Best Price
Good price Hydraulic Core Drilling Rig RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine online Video

Hydraulic Core Drilling Rig RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine

Get Best Price
Good price Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine online Video

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine

Get Best Price
Good price 1800m BTW Core Drilling Rig Full Hydraulic Machine With 154KW Cummins Engine online Video

1800m BTW Core Drilling Rig Full Hydraulic Machine With 154KW Cummins Engine

Get Best Price
Contact Us
Contact Now
Product Description

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine

Product Description

This series of fully hydraulic core drilling rigs is a new type of drilling rig independently developed by our company based on the absorption of advanced technologies of similar drilling rigs at home and abroad. The fully hydraulic core drilling rig adopts full hydraulic drive, the rotation of the power head is driven by axial piston pump and oblique axis piston motor, mechanical dual speed plus stepless speed regulation, and advanced structure. The power head adopts cylinder chain speed regulation feed mechanism, the movement is stable and reliable, the power head is equipped with a lateral translation mechanism, and the drilling mast adopts cylinder lifting and sliding as a whole, which can be used for drilling within the range of 45-90°. The hydraulic system adopts load-sensitive control, with high working efficiency and large torque.

The hydraulic core drilling rig is equipped with hydraulic Trojan clamps, hydraulic leveling legs, telescopic masts and other devices to facilitate the rapid positioning of the drilling rig. Equipped with wireless remote control crawler, it is suitable for various terrains, and can control the crawling of the drilling rig within a safe distance to prevent sudden dangers.

Technical Parameters



RCJ1600C full hydraulic core drilling rig
Working stratumLoose soil layer and bed rock(hardness:F6~20)
Drilling capacityBTW (m)1800
 NTW (m)1600
 HTW (m)1400
 PQ(m)1200
Hydraulic systemRated pressure Mpa32+25 (main pump :145 ml/r ,32 MPa, auxiliary pump 96 ml/r, 25 MPa.)
 Cooling waysecondary air cooling plus primary water cooling
PowerDiesel engine modelcummins engine 6 cylinders
 Rated power154KW
 Rated speed2000rpm
Rotary headMax torque4000N.m
 Max rotary speed1400rpm
 Feeding stroke3.5m
 Lifting force460KN
 Feeding force230KN
Wireline hydraulic Winch capacityRope capacity1600m
 Lifting force30KN
 Lifting speed110m/min
 Rope diameter6mm
MastFull height8.1m
 Drilling angle45-90°
 Slip Stroke1200mm
Clamp (hydraulic) T75/89/115mm
Mud pump (hydraulic )ModelBW250
Crawler chassisWalking speed2-3km/h
 Climbing angle25°-30°
DimensionTransport5900*2100*2400mm
Weight10000kg


Application

It is mainly suitable for solid-phase mineral deposit drilling, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, as well as tunnel ventilation, drainage, dam grouting and other engineering drilling.

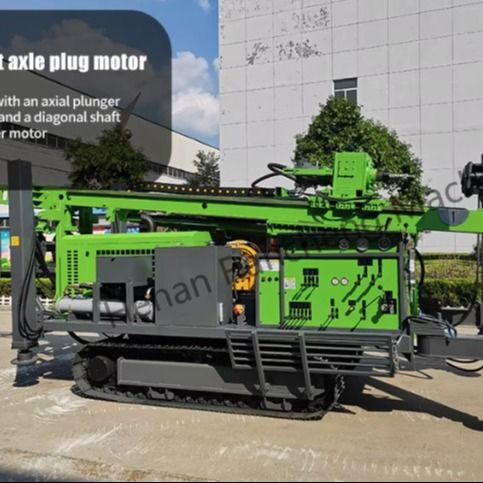

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine 0

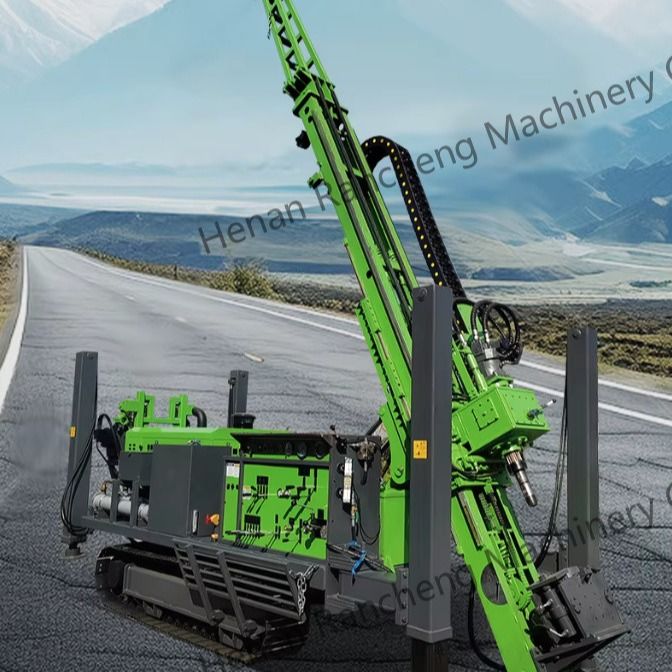

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine 1

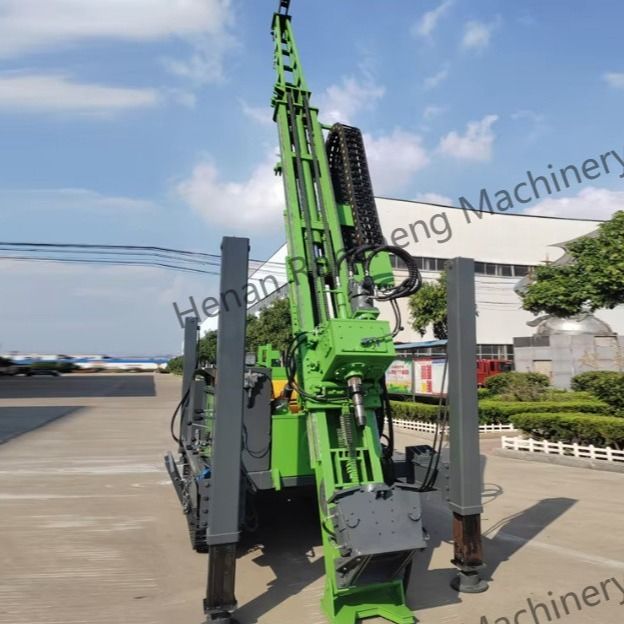

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine 2

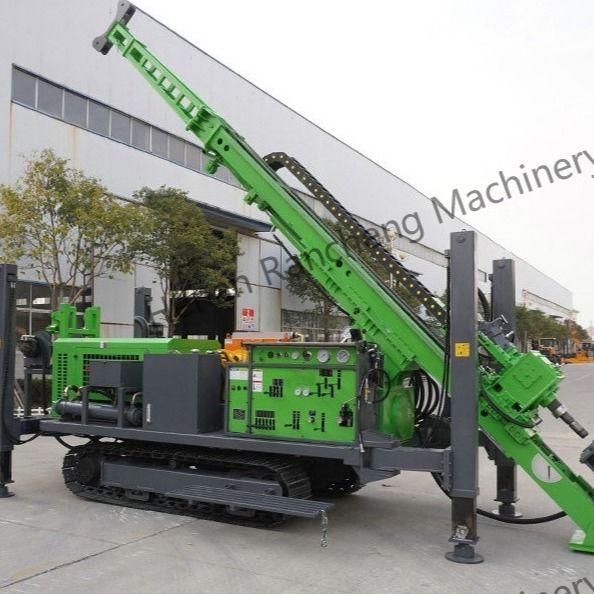

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine 3

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine 4

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine 5
