Name: 1800m BTW Core Drilling Rig Full Hydraulic Machine With 154KW Cummins Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCJ1600C
Price: 36,500.00 USD
Availability: InStock

Home > products > Core Drilling Rig >

1800m BTW Core Drilling Rig Full Hydraulic Machine With 154KW Cummins Engine

Full Hydraulic Machine Core Drilling Rig

Cummins Engine Core Drilling Rig

1800m Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ1600C

Request A Quote

Product Details

Model:

RCJ1600C

Diesel Engine:

154KW Cummins Engine

BTW (m):

1800

NTW (m):

1600

HTW (m):

1400

PQ(m):

1200

Highlight:

Full Hydraulic Machine Core Drilling Rig

Cummins Engine Core Drilling Rig

1800m Core Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

$35000-$38000

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T,Western Union

Supply Ability

100sets per Month

Hydraulic Core Sampling Drilling Rig 600m-1000m Depth with NQ/BQ/HQ/PQ

Get Best Price

Video

Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining

Get Best Price

Video

Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining 154KW Cummins Engine

Get Best Price

Video

Hydraulic Core Drilling Rig RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine

Get Best Price

Contact Now

Product Description

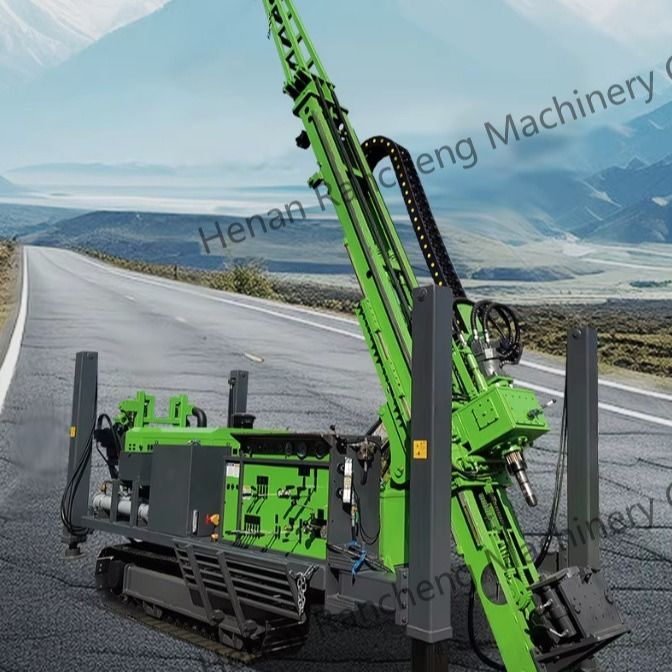

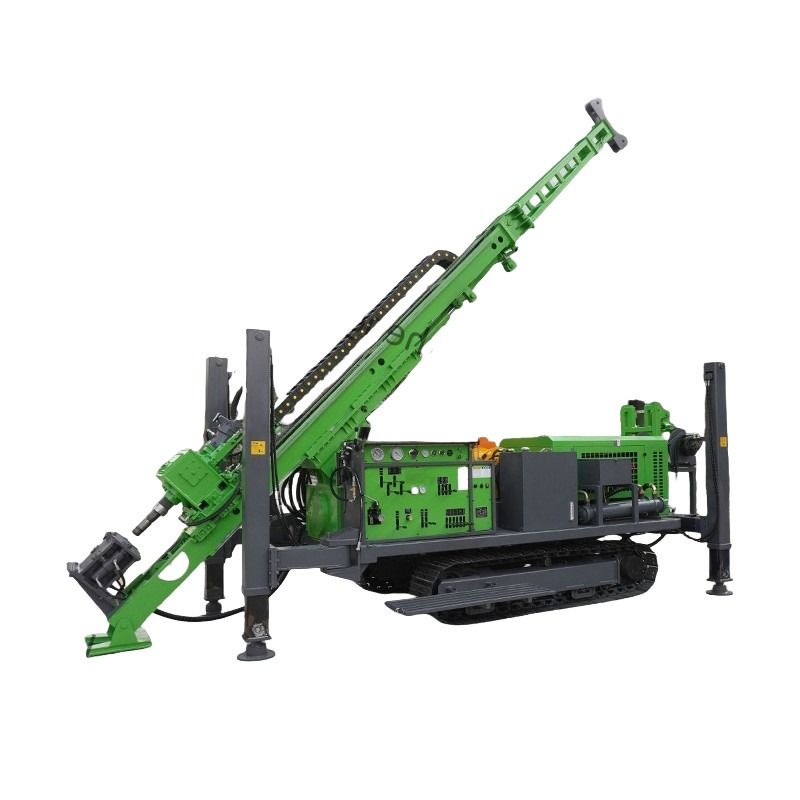

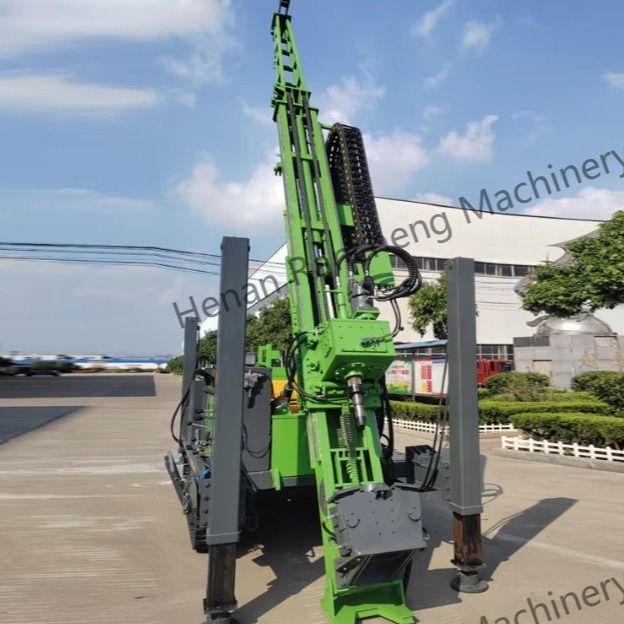

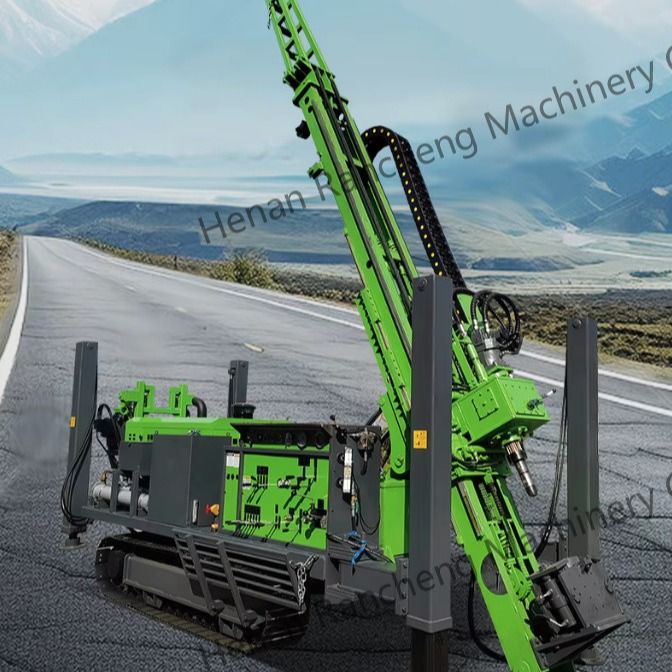

1800m BTW Core Drilling Rig Full Hydraulic Machine With 154KW Cummins Engine

Product Specifications

Model	RCJ1600C
Diesel Engine	154KW Cummins Engine
BTW (m)	1800
NTW (m)	1600
HTW (m)	1400
PQ (m)	1200

Product Overview

This fully hydraulic core drilling rig series represents our company's latest innovation, integrating advanced domestic and international drilling technologies. The rig features full hydraulic drive with axial piston pump and inclined axis piston motor for power head rotation, offering mechanical dual-speed and stepless speed regulation capabilities.

Key Features

Combination feed mechanism with cylinder chain speed regulation for stable, reliable operation
Power head equipped with lateral walking mechanism
Drilling mast with cylinder lifting/sliding system for 45°-90° drilling range
Load-sensitive hydraulic control system for high efficiency and large torque
Includes hydraulic wooden clamps, leveling legs, and telescopic masts for quick positioning
Wireless remote control for safe operation in various terrains

Technical Parameters

RCJ1600C Full Hydraulic Core Drilling Rig
Working Stratum	Loose soil layer and bed rock (hardness: F6~20)
Drilling Capacity	BTW: 1800m NTW: 1600m HTW: 1400m PQ: 1200m
Hydraulic System	Rated pressure: 32+25 MPa Cooling: Secondary air cooling plus primary water cooling
Power	Diesel engine: Cummins 6 cylinders Rated power: 154KW Rated speed: 2000rpm
Rotary Head	Max torque: 4000N.m Max rotary speed: 1400rpm Feeding stroke: 3.5m Lifting force: 460KN Feeding force: 230KN
Wireline Hydraulic Winch	Rope capacity: 1600m Lifting force: 30KN Lifting speed: 110m/min Rope diameter: 6mm
Mast	Full height: 8.1m Drilling angle: 45-90° Slip stroke: 1200mm
Clamp (Hydraulic)	T75/89/115mm
Mud Pump (Hydraulic)	Model BW250
Crawler Chassis	Walking speed: 2-3km/h Climbing angle: 25°-30°
Dimensions (Transport)	5900×2100×2400mm
Weight	10000kg
