Name: 800m Deep Hydraulic Crawler Core Drilling Rig - RC800C Model
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Home > products > Water Well Drilling Machine >

800m Deep Hydraulic Crawler Core Drilling Rig - RC800C Model

800m deep core drilling rig

hydraulic crawler drilling rig

RC800C water well drill

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Request A Quote

Product Details

Name:

Water Well Drilling Machine

Model:

RCF800C

Geology Drilled:

All Kind

Drill System And Operation:

Hydraulic

Max Hole Depth:

800m

Hole Diameter:

140-500m

Diesel Engine:

154KW Cummins

Dimension:

6300×2300×2650mm

Highlight:

800m deep core drilling rig

hydraulic crawler drilling rig

RC800C water well drill

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

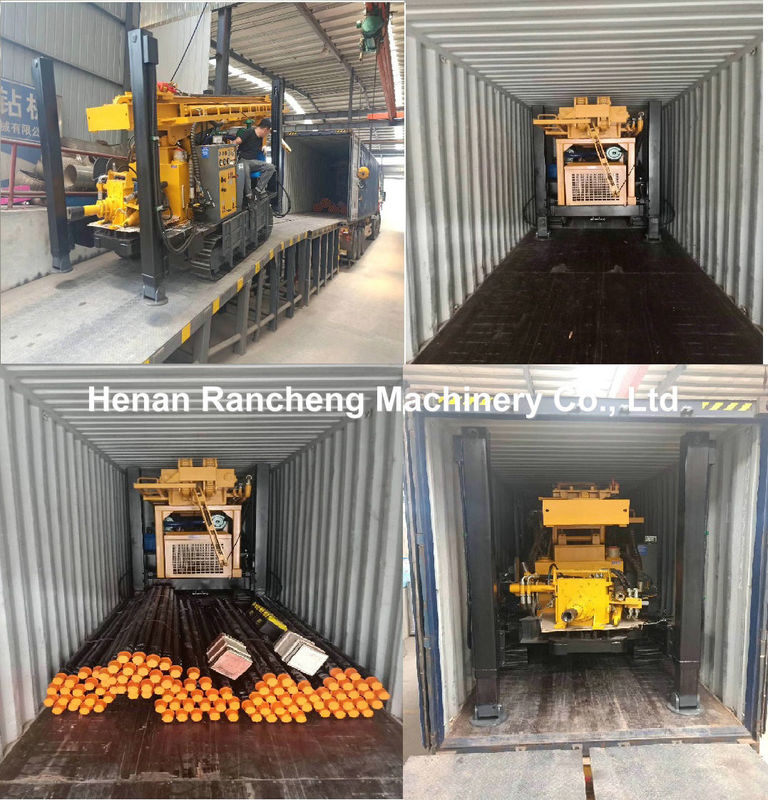

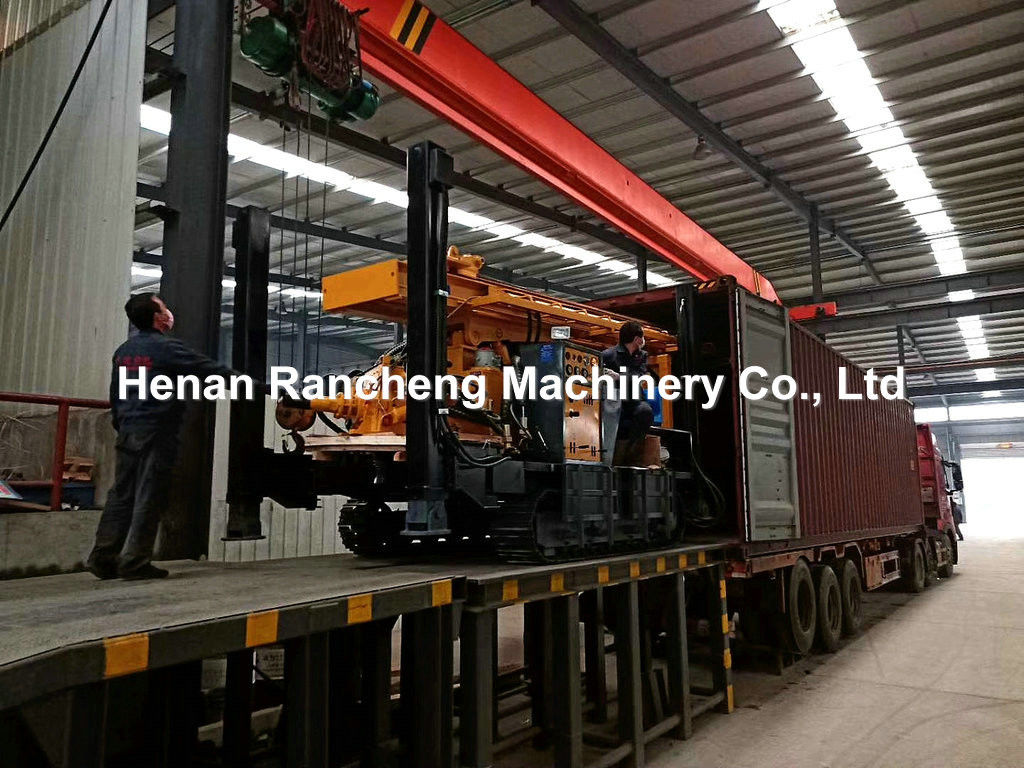

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

Get Best Price

Video

800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine

Get Best Price

Video

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

Get Best Price

Video

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation

Get Best Price

Contact Now

Product Description

800m Deep Hydraulic Crawler Core Drilling Rig - RC800C Model

Product Specifications

Attribute	Value
Name	Water Well Drilling Machine
Model	RCF800C
Geology Drilled	All kind
Drill System and Operation	Hydraulic
Max Hole Depth	800m
Hole Diameter	140-500mm
Diesel Engine	154KW Cummins
Dimension	6300×2300×2650mm

Powerful 800m Deep Hydraulic Crawler Core Drilling Rig

The RCF800C water well drilling rig is equipped with intelligent dual-pump hydraulic drive technology, which can automatically adjust the power output mode according to the working conditions, and significantly optimize the energy utilization rate while maintaining excellent drilling performance. The equipment adopts a fully hydraulic drive crawler walking system, combined with a special alloy reinforced chassis structure, showing excellent environmental adaptability and ultra-long service life, and is particularly suitable for exploration tasks under harsh geological conditions such as mountains and Gobi.

Technical Specifications

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Key Features

The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life
The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost
It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface
Big power ensures the deep drilling capability

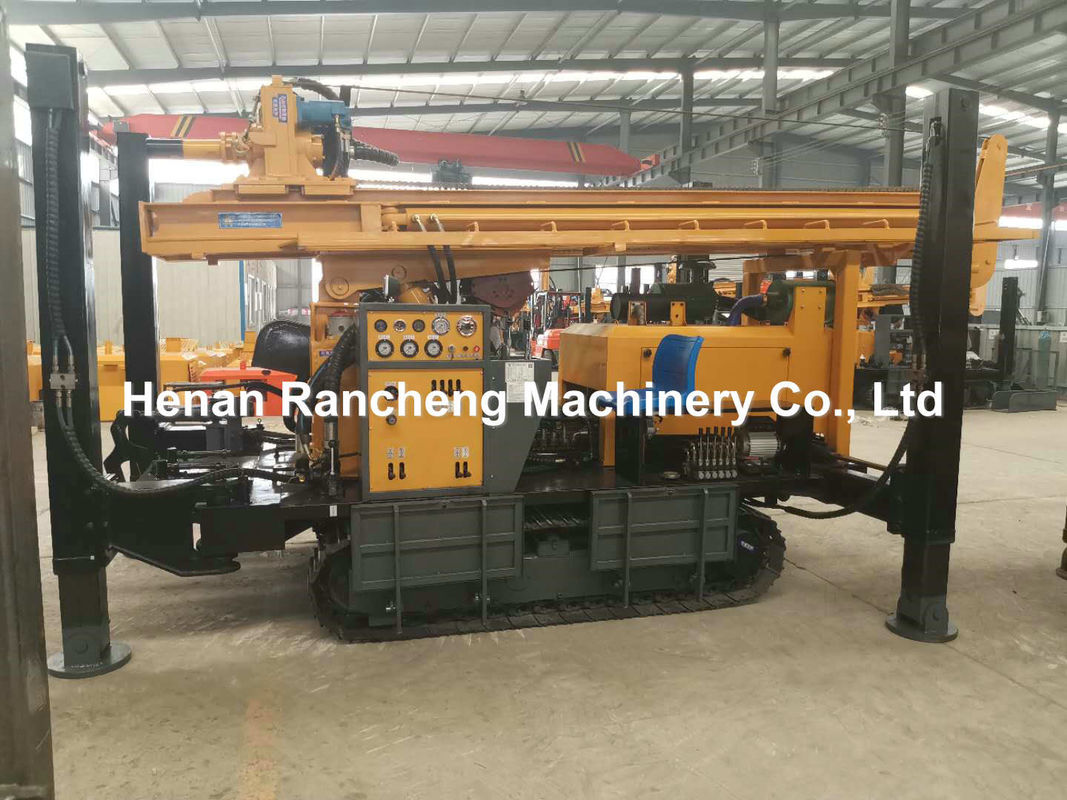

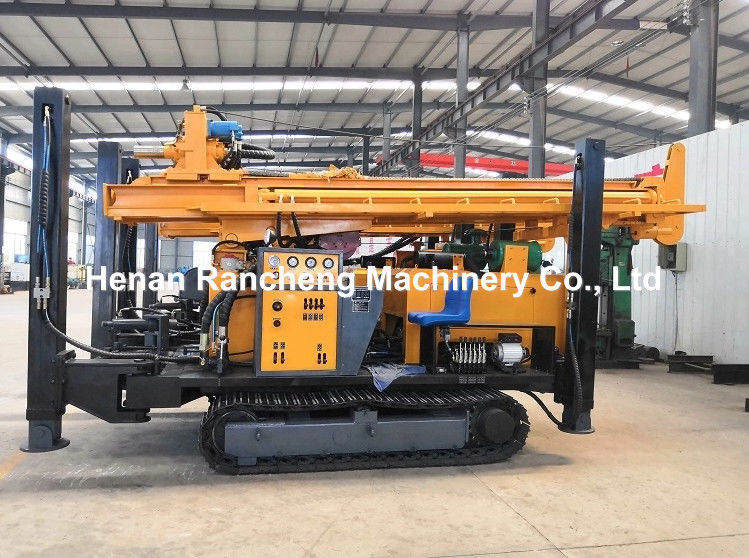

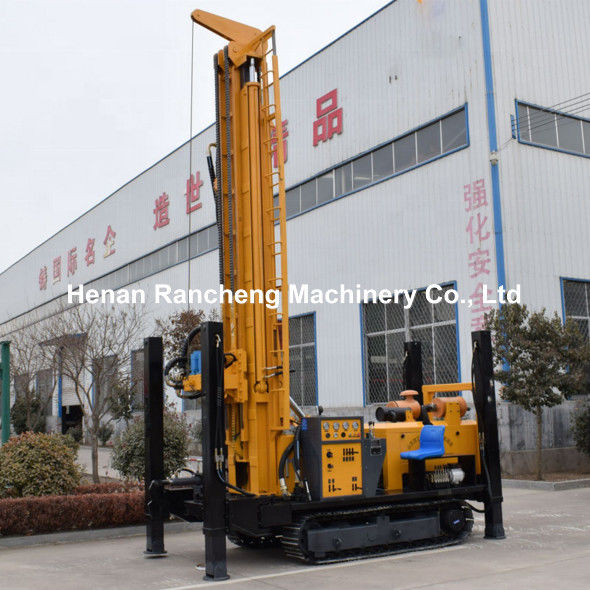

Product Gallery
