Name: RCQ-2D Digital Borehole Logging System with 400ms Power Supply Cycle
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-2D
Availability: InStock

Home > products > Geophysical Survey Equipment >

RCQ-2D Digital Borehole Logging System with 400ms Power Supply Cycle

Digital Borehole Logging System

RCQ-2D Geophysical Equipment

400ms Power Borehole Logging System

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-2D

Request A Quote

Product Details

Counting Channel:

F ≤ 500kHz

Underground Digital And Measurement Signal Transmission:

9600bit/s

Power Supply Cycle:

400ms

Current:

2mA-500mA Optional

Signal Input Range:

≤ ± 10V

Continuous Working Time:

≤ 24hr

Power Consumption:

<200W

Highlight:

Digital Borehole Logging System

RCQ-2D Geophysical Equipment

400ms Power Borehole Logging System

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 days

Payment Terms

T/T,Western Union

Supply Ability

100sets per Month

High Precision Submersible Water Level Meter with Stainless Steel Cable

Get Best Price

Video

Borehole Logging Equipment RCQ-2D Digital Logging System With JDX-2Dr Natural Gamma Electrical Resistivity Probe

Get Best Price

Video

High Precision Submersible Intelligent Water Level Meter Water Tank / Well Dedicated Sensor

Get Best Price

Video

300m Underground Water Exploration Detector Underground Water Finder

Get Best Price

Contact Now

Product Description

RCQ-2D Digital Borehole Logging System with 400ms Power Supply Cycle

Key Specifications

Attribute	Value
Counting Channel	f ≤ 500kHz
Underground Digital and Measurement Signal Transmission	9600bit/s
Power Supply Cycle	400ms
Current	2mA-500mA Optional
Signal Input Range	≤ ± 10V
Continuous Working Time	≤ 24hr
Power Consumption	<200W

Product Overview

The RCQ-2D is a digital data acquisition system designed for efficient field operations, compatible with multiple pipeline types and data acquisition curves. This advanced system simplifies control of heavy data acquisition probes while offering depth measurement and power supply functions.

Technical Features

Lightweight and portable design for easy field use and maintenance
Shockproof construction with high temperature and humidity resistance
High reliability with long Mean Time Between Failure (MTBF)
Oversampling technology for enhanced spatial resolution
Standard exporting packing for safe transportation
CE and ISO 9001:2000 certified

Technical Parameters

Operating Environment

Power supply: 220V, 50Hz. Ambient temperature: -20℃～45℃. Ambient humidity: ≤90% (45℃).

Depth Measurement System

Range: 0～9999.99 meters. Resolution: 0.28 mm. Speed measurement: 0～9999 meters/hour. Optical pulse signal: 3600 pulses/meter.

Signal Transmission System

Drilling output signal: bipolar encoding. Computer communication: RS232 or USB. Underground signal detection level: ±0.5V～±12V.

Graphic Processing

Depth calculation: 1:10, 1:50, 1:100. Drawing accuracy: 8 points/mm (curve); 64 pixels/mm² (image method).

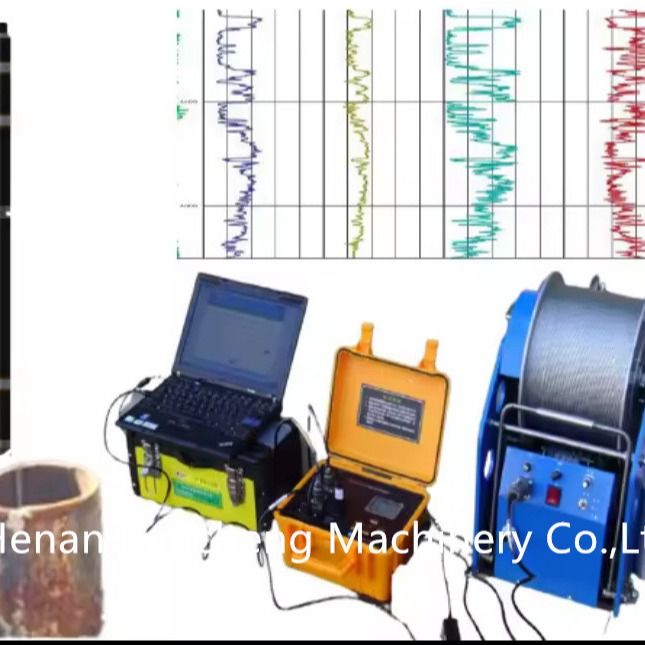

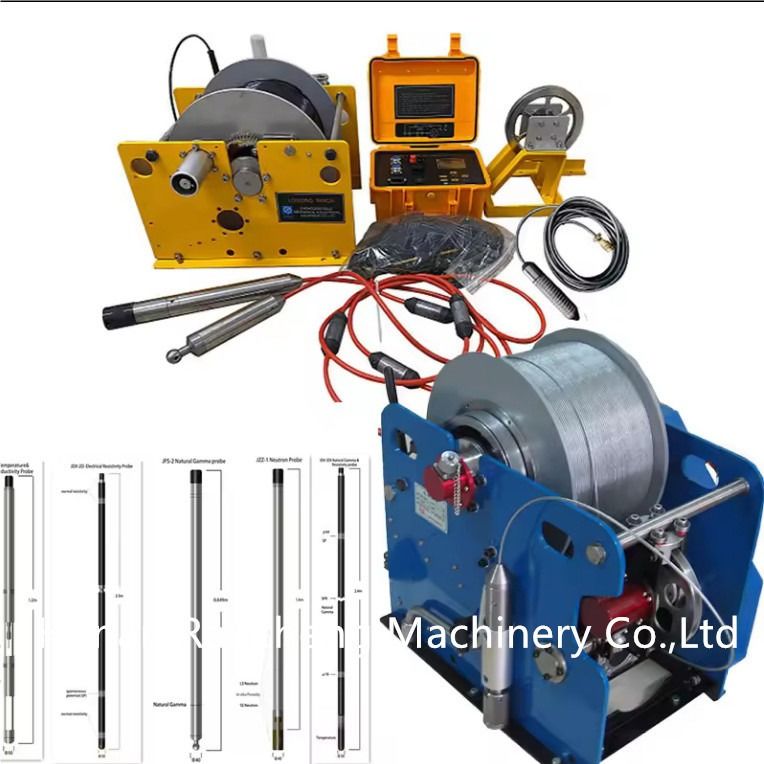

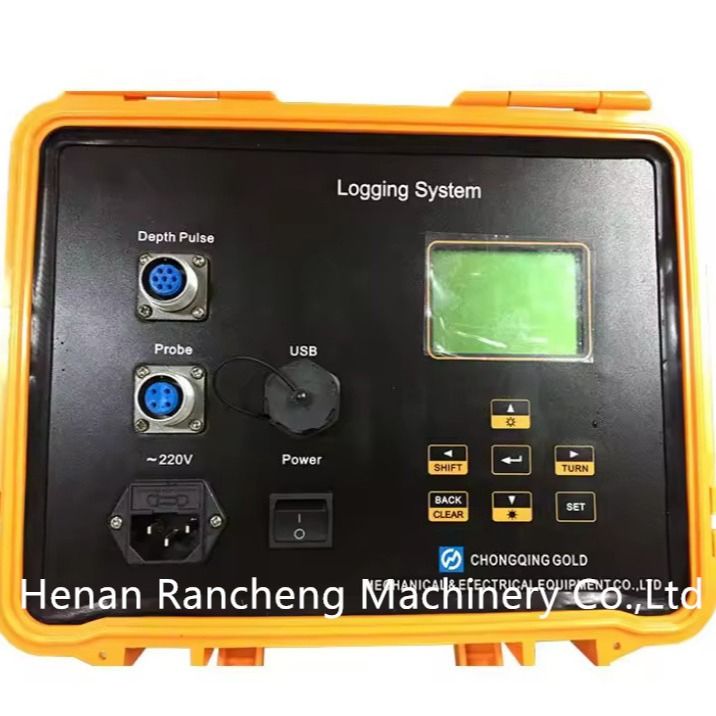

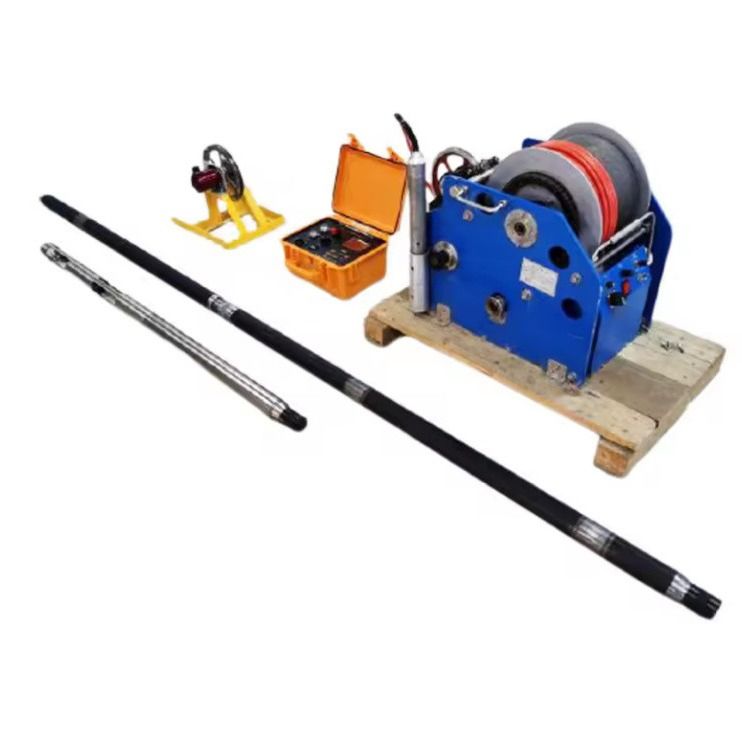

Product Images
