280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation

280m diesel water well drilling rig

CE certified hydraulic drilling machine

ISO certified irrigation drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF280C

Contact Us
Request A Quote
280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation
280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation
Product Details
Name:
Full Hydraulic Water Well Drilling Machine
Model:
RCF280C
Bore Depth:
280m
Bore Diameter（hammer）:
100-350mm
Pipe Diameter:
89mm/102mm
Pipe Length:
3m/6m
Max Torque Of Rotary:
7000-9000Nm
Diesel Engine:
75KW Yuchai Engine
Highlight:

280m diesel water well drilling rig

,

CE certified hydraulic drilling machine

,

ISO certified irrigation drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
US$ 27000-30000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine online Video

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

Get Best Price
Good price 800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine online Video

800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine

Get Best Price
Good price 280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power online Video

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

Get Best Price
Good price 280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation online Video

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation

Get Best Price
Contact Us
Contact Now
Product Description
280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation
Product Specifications
Attribute Value
Name Full Hydraulic Water Well Drilling Machine
Model RCF280C
Bore Depth 280m
Bore diameter (hammer) 100-350mm
Pipe diameter 89mm/102mm
Pipe length 3m/6m
Max torque of rotary 7000-9000Nm
Diesel engine 75KW Yuchai engine
Product Overview

The RCF280C deepwater water well drilling rig is a product independently developed by our company. This new generation of down-the-hole drilling rig plays a key role in improving drilling speed while achieving higher gas output.

The drilling rig adopts the latest model and advanced hydraulic technology, with the characteristics of:

  • Low energy consumption
  • Large rotation torque
  • Minimal deflection during construction
  • High-quality materials and compact design
  • Higher operating efficiency with lower failure rate
  • Economical and durable with outstanding cost performance
Technical Parameters
Parameter Value
Model RCF280C
Bore diameter (Hammer) 100-350mm
Bore depth 280m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 89mm/102mm
Pipe length 3m/6m
Lifting force 18T
Lifting speed 3m/min
Feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 7000-9000Nm
Rotary speed 40-70r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension (L×W×H) 4100×1900×2600mm
Weight 7000Kg
Diesel engine 70KW Yuchai engine
Applications

Our water well drilling machines are primarily used for:

  • Resource exploration and hydrology wells
  • Civil water wells
  • Agricultural irrigation projects
Product Gallery

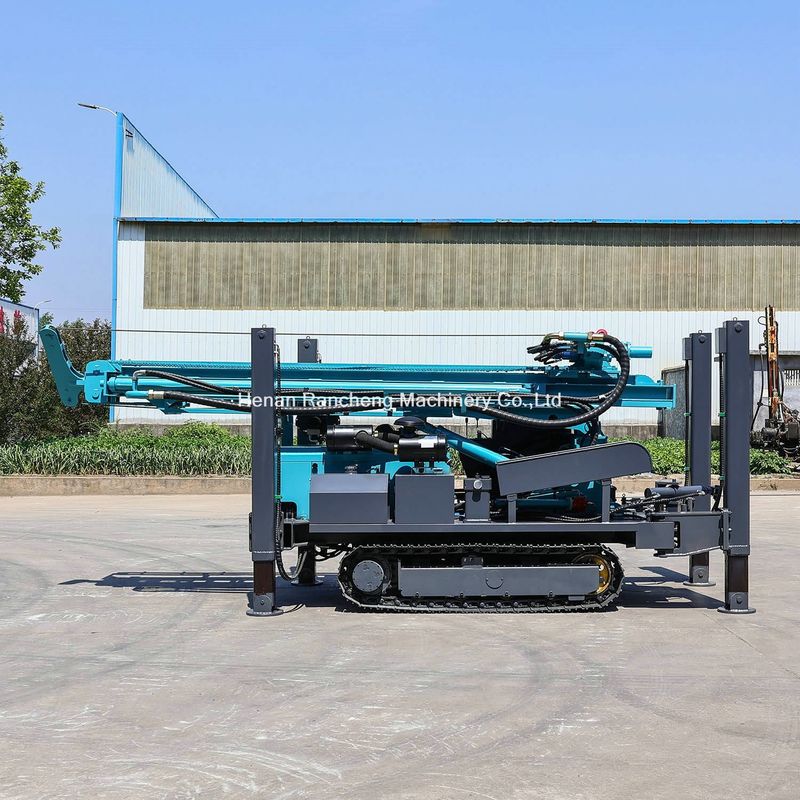

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 0

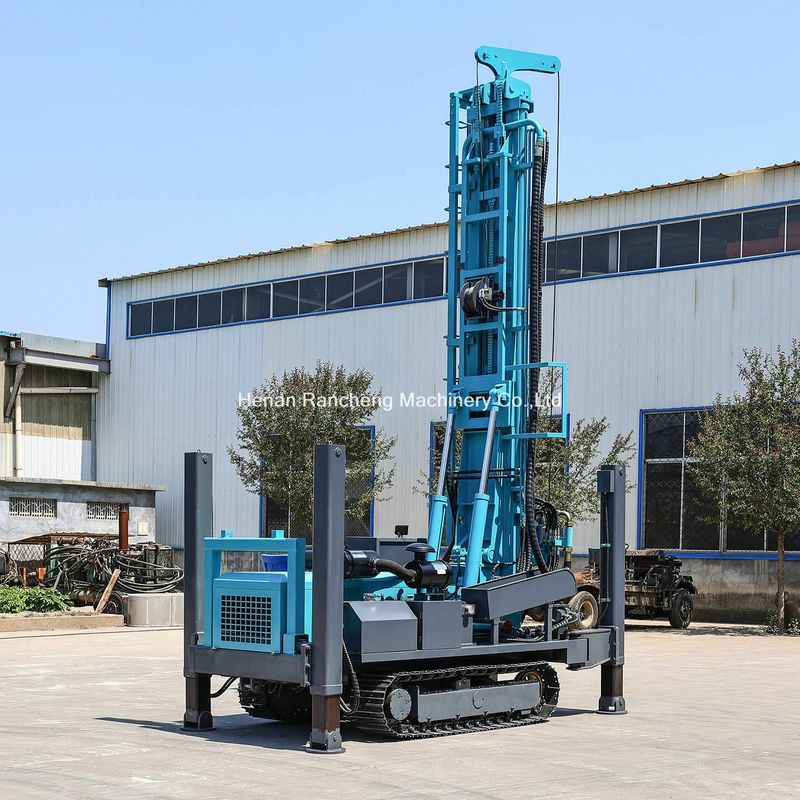

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 1

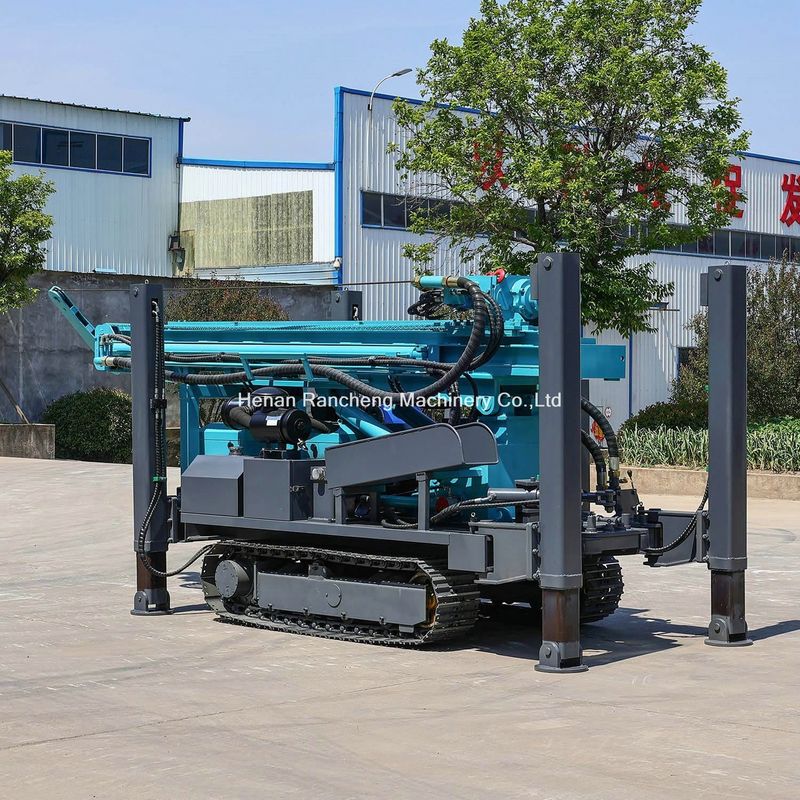

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 2

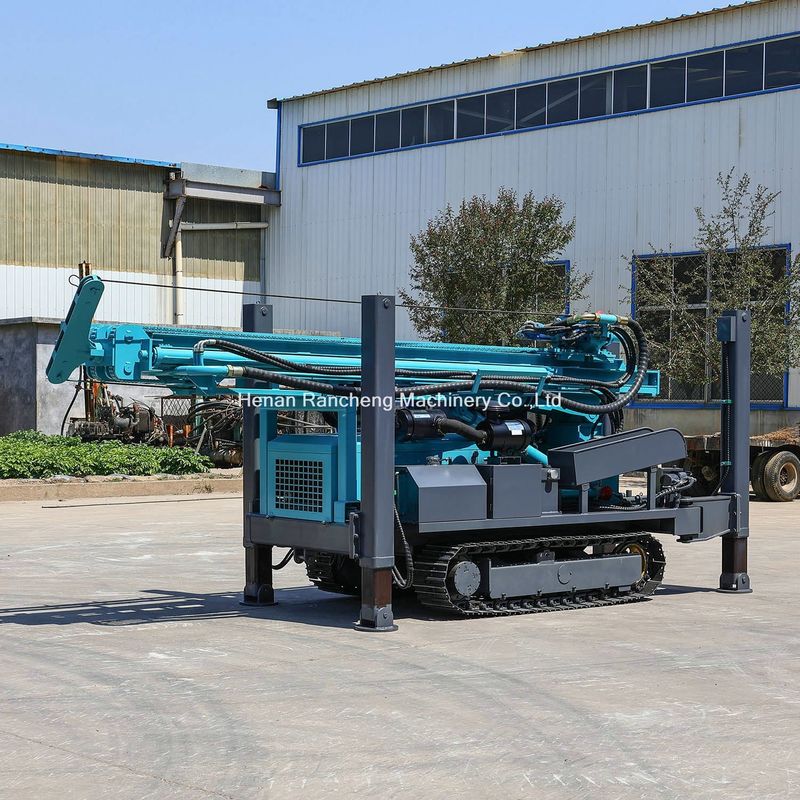

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 3

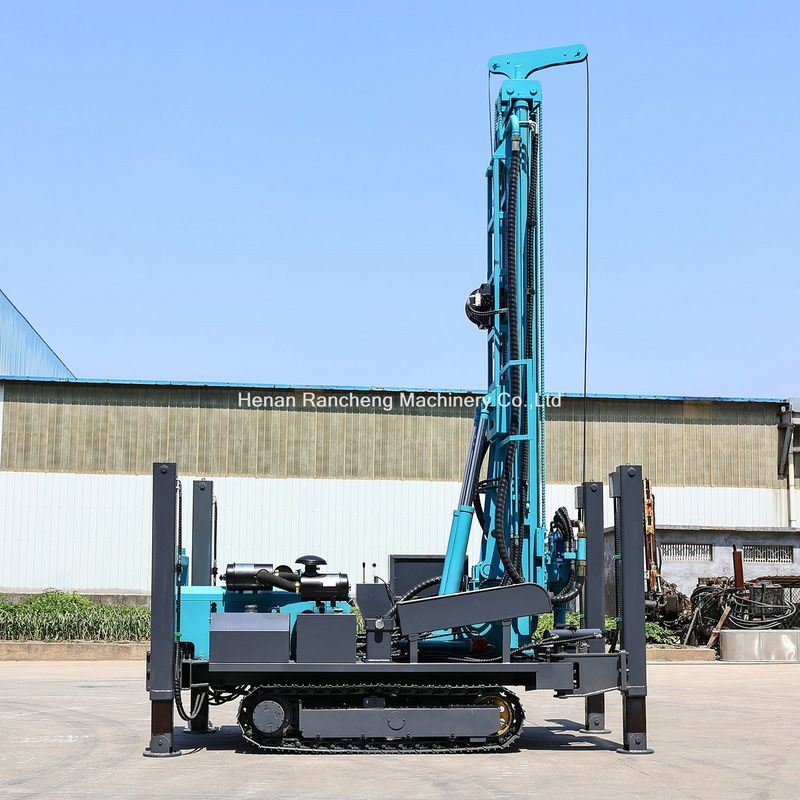

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation 4
