Name: Hydraulic Core Sampling Drilling Rig 600m-1000m Depth with NQ/BQ/HQ/PQ
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCJ1000C
Price: 50,000.00 USD
Availability: InStock

Home > products > Core Drilling Rig >

Hydraulic Core Sampling Drilling Rig 600m-1000m Depth with NQ/BQ/HQ/PQ

Hydraulic Core Sampling Rig

600m-1000m Depth Drilling Rig

NQ BQ HQ PQ Core Drill

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ1000C

Request A Quote

Product Details

Name:

Core Drilling Rig

Model:

RCJ1000C

Diesel Engine Model:

Yuchai Engine 6 Cylinders 118KW

Max Torque:

2600N.m

Transport:

5600*2000*2400mm

Weight:

7300kg

Highlight:

Hydraulic Core Sampling Rig

600m-1000m Depth Drilling Rig

NQ BQ HQ PQ Core Drill

Payment & Shipping Terms

Minimum Order Quantity

Price

USD48000-USD52000

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining

Get Best Price

Video

Fully Hydraulic Pneumatic Diamond Core Drilling Rig For Soil Sampling And Mining 154KW Cummins Engine

Get Best Price

Video

Hydraulic Core Drilling Rig RCJ1600C Drill Depth1400-1800m With 154KW Cummins Engine

Get Best Price

Video

Crawler Mounted Hydraulic Core Drilling Rig RCJ1600C Full Hydraulic Machine With 154KW Cummins Engine

Get Best Price

Contact Now

Product Description

Hydraulic Core Sampling Drilling Rig 600m-1000m Depth with NQ/BQ/HQ/PQ

Product Overview

Attribute	Value
Name	Core Drilling Rig
Model	RCJ1000C
Diesel engine model	Yuchai engine 6 cylinders 118KW
Max torque	2600N.m
Transport dimensions	5600×2000×2400mm
Weight	7300kg

Product Description

This series of fully hydraulic core drilling rigs represents our company's latest innovation, developed by integrating advanced domestic and international drilling technologies. The rig features:

Full hydraulic drive system with axial piston pump and bevel piston motor for power head rotation
Two-stage mechanical gears with stepless speed regulation
Cylinder chain dual-speed feed mechanism for smooth, reliable movement
Lateral translation mechanism for enhanced maneuverability
Overall lifting and sliding cylinder mast with 0-90° drilling capability
Load-sensitive hydraulic control system for high efficiency and large torque
Hydraulic wooden horse grippers and leveling legs for rapid positioning
Wireless remote control crawler system for safe operation on various terrains

Technical Specifications

Working Parameters
Working stratum	Loose soil layer and bed rock (hardness: F6~20)
Drilling capacity (BTW)	1400m
Drilling capacity (NTW)	1200m
Drilling capacity (HTW)	1000m
Drilling capacity (PQ)	800m
Hydraulic System
Rated pressure	32+16 Mpa
Cooling system	Secondary air cooling plus primary water cooling
Power System
Diesel engine model	Yuchai engine 6 cylinders
Rated power	118KW
Rated speed	2300rpm
Rotary Head
Max torque	2600N.m
Max rotary speed	1400rpm
Feeding stroke	3.5m
Through-hole diameter	95mm
Lifting force	360KN
Feeding force	180KN
Wireline Hydraulic Winch
Rope capacity	1200m
Lifting force	24KN
Lifting speed	110m/min
Rope diameter	8mm
Mast Specifications
Full height	7.9m
Drilling angle	0-90°
Slip Stroke	1200mm
Clamp System
Through-hole diameter	130mm
Mud Pump
Model	BW160/10
Type	Horizontal three cylinder reciprocating single acting piston pump
Cylinder diameter	70mm
Stroke	70mm
Pump speed (times/min)	200 \| 132 \| 83 \| 55
Flow (L/min)	160 \| 107 \| 67 \| 44
Pressure (Mpa)	2.5 \| 4 \| 6.5 \| 10
Outlet pipe diameter	32mm
Inlet pipe diameter	51mm
Crawler Chassis
Walking speed	0~2km/h
Climbing angle	25°-30°

Applications

This drilling rig is primarily designed for:

Solid mineral deposit exploration
Engineering geology surveys
Shallow oil and natural gas drilling
Groundwater exploration
Tunnel ventilation and drainage hole drilling
Dam grouting operations

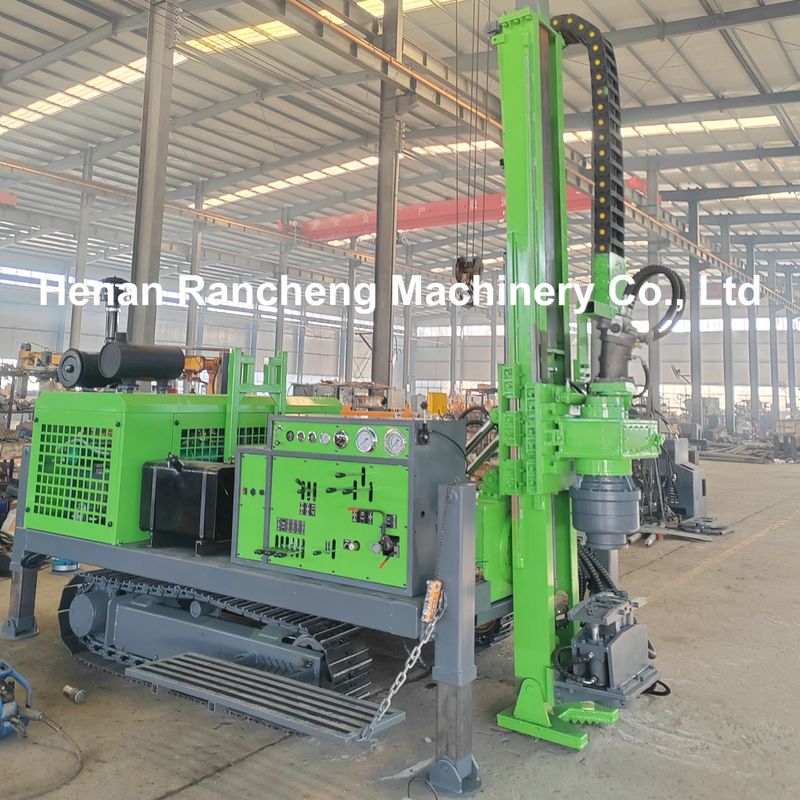

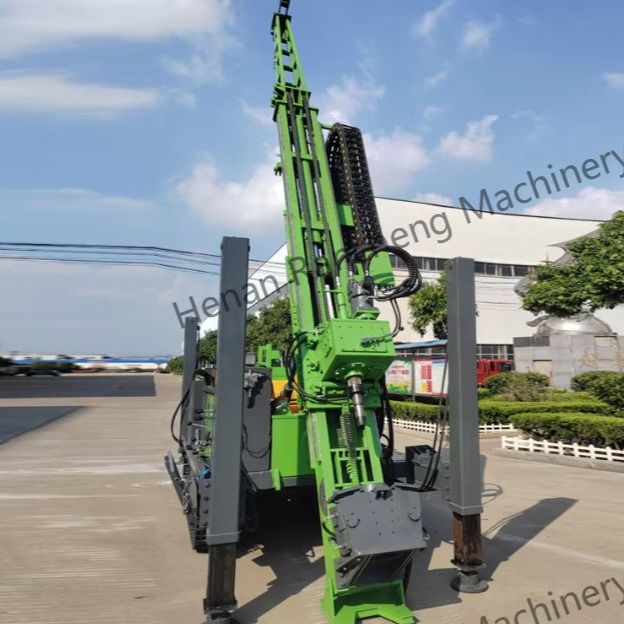

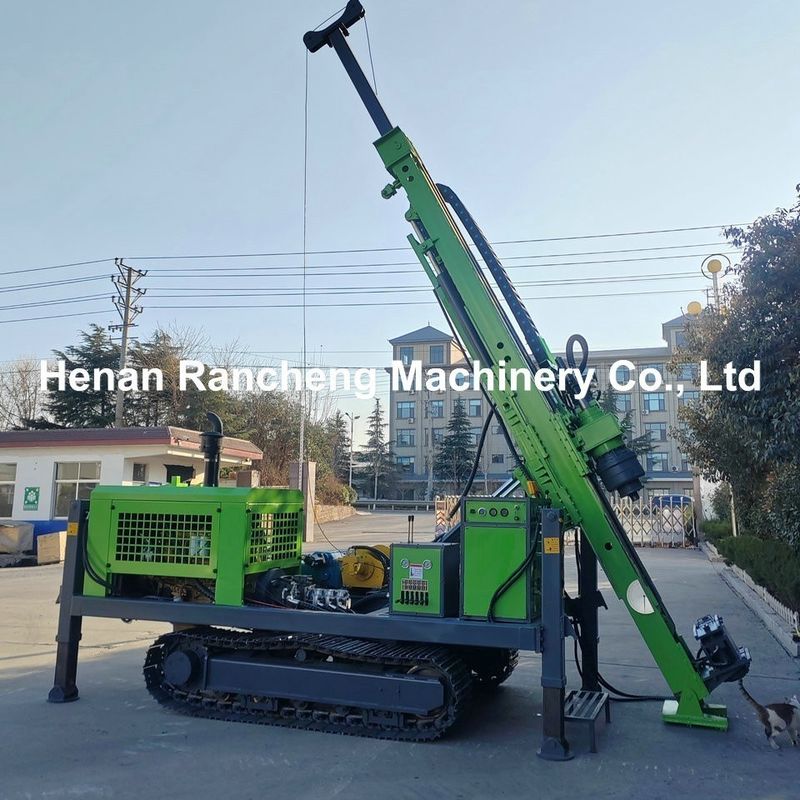

Product Images
