Name: Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW160
Price: 2380 USD
Availability: InStock

Home > products > Drilling Mud Pump >

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Single Cylinder Mud Pump

160L/Min Piston Pump

1.3MPa Drilling Pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW160

Request A Quote

Product Details

Model:

BW160

Flow Rate:

160L/min

Pressure:

1.3 Mpa

Transmission Power:

5.5KW

Frequency Of Stroke:

147 Times/min

Highlight:

Single Cylinder Mud Pump

160L/Min Piston Pump

1.3MPa Drilling Pump

Payment & Shipping Terms

Minimum Order Quantity

Price

USD2380

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Get Best Price

Video

185KW Power 7MPa Maximum Pressure Drilling Mud Pump For Water Well Drilling

Get Best Price

Video

185KW Power 7MPa Maximum Pressure Drilling Mud Pump For 1000m Deep Water Well Projects 7200kg

Get Best Price

Video

Diesel Engine Type Mud Pump Max 600L/Min Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump

Get Best Price

Contact Now

Product Description

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Product Specifications

Attribute	Value
Model	BW160
Flow rate	160L/min
Pressure	1.3 MPa
Transmission power	5.5KW
Frequency of stroke	147 times/min

Product Overview

The BW160 mud pump is a single cylinder piston pump with single cylinder diesel engine, featuring first gear constant speed operation. With a flow rate of 160L/min and maximum pressure of 1.3MPa, this mud pump is primarily designed for drilling projects.

Technical Parameters

Parameter	Value
Model No.	BW160
Cylinder diameter	95mm
Piston Stroke	90mm
Frequency of stroke	147 times/min
Flow rate	160 L/min
Pressure	1.3 MPa
Power input	5.5 kW
Diameter of suction pipe	50mm
Diameter of discharge pipe	40mm
Overall dimensions (L×W×H)	850×600×550mm
Weight	130kg

Key Features

Compact design with small volume and light weight
Simple operation and easy relocation
Capable of transporting mud with sand content less than 5% or other liquids with pH value of about 7-8

Applications

The BW160 mud pump is a portable unit primarily designed to match with small-diameter geological exploration and engineering exploration drilling rigs with drilling depth of less than 300m.

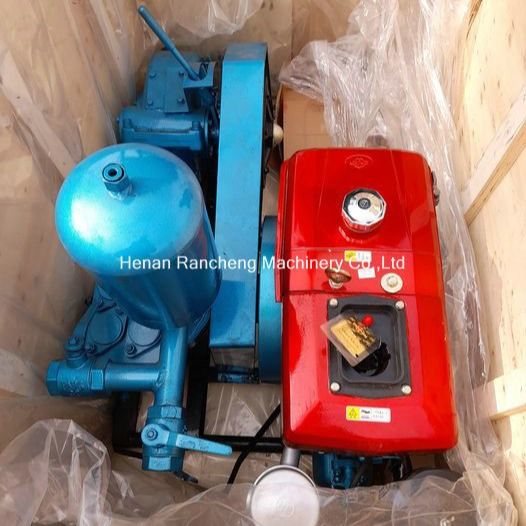

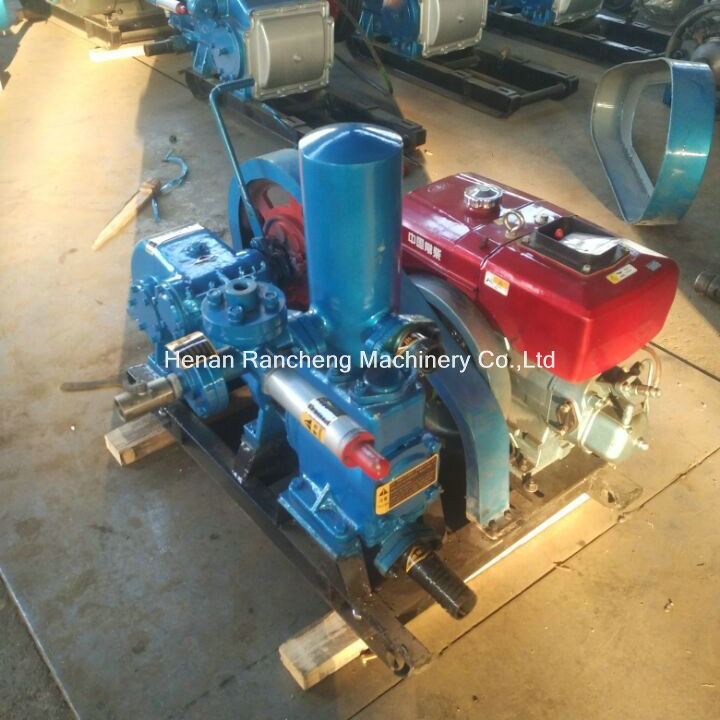

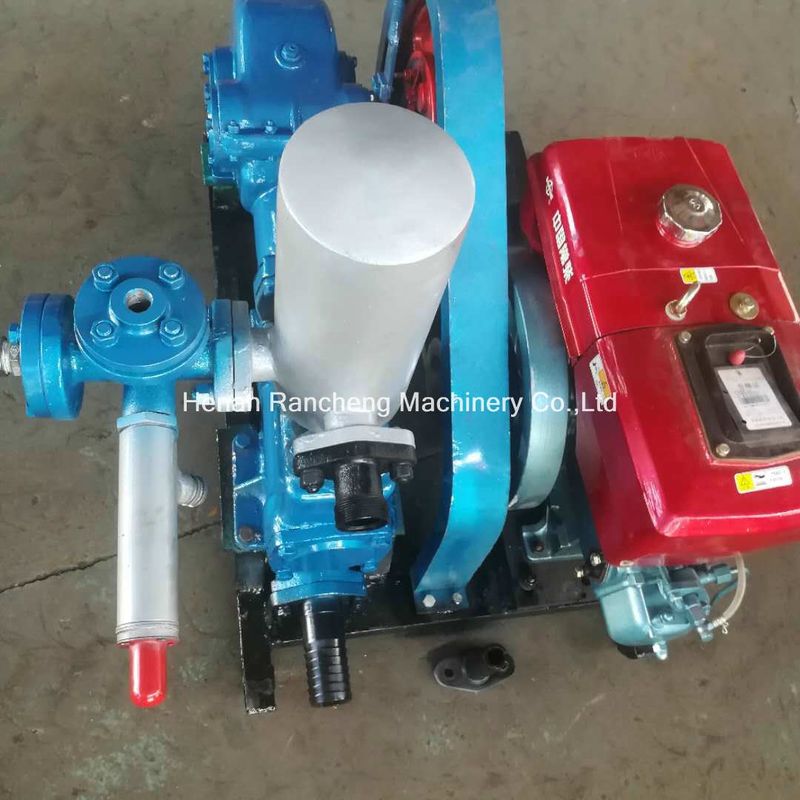

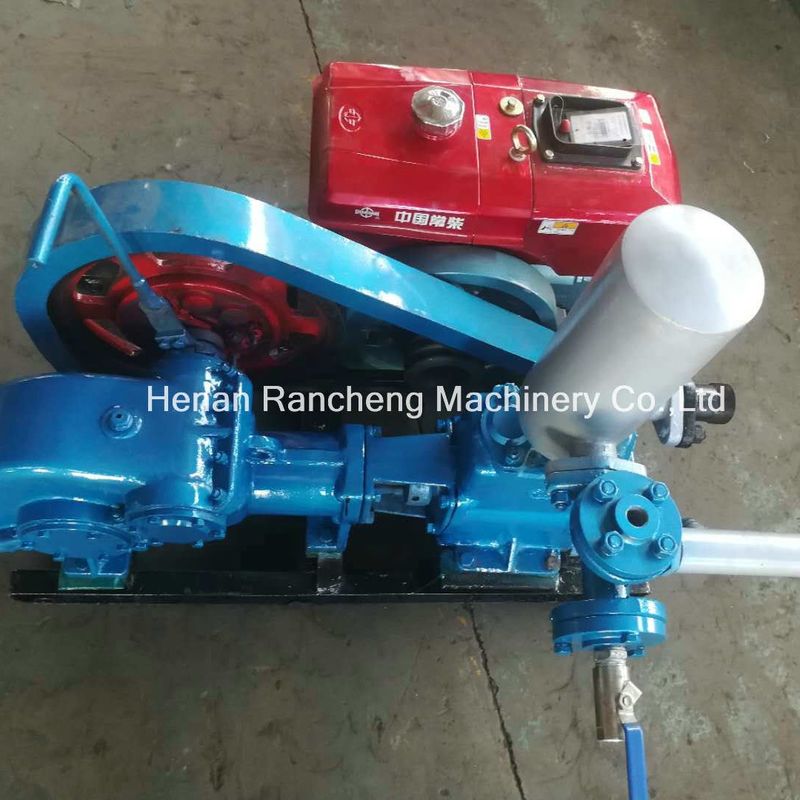

Product Images
