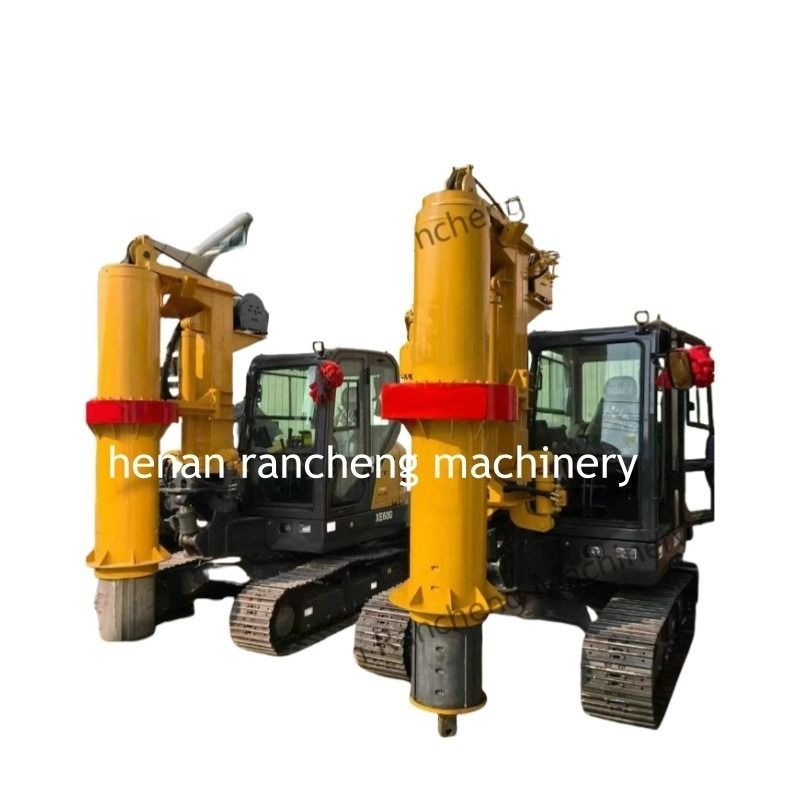

Name: RCQ-10C Mini Hydraulic Rotary Piling Rig with Kubota Diesel Engine 36KW
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-10C
Availability: InStock

Home > Products > Rotary Drilling Rig >

RCQ-10C Mini Hydraulic Rotary Piling Rig with Kubota Diesel Engine 36KW

Mini Hydraulic Rotary Piling Rig

Kubota Diesel Engine Piling Rig

36KW Rotary Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-10C

Request A Quote

Product Details

Model:

RCQ-10C

Name:

Mini Rotary Piling Rig

Depth:

10m

Diameter:

1000mm

Machine Weight:

9.3T

Chassis Width(mm):

2000

Highlight:

Mini Hydraulic Rotary Piling Rig

Kubota Diesel Engine Piling Rig

36KW Rotary Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Bored Piling Rotary Drilling Rig 95KW Yuchai Engine 15m Piling Depth

Get Best Price

Video

Engineering Equipment RCQ530 Rotary Drilling Rig Crawler Type Machine

Get Best Price

Video

20m Drilling Depth Hydraulic Rotary Well Drilling Rig 205 Horsepower Diesel Engine

Get Best Price

Video

20m Rotary Drilling Rig Intelligent Operation And Display Point And Touch Control Panel Drilling Rig

Get Best Price

Contact Now

Product Description

RCQ-10C Mini Hydraulic Rotary Piling Rig with Kubota Diesel Engine 36KW

Product Attributes

Attribute	Value
Model	RCQ-10C
Name	mini rotary piling rig
Depth	10m
Diameter	1000mm
Machine weight	9.3T
Chassis width (mm)	2000

Product Description

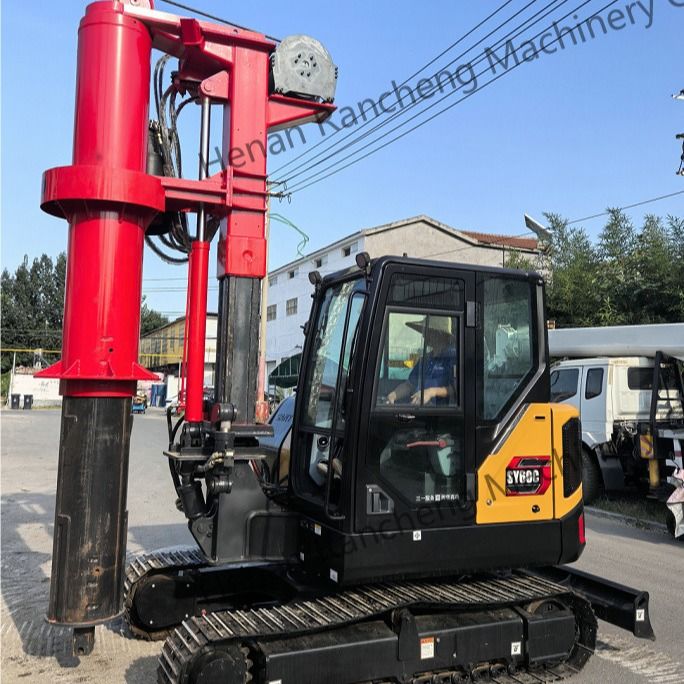

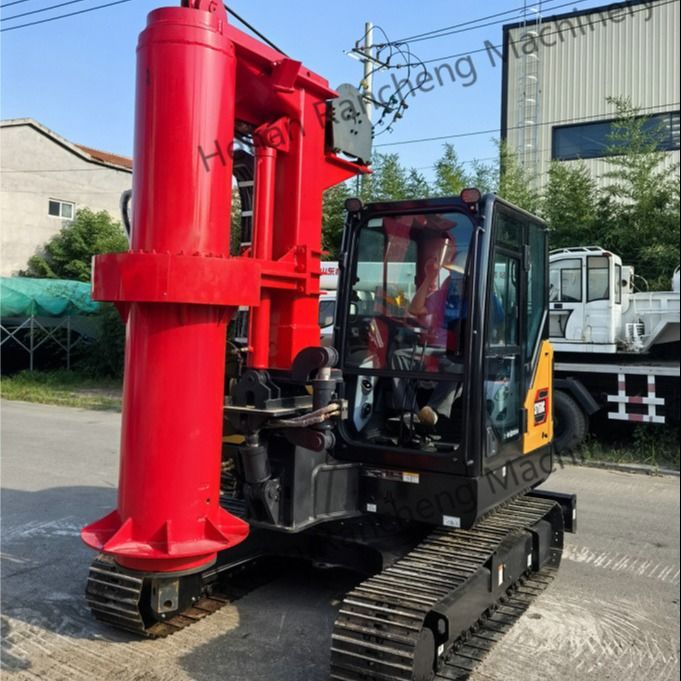

The RCQ-10C is a compact and efficient hydraulic rotary drilling rig designed for a variety of drilling and piling operations. It is equipped with a 36 kW Kubota V2607-DI-T0CF21 diesel engine, which provides reliable and stable performance even in harsh environments.

The drilling depth reaches 10 meters with a diameter range of 300 to 1000 mm, meeting the needs of various projects. The rig uses the Sany SY60C excavator chassis to ensure stability and maneuverability.

Key features include:

Rotary drilling bit with torque of 35 kN*m
Stroke of 1100 mm and speed of 10-45 rpm
Rated lifting force of 27 kN and thrust of 25 kN
Main winch with rated lifting force of 38 kN
Auxiliary winch with maximum load of 14 kN
Travel speed of 3 km/h with ability to overcome slopes up to 30°

With a weight of 9.3 tons and transport dimensions of 3450 × 2025 × 3400 mm, the RCQ-10C is compact and easy to transport. It provides construction teams with a high-performance, easy-to-operate, and cost-effective solution for complex drilling environments and limited spaces.

Technical Parameters

Parameter	Value
Model	RCQ-10C
Drilling depth (m)	10m
Drilling diameter (mm)	300-1000mm
Chassis	Sany SY60C excavator
Diesel engine	Kubota engine V2607-DI-T0CF21 36KW
Rotary head
Power head torque (KN.m)	35KN.m
Rotary head travel distance	1100mm
Rotary speed (r/min)	10-45RPM
Rated lifting force	27KN
Rated pushing force	25KN
Winch
Main winch rated lifting force	38KN
Assisting winch rated lifting force	14KN
Chassis
Travel speed	3km/h
Max climbing gradient	30°
Chassis width	2000mm
Machine weight	9.3T
Machine transportation dimension	3450X2025X3400mm
