Name: Full Hydraulic RCQ-10W Piling Rig - 10m Depth, 2200 R/Min Rotary Speed
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-10W
Price: 21800 USD
Availability: InStock

Home > Products > Rotary Drilling Rig >

Full Hydraulic RCQ-10W Piling Rig - 10m Depth, 2200 R/Min Rotary Speed

Full Hydraulic Piling Rig

10m Depth Piling Rig

2200 R/Min Rotary Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-10W

Request A Quote

Product Details

Name:

Hydraulic Piling Rig

Model:

RCQ-10W

Piling Hole Depth:

10m

Traveling Speed:

40km/h

Highlight:

Full Hydraulic Piling Rig

10m Depth Piling Rig

2200 R/Min Rotary Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

USD21800

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Bored Piling Rotary Drilling Rig 95KW Yuchai Engine 15m Piling Depth

Get Best Price

Video

Engineering Equipment RCQ530 Rotary Drilling Rig Crawler Type Machine

Get Best Price

Video

20m Drilling Depth Hydraulic Rotary Well Drilling Rig 205 Horsepower Diesel Engine

Get Best Price

Video

20m Rotary Drilling Rig Intelligent Operation And Display Point And Touch Control Panel Drilling Rig

Get Best Price

Contact Now

Product Description

Full Hydraulic RCQ-10W Piling Rig - 10m Depth, 2200 R/Min Rotary Speed

Key Attributes

Name	Hydraulic Piling Rig
Model	RCQ-10W
Piling hole depth	10m
Traveling speed	40km/h

Product Overview

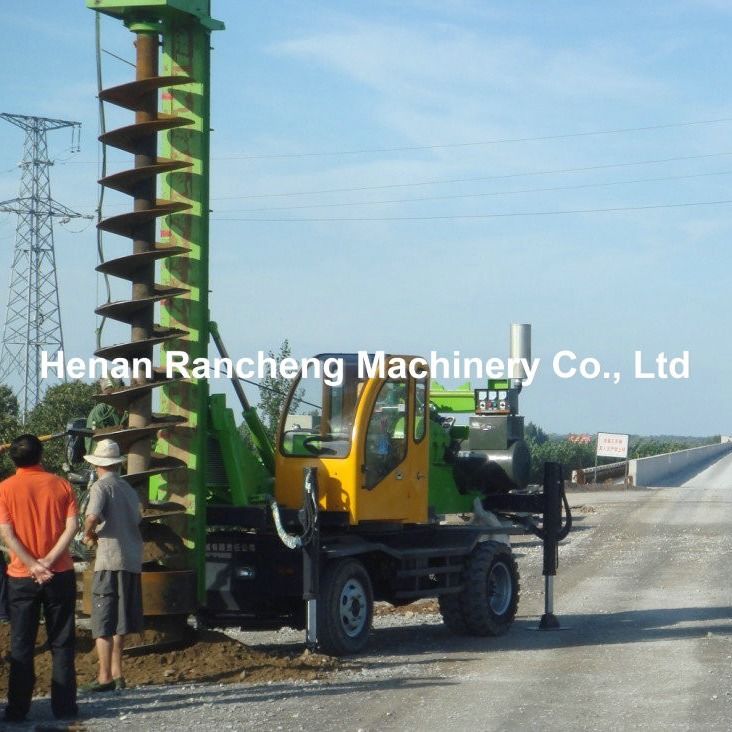

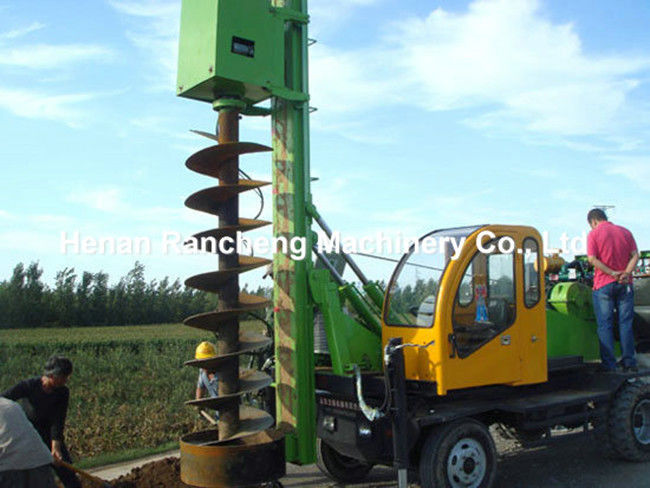

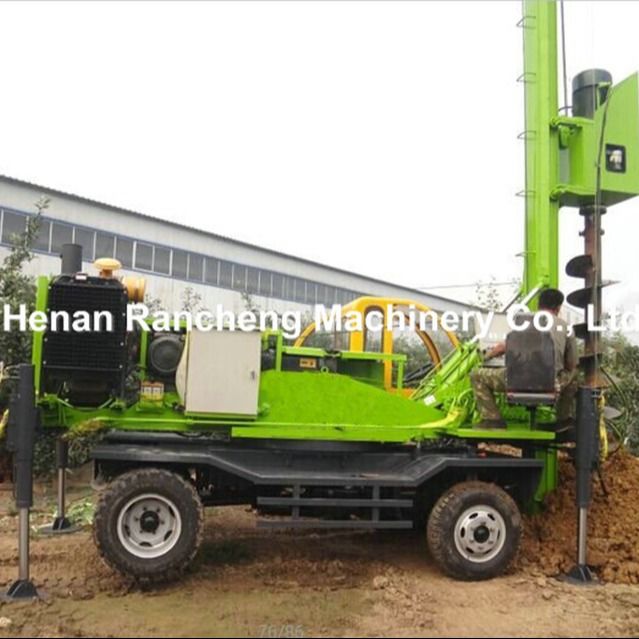

The RCQ-10W is a small hydraulic wheel pile foundation drilling rig with a drilling depth of 11 meters. Equipped with drilling tools of various specifications, it can achieve pile hole diameters ranging from 100-800 mm. This drilling rig offers high efficiency and can be quickly transported between construction sites, making it flexible, convenient, and efficient. It is specially designed for national high-speed railway construction projects.

Technical Specifications

Vehicle Parameters
Dimensions	mm	7300×2100×2850
Minimum gap	mm	230
Wheel track	mm	Front 1860, back 1920
Wheelbase	mm	2650
Upright height	mm	7500
Telescopic trajectory	mm	800
Total weight	kg	6500
Tire size	-	Front 700-16, back 750-16
Traveling speed	km/h	40
Gradeability	°	25
Diesel Engine
Model	-	Quanchai 485
Power	kw	34
Rotary speed	r/min	2200
Generator Set
Power	kw	40-50
Hydraulic System
Wedge pressure	mpa	16-20
Outrigger pressure	mpa	16-20
Max pressure	mpa	20
Main pump flow	l/min	32
Working Range
Piling hole diameter	mm	100-800
Piling hole depth	m	6-10
Drill pipe speed	r/min	40-65
Drill pull force	KN	100
Rotation angle	°	360

Performance Features

360° rotation capability on both upper and lower frames with 80cm sliding range, eliminating dead zones
High piling speed - averages 3 minutes per 6m deep hole
Remote control operation for easier handling
Dual walking modes: Hydraulic power walking and generator-assisted walking
Components sourced from reputable manufacturers ensuring quality and reliability

Applications

This piling rig is suitable for various soil conditions including clay, fill, silt, silt sand layer, and some strata containing pebbles and gravel. It is widely used in:
