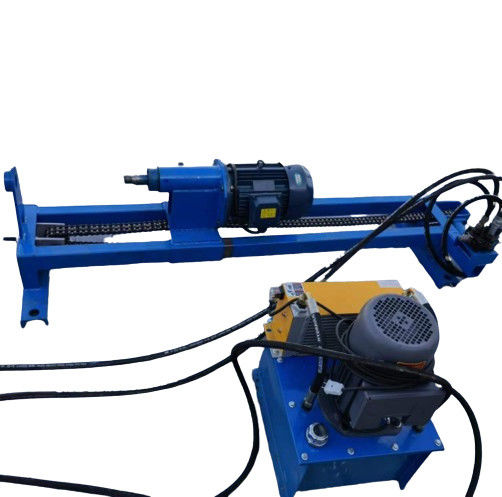

Hydraulic Thrust Boring Machine 40m Drilling Depth 380V/50Hz 5.5KW

Hydraulic Thrust Boring Machine 40m Drilling Depth 380V/50Hz 5.5KW

Hydraulic Thrust Boring Machine

40m Drilling Depth Machine

380V 5.5KW Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCHD-40E

Contact Us
Request A Quote
Hydraulic Thrust Boring Machine 40m Drilling Depth 380V/50Hz 5.5KW
Hydraulic Thrust Boring Machine 40m Drilling Depth 380V/50Hz 5.5KW Hydraulic Thrust Boring Machine 40m Drilling Depth 380V/50Hz 5.5KW Hydraulic Thrust Boring Machine 40m Drilling Depth 380V/50Hz 5.5KW Hydraulic Thrust Boring Machine 40m Drilling Depth 380V/50Hz 5.5KW
Product Details
Model:
RCHD-40E
Pump Station Power:
380V/50HZ ,3KW
Drilling Rig Power (Electricity):
380V/50Hz,5.5KWKW
Max Drilling Diameter:
500mm
Max Drilling Distance:
40m
Drilling Rig Weight:
150KGS
Pump Station Weight:
65KGS
Highlight:

Hydraulic Thrust Boring Machine

,

40m Drilling Depth Machine

,

380V 5.5KW Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD2480
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Efficient Small Hydraulic Thrust Boring Machine For 60-80m Depth Applications online Video

Efficient Small Hydraulic Thrust Boring Machine For 60-80m Depth Applications

Get Best Price
Good price Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine online Video

Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine

Get Best Price
Good price 60-80m Depth Small Hydraulic Thrust Boring Machine With 32HP Diesel Engine online Video

60-80m Depth Small Hydraulic Thrust Boring Machine With 32HP Diesel Engine

Get Best Price
Good price 60m Depth 32HP Diesel Engine Underground Horizontal Boring Machine Hdd Drilling Machine online Video

60m Depth 32HP Diesel Engine Underground Horizontal Boring Machine Hdd Drilling Machine

Get Best Price
Contact Us
Contact Now
Product Description
Hydraulic Thrust Boring Machine 40m Drilling Depth 380V/50Hz 5.5KW
Product Specifications
Attribute Value
Model RCHD-40E
Pump station power 380V/50HZ, 3KW
Drilling rig Power (Electricity) 380V/50Hz, 5.5KW
Max Drilling Diameter 500mm
Max Drilling Distance 40m
Drilling rig weight 150KGS
Pump station weight 65KGS
Product Overview

The small underground pipe jacking machine features an automatic walking design and automatic pull-back function. The main machine is integrated with the gearbox, making it a dedicated solution for water conservancy projects.

Key advantages include:

  • Compact and flexible design for efficient operation
  • Significantly improved working efficiency compared to conventional hydraulic pipe jacking machines
  • Typical soil layer jacking speed of 1 meter/5 seconds (10x faster than standard hydraulic pipe jacking)
  • High-strength water injection top rod reduces friction during operation
  • Alloy drill bit capable of penetrating rocks, floor slabs, and non-metallic solid objects
Technical Parameters
Parameter Value
Drilling bit size 40-500mm (multiple options available)
Drilling Rig Weight 150kg
Main Structure Double-acting hydraulic cylinders, hydraulic pump station, supporting plates, and push/pull mechanism
Drilling pipe size 36mm, 1m/pc
Drilling rig size 1900×550×300mm
Applications

This specialized pipe jacking machine is widely used in:

  • Natural gas and water pipeline transformations
  • Sewage engineering and small wastewater treatment projects
  • Trenchless pipeline installations
  • Road water pipeline modifications

The machine excels in fast drilling operations and can handle hard soil layers with ease, making construction projects more efficient and labor-saving.

Support & Services
  • 24/7 customer support via online chat and phone
  • Lifelong free technical support
  • Optional overseas engineer dispatch service
Shipping Information

Standard export packaging with delivery time of 10-15 working days after payment confirmation.

Frequently Asked Questions
Are you the manufacturer?

Yes, we are the factory with more than 10 years of manufacturing experience.

What is the warranty of our machine?

Our main machine enjoys a 1 year warranty. We provide installation and operation videos.

How long is your delivery time?

Approximately 10-15 work days after receipt of payment.

Do you have any certificates for your machine?

All products come with CE and ISO 9001:2000 certifications.
