Name: RC800C Hydraulic Water Well Drilling Rig for 800m Deep Industrial Use
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Home > Products > Water Well Drilling Machine >

RC800C Hydraulic Water Well Drilling Rig for 800m Deep Industrial Use

800m deep water well drilling rig

hydraulic water well drilling machine

industrial water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Request A Quote

Product Details

Name:

Water Well Drilling Machine

Model:

RCF800C

Geology Drilled:

All Kind

Drill System And Operation:

Hydraulic

Max Hole Depth:

800m

Hole Diameter:

140-500m

Diesel Engine:

154KW Cummins

Dimension:

6300×2300×2650mm

Highlight:

800m deep water well drilling rig

hydraulic water well drilling machine

industrial water well drilling rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Upgrade RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm For Water Borehole Drilling

Get Best Price

Video

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack

Get Best Price

Video

Fully hydraulic 800-meter water well drilling rig

Get Best Price

Video

Upgrade RCF350C Water Well Drilling Machine With Drill Rod Rack For Water Borehole Drilling

Get Best Price

Contact Now

Product Description

RC800C Hydraulic Water Well Drilling Rig for 800m Deep Industrial Use

Product Specifications

Attribute	Value
Name	Water Well Drilling Machine
Model	RCF800C
Geology Drilled	All kind
Drill System and Operation	Hydraulic
Max Hole Depth	800m
Hole Diameter	140-500m
Diesel Engine	154KW Cummins
Dimension	6300×2300×2650mm

Machine Introduction

The RCF800C water well drilling rig features innovative dual-pump smart hydraulics that dynamically adapts power delivery to operational demands, ensuring top-tier drilling efficiency while maximizing energy conservation. Its fully hydraulic crawler mobility system, paired with a reinforced alloy chassis, delivers exceptional terrain performance and extended durability, making it ideal for challenging exploration projects in mountainous and desert environments.

Detailed Specifications

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Key Features

The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life
The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost
It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface
It is very powerful for drilling different layers, especially for hard rocks

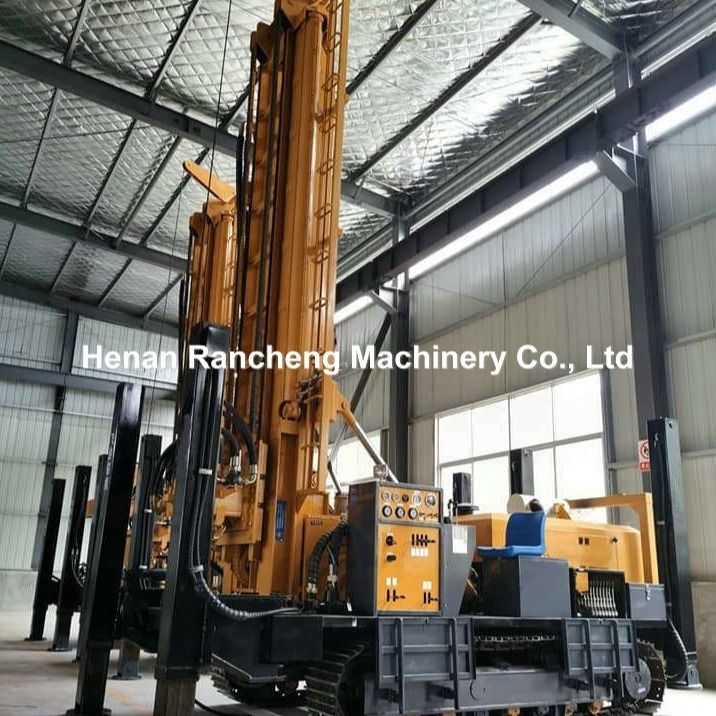

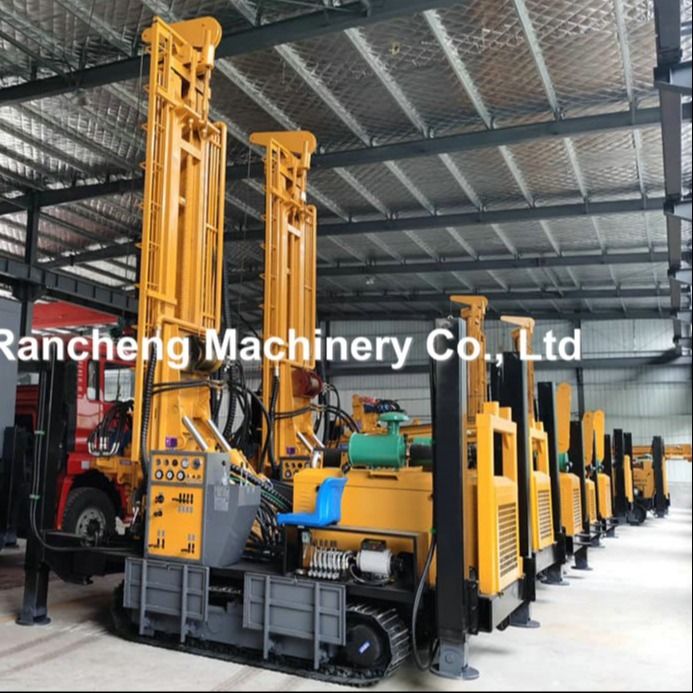

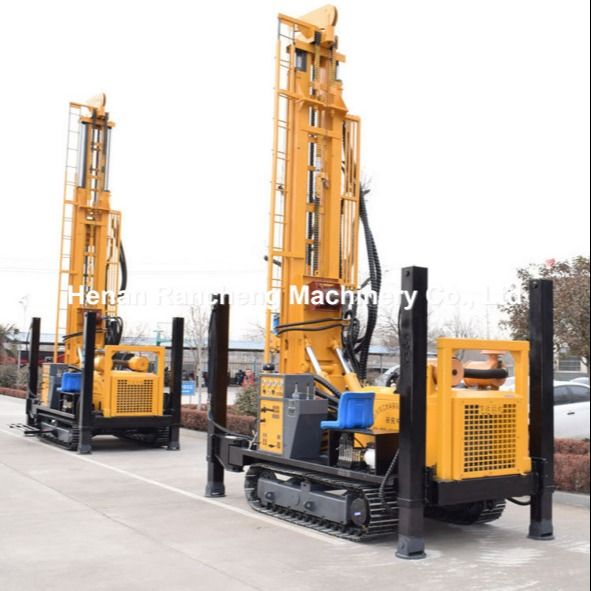

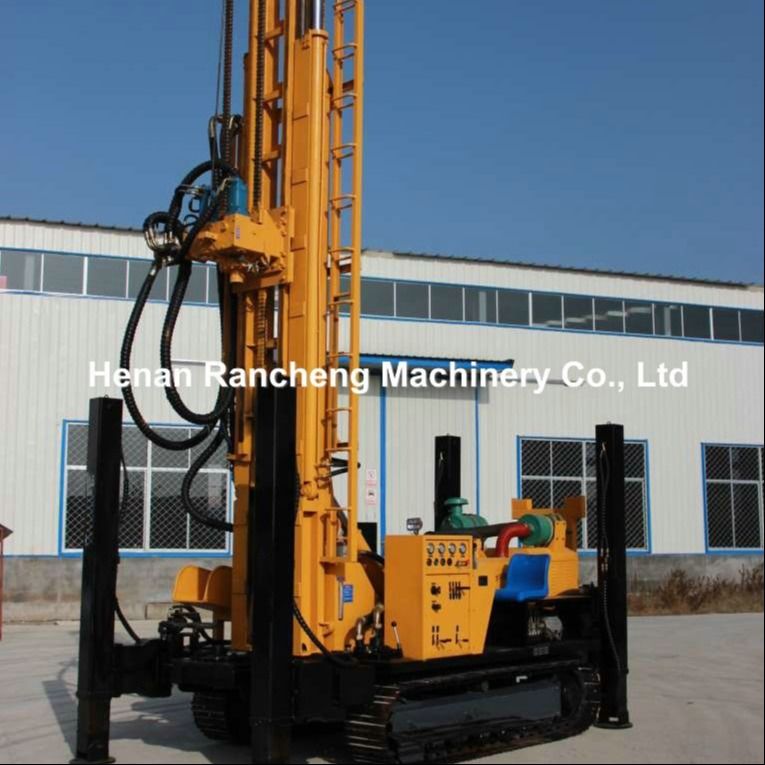

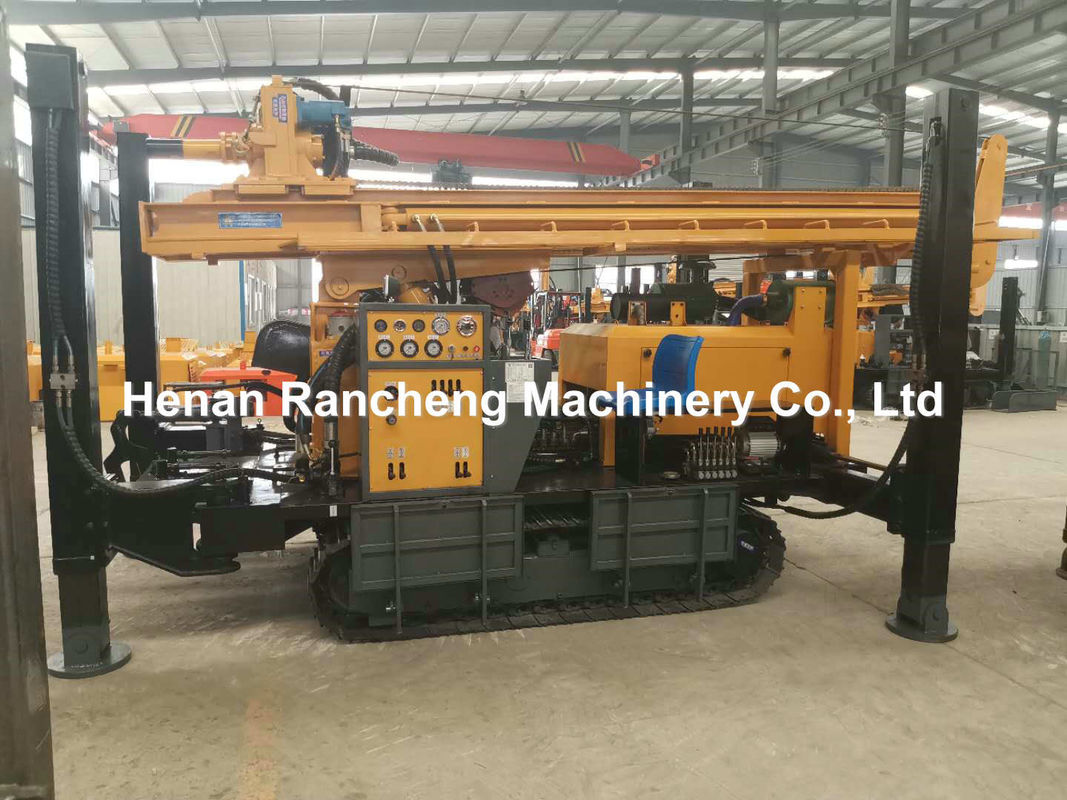

Machine Gallery
