Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCZ420T

Contact Us
Request A Quote
Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining
Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining
Product Details
Engine:
Yuchai YC4A100/70 KW, China II Yuchai YC4DK100/73.5 KW, China III
Diesel Tank Volume:
70L
Hole Depth:
30m
Drill Pipe:
φ76*3000 Mm
Hole Diameter:
φ90-138 Mm
DTH Hammer:
4"/5"
Rotation Torque (max.):
3200 N.m
Highlight:

Hydraulic DTH drilling rig for mining

,

Surface DTH drilling rig open-pit

,

Separated DTH drilling rig hydraulic

Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $18000-22000
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque online Video

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Get Best Price
Good price Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining online Video

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Get Best Price
Good price Integrated Surface DTH Drilling Rig Blasthole Drill Rig Machine For Mine online Video

Integrated Surface DTH Drilling Rig Blasthole Drill Rig Machine For Mine

Get Best Price
Good price Automatic Integrated Hydraulic DTH Blast Hole Drilling Rig For Yuchai YC6J220 162 KW online Video

Automatic Integrated Hydraulic DTH Blast Hole Drilling Rig For Yuchai YC6J220 162 KW

Get Best Price
Contact Us
Contact Now
Product Description

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining



Product Overview

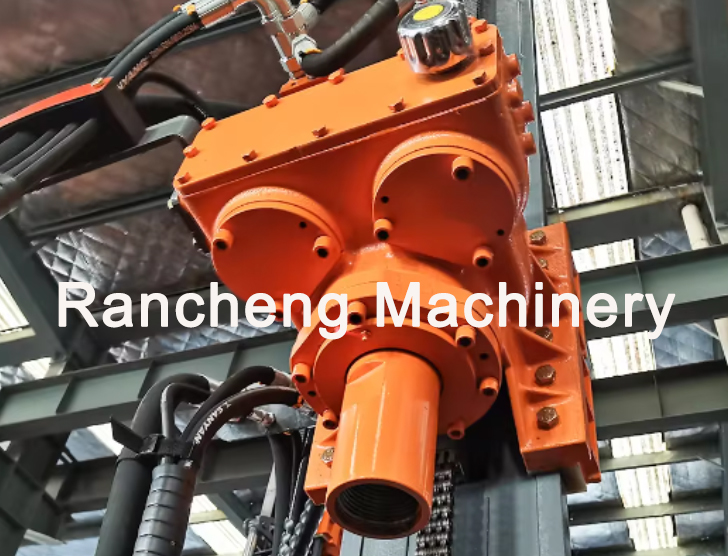

The RCZ420T hydraulic DTH drilling rig is equipped with a dual-motor rotary drill head and a multi-way adjustable rotary speed valve.



With a rotation torque of up to 3200N·m, it meets the high drilling requirements for large 76mm drill rods and 138mm drill diameters.



It has a 3m propulsion length, enabling wider and deeper drilling operations.



Featuring construction-grade crawlers, a piston motor, and a leveling function, it has better climbing capacity and off-road performance. The 420 model can adapt to more complex construction site conditions.



It can drill vertical holes on sloped surfaces, meeting different construction requirements.

Technical Specifications

Model
RCZ420T
Engine
Yuchai YC4A100/70 kW, China II
Yuchai YC4DK100/73.5 kW, China III
Diesel tank volume
70 L
Weight
5280 kg
Dimension
5420*2308*2500 mm
Hole depth
30 m
Drill pipe
φ76*3000 mm
Hole diameter
φ90-138 mm
DTH hammer
4"/5"
Rotation torque (max.)
3200 N.m
Feed force
20 kN
Pull up force
45 kN
Feed type
Chain/cylinder
Gradient
25°
Track frame osciliation
+/- 10°
Tramming speed
3 km/h





Key Features





  • The dual-motor rotary drill head, with larger torque and higher rotation speed, meets the drilling needs for 76mm drill rods and 130mm drill diameters.

  • Construction-grade crawlers and a piston motor ensure more reliable machine performance and better traveling capabilities, allowing it to better adapt to complex ground conditions in surface mining drilling operations.

  • The centralized control panel is easy to operate, enhancing the efficiency, safety, and comfort of drilling operations.

  • The newly added leveling function gives the machine better climbing capacity and off-road performance, enabling it to handle different construction environments more effectively. The 420 model can also drill vertical holes on sloped surfaces, meeting various construction needs.

Applications


This RCZ420T hydraulic DTH drilling rig is widely used in open-pit mining blast hole drilling, quarry blast hole drilling, highway blast hole drilling, water conservancy projects, power station construction, railway construction, and other construction drilling operations.



Product Images

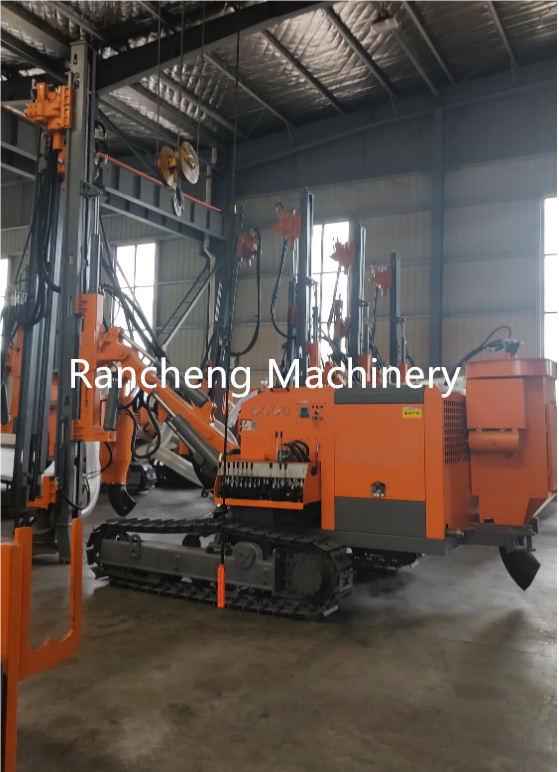

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 0

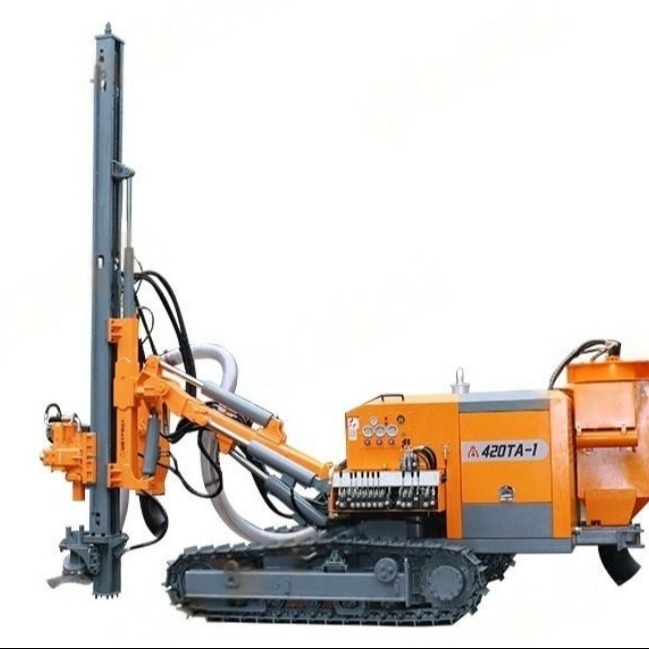

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 1

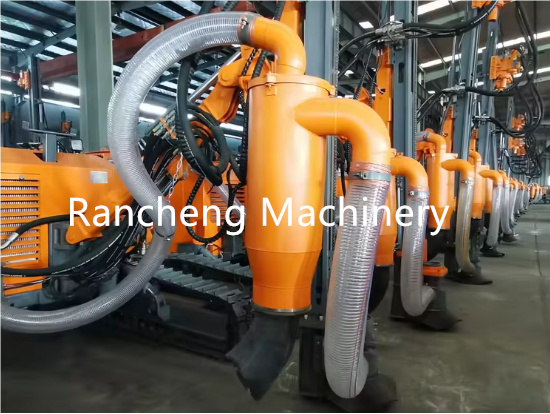

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 2

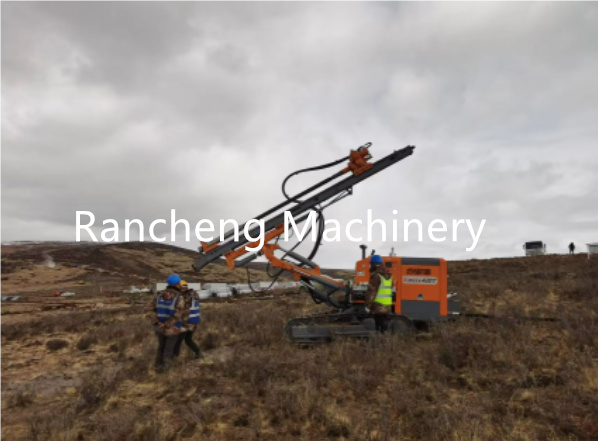

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 3

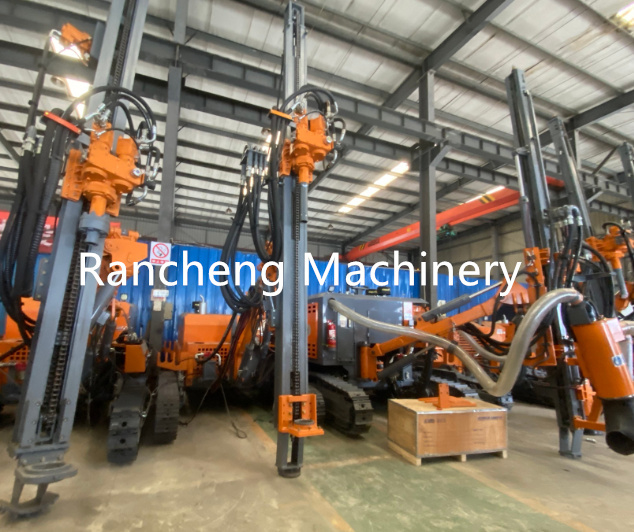

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 4
