Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT

Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT

portable DTH drilling rig

hydraulic DTH drilling rig

hard rock blast hole drill

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCZ452T

Contact Us
Request A Quote
Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT
Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT
Product Details
Item:
RCZ452T Hydraulic Integrated DTH Drilling Rig
Model:
RCZ452T
Dimension(L*W*H):
Motor, Engine, Gearbox
Drilling Diameter:
90-138mm
Drilling Depth:
21m
Type:
Rotary Drilling Rig
Highlight:

portable DTH drilling rig

,

hydraulic DTH drilling rig

,

hard rock blast hole drill

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$ 42000-45000
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT online Video

Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT

Get Best Price
Good price Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque online Video

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Get Best Price
Good price Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining online Video

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Get Best Price
Good price Integrated Surface DTH Drilling Rig Blasthole Drill Rig Machine For Mine online Video

Integrated Surface DTH Drilling Rig Blasthole Drill Rig Machine For Mine

Get Best Price
Contact Us
Contact Now
Product Description

Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT

Product Description

The RCZ452T compact hydraulic drill rig's integrated design improves productivity, eliminating the need for a traction air compressor, reducing air delivery losses and improving long-haul fleet management. Compared to split-body drill rigs, the diesel engine consumes 30% less energy and reduces maintenance costs by 50%. Key components from world-renowned brands are integrated. A single diesel engine drives both the rotary screw compressor and the hydraulic system, increasing power output.



Technical Parameters



item RCZ452T hydraulic integrated DTH drilling rig
Applicable Industries Energy & Mining, Construction works, Drilling
Weight 9220KG
Dimension(L*W*H) 9,000*2,360*3,000 mm
Core Components Motor, Engine, Gearbox
Drilling Diameter 90-138mm
Drilling Depth 21M
Type Rotary Drilling Rig
Power Type Diesel
Power Yuchai / 191 kW
Rotation Torque ( Max.) 2200 N.m
Rotation speed 0-115r/min
Air compressor FAD 17m3/min
Air compressor pressure 18bar
DTH hammer(Standard) 4"(inch)
Drilling rod 76*3,000 mm
Diesel tank volume 300 L
FAD 15 m³/min
Engine China III
Engine Model YCA07260T-301



Application

This hydraulic drilling rig is widely used in energy and mining, construction engineering, open pit blasting holes, quarry blasting hole drilling, highway blasting hole drilling, water conservancy, power station construction, railway and other construction drilling.



​Image

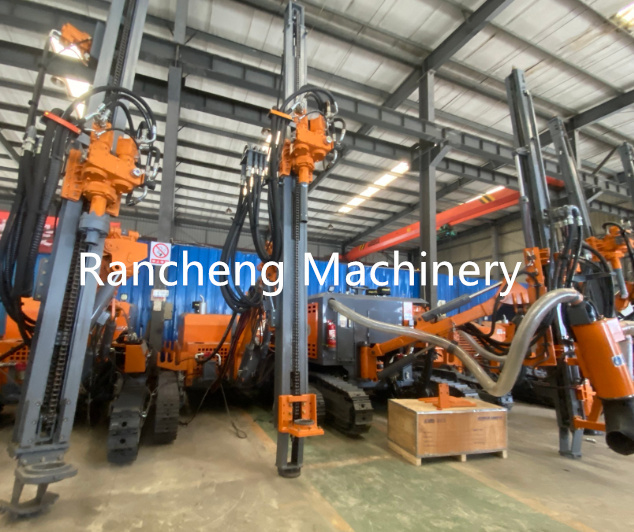

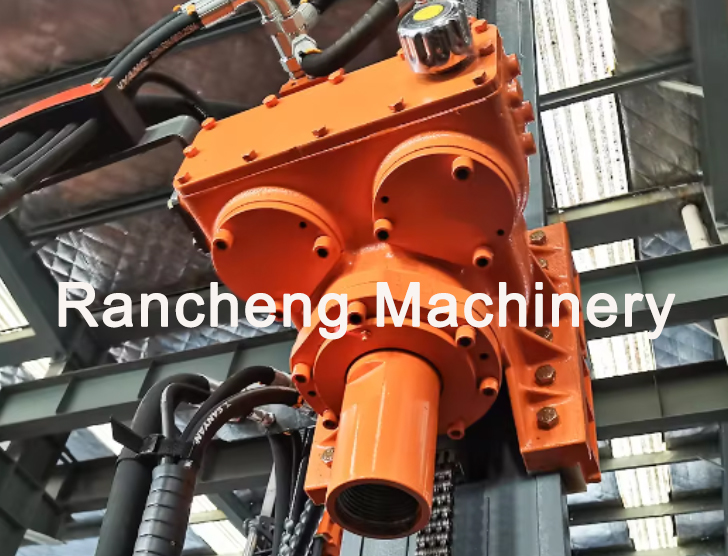

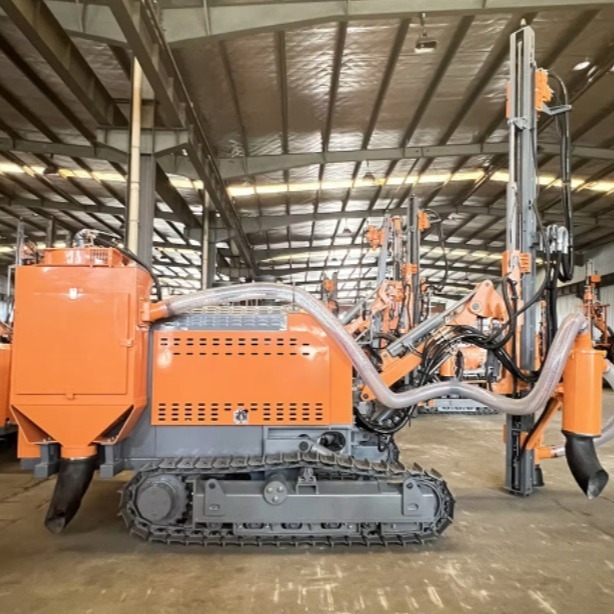

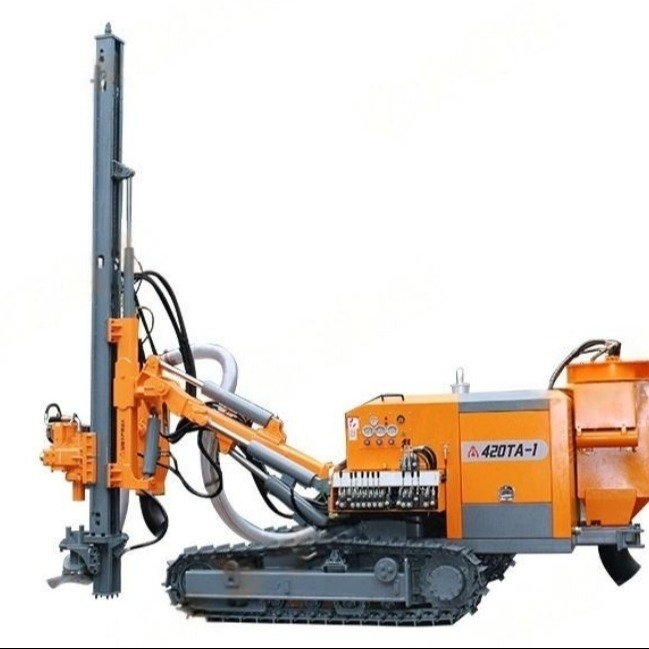

Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT 0Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT 1Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT 2Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT 3Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT 4Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT 5
