Name: RCF800C Water Well Drilling Machine for 800m Deep Drilling in All Kinds of Soil
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Home > Products > Water Well Drilling Machine >

RCF800C Water Well Drilling Machine for 800m Deep Drilling in All Kinds of Soil

800m deep water well drilling machine

water well drilling machine for all soils

RCF800C well drilling machine with warranty

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Request A Quote

Product Details

Name:

Water Well Drilling Machine

Model:

RCF800C

Geology Drilled:

All Kind

Drill System And Operation:

Hydraulic

Max Hole Depth:

800m

Hole Diameter:

140-500m

Diesel Engine:

154KW Cummins

Dimension:

6300×2300×2650mm

Highlight:

800m deep water well drilling machine

water well drilling machine for all soils

RCF800C well drilling machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCF280C Steel Crawler Water Well Drilling Rigs Machine 280m Depth Underground Borehole Drilling Rig

Get Best Price

Video

45-65r/Min Rotary Speed Yuchai 180m RCF180S Mini Water Well Drilling Machine

Get Best Price

Video

200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale

Get Best Price

Video

High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine

Get Best Price

Contact Now

Product Description

RCF800C Water Well Drilling Machine for 800m Deep Drilling in All Kinds of Soil

Product Specifications

Attribute	Value
Name	Water Well Drilling Machine
Model	RCF800C
Geology Drilled	All kind
Drill System and Operation	Hydraulic
Max Hole Depth	800m
Hole Diameter	140-500m
Diesel Engine	154KW Cummins
Dimension	6300×2300×2650mm

Machine Introduction

The RCF800C water well drill rig, with its dual-pump intelligent hydraulic technology, can sense changes in operating conditions in real time and automatically optimize power distribution, minimizing energy consumption while maintaining industry-leading drilling speeds. This rig utilizes a high-strength composite armored chassis and fully hydraulic crawler tracks, offering exceptional durability and superior navigability in complex terrain. It is particularly well-suited for mineral exploration and deep water well construction in extreme geological conditions.

When equipped with a high-performance air compressor system, this drill rig can achieve a drilling speed of 20-25 meters per hour in hard rock formations. Its exceptional deep drilling capability and stability make it the ultimate solution for professional drilling teams engaged in deep water well operations.

Detailed Specifications

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Key Features

The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life
The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost
It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface
It is very powerful for drilling different layers, especially for hard rocks

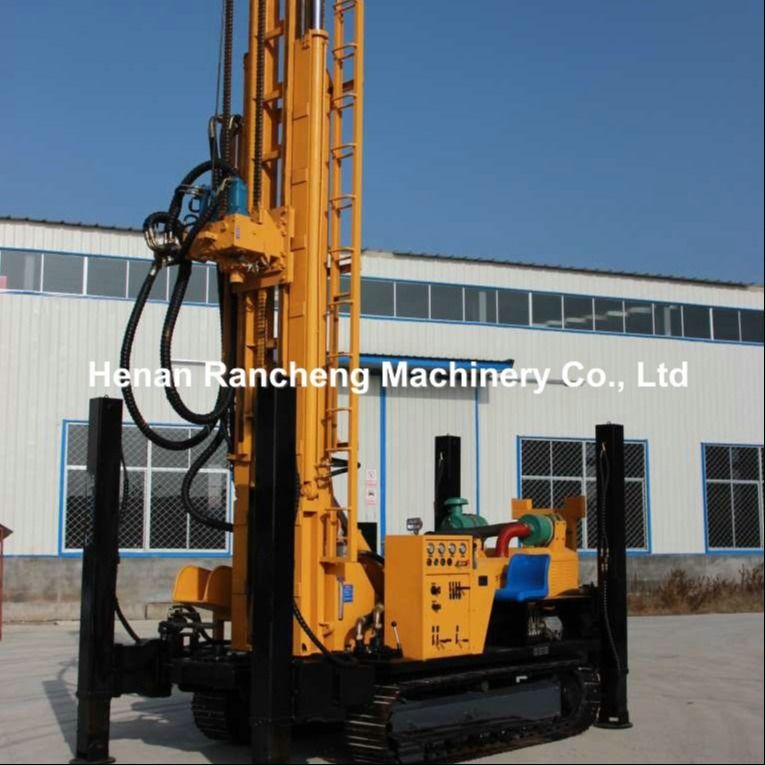

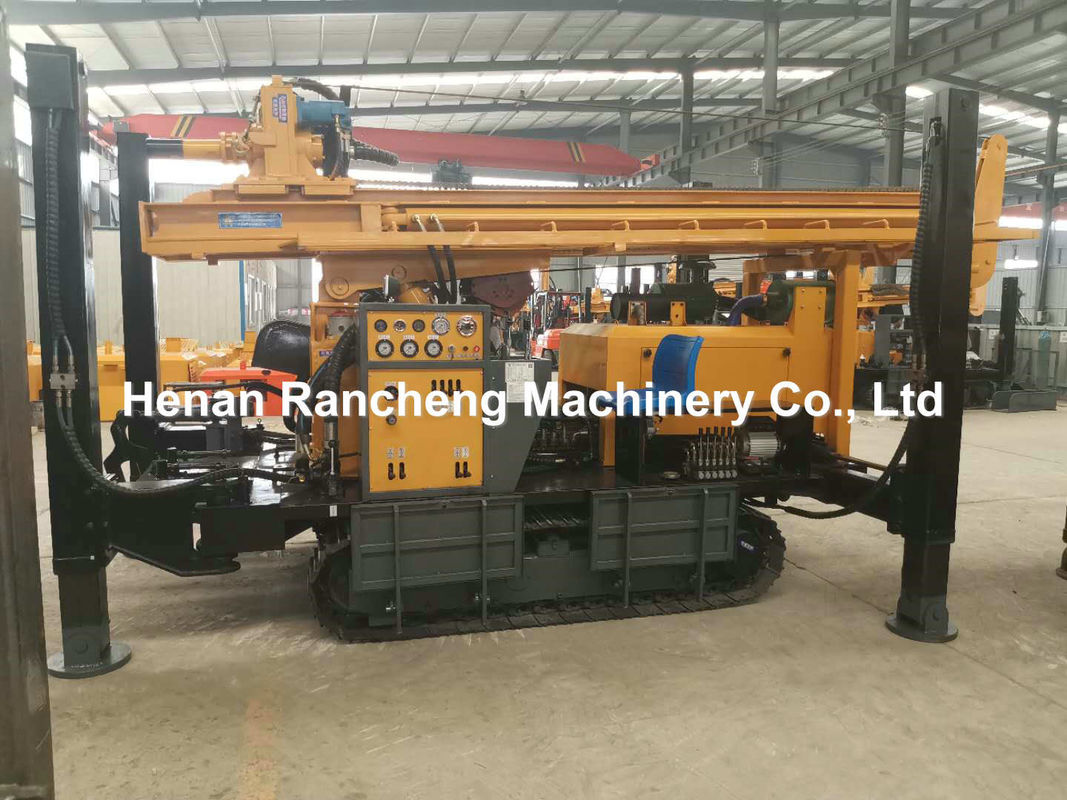

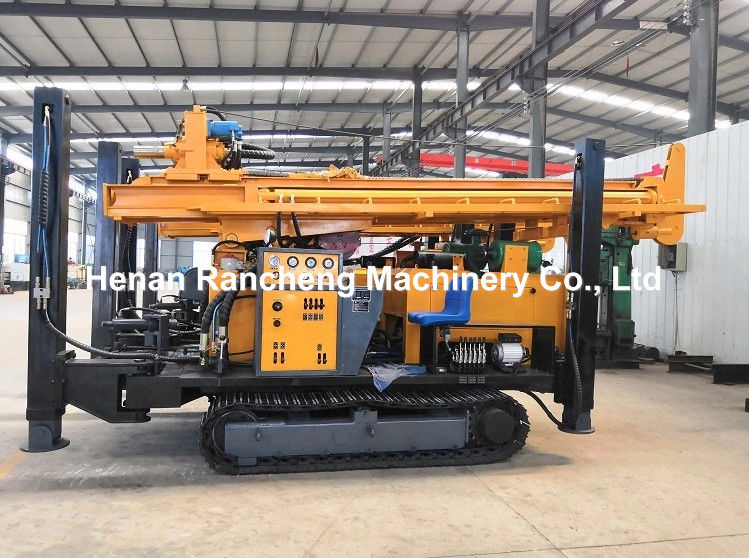

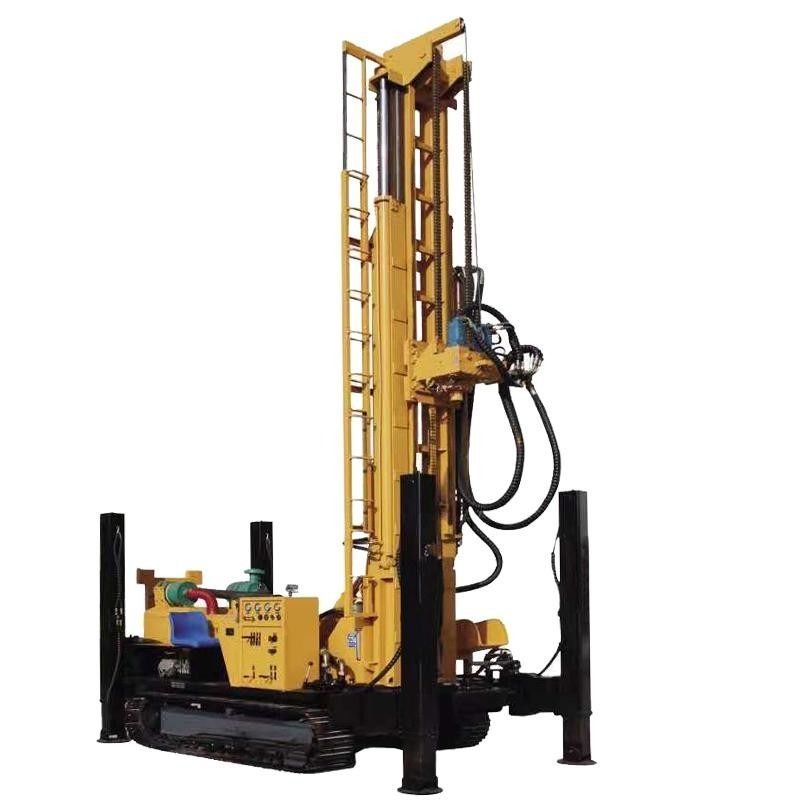

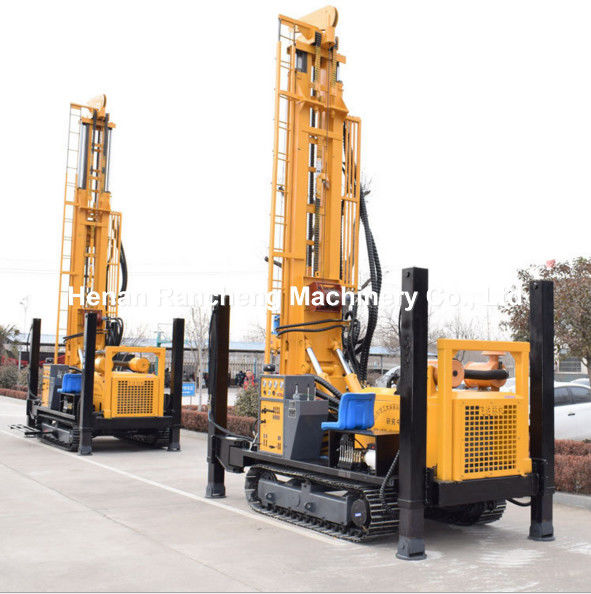

Machine Gallery
