Home > Products > Drilling Air Compressor >
29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine

29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine

1025cfm drilling air compressor

400HP Yuchai engine air compressor

23bar work pressure air compressor

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSZJ-29/23

Contact Us
Request A Quote
29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine
29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine
Product Details
Model No.:
KSZJ-29/23
Capacity:
29m³/min (1025cfm)
Working Pressure:
23bar (334psi)
Air Compressor Oil Capacity:
48L
Compression Stage::
Double
Weight:
4850KGS
Highlight:

1025cfm drilling air compressor

,

400HP Yuchai engine air compressor

,

23bar work pressure air compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD29800-USD30860
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine online Video

29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine

Get Best Price
Good price KSCY-400/14.5K 400cfm Diesel Portable Screw Air Compressor With Cummins Engine online Video

KSCY-400/14.5K 400cfm Diesel Portable Screw Air Compressor With Cummins Engine

Get Best Price
Good price 1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25Bar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling online Video

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Get Best Price
Contact Us
Contact Now
Product Description

29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine

Product Description

Air Filtration System: A high-efficiency air intake filter prevents dust particles from damaging the motor and main engine rotor.
High-Efficiency Main Engine: A large rotor design and large bearings ensure low speed. This ensures low operating noise, minimal vibration, and extended service life.
Modulation Control: A regulating valve controls the intake air volume and diesel engine speed based on air demand to minimize fuel consumption, contributing to energy savings and emissions reductions.
Control Panel: Easy to use; features include alarms for high water temperature, high pressure, high exhaust temperature, and high speed.
Diesel Engine: Utilizes renowned diesel engines from Cummins, Steyr, Caterpillar, and Yuchai. This ensures superior compressor performance and reliability.
Cooler: A larger cooler and fan design ensures maximum cooling, especially in extreme operating environments.

Product Specifications

Model No. KSZJ-29/23
Capacity 29 m³/min (1036cfm)
Working pressure 23bar (334psi)
The head model no. SKY11G194
Air compressor oil capacity 65L
Compression Stage: 2
Outlet connection size*Qty

G2×1,
G3/4×1
Engine
Engine Model No: Yuchai YC6MK400L-K30

Cylinder bore stroke number
of cylinders

 120×145×6
Displacement 9.839L
Rated RPM 1800r/min
Unload RPM 1400r/min
Rated Power 288KW(400HP)
Diesel engine oil Capacity 28L
Fuel Tank Capacity 350 L
Electrical System Voltage 24V
Package
Wheel size * Qtys 7.5-16*4
Weight 4850KGS
Dimension (mm) 3500×1950×2030



Application area



Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy, military and other industries.

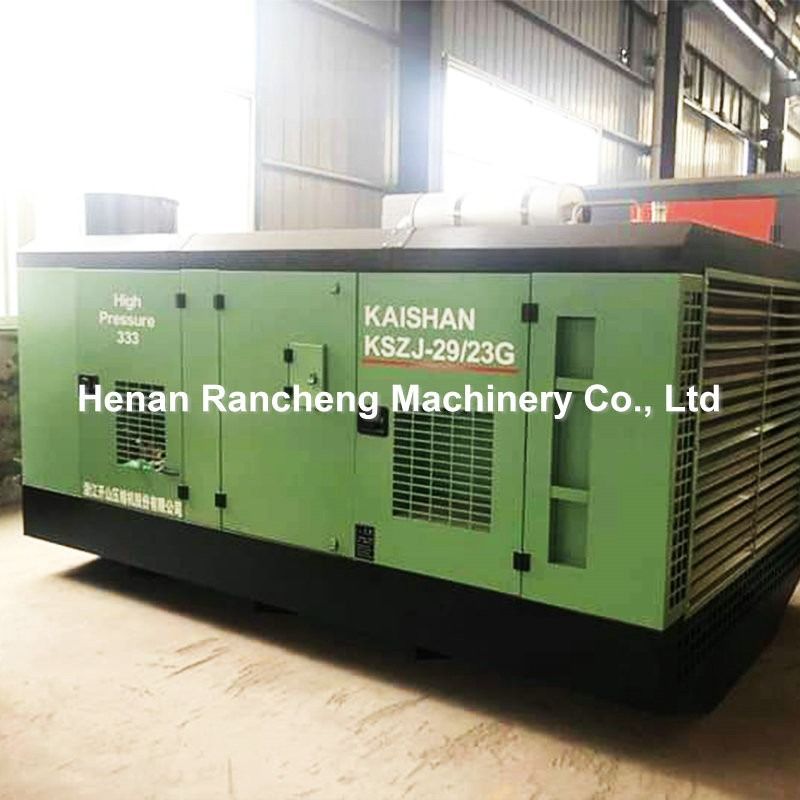

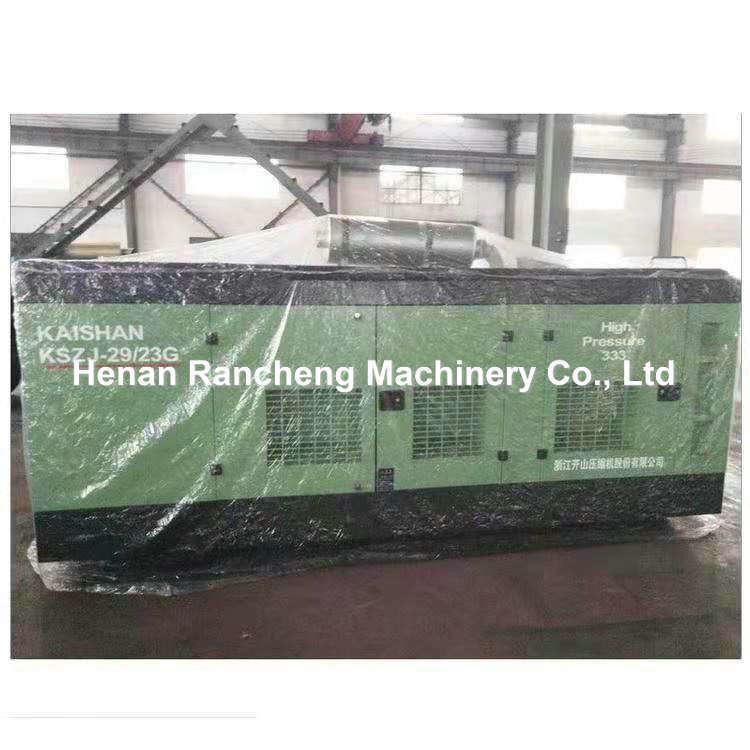

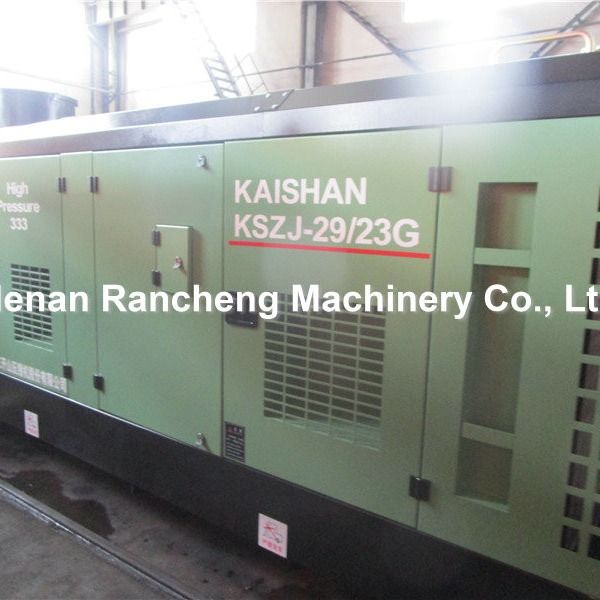

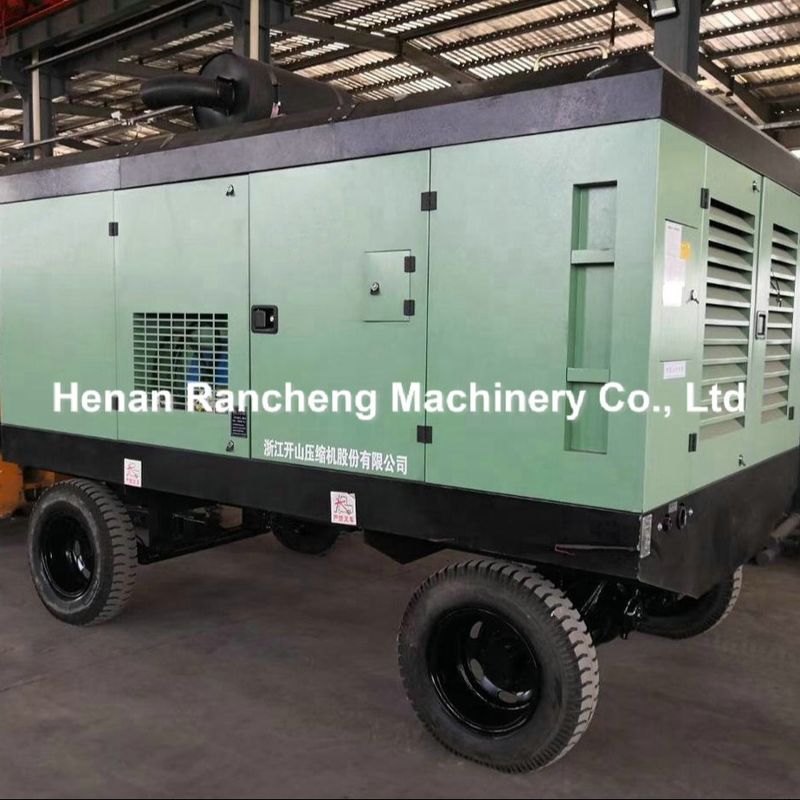

Product Image

29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 029m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 129m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 229m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 329m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 4
