Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Single Cylinder Piston Pump BW160H

160L/Min Flow Mud Pump

1.3MPa Pressure Drilling Pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW160

Contact Us
Request A Quote
Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump
Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump
Product Details
Model:
BW160
Flow Rate:
160L/min
Pressure:
1.3 Mpa
Transmission Power:
5.5KW
Frequency Of Stroke:
147 Times/min
Highlight:

Single Cylinder Piston Pump BW160H

,

160L/Min Flow Mud Pump

,

1.3MPa Pressure Drilling Pump

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD2380
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure online Video

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure

Get Best Price
Good price Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump online Video

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Get Best Price
Good price 185KW Power 7MPa Maximum Pressure Drilling Mud Pump For Water Well Drilling online Video

185KW Power 7MPa Maximum Pressure Drilling Mud Pump For Water Well Drilling

Get Best Price
Good price 185KW Power 7MPa Maximum Pressure Drilling Mud Pump For 1000m Deep Water Well Projects 7200kg online Video

185KW Power 7MPa Maximum Pressure Drilling Mud Pump For 1000m Deep Water Well Projects 7200kg

Get Best Price
CONTACT US
Contact Now
Product Description
Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump
Product Specifications
Attribute Value
Model BW160
Flow rate 160L/min
Pressure 1.3 MPa
Transmission power 5.5KW
Frequency of stroke 147 times/min
Product Overview

The BW160 mud pump is a single-cylinder piston pump equipped with a single-cylinder diesel engine, operating in first gear at a constant speed. With a flow rate of 160 liters per minute and a maximum pressure of 1.3 MPa, it is primarily used in various drilling projects.

Technical Parameters
Parameter Value
Model No. BW160
Cylinder diameter 95mm
Piston Stroke 90mm
Frequency of stroke 147 times/min
Flow rate 160 L/min
Pressure 1.3 MPa
Power input 5.5 kW
Diameter of suction pipe 50mm
Diameter of discharge pipe 40mm
Overall dimensions (L×W×H) 850×600×550mm
Weight 130kg
Key Features
  • Compact design with small volume and light weight
  • Simple operation and easy relocation
  • Capable of transporting mud with sand content less than 5% or other liquids with pH value of about 7-8
Applications

The BW160 mud pump is a portable unit primarily designed to match with small-diameter geological exploration and engineering exploration drilling rigs with drilling depth of less than 300m.

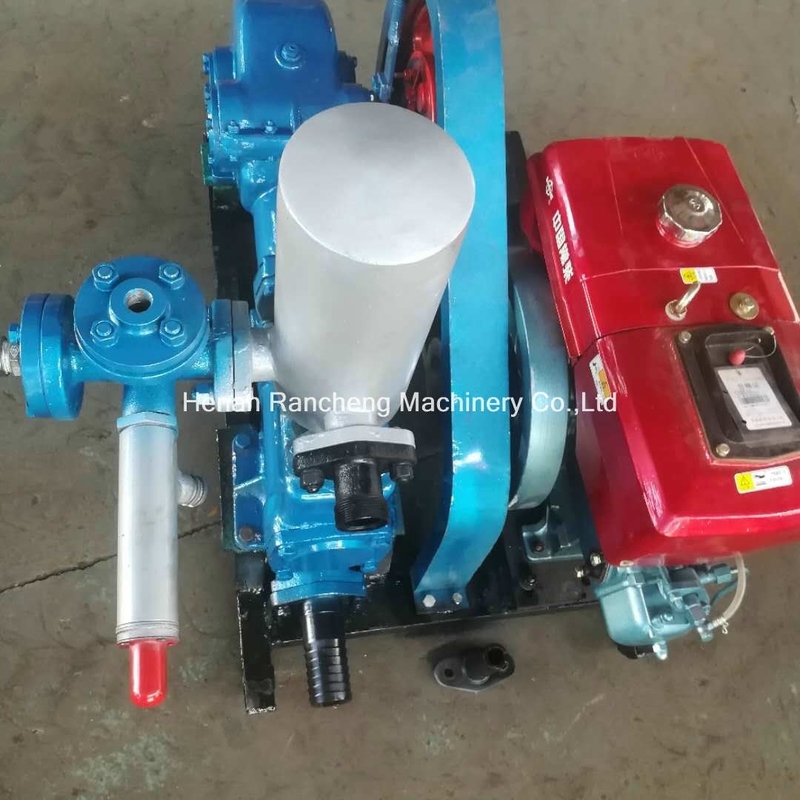

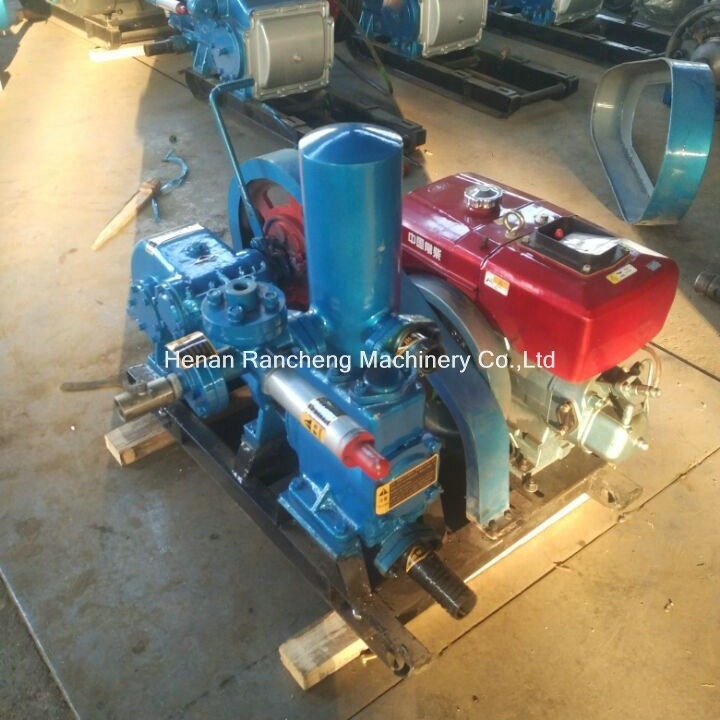

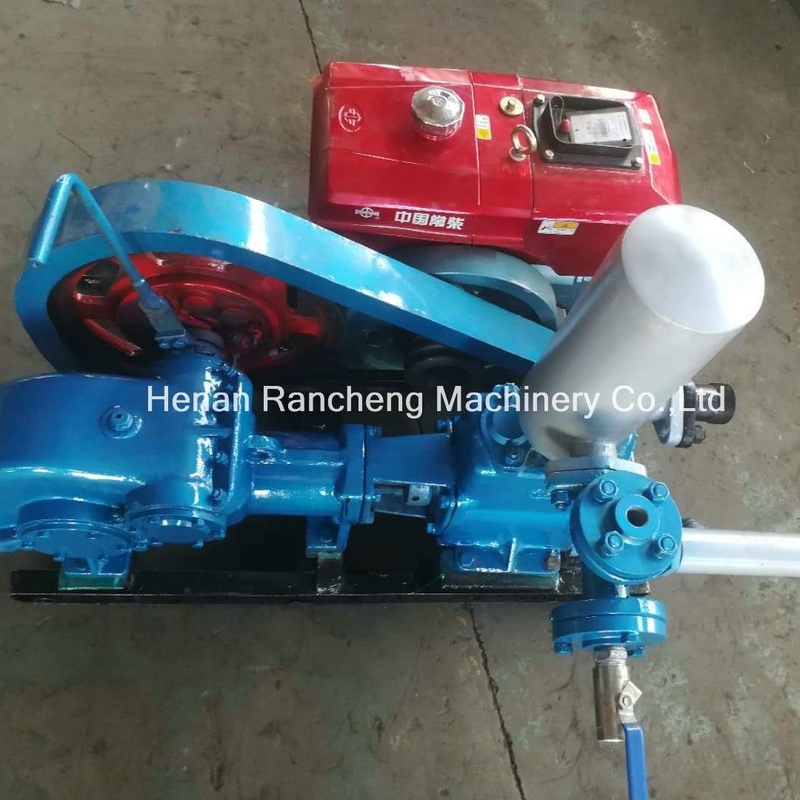

Product Images
Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump 0 Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump 1 Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump 2 Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump 3
