200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

200m small water well drilling rig

portable water well drilling machine with 2000KG capacity

rock drilling rig for water wells

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200C Portable Water Well Drilling Machine

Contact Us
Request A Quote
200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity
200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity
Product Details
Name:
RCS200C Portable Water Well Drilling Rig
Drill Deep:
200m
Drill Diameter(mm):
Within Ø 450mm
Hosting Capacity (kg):
2000KG
Highlight:

200m small water well drilling rig

,

portable water well drilling machine with 2000KG capacity

,

rock drilling rig for water wells

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD2980-USD3280
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T,Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max Depth 200m RCS200C Rubber Crawler Small Water Well Drilling Rig Machine online Video

Max Depth 200m RCS200C Rubber Crawler Small Water Well Drilling Rig Machine

Get Best Price
Good price Hydraulic Water Drilling Machine For 150m Deep Farm Irrigation Wells online Video

Hydraulic Water Drilling Machine For 150m Deep Farm Irrigation Wells

Get Best Price
Good price Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter online Video

Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter

Get Best Price
Good price 200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity online Video

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

Get Best Price
Contact Us
Contact Now
Product Description

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity



Product Description



With a drilling depth of up to 200 meters and a diameter range of 100 to 450 mm, this drill can easily handle a wide range of projects. Equipped with a powerful 22-horsepower diesel engine, the RCS200C delivers reliable performance in a variety of geological formations, allowing you to complete your work efficiently.



In short, the RCS200C crawler-mounted portable drill is designed for users who value efficiency, reliability, and ease of use. Whether you're drilling for agriculture or providing clean water for your home, this drill delivers exceptional results. Explore the unique features of the RCS200C and join the ranks of satisfied users who have made it their favorite. Get ready to take your water well drilling projects to the next level!



Product Specifications



Model RCS200C
Geology drilled All kinds
Drill depth 200 m
Drilling Diameter 90 -300mm
Drill system and operation Hydraulic
For rock 6-20F
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Rotary head
Rotation Torque 4000-5000N.m
Rotation speed 80-200rpm
Lifting capacity 14000KGS
Pull down capacity 4000KGS
DRILL PIPE
Drill pipe length 2 meter
Drill pipe diameter 60/76/89 mm
MUD PUMP
Flow capacity 160 liter/min
working pressure 1.3MPA
DIMENSIONS
Transport size 2300*1200*1700mm
Weight 2000KGS
Diesel engine
Power 45KW Weifang Hengtong



Applications



This water well drilling rig is primarily used for geothermal drilling, agricultural irrigation, and for drilling holes in courtyards, gardens, and water wells. It is suitable for drilling holes with diameters ranging from 70-450mm and a maximum depth of 200m. It can also be used for smaller structural supports in farms or factories, with a drilling diameter of up to 450mm. It is suitable for various strata, including sand, soil, clay, and soft rock.

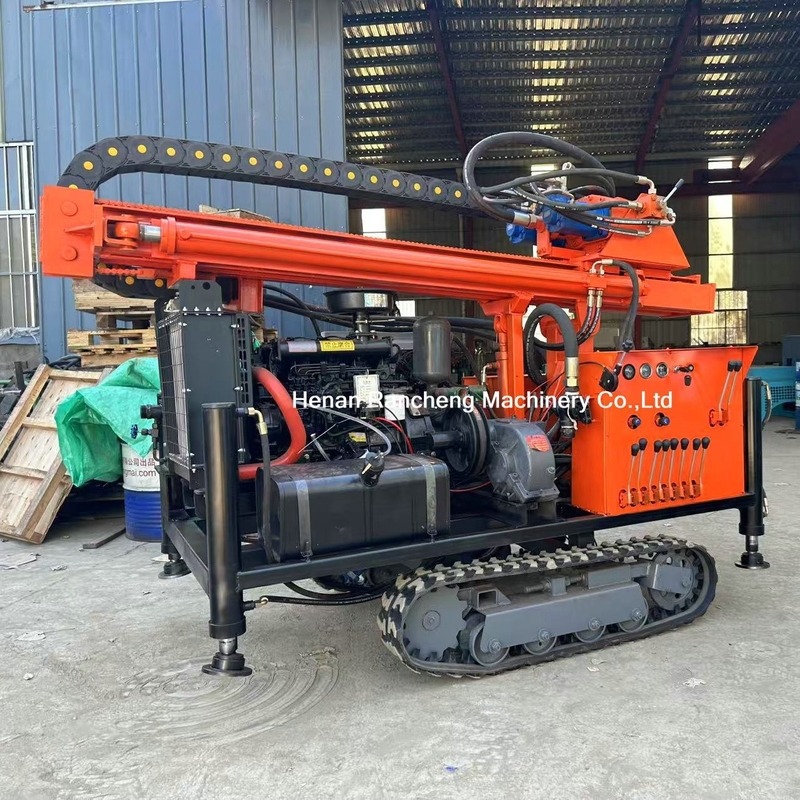

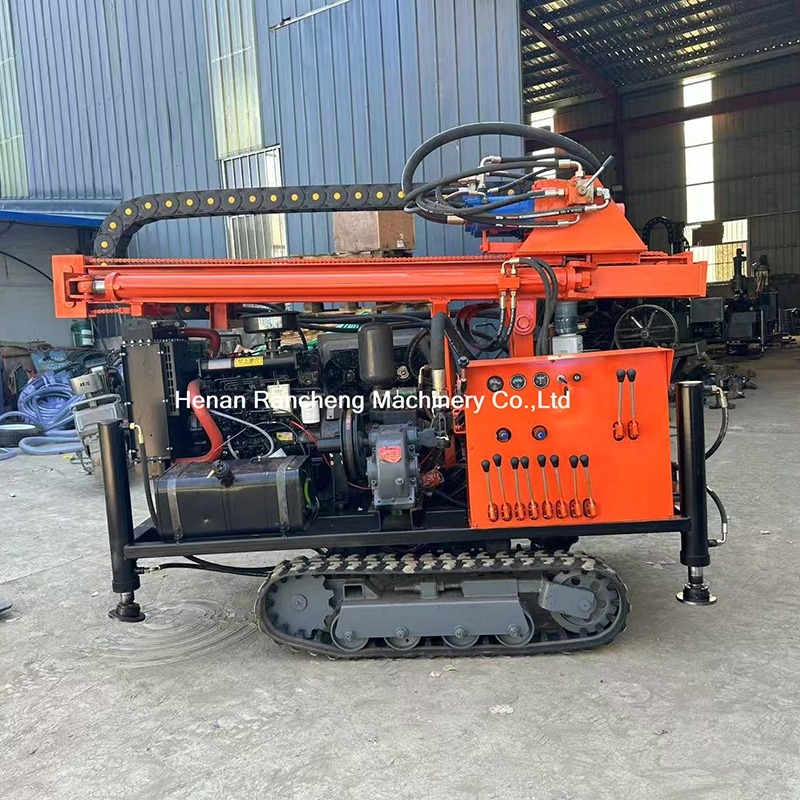

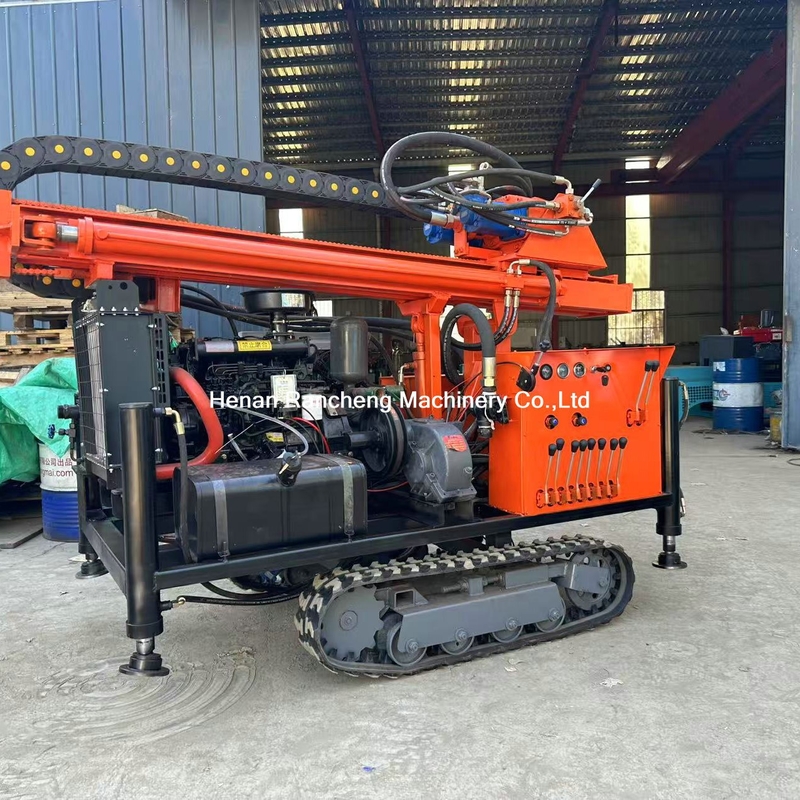

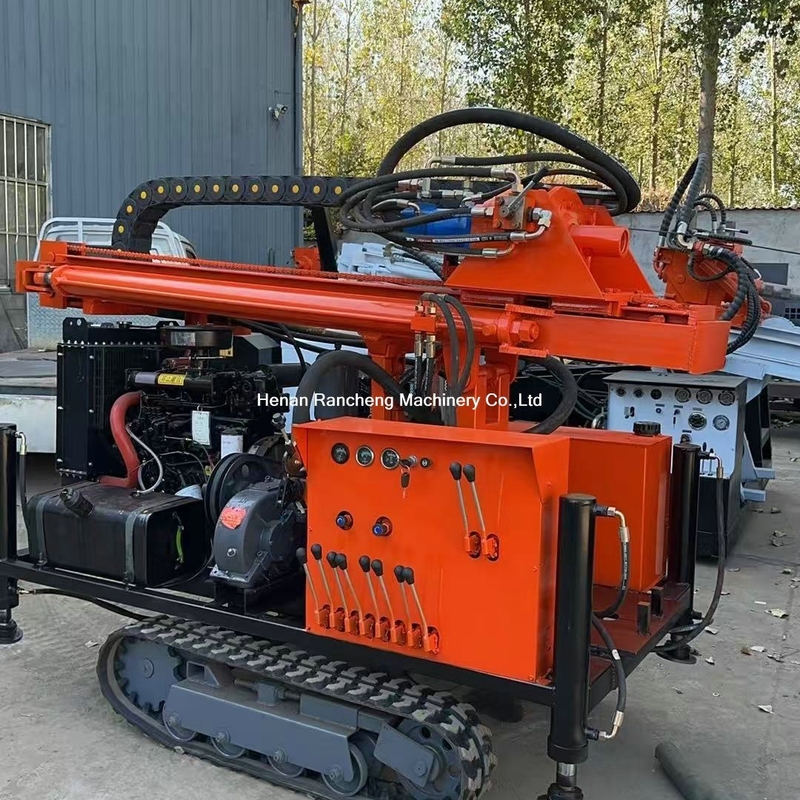

Product Image



200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 0



200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 1



200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 2



200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 3
