Name: Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RC100YA2
Price: 15.50 USD
Availability: InStock

Home > products > DTH Drilling Rig >

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling

40-45m hydraulic DTH drilling rig

rotary hammer drilling rig

deep hole DTH drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC100YA2

Request A Quote

Product Details

Name:

RC100YA2 DTH Drilling Rig

Model:

RC100YA2

Bore Diameter:

90—168mm

Bore Depth:

40m

Chassis Ground Clearance(mm):

260

Air Consumption(m³/min):

7-15

Rotary Torque (NM):

2000

For Rock(F):

6-20

Highlight:

40-45m hydraulic DTH drilling rig

rotary hammer drilling rig

deep hole DTH drilling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD14.500,00-16.500,00

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Integrierter Typ Tragbares DTH-Bohr GeräT Mining Hard Rock Blast Hole Hydraulisches DTH-Bohr GeräT

Get Best Price

Video

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Get Best Price

Video

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Get Best Price

Video

Integrated Surface DTH Drilling Rig Blasthole Drill Rig Machine For Mine

Get Best Price

Contact Now

Product Description

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling

Machine Introduction

The 100YA2 fully hydraulic down-the-hole drill utilizes the latest hydraulic technology, resulting in low air consumption and high torque. Its compact design is mounted on slide rails, ensuring stability during drilling.

This down-the-hole drill utilizes a new dual-motor turret as its rotation mechanism, enabling it to maintain high torque while working in conjunction with the air compressor during ground blasting operations, enabling large-diameter drilling.

Machine Specifications

Bore diameter(mm)	90—140
Bore depth(m)	30
Walk speed(km/h)	2
Once promotion(mm)	2000
Grade ability (°)	30
Air pressure(Mpa)	0.7—1.4
Chassis ground clearance(mm)	260
Air consumption(m³/min)	7—15
Skid pitch(°)	Up and down100
Sliding tilt swing (°)	left35,right10
For rock(F)	6—20
Skid compensation(mm)	900
Dimension(LWH)(mm)	430021302160
weight(Kg)	2900
Diesel engine power	33KW Yuchai

Machine Advantages

1. This drill's hydraulic motor offers low rpm and high torque.
2. The drill uses hydraulic cylinder propulsion for stable performance.
3. A two-stage air filter ensures air quality and extends the life of the diesel engine.
4. Automatic monitoring of hydraulic and propulsion pressures.
5. The drill is equipped with a spotlight for convenient nighttime operation and maintenance.
6. This down-the-hole drill rig features maneuverability, strong slope-climbing capability, and ease of drilling and repositioning, making it ideal for operations in harsh conditions.

Machine Pictures

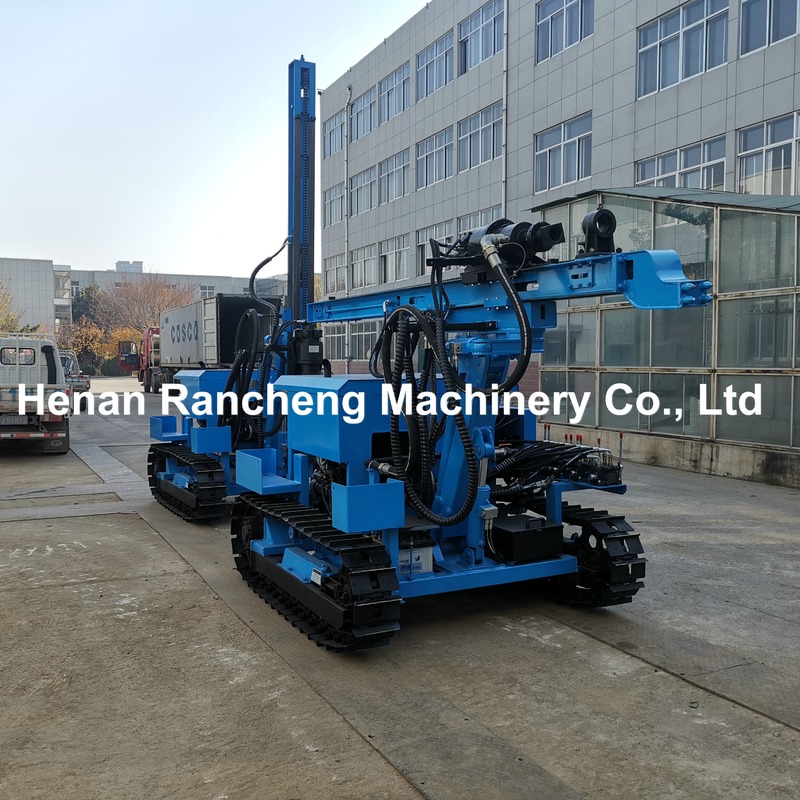

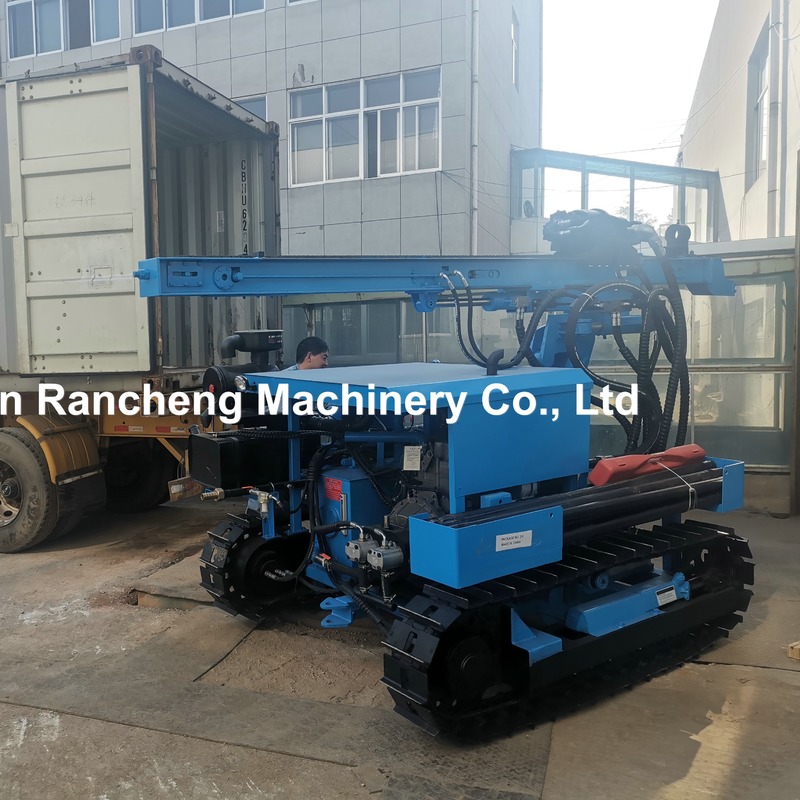

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling 1

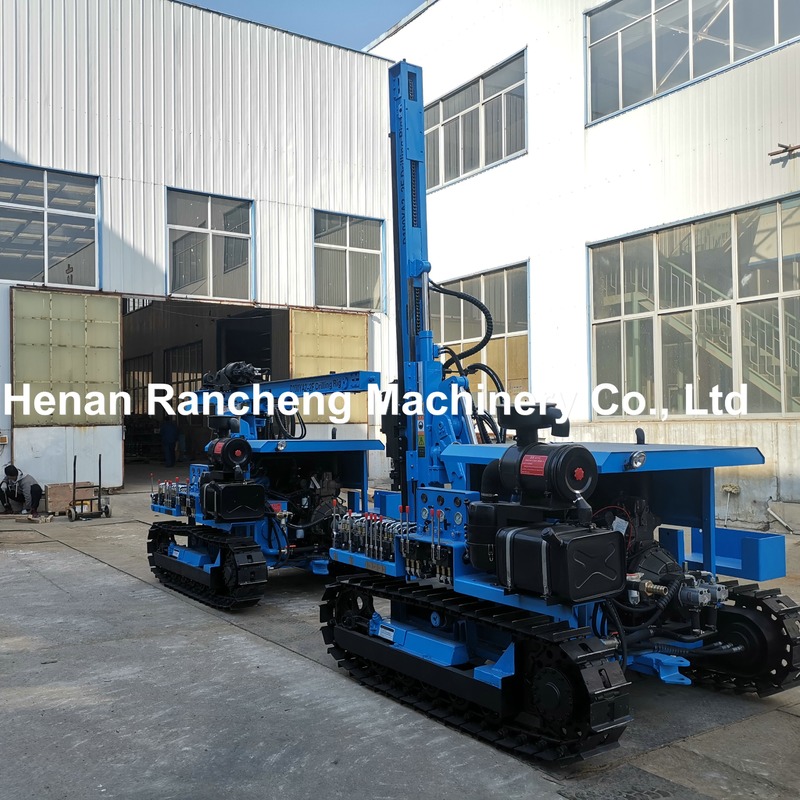

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling 3

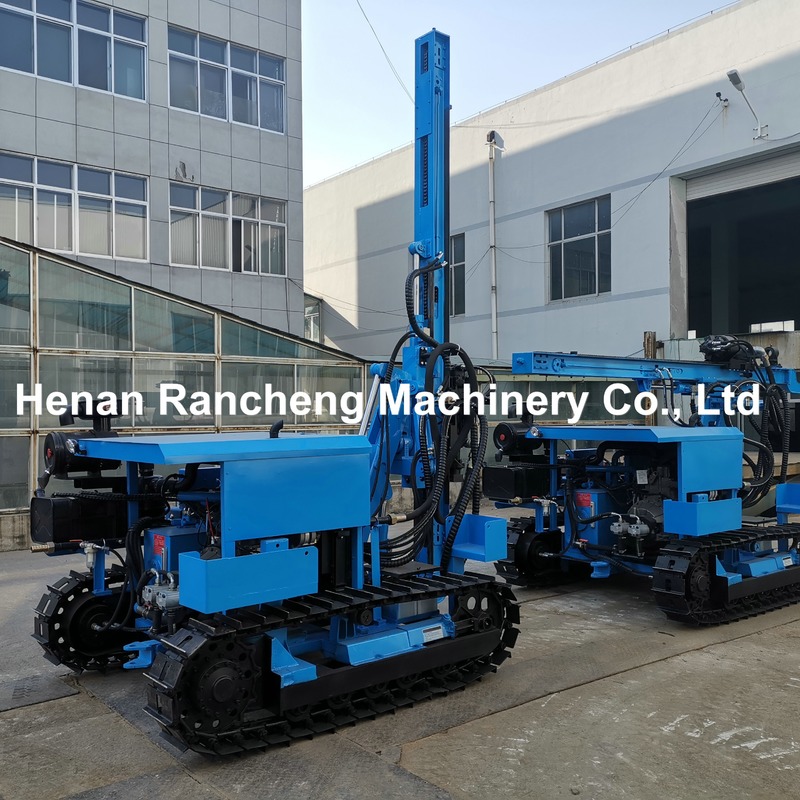

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling 4
