RCF280C Steel Crawler Water Well Drilling Rigs Machine 280m Depth Underground Borehole Drilling Rig
Product Description
RCF280C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.
Technical Parameters
| Model |
RCF280C |
| Bore diameter(Hammer) |
100-350mm |
| Bore depth |
280m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
3m/6m |
| Lifting force |
18T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
7000-9000Nm |
| Rotary speed |
40-70r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4100×1900×2600mm |
| Weight |
7000Kg |
| Diesel engine |
70KW Yuchai engine |
Machine Advantages
High outrigger and Tracked walking
The high outriggers are convenient for loading and transportation, and can be loaded directly without crane. Tracked walking is more suitable for muddy field movement.
Positive and negative axial pressure adjustment
The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.
Rig chassis
It can be a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.
High configuration
The main components and hydraulic system are all famous brands. In addition, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very resistant to wear.
Diesel engine
This hydraulic drilling rig use 77.3KW Yuchai engine
Lifting force
design composite tower, 6.6m long stroke, double cylinder lift capacity 18 ton .

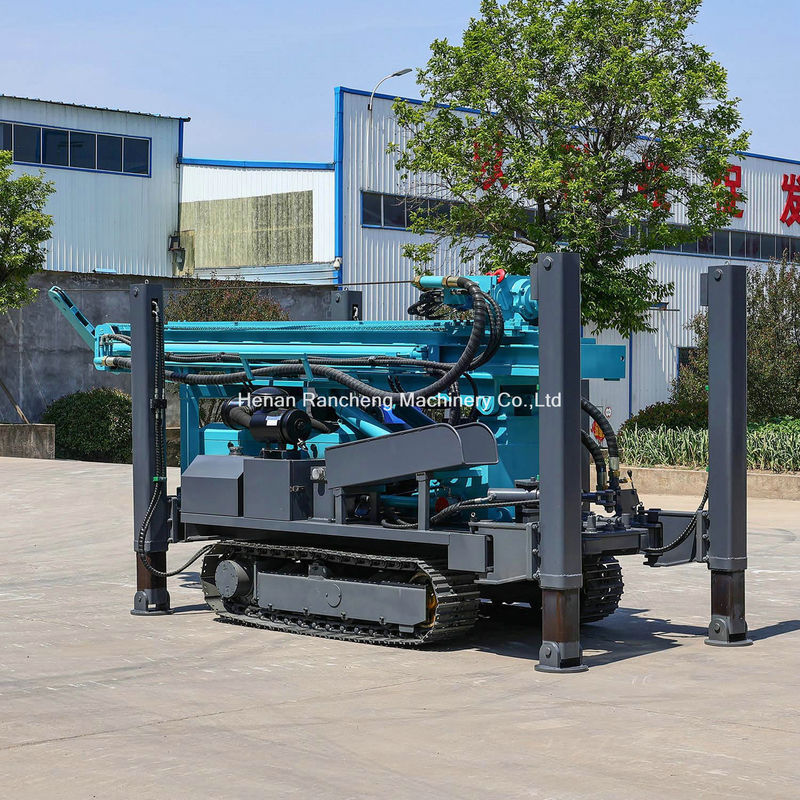

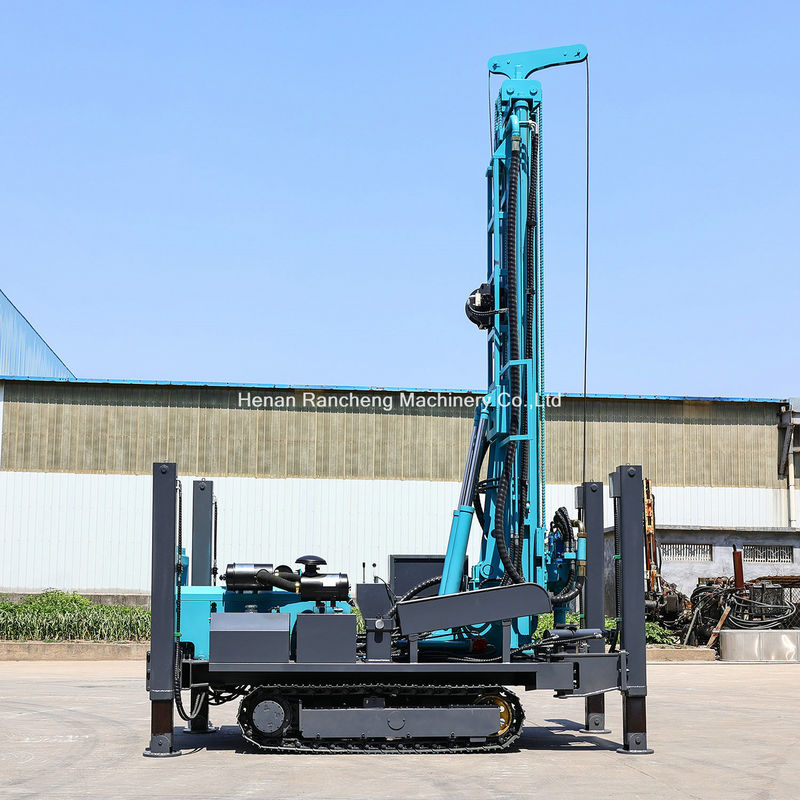

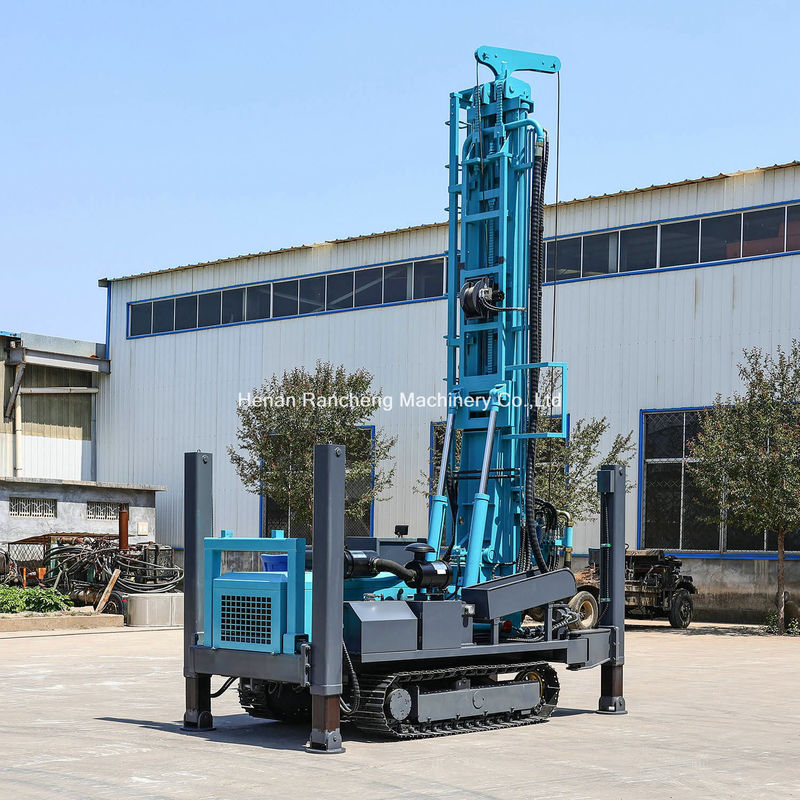

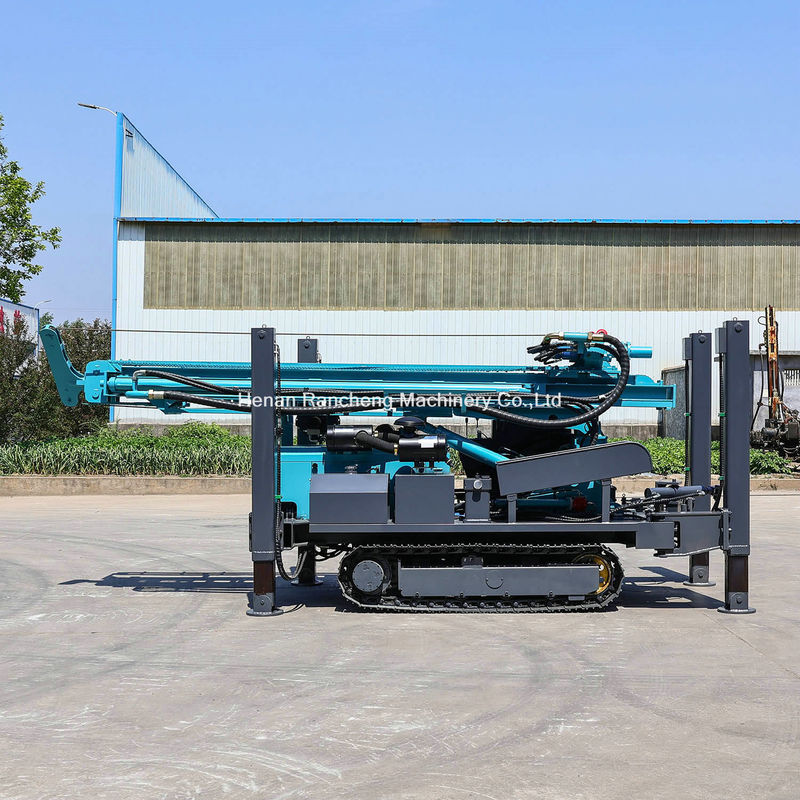

Machine Pictures
