Name: 300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-1
Price: 8,500.00 USD
Availability: InStock

Home > Products > Geophysical Survey Equipment >

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System

borehole water well logging tool

geophysical resistivity measuring system

300m well logging equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-1

Request A Quote

Product Details

External Power Supply:

AC 220V ± 20%, 50Hz, 20W

Working Condition:

Temperature: -20 ºC ~ +40 ºC, Humidity ≤ 90%

AB Power Supply:

6~60V, 0~200mA, AC Square Wave

Applicable Electrode System:

A1.6M 0.4N

Apparent Resistivity Measurement Range:

1-2000Ωm

Apparent Resistivity Measurement Accuracy:

1% (scale)

Highlight:

borehole water well logging tool

geophysical resistivity measuring system

300m well logging equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

US $ 7000-10000

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System

Get Best Price

Video

300M Single Channel Real Time Image Water Finder Water Detector

Get Best Price

Video

Underwater Deep Borehole Inspection Camera 300 / 500 / 800 / 1000 / 1200 / 1500 / 2000m

Get Best Price

Video

300m 500m 800m 1000m Geophysical Survey Equipment Waterproof Borehole Camera

Get Best Price

Contact Now

Product Description

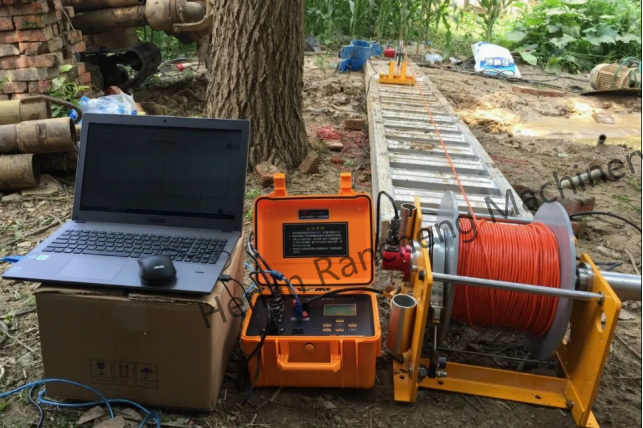

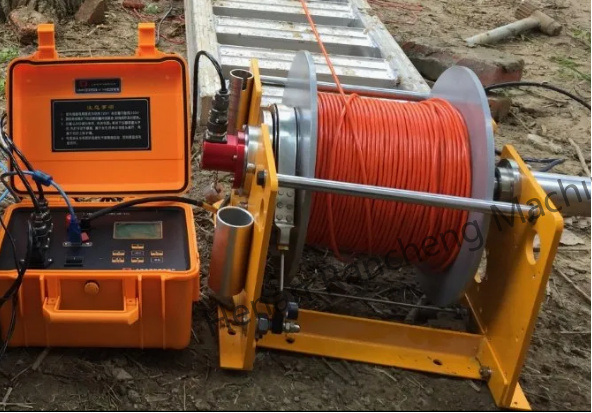

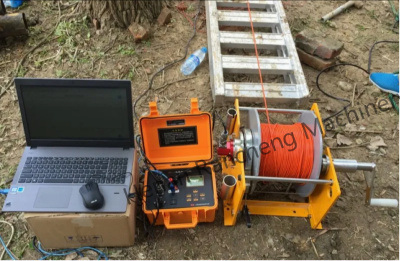

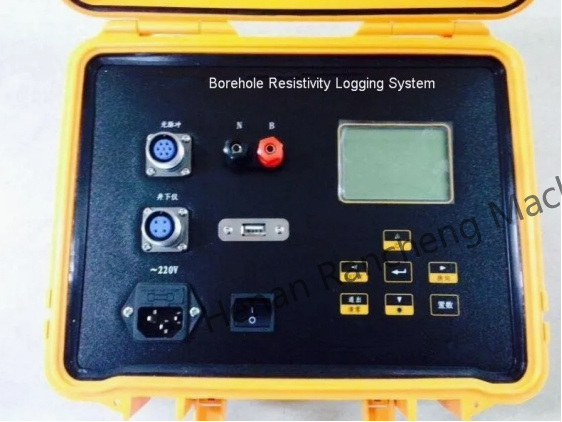

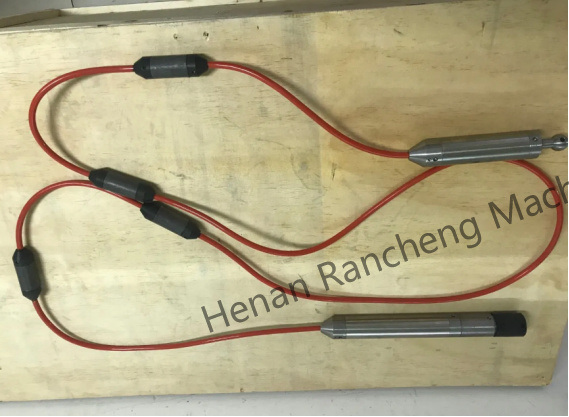

The RCQ-1 Borehole Logging Equipment is a reliable geophysical logging tool designed for measuring apparent resistivity and natural potential in boreholes. It consists of a surface instrument, Kevlar cable, electric winch, and downhole electrode probe, ensuring accurate and stable data collection. With an adaptive power supply scheme, the system delivers AC square waves to the formation while measuring current and voltage simultaneously. This enables precise resistivity logging across a wide measurement range.

Lightweight and easy to operate, the RCQ-1 connects directly to a PC for real-time data recording, transmission, and mapping. It is widely used in groundwater exploration, mineral surveys, engineering geology, and geotechnical investigations where reliable borehole resistivity data is required.

Technical Specifications

No.	Item	Parameter
1	External Power Supply	AC 220V ± 20%, 50Hz, 20W
2	Working Condition	Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90%
3	AB Power Supply	6~60V, 0~200mA, AC square wave
4	Applicable Electrode System	A1.6M 0.4N
5	Apparent Resistivity Measurement Range	1-2000Ωm
6	Apparent Resistivity Measurement Accuracy	1% (scale)
7	Natural Potential Measurement Range	±1200mv
8	Natural Potential Measurement Accuracy	1%
9	Signal Output	USB interface
10	Depth Measurement	0 ~ 9999.99 meters
11	Depth Measurement Accuracy	better than 0.1%
12	Speed Measurement Range	0 ~ 9999 meters / hour
13	Speed Measurement Accuracy	better than 5%

Product Features

Real-time data measurement and transmission for field operations
Kevlar cable and electric winch design for convenient deployment
Dual voltage channels allow simultaneous recording of two curves, improving efficiency
Gradient and natural potential measurement functions for versatile applications
AB measurement method reduces artificial electric field interference
High accuracy and repeatability ensure reliable geophysical survey results

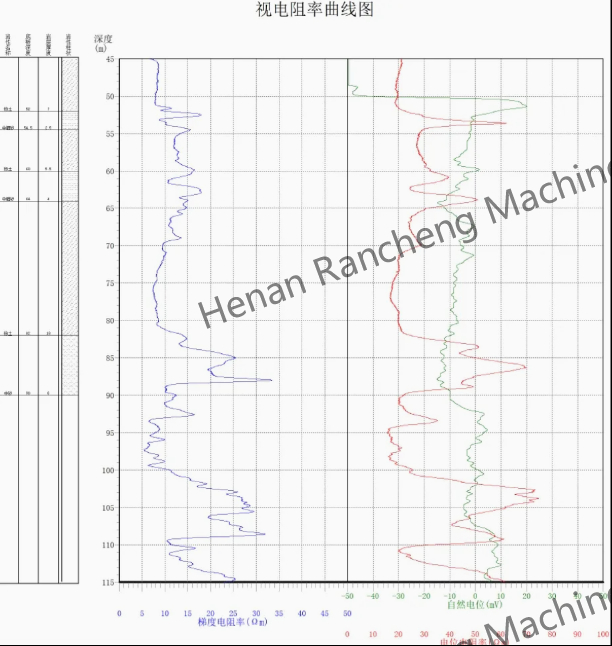

Professional software for fast curve plotting and data processing


300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System 0

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System 1

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System 2

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System 3

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System 4

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System 5
