Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale

Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale

water well logging equipment

geotechnical borehole survey tool

geophysical well logs tool

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-1

Contact Us
Request A Quote
Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale
Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale
Product Details
Model:
RCQ-1
Name:
Borehole Logging Equipment
AB Power Supply:
6~60V, 0~200mA, AC Square Wave
Applicable Electrode System:
A1.6M 0.4N
Apparent Resistivity Measurement Range:
1-2000Ωm
Highlight:

water well logging equipment

,

geotechnical borehole survey tool

,

geophysical well logs tool

Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $ 7000-10000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System online Video

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System

Get Best Price
Good price 300M Single Channel Real Time Image Water Finder Water Detector online Video

300M Single Channel Real Time Image Water Finder Water Detector

Get Best Price
Good price Underwater Deep Borehole Inspection Camera 300 / 500 / 800 / 1000 / 1200 / 1500 / 2000m online Video

Underwater Deep Borehole Inspection Camera 300 / 500 / 800 / 1000 / 1200 / 1500 / 2000m

Get Best Price
Good price 300m 500m 800m 1000m Geophysical Survey Equipment Waterproof Borehole Camera online Video

300m 500m 800m 1000m Geophysical Survey Equipment Waterproof Borehole Camera

Get Best Price
Contact Us
Contact Now
Product Description

Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale

Product Description

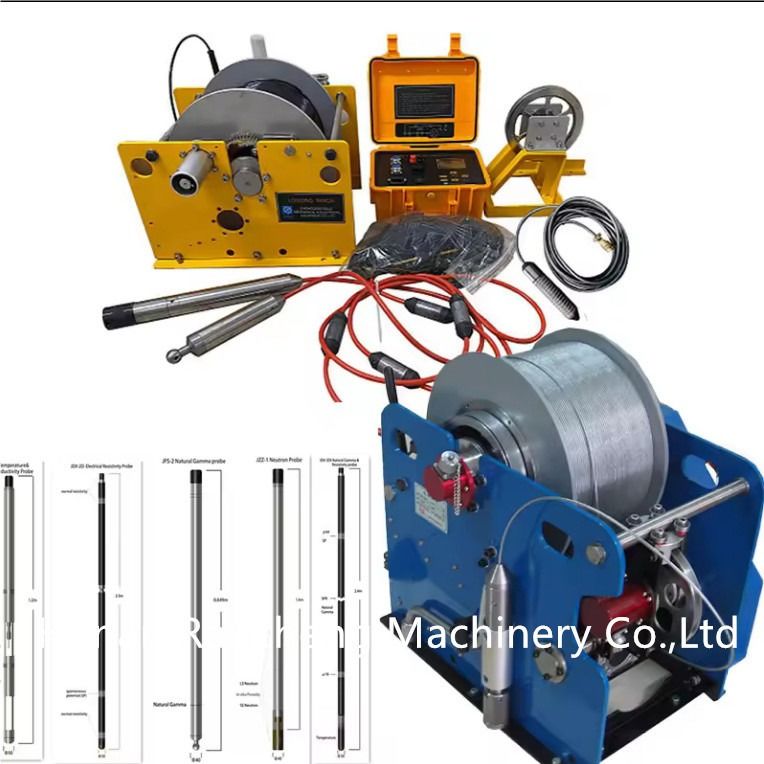

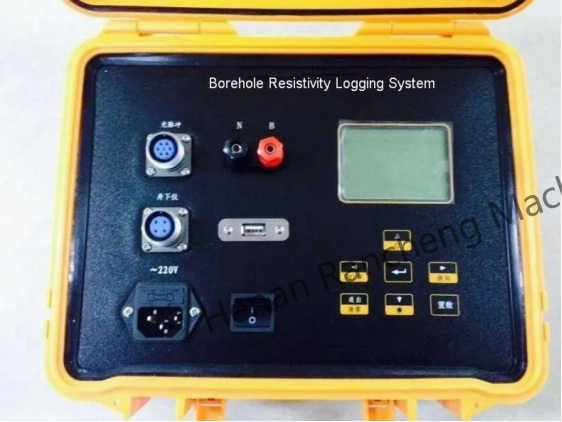

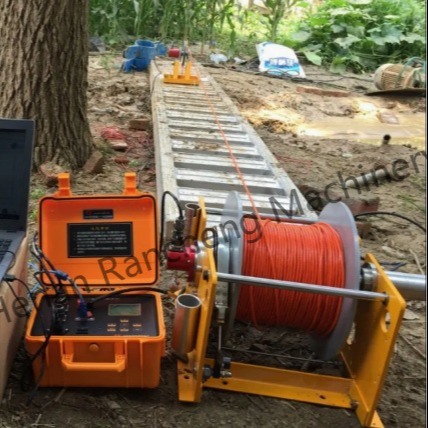

The RCQ-1 resistivity logging system is a geophysical device specifically designed for measuring apparent resistivity in boreholes. Using wired communication, the probe is connected to a Kevlar cable and then lowered into the borehole using an electric winch for measurement. Installation, device operation, and software management are all extremely convenient and fast. Furthermore, with two voltage channels, two curves can be recorded at a time, significantly improving efficiency.



Technical Specifications



No. Item Parameter
1 External Power Supply AC 220V ± 20%, 50Hz, 20W
2 Working Condition Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90%
3 AB Power Supply 6~60V, 0~200mA, AC square wave
4 Applicable Electrode System A1.6M 0.4N
5 Apparent Resistivity Measurement Range 1-2000Ωm
6 Apparent Resistivity Measurement Accuracy 1% (scale)
7 Natural Potential Measurement Range ±1200mv
8 Natural Potential Measurement Accuracy 1%
9 Signal Output USB interface
10 Depth Measurement 0 ~ 9999.99 meters
11 Depth Measurement Accuracy better than 0.1%
12 Speed Measurement Range 0 ~ 9999 meters / hour
13 Speed Measurement Accuracy better than 5%

Main Features
1. Real-time data measurement and transmission
2. Easy installation and operation
3. Simultaneous dual-channel measurement significantly improves efficiency
4. Reliable and accurate measurement data with high repeatability
5. Professional software for fast and precise mapping




Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale 0



Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale 1



Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale 2



Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale 3



Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale 4



Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale 5
