RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine

RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine

hydraulic rotary water well drill rig

70kw diesel drilling rig machine

crawler water well drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260C

Contact Us
Request A Quote
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
Product Details
Name:
Hydraulic Water Well Drilling Rig
Model:
RCF260C
Drilling Diameter:
90-350mm
Pipe Length:
1m,2m,3m
Max Torque Of The Rotary:
4000-5300Nm
Color:
Customizable
Highlight:

hydraulic rotary water well drill rig

,

70kw diesel drilling rig machine

,

crawler water well drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD21480-USD26480
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF280C Steel Crawler Water Well Drilling Rigs Machine 280m Depth Underground Borehole Drilling Rig online Video

RCF280C Steel Crawler Water Well Drilling Rigs Machine 280m Depth Underground Borehole Drilling Rig

Get Best Price
Good price 45-65r/Min Rotary Speed Yuchai 180m RCF180S Mini Water Well Drilling Machine online Video

45-65r/Min Rotary Speed Yuchai 180m RCF180S Mini Water Well Drilling Machine

Get Best Price
Good price 200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale online Video

200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale

Get Best Price
Good price High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine online Video

High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine

Get Best Price
Contact Us
Contact Now
Product Description

RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine

Machine Description


The RCF260C deepwater drilling rig is a new generation deepwater drilling rig independently developed by our company. Equipped with enhanced pneumatic power, this new generation deepwater drilling rig plays a significant role in increasing drilling speed.



Our water well drilling rigs utilize the latest models and advanced hydropower technology, featuring low energy consumption, high torque, and convenient well location and inclination. They are primarily used in resource exploration, hydrological drilling, civil water wells, and agricultural irrigation projects.



Manufactured from high-quality materials, our water well drilling rigs offer a compact design, stable performance, low failure rates, economical durability, and excellent overall cost-effectiveness. Our water well drilling rigs have gained market recognition and received positive feedback from customers.



Technical Parameters

Bore diameter(Hammer) 90-350mm
Bore depth 260m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 15T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of the rotary 4000-5300Nm
Rotary speed 45-70r/min
Mud Pump flow 200L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.85×2.3M
Weight 6500Kg
Diesel engine 70KW FAW engine


Our Service


1,24/7 service by chat online and phone.

2,Lifelong and free technical support.

3,Service overseas: if you need, we can dispatch an engineer to your door.

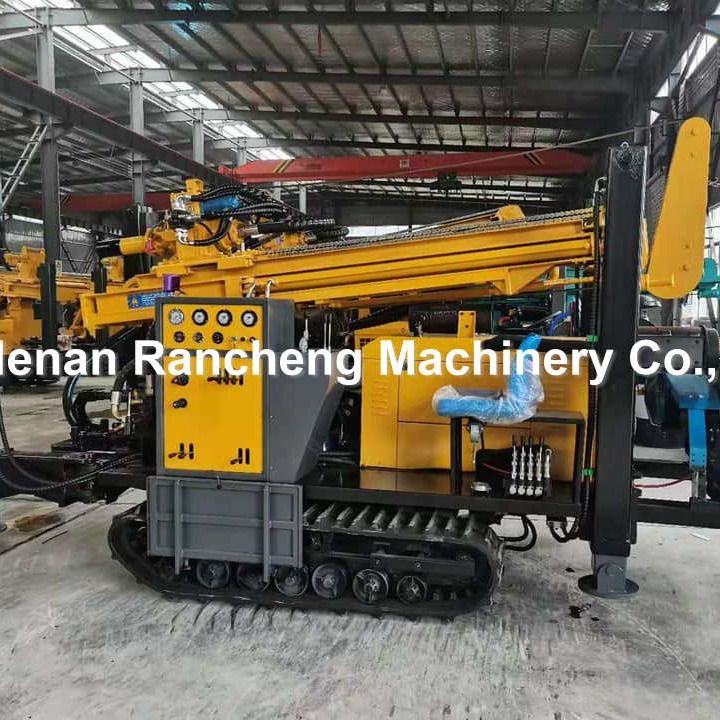

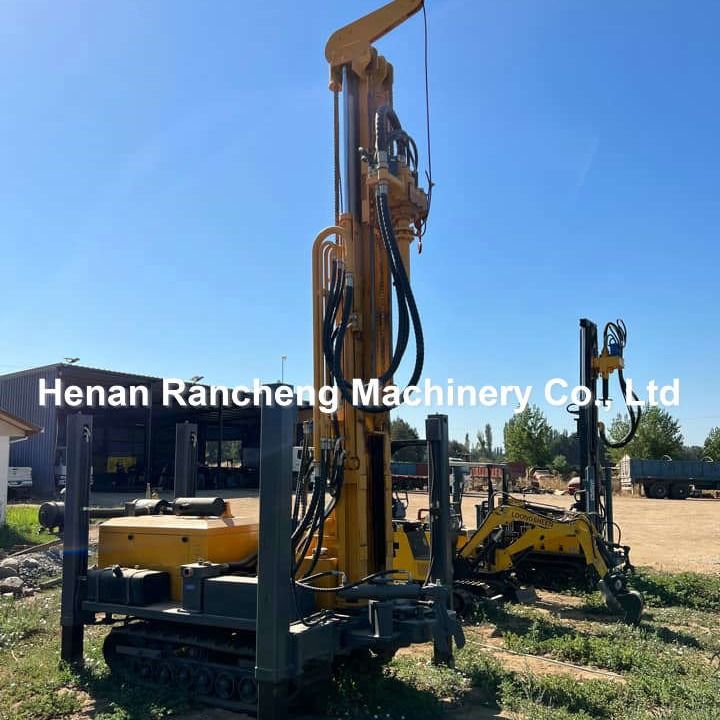

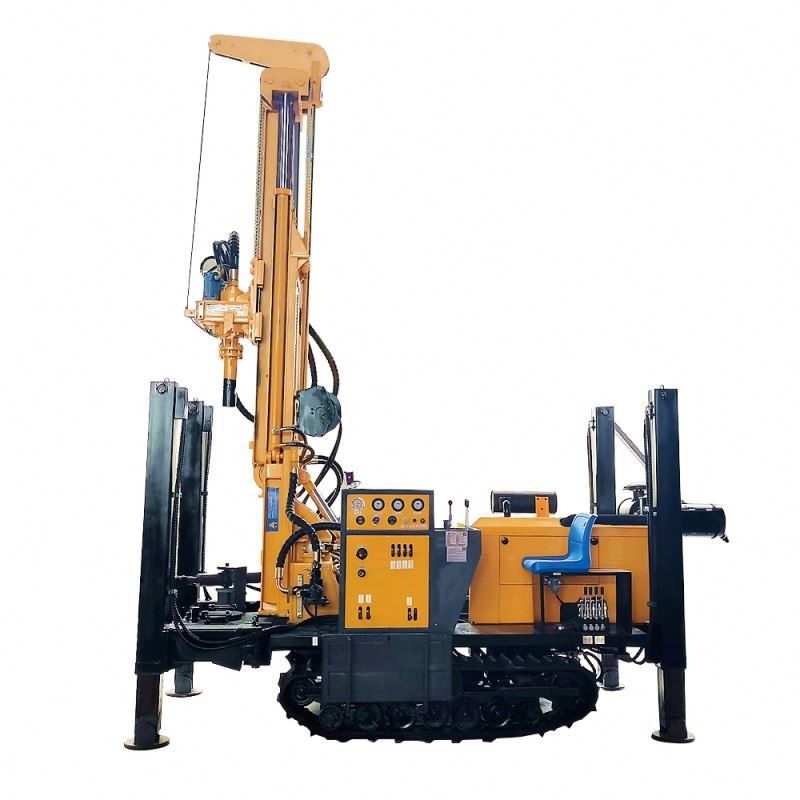

Machine picture display

RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine 0RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine 1RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine 2
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine 3
