Product Description

Fully hydraulic crawler-type 400-meter water well drilling rig 140 - 350mm Drilling Dia

Machine Introduction

The RCF400C deep-water drilling rig is a product independently developed by our company. This new generation of hammerheads combines superior pneumatic performance, playing a crucial role in increasing drilling speed.

Our drilling rigs are manufactured using high-quality materials, featuring a compact and sophisticated design, resulting in higher efficiency, lower failure rates, stronger profitability, and significant overall benefits. Our water drilling rigs have gained widespread recognition in the European market and received positive feedback from customers.

Technical Parameters

Bore diameter(Hammer)	140-350mm
Bore depth	400m
Air consumption	17-36m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1.5m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	20m/min
Fast feeding speed	40m/min
Max torque of rotary	6200-9000Nm
Rotary speed	66-135r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2100×2550mm
Weight	9200Kg
Diesel engine	92KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

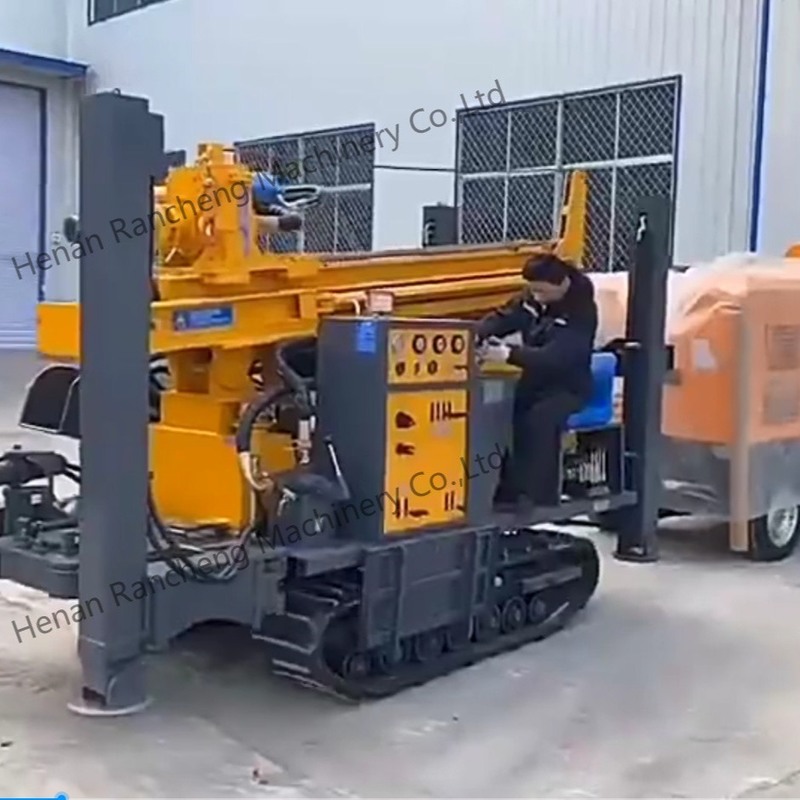

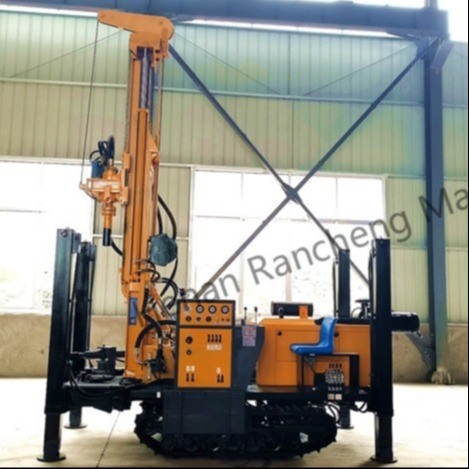

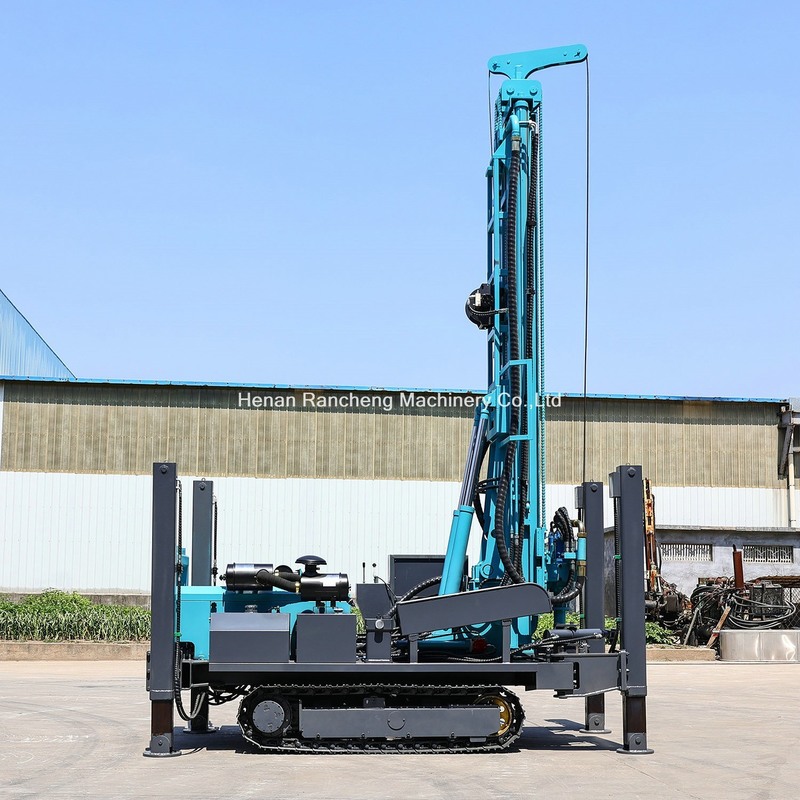

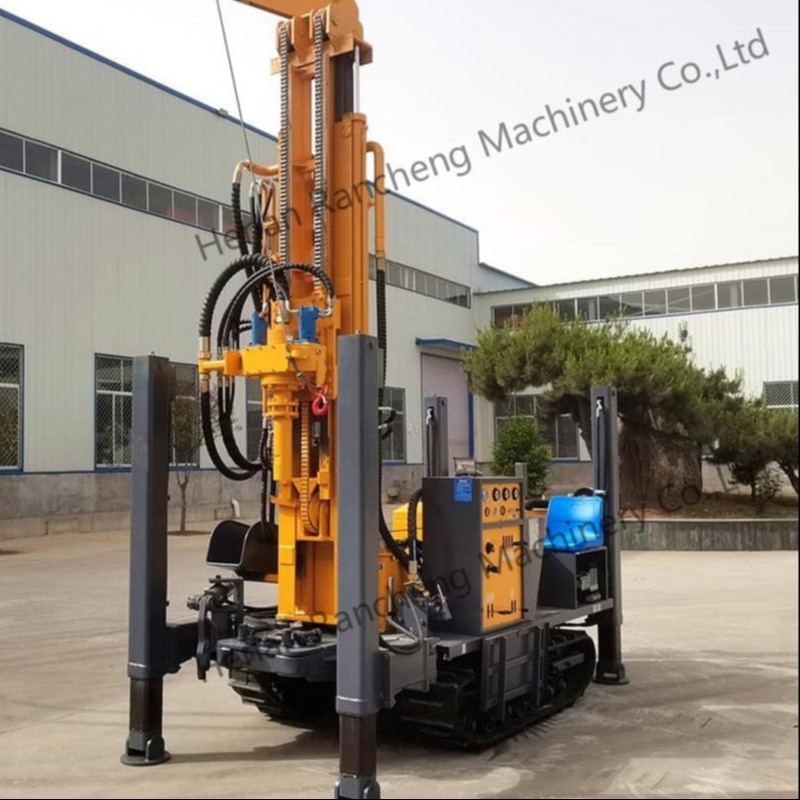

Machine Pictures
