Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells

Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells

hydraulic crawler water well drilling rig

400-meter water well drilling machine

140-350mm drilling diameter rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400C

Contact Us
Request A Quote
Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells
Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells
Product Details
Name:
Multi Functional Drilling Rig
Model:
RCF400C
Drilling Depth:
400m
Drilling Dia:
140 - 350mm
Air Consumption:
17-36m³/min
Air Pressure:
1.7-3.5Mpa
Highlight:

hydraulic crawler water well drilling rig

,

400-meter water well drilling machine

,

140-350mm drilling diameter rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD27000-USD30000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 85KW Engine Solar Pile Driving Machine with 350mm Drilling Dia and 6m Piling Height online Video

85KW Engine Solar Pile Driving Machine with 350mm Drilling Dia and 6m Piling Height

Get Best Price
Good price RCKM-30S Hydraulic Pile Driver with 30HP Diesel Engine for 50-300mm Drilling Diameter and 30m Depth Mini Pile Drilling Rig online Video

RCKM-30S Hydraulic Pile Driver with 30HP Diesel Engine for 50-300mm Drilling Diameter and 30m Depth Mini Pile Drilling Rig

Get Best Price
Good price 200m Tracked Water Well Drill Rig | For Irrigation, Geothermal & Light Exploration online Video

200m Tracked Water Well Drill Rig | For Irrigation, Geothermal & Light Exploration

Get Best Price
Good price RCF260WT Hydraulic Tractor Mounted Water Well Drilling Machine 100HP online Video

RCF260WT Hydraulic Tractor Mounted Water Well Drilling Machine 100HP

Get Best Price
Contact Us
Contact Now
Product Description

Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells



Machine Introduction



As an in-house developed model, the RCF400C deep borehole drilling rig comes fitted with cutting-edge hammer components featuring remarkable pneumatic capabilities, which serves as a core advantage to lift drilling penetration efficiency.

Premium grade raw materials are adopted throughout production, paired with a compact, well-structured layout. This equipment achieves stable high output, low malfunction probability and boosted profit space, delivering comprehensive practical benefits. Our water well drilling machinery enjoys solid reputation in European markets and accumulates lots of positive client testimonials.



Technical Parameters



Bore diameter(Hammer) 140-350mm
Bore depth 400m
Air consumption 17-36m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1.5m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 20m/min
Fast feeding speed 40m/min
Max torque of rotary 6200-9000Nm
Rotary speed 66-135r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 15-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2100×2550mm
Weight 9200Kg
Diesel engine 92KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling

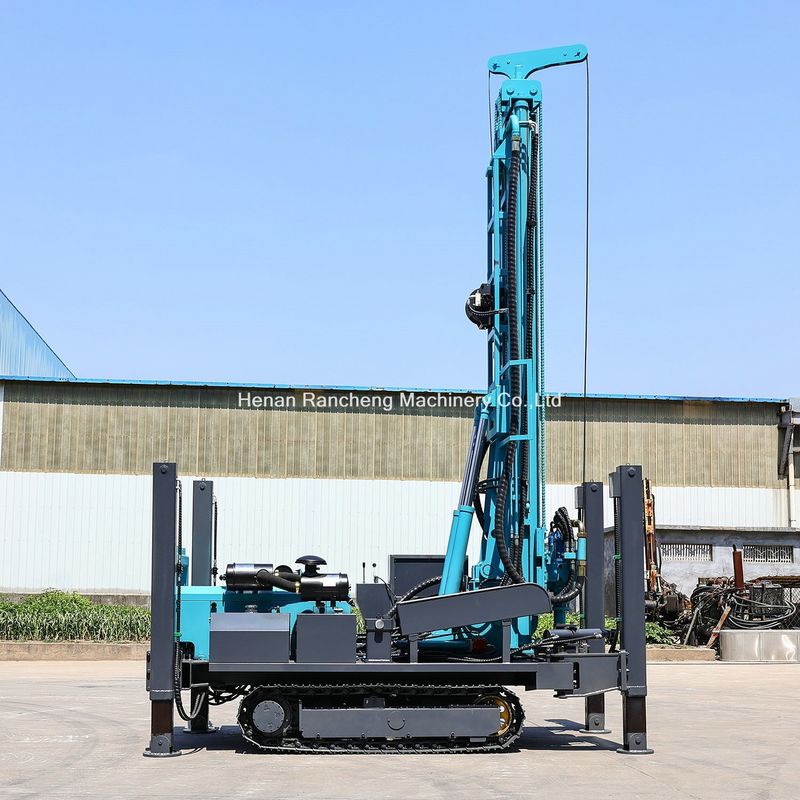

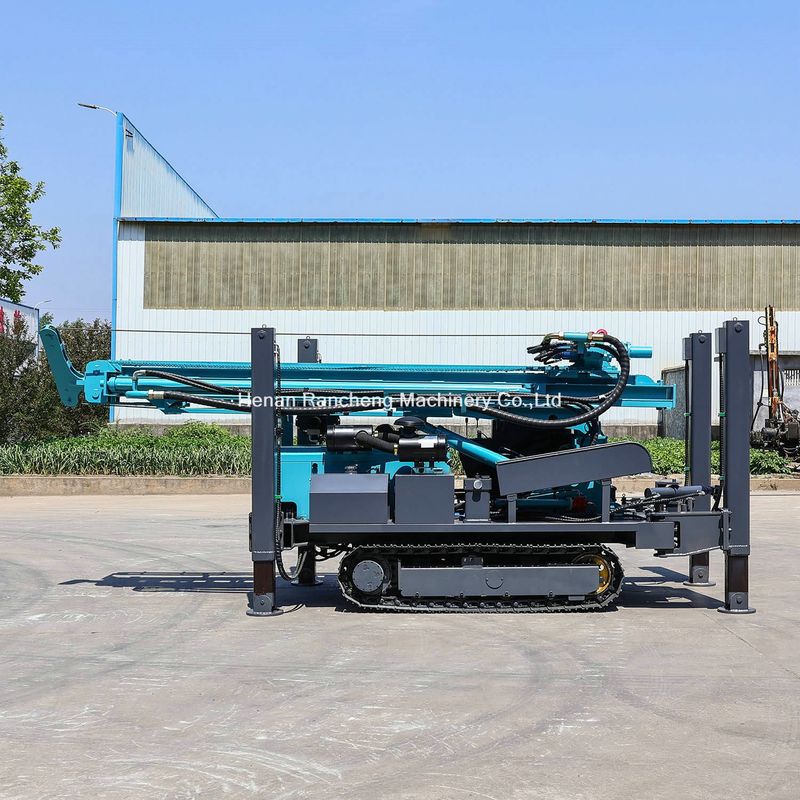

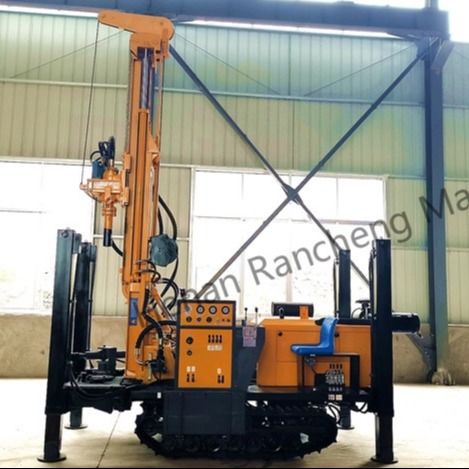

Machine Pictures



Heavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep WellsHeavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep WellsHeavy Duty Full Hydraulic Crawler Water Well Drilling Machine For 400m Deep Wells
