Name: Fully hydraulic 800-meter water well drilling rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Home > Products > Water Well Drilling Machine >

Fully hydraulic 800-meter water well drilling rig

fully hydraulic water well drilling rig

800-meter water well drilling machine

hydraulic well drilling rig with warranty

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Request A Quote

Product Details

Name:

Water Well Drilling Machine

Model:

RCF800C

Geology Drilled:

All Kind

Drill System And Operation:

Hydraulic

Max Hole Depth:

800m

Hole Diameter:

140-500m

Diesel Engine:

154KW Cummins

Dimension:

6300×2300×2650mm

Highlight:

fully hydraulic water well drilling rig

800-meter water well drilling machine

hydraulic well drilling rig with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Fully hydraulic 800-meter water well drilling rig

Get Best Price

Video

Upgrade RCF350C Water Well Drilling Machine With Drill Rod Rack For Water Borehole Drilling

Get Best Price

Video

Fully hydraulic crawler-type 400-meter water well drilling rig 140 - 350mm Drilling Dia

Get Best Price

Video

RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine

Get Best Price

Contact Now

Product Description

Fully hydraulic 800-meter water well drilling rig

Machine Introduction

This drilling rig is a high-performance piece of equipment specifically designed for deep-hole drilling operations. Its core utilizes a fully hydraulic drive system, matched with a high-torque power head and feed system, delivering powerful output and stepless adjustment of speed and pressure to easily overcome complex geological conditions such as hard rock formations.

The entire machine integrates electro-hydraulic control for centralized and convenient operation, and is equipped with a hydraulic automatic unhooking device, significantly improving drilling efficiency and safety. Employing a modular or vehicle-mounted chassis design, it offers flexible relocation and adaptability to harsh field conditions. Primarily used in large-scale projects such as ultra-deep water wells, geothermal exploration, and mineral exploration, it is an ideal solution for efficiently and reliably completing deep-hole drilling tasks.

Specification

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Applications

1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. big power ensure the deep drilling

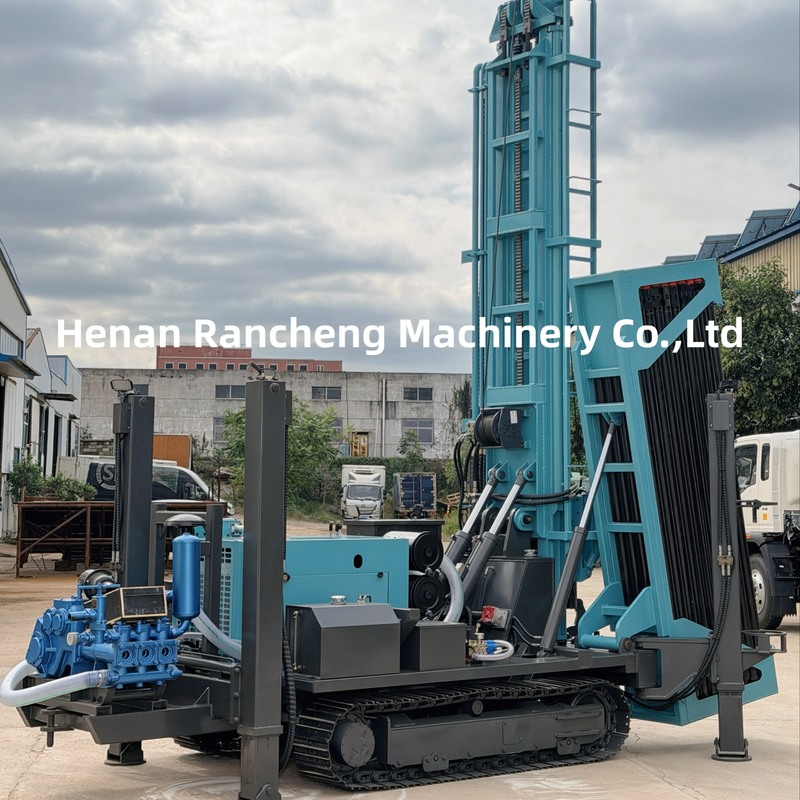

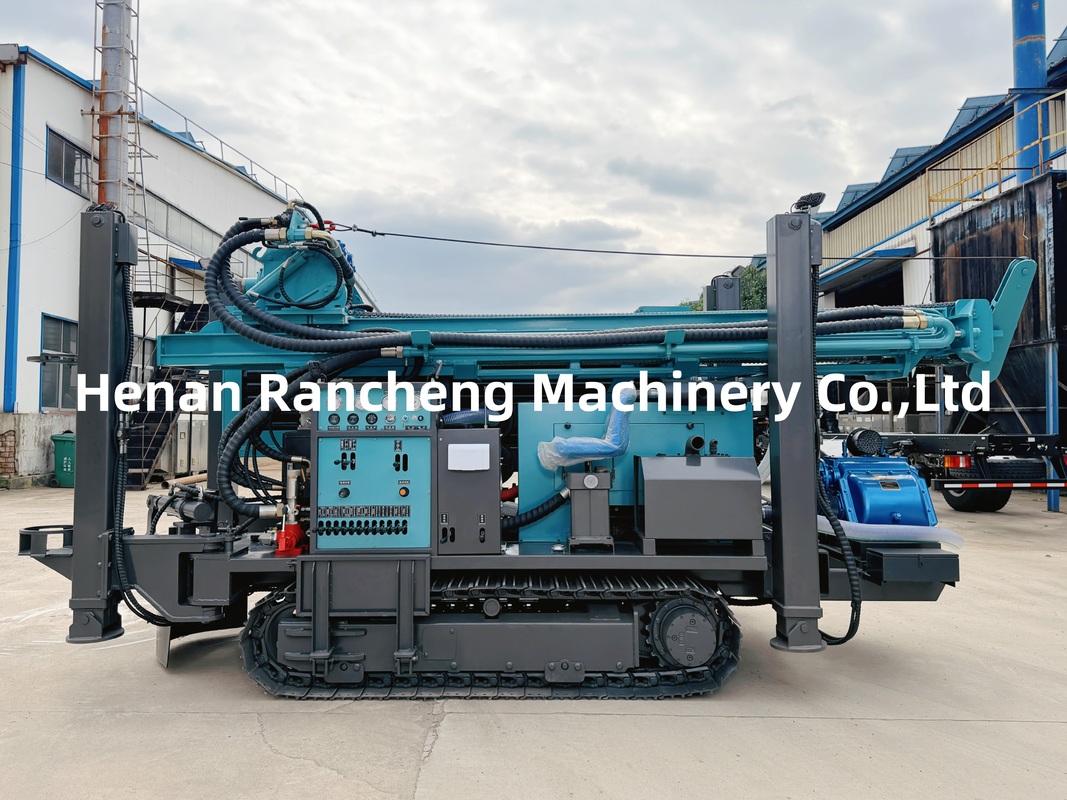

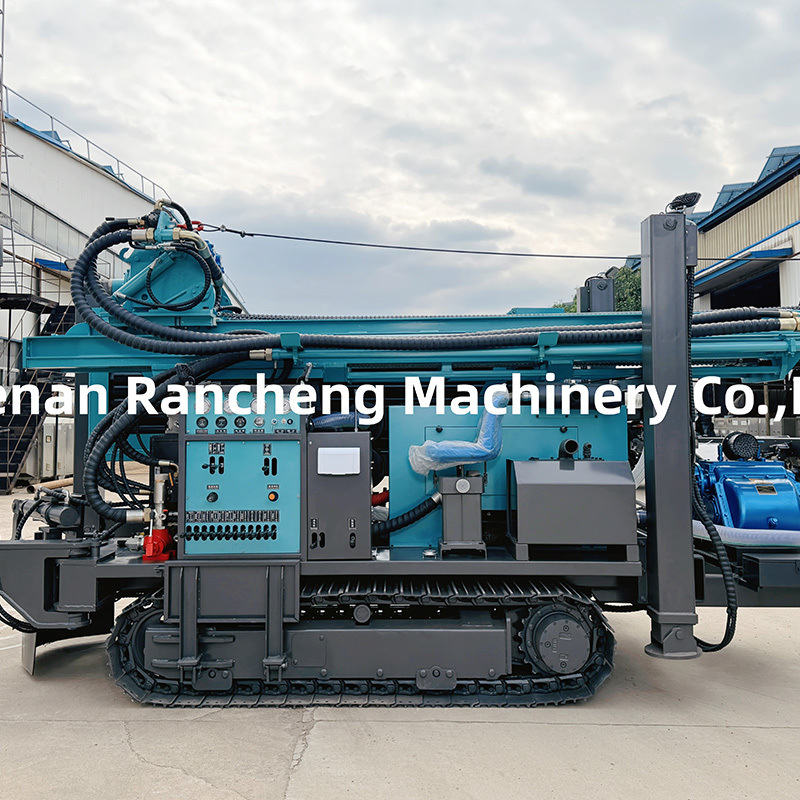

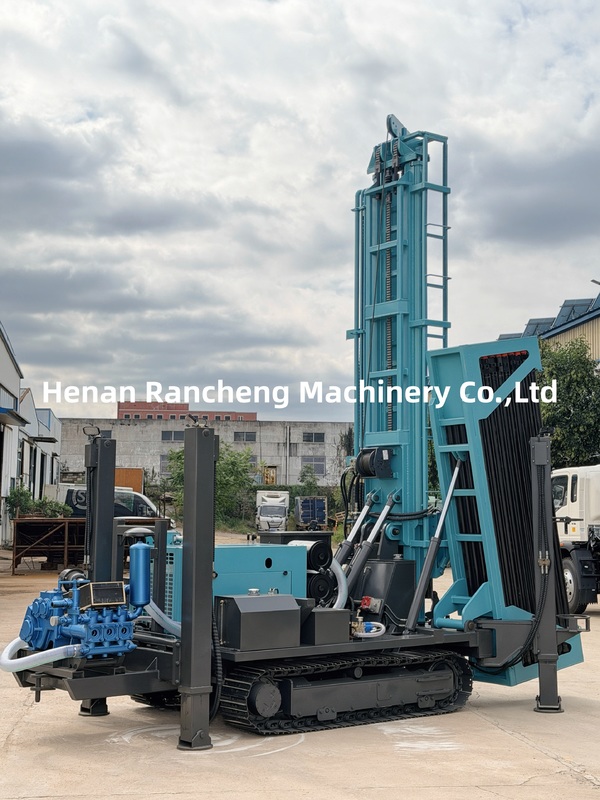

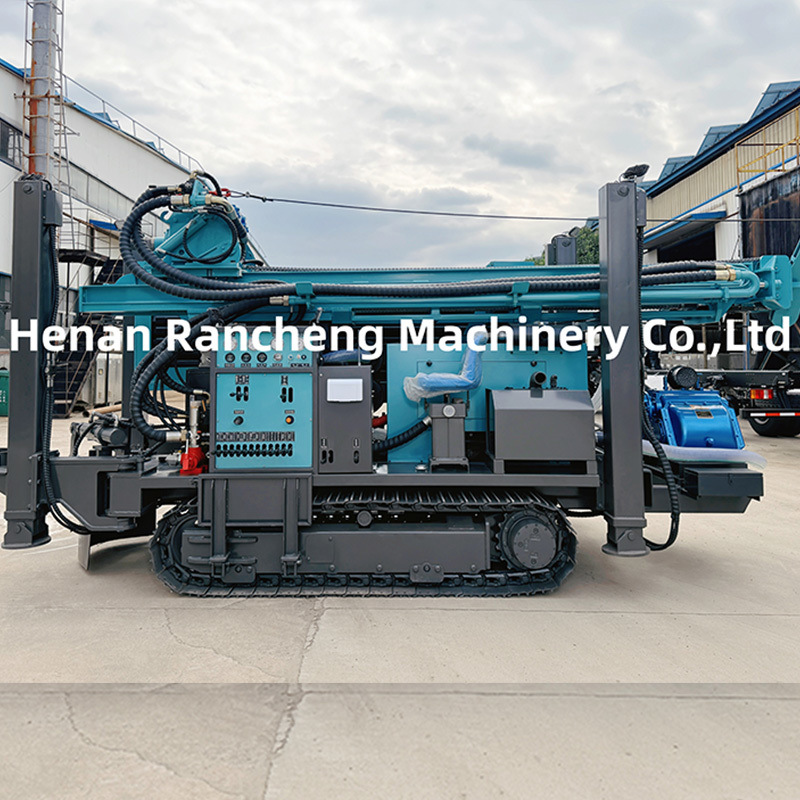

Machine Pictures

Fully hydraulic 800-meter water well drilling rig 0
