Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack

350m steel track well drilling machine

RCF350C water well drilling rig

pipe rack water well drill

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack
Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack
Product Details
Max Torque Of Rotary:
6200-9000Nm
Drill Depth:
350m
Hoist Lifting Capacity:
2T
Mud Pump Flow:
450L/min (option)
Travel Speed:
2.5Km/h
Drilling Way:
Air Compressor Drilling Or Mud Pump Drilling
Highlight:

350m steel track well drilling machine

,

RCF350C water well drilling rig

,

pipe rack water well drill

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$ 23000-28000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Fully hydraulic 800-meter water well drilling rig online Video

Fully hydraulic 800-meter water well drilling rig

Get Best Price
Good price Upgrade RCF350C Water Well Drilling Machine With Drill Rod Rack For Water Borehole Drilling online Video

Upgrade RCF350C Water Well Drilling Machine With Drill Rod Rack For Water Borehole Drilling

Get Best Price
Good price Fully hydraulic crawler-type 400-meter water well drilling rig 140 - 350mm Drilling Dia online Video

Fully hydraulic crawler-type 400-meter water well drilling rig 140 - 350mm Drilling Dia

Get Best Price
Good price RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine online Video

RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine

Get Best Price
Contact Us
Contact Now
Product Description

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack



Product Description



RCF350C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.

Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

Technical parameters



Bore diameter(hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of rotary 6200-9000Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
weight 8600Kg
Diesel engine 91KW Yuchai engine 4 cylinders
Drilling way Air compressor drilling or mud pump drilling

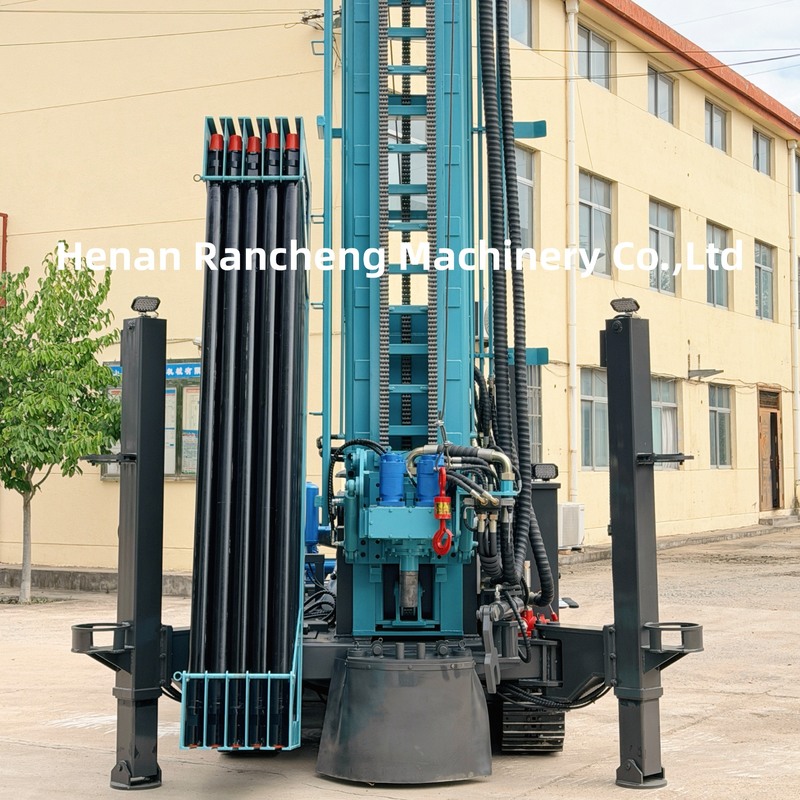

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack 0

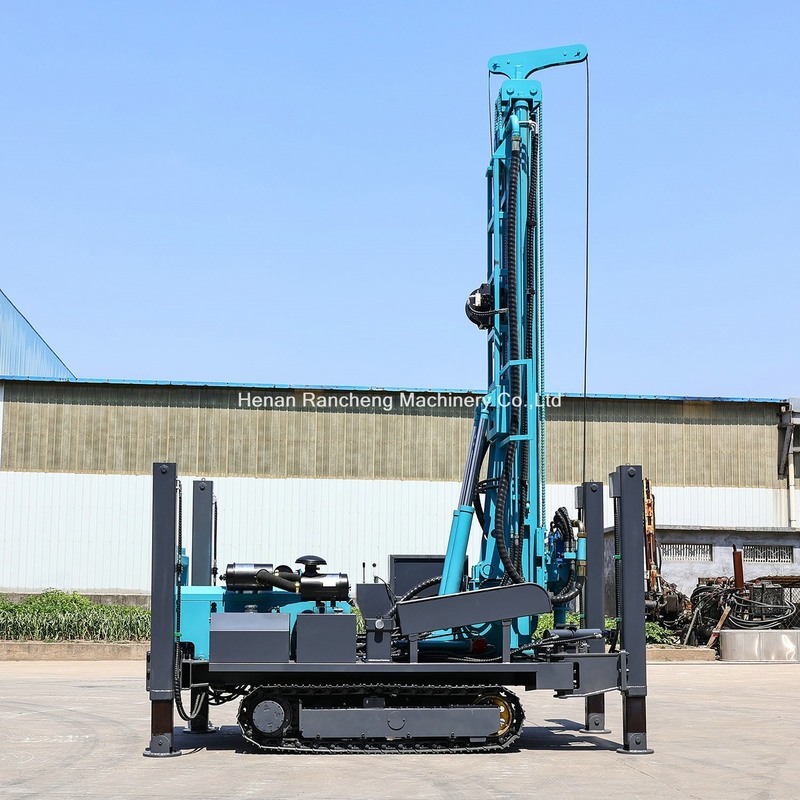

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack 1

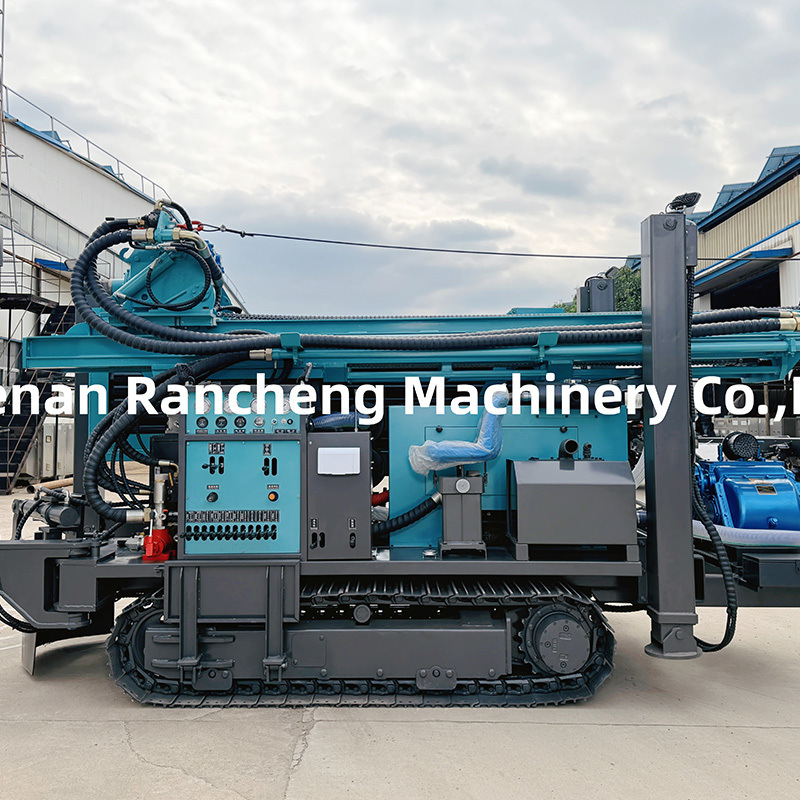

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack 2

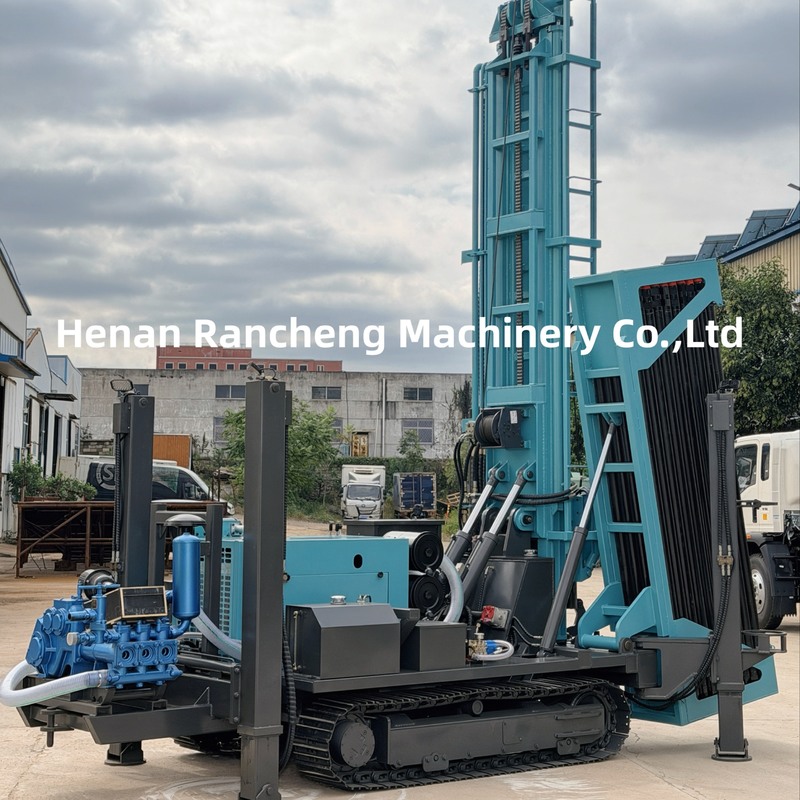

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack 3
