Name: Digital Logging System Specially Designed For The Convenience Of Field Work
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-1
Price: 8,500.00 USD
Availability: InStock

Home > Products > Geophysical Survey Equipment >

Digital Logging System Specially Designed For The Convenience Of Field Work

digital logging system for fieldwork

geophysical survey logging equipment

portable digital logging system

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-1

Request A Quote

Product Details

Signal Output:

USB Interface

Depth Measurement:

0 ~ 9999.99 Meters

Depth Measurement Accuracy:

Better Than 0.1%

Speed Measurement Range:

0 ~ 9999 Meters / Hour

Speed Measurement Accuracy:

Better Than 5%

Highlight:

digital logging system for fieldwork

geophysical survey logging equipment

portable digital logging system

Payment & Shipping Terms

Minimum Order Quantity

Price

US $ 7000-10000

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Digital Logging System Specially Designed For The Convenience Of Field Work

Get Best Price

Video

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

Get Best Price

Video

Geophysical Well Logs Water Well Logging Equipment Well Logging Tool, Borehole Logging Equipment Geotechnical Borehole Survey Tool For Sale

Get Best Price

Video

300m Geophysical Equipment Borehole Water Well Log Tool Apparent Resistivity Measuring Logging System

Get Best Price

Contact Now

Product Description

Digital Logging System Specially Designed For The Convenience Of Field Work

Product Description

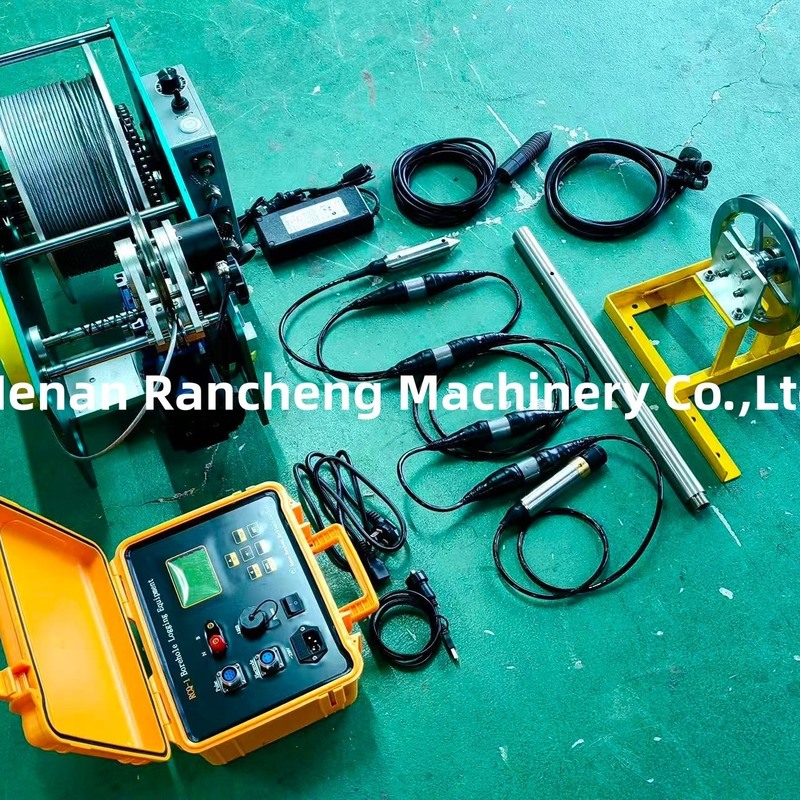

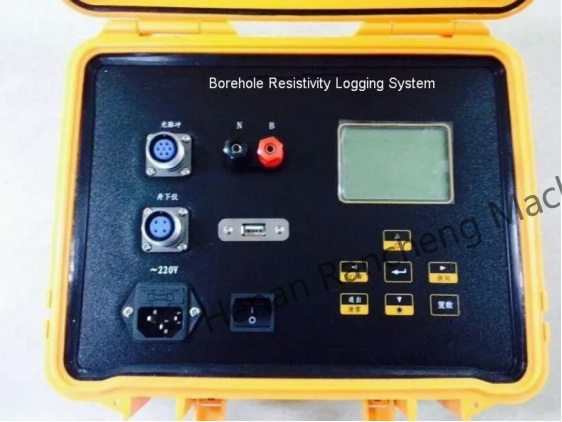

The RCQ-1 resistivity logging equipment is used to measure apparent resistivity in borehole formations. This surface instrument connects to a downhole electrode system and works with a PC to measure parameters such as apparent resistivity and natural potential. Our this RCQ-1 instrument uses an adaptive power supply scheme, delivering a wide range of AC square waves to the downhole formation. Both the supply current and voltage are measured simultaneously. This makes it easy to operate, has a wide measurement range, and is lightweight and reliable.

Technical Specifications

No.	Item	Parameter
1	External Power Supply	AC 220V ± 20%, 50Hz, 20W
2	Working Condition	Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90%
3	AB Power Supply	6~60V, 0~200mA, AC square wave
4	Applicable Electrode System	A1.6M 0.4N
5	Apparent Resistivity Measurement Range	1-2000Ωm
6	Apparent Resistivity Measurement Accuracy	1% (scale)
7	Natural Potential Measurement Range	±1200mv
8	Natural Potential Measurement Accuracy	1%
9	Signal Output	USB interface
10	Depth Measurement	0 ~ 9999.99 meters
11	Depth Measurement Accuracy	better than 0.1%
12	Speed Measurement Range	0 ~ 9999 meters / hour
13	Speed Measurement Accuracy	better than 5%

Product Features

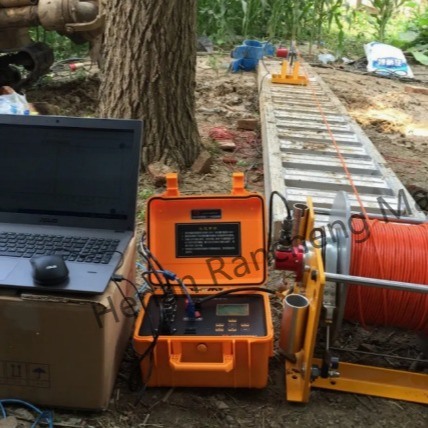

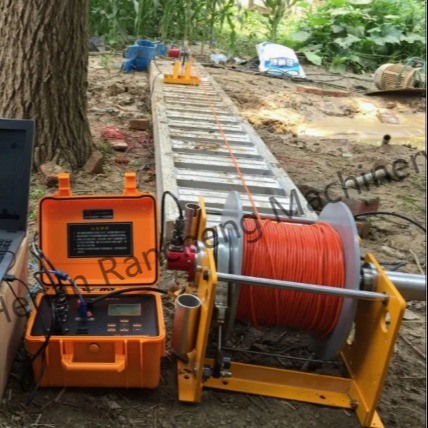

Real-time data measurement and transmission for field operations
Kevlar cable and electric winch design for convenient deployment
Dual voltage channels allow simultaneous recording of two curves, improving efficiency
Gradient and natural potential measurement functions for versatile applications
AB measurement method reduces artificial electric field interference
High accuracy and repeatability ensure reliable geophysical survey results
Professional software for fast curve plotting and data processing


Digital Logging System Specially Designed For The Convenience Of Field Work 0

Digital Logging System Specially Designed For The Convenience Of Field Work 1

Digital Logging System Specially Designed For The Convenience Of Field Work 2

Digital Logging System Specially Designed For The Convenience Of Field Work 3

Digital Logging System Specially Designed For The Convenience Of Field Work 4

Digital Logging System Specially Designed For The Convenience Of Field Work 5
