Name: Flatbed Trailer 5000*2200mm Small Electric Trailer For Cargo Transport
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: 7T trailer
Price: 5,000.00 USD
Availability: InStock

Home > Products > Others >

Flatbed Trailer 5000*2200mm Small Electric Trailer For Cargo Transport

small electric flatbed trailer

5000x2200mm cargo trailer

electric trailer for transport

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

7T trailer

Request A Quote

Product Details

Material:

Steel / Aluminum

Maximum Payload:

Carriage Size:

5000*2200mm

Overall Size:

6500*2800*750mm

Tire:

ST235/80R16 Tubeless Tire *4

Brake Type:

Double-axle Electric Brake

Highlight:

small electric flatbed trailer

5000x2200mm cargo trailer

electric trailer for transport

Payment & Shipping Terms

Minimum Order Quantity

Price

$ 4000-6000

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Crawler Type Four Wheel Hybrid Remote Control Lawn Mower 8HP Gasoline Engine

Get Best Price

Video

6.5HP Diesel Mini Tracked Dumper Truck with 300KG Load Capacity

Get Best Price

Video

6.5HP Diesel Mini Tracked Dumper Truck with 300KG Load Capacity

Get Best Price

Video

6.5HP Gas Powered Mini Dumper Truck for 300kg Load with 4WD

Get Best Price

Contact Now

Product Description

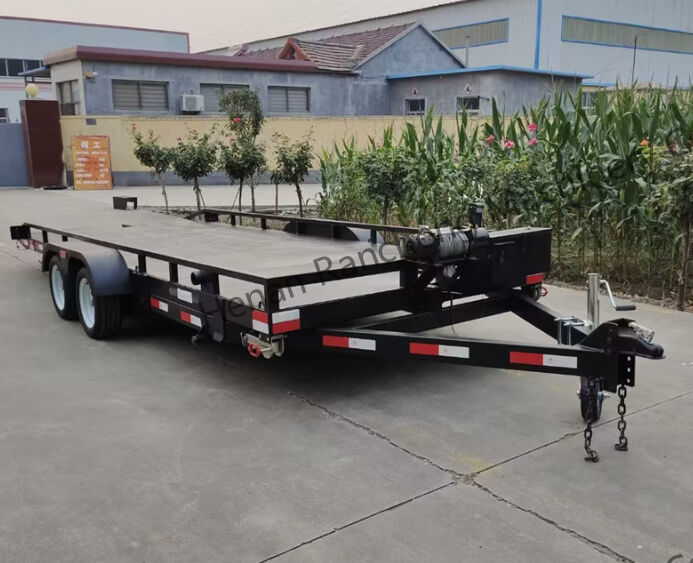

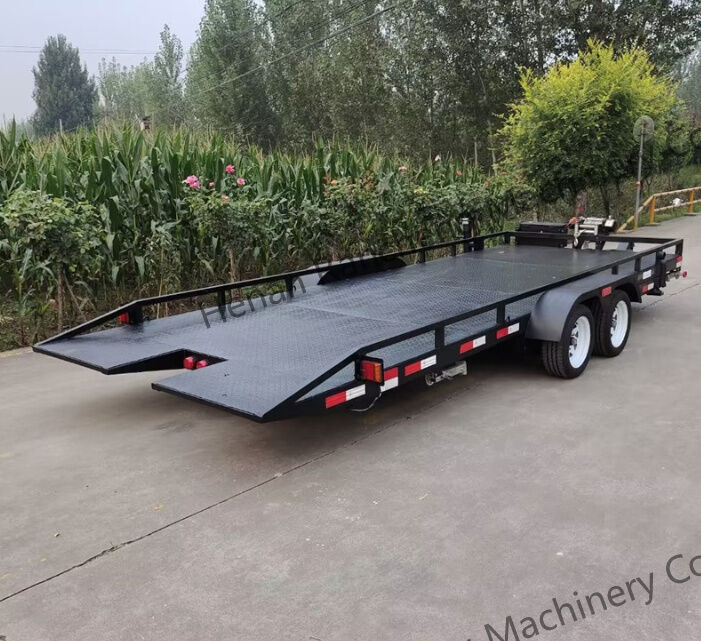

Flatbed Trailer 5000×2200mm Small Electric Trailer For Cargo Transport

This flatbed trailer is widely used in factories, construction sites, warehouses, and large engineering projects. It is designed for transporting heavy and oversized cargo such as steel, timber, vehicles, and construction or agricultural machinery including excavators, loaders, and harvesters.

The trailer adopts a non-powered full-trailer design and must be towed by a tractor or forklift, significantly improving cargo transfer efficiency while reducing labor costs.

7T Platform Trailer Technical Specifications

Material	Steel / Aluminum
Maximum Payload	7T
Carriage Size	5000×2200mm
Overall Size	6500×2800×750mm
Tire	ST235/80R16 Tubeless Tire ×4
Suspension Form	Double-bridge linkage, front and rear floating type structure, with linkage steel plates installed at the front and rear for shock absorption
Brake Type	Double-axle electric brake
Traction Form	Triangular traction rods are equipped with traction support frames
Additional Equipment	Taillights, seven-hole socket, mudguard, traction support frame, connector, safety chain, D-ring, mechanical outriggers ×4, electric winch, and 12V battery
Material	12# 14# Channel steel, 3mm patterned plate, material Q235
Self-Unloading Form	Double oil top (rear-tipping self-unloading), equipped with an independent hydraulic station, 12V battery
Surface Treatment	Primer + topcoat

Dimensions & Capacity

The flatbed platform measures 2.2 meters in width and 5 meters in length, with a rated loading capacity of 7 tons. The dual-axle structure ensures excellent load distribution and stable operation under both empty and fully loaded conditions. It is suitable for transporting one 20-foot container or partial loads.

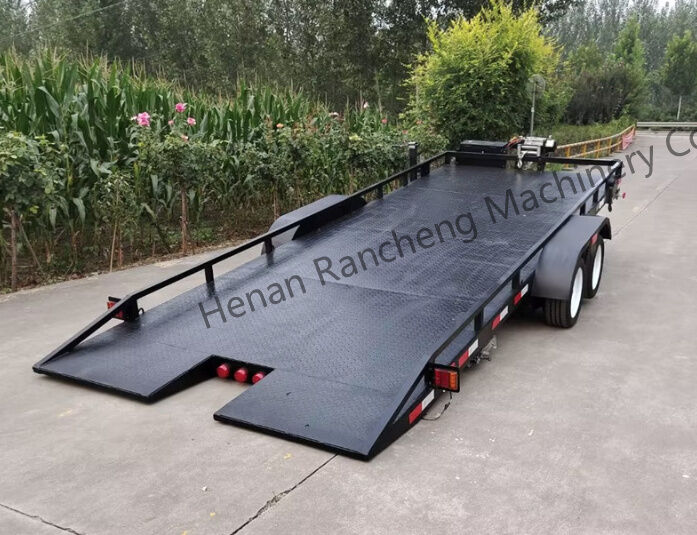

Loading & Unloading System

The trailer is equipped with a rear loading ramp, allowing machinery to drive on and off easily. A hydraulic lifting system enables flexible height adjustment during loading operations. In addition, an electric winch is installed to assist with pulling and positioning heavy equipment safely and efficiently.

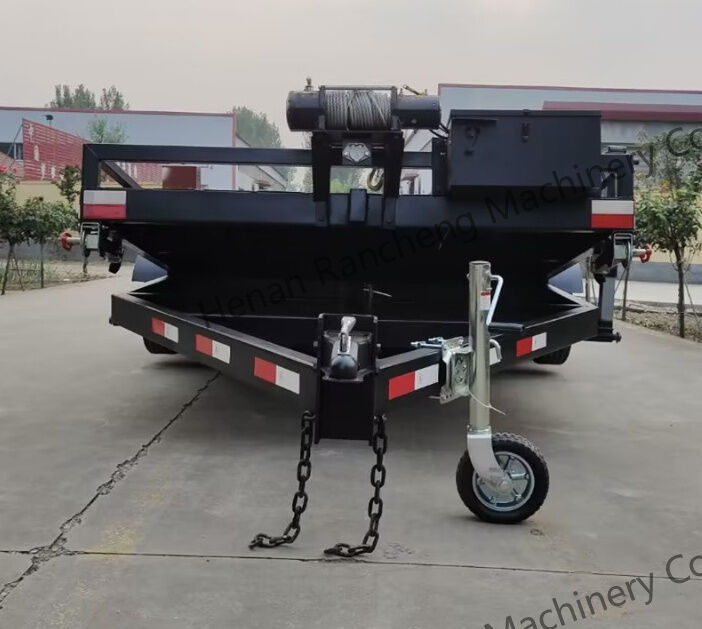

Towing Configuration

A rectangular tube drawbar is used, featuring a spring anti-drop device and shock-absorbing system, which effectively reduces impact during towing. Alternative towing configurations can be customized according to customer requirements.

Chassis & Material

The entire trailer is constructed from high-strength Q235 manganese steel, providing excellent structural rigidity and resistance to deformation under heavy loads.

High-quality rubber tires offer strong load-bearing capacity, reliable traction, and superior shock absorption, ensuring stable performance on various road and site conditions.

Stability & Maneuverability

A heavy-duty chassis structure combined with a turntable steering system delivers smooth operation, flexible steering, and a small turning radius. This design makes the trailer especially suitable for confined areas such as factory yards and construction sites.

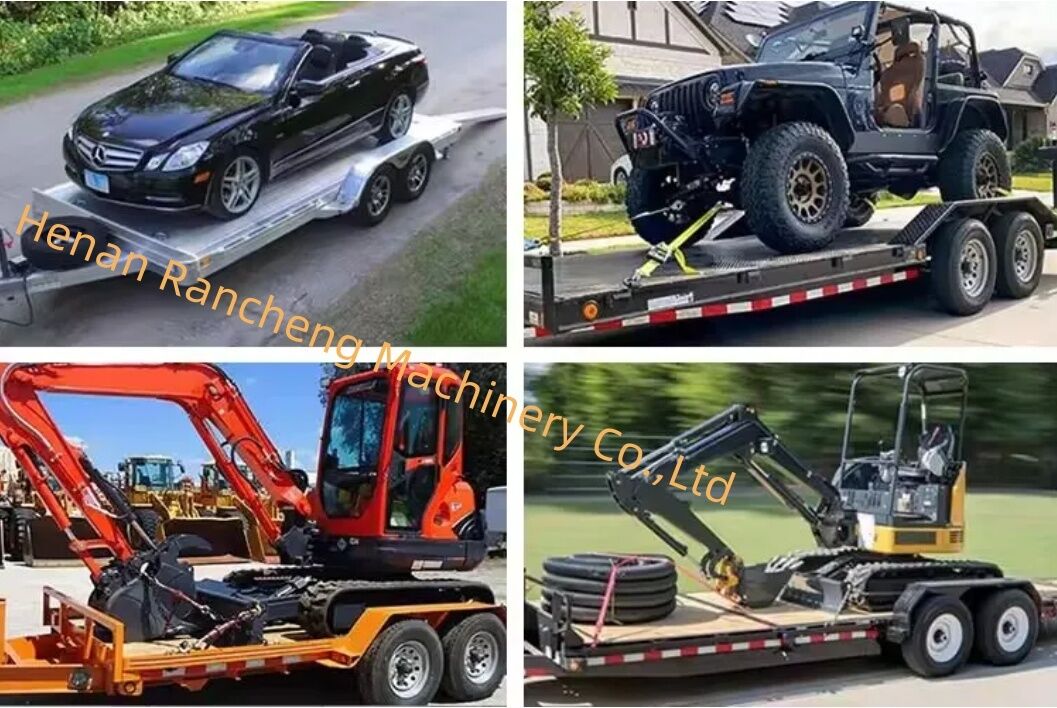

Typical Applications

Factory and warehouse material handling
Construction site equipment transportation
Agricultural machinery transfer
Short-distance transport of 20-foot containers or bulk cargo

Product Images
