Name: Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF180S
Price: 13.00 USD
Availability: InStock

Home > Products > Water Well Drilling Machine >

Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig

compact crawler water well drilling rig

180m depth water well drilling machine

crawler type deep well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Request A Quote

Product Details

Product Name:

Small Crawler Mounted Drilling Rig

Product Model:

RCF180S

Drilling Depth:

180m

Engine Power:

77.3KW

Marching Speed:

2.5Km/h

Drill Pipe Diameter:

76mm/89mm

Highlight:

compact crawler water well drilling rig

180m depth water well drilling machine

crawler type deep well drilling rig

Payment & Shipping Terms

Minimum Order Quantity

Price

US$13,000-13,900

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price

Get Best Price

Video

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

Get Best Price

Video

RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

Get Best Price

Video

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

Get Best Price

Contact Now

Product Description

Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig

The RCF180S is a versatile and efficient small crawler drilling rig that supports both mud pump and air compressor drilling methods. It can drill to a maximum depth of 180 meters, with a drilling diameter of 90-300 millimeters. Powered by a 77.3KW Yuchai engine, it ensures stable and continuous power output while also offering excellent energy efficiency, making it suitable for various geological conditions.

This drilling rig is very easy to operate, energy-efficient, and durable, making it ideal for field operations such as water well drilling, boreholes, and agricultural irrigation wells.

Technical Specifications

Bore diameter (hammer)	90-300mm
Bore depth	180m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Once-time advance length	2.4m
Pipe diameter	76mm/89mm
Pipe length	2m
Push force	4T
Lifting force	15T
Max torque of rotary	4000-4600Nm
Rotary speed	45-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension (L×W×H)	2300×1200×1900mm
Weight	2700kg
Diesel engine	77.3KW Yuchai engine

Key Advantages

The RCF180S drilling rig has a maximum drilling depth of 180 meters and a bore diameter of 90-300 mm, precisely matching diverse needs such as domestic water wells, geological exploration, and agricultural irrigation wells, with strong adaptability in drilling depth and diameter.
Equipped with a 77.3KW Yuchai engine, it provides stable power and excellent energy efficiency; it is compatible with both mud pump and air compressor drilling methods, easily handling various geological conditions such as clay, sand, and weathered rock.
The machine is simple and easy to operate, requiring no high-level skills, and can perform conveniently and efficiently even in complex outdoor environments, reducing labor and training costs.
Strictly adhering to industrial-grade materials and processes, it combines energy efficiency and wear resistance, ensuring long-term stable operation in harsh outdoor conditions, offering both durability and cost-effectiveness.

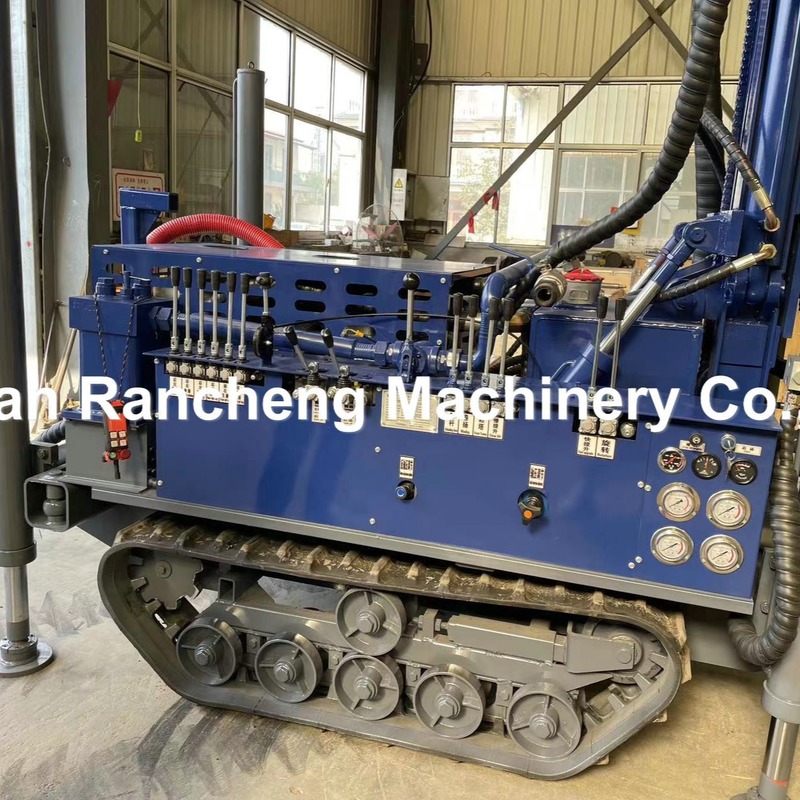

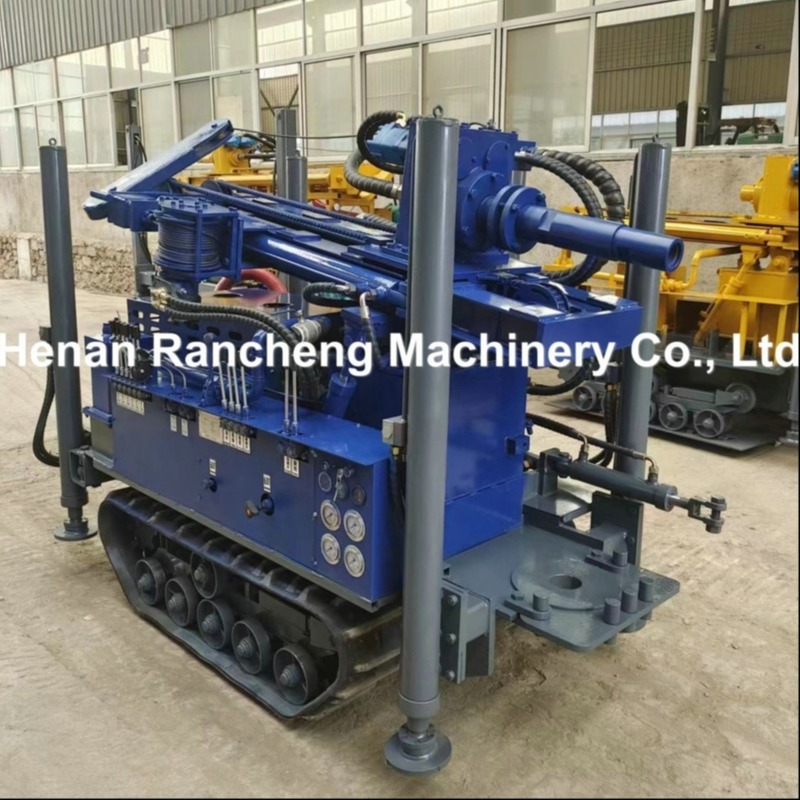

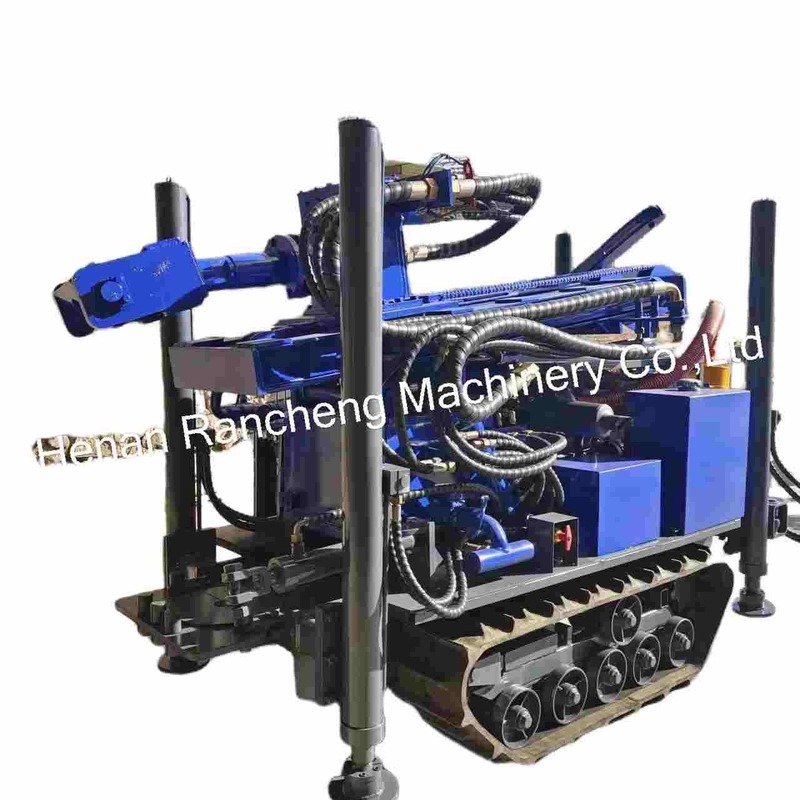

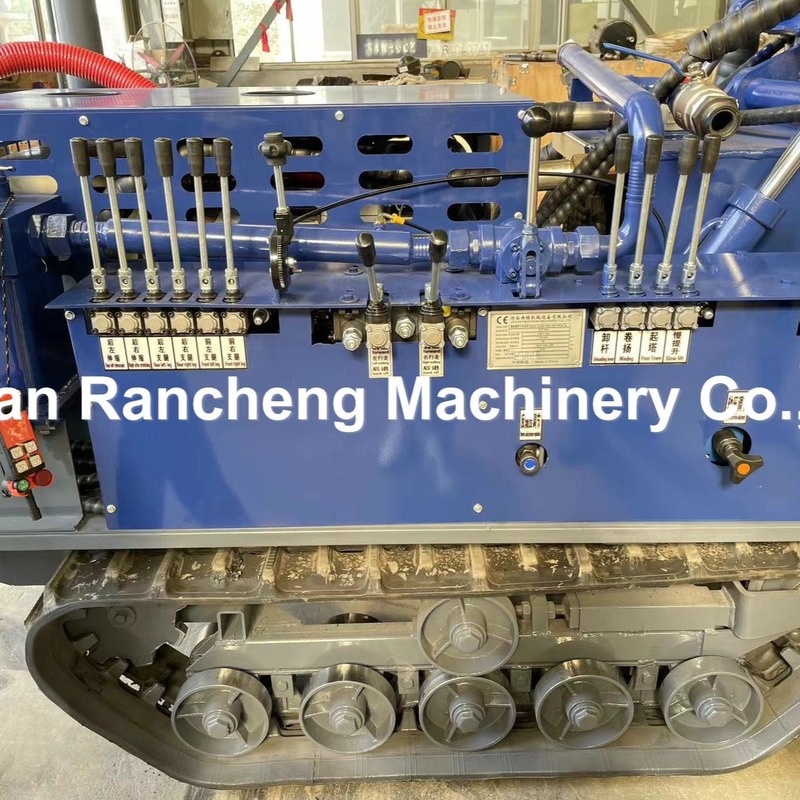

Product Images
