RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells

RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells

260Meter water well drilling rig

70kW crawler mounted drilling machine

powerful water well drilling rig with warranty

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260C

Contact Us
Request A Quote
RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells
RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells
Product Details
Machine Name:
Hydraulic Water Well Drilling Rig
Machine Model:
RCF260C
Drilling Diameter:
90-350mm
Pipe Length:
1m,2m,3m
Max Torque Of The Rotary:
4000-5300Nm
Lifting Force:
15T
Highlight:

260Meter water well drilling rig

,

70kW crawler mounted drilling machine

,

powerful water well drilling rig with warranty

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD23000-USD26000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price online Video

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price

Get Best Price
Good price 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig online Video

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

Get Best Price
Good price RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters online Video

RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

Get Best Price
Good price RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale online Video

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

Get Best Price
CONTACT US
Contact Now
Product Description
RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells
Product Overview

The RCF260C is a highly efficient and versatile DTH pneumatic water well drilling rig, driven by two motors with top-drive rotation. It can be used in conjunction with a mud pump and air compressor. Manufactured with high-quality materials, it features a compact structure, reliable performance, and a low failure rate.

This water drilling rig has a maximum drilling depth of 260 meters and is powered by a 70 kW diesel engine. It can drill through various formations including hard rock, clay, soil, and sand. The rig uses a hydraulic rubber track system for easy mobility and is equipped with four 1.7-meter-high hydraulic outriggers for convenient truck transportation.

Applications
  • Irrigation well drilling
  • Domestic drinking water well drilling
  • Geothermal well drilling
  • Hydrological well drilling
  • Civil water well drilling
  • Industrial well drilling
Technical Specifications
Parameter Value
Bore diameter (Hammer) 90-350mm
Bore depth 260m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 15T
Lifting speed 2.5m/min
Feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of the rotary 4000-5300Nm
Rotary speed 45-70r/min
Mud Pump flow 200L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension (L×W×H) 4×1.85×2.3M
Weight 6500Kg
Diesel engine 70KW FAW engine
Service & Support
  • 24/7 service by chat online and phone
  • Lifelong and free technical support
  • Warranty: One year
  • Service overseas: if you need, we can dispatch an engineer to your door

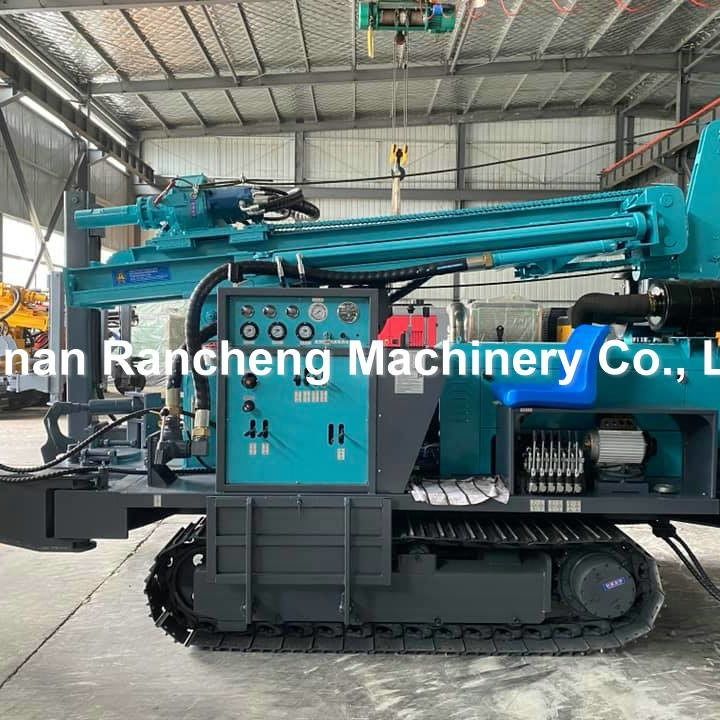

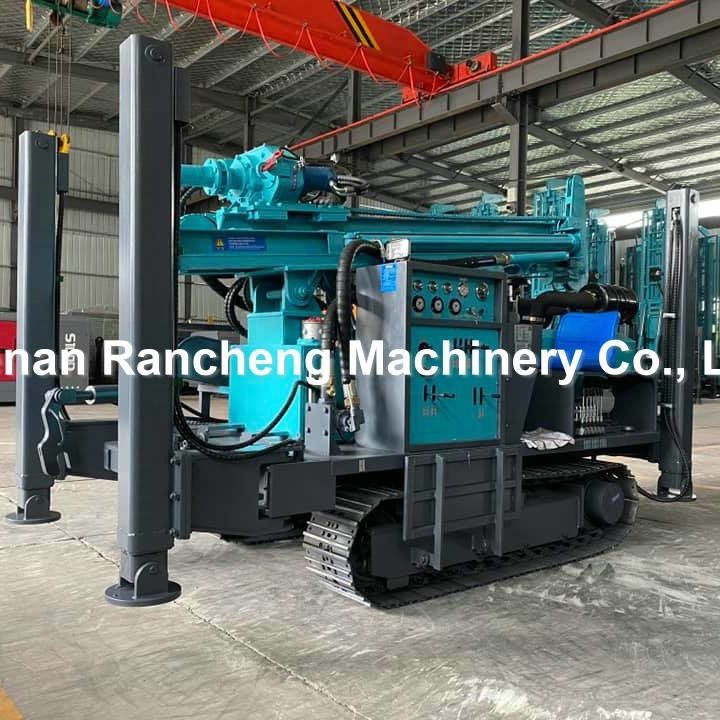

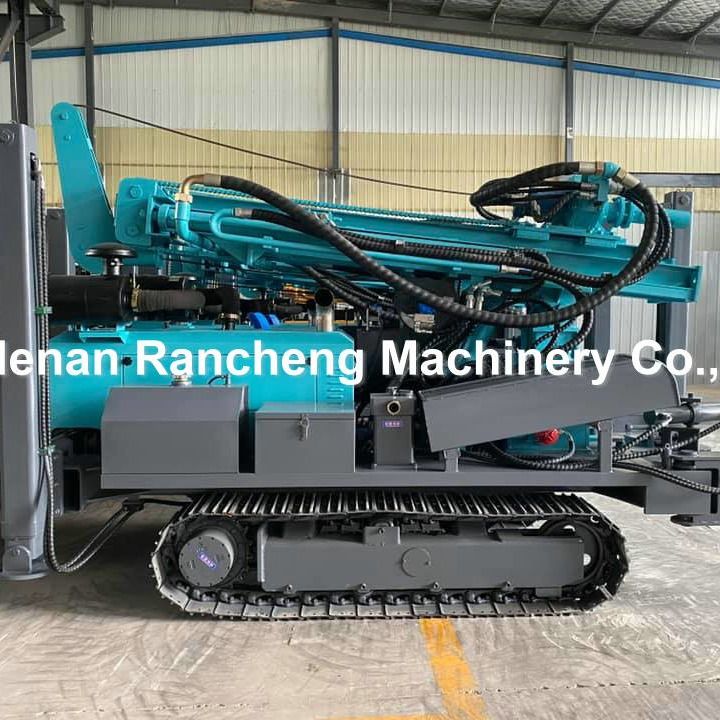

Machine Gallery
RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells 0 RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells 1 RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells 2 RCF260C 260Meter 70kW Power Crawler Mounted Drilling Rig For Water Wells 3
