55 KW Fully Diesel Powered Crawler Mounted Water Well Drilling Rig RCF180C

55 KW Fully Diesel Powered Crawler Mounted Water Well Drilling Rig RCF180C

55 KW diesel water well drilling rig

crawler mounted well drilling machine

fully powered RCF180C drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180C

Contact Us
Request A Quote
55 KW Fully Diesel Powered Crawler Mounted Water Well Drilling Rig RCF180C
55 KW Fully Diesel Powered Crawler Mounted Water Well Drilling Rig RCF180C 55 KW Fully Diesel Powered Crawler Mounted Water Well Drilling Rig RCF180C 55 KW Fully Diesel Powered Crawler Mounted Water Well Drilling Rig RCF180C 55 KW Fully Diesel Powered Crawler Mounted Water Well Drilling Rig RCF180C
Product Details
Model:
RCF180C Hydraulic Leg Drilling Rig
Max Bore Deep:
180m
Lifting Force:
12T
Hydraulic Leg:
1.5m
Rotary Speed:
45-70r/min
Max Torque Of Rotary:
3200-4600N.m
Highlight:

55 KW diesel water well drilling rig

,

crawler mounted well drilling machine

,

fully powered RCF180C drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price online Video

RCF180C Crawler-Mounted Hydraulic Water Well Drilling Rig Factory Price

Get Best Price
Good price 70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig online Video

70 KW Yuchai Engine RCF280C Crawler-Mounted Water Well Drilling Rig

Get Best Price
Good price RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters online Video

RCF350C Hydraulic Crawler Water Well Drilling Rig With A Maximum Drilling Depth Of 350 Meters

Get Best Price
Good price RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale online Video

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

Get Best Price
CONTACT US
Contact Now
Product Description

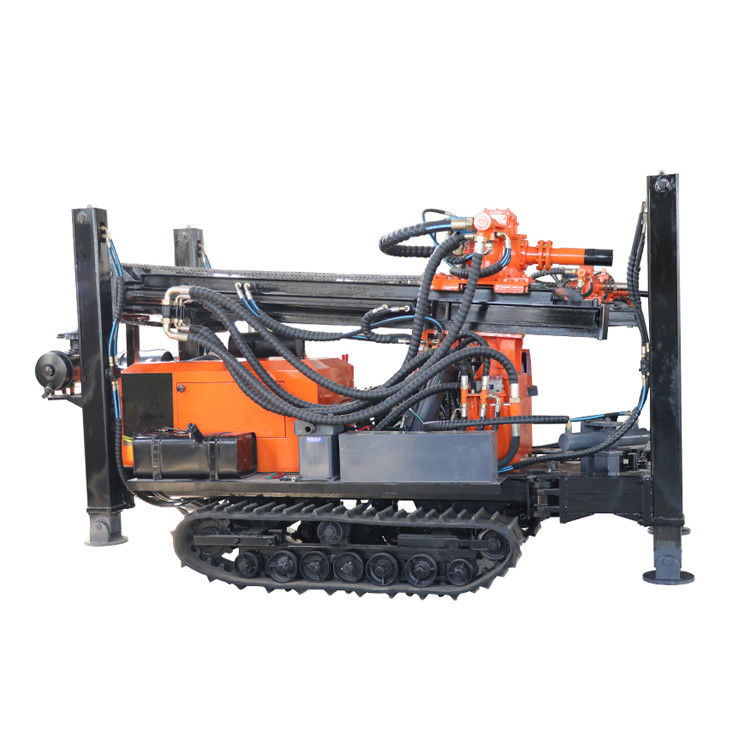

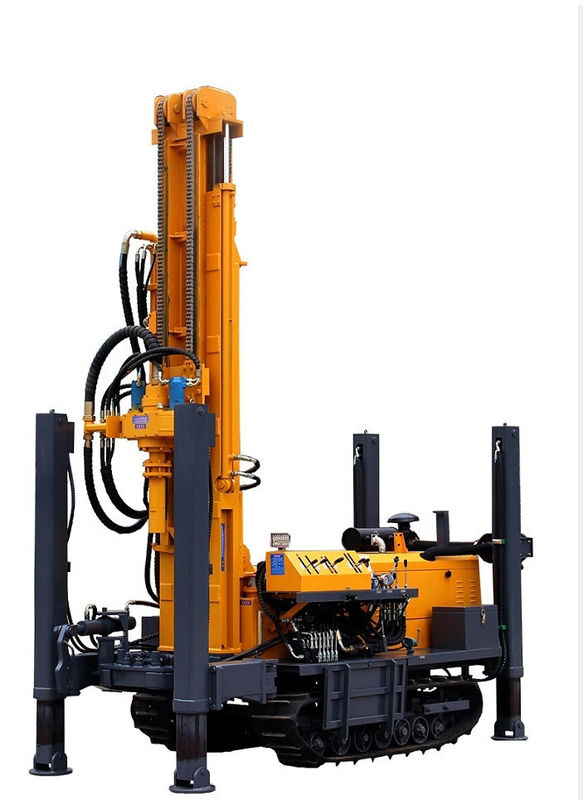

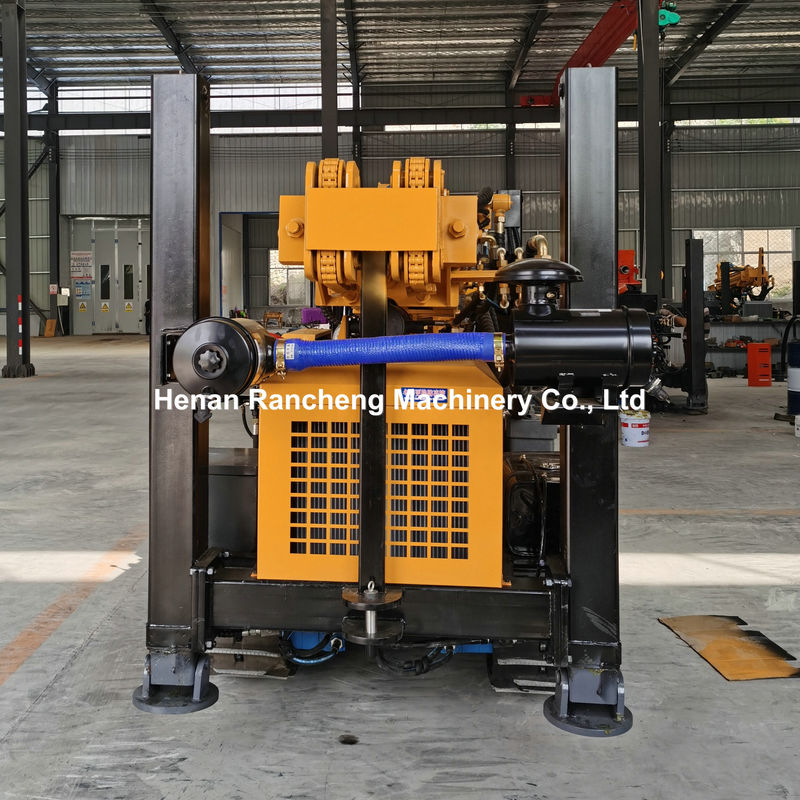

55 KW Fully Diesel Powered Crawler Mounted Water Well Drilling Rig RCF180C
Product Overview

The RCF180C hydraulic drilling rig is an independently developed model equipped with a 55 kW Weichai engine. This drilling rig features a composite mast design with a 3.4-meter stroke and a dual-cylinder lifting capacity of up to 12 tons. It is equipped with a dual-motor rotary drill head and can be used in conjunction with a mud pump and air compressor.

Its applications are wide-ranging, suitable for various drilling projects including irrigation wells, domestic water wells, geothermal wells, hydrological wells, civil water wells, and industrial wells.

Technical Specifications
Model RCF180C
Drilling Method Mud pump drilling and air DTH hammer drilling
Operation System Full hydraulic operating
Bore Diameter (Hammer) 90-300mm
Bore Depth 180m
Air Consumption 17-31m³/min
Air Pressure 1.7-2.5Mpa
Pipe Diameter 76mm/89mm
Pipe Length 3m
Push Force 4T
Lifting Force 12T
Lifting Speed 2.5m/min
Feeding Speed 0.5-5m/min
Fast Lifting Speed 18m/min
Fast Feeding Speed 35m/min
Max Torque of the Rotary 3200-4600Nm
Rotary Speed 45-70r/min
Mud Pump Flow 250L/min (option)
High Hydraulic Leg 1.5m
Feeding Efficiency 10-35m/h
Travel Speed 2.5Km/h
Climb Ability 30°
Dimension (L×W×H) 3×1.5×2.2M
Weight 4500kg
Diesel Engine 55KW Quanchai
Key Advantages
  • Independently developed model with 55 kW Weichai engine and composite mast design
  • 3.4-meter stroke with 12-ton dual-cylinder lifting capacity
  • Dual-motor rotary drill head compatible with mud pump and air compressor
  • Rubber track chassis with high-position hydraulic outriggers for efficient loading and transportation
  • Flexible adjustment of rotation speed and torque for different drilling tools and processes
  • Easy drill rod connection and disconnection with minimal auxiliary operation time
  • DTH hammer + compressed air cleaning for rock formations with superior drilling speeds
  • Cutting/conical drill bit + mud cleaning mode for loose soil layers
  • Versatile applications for irrigation wells, domestic water wells, geothermal wells, and hydrological wells
Manufacturer Information

Henan Rancheng Machinery Co., LTD is a professional supplier of drilling rigs in China, dedicated to designing and manufacturing water well drilling rigs, rotary drilling rigs, anchor drilling rigs, core drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors, and drilling tools.

With advanced technology, modern equipment, first-class team and rich experience, our products have passed ISO9001 and CE certifications and are exported to approximately 200 countries and areas worldwide, receiving excellent feedback from our clients.

We pursue the principle of "Customer First, Integrity First" and sincerely look forward to cooperating with you!
