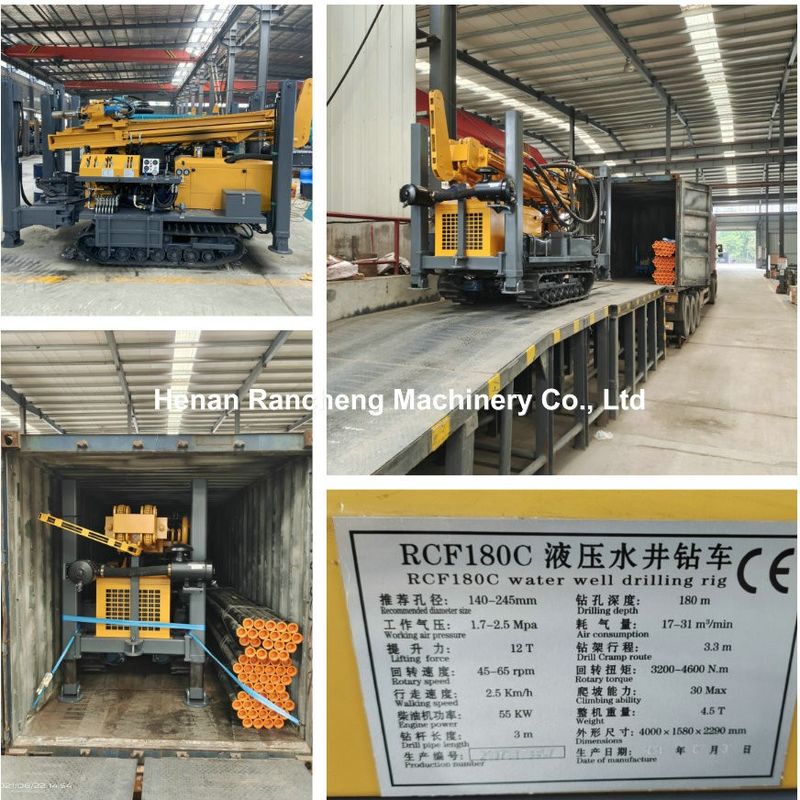

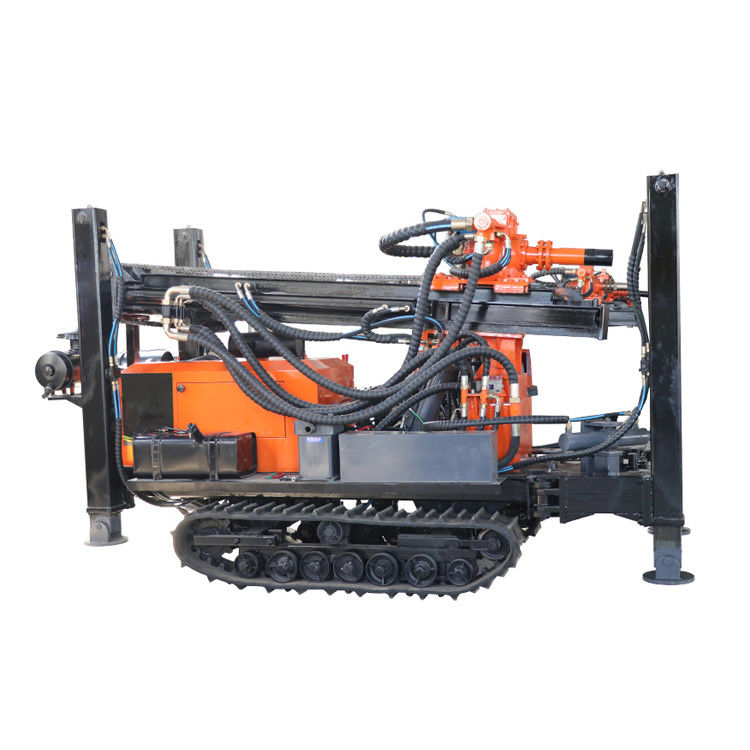

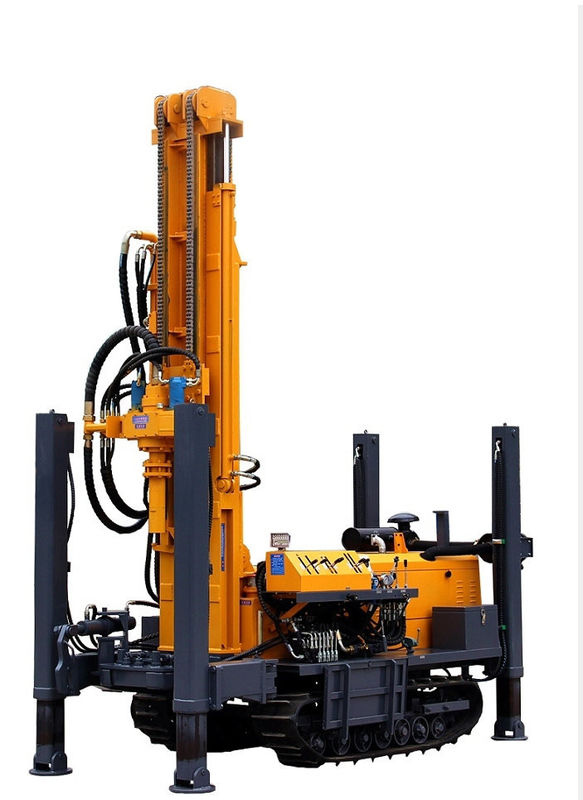

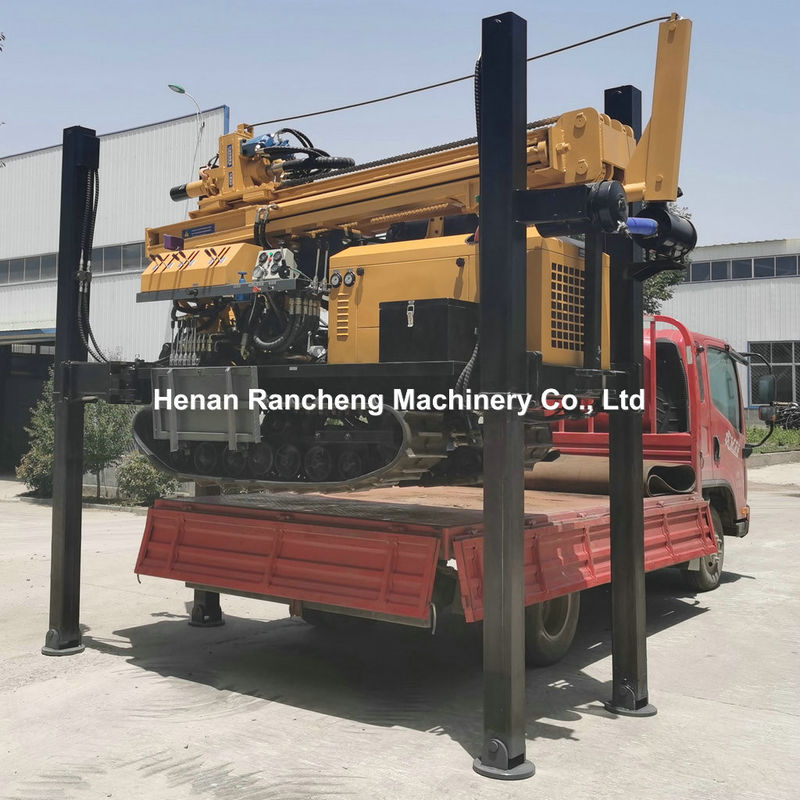

RCF180C Hydraulic Crawler-Mounted Multifunctional Mobile Water Well Drilling Rig

The RCF180C hydraulic drilling rig is a high-performance drilling equipment developed independently. It features a dual-motor rotary drill head design and can be flexibly paired with mud pumps and air compressors. Equipped with a powerful and stable 55 kW diesel engine, and a rubber track-type walking structure, it offers convenient mobility and adaptability to various work sites. It boasts a drilling depth of up to 180 meters and a drilling diameter range of 90-300 millimeters, supporting both mud pump drilling and down-the-hole pneumatic drilling methods. It is widely applicable to various drilling projects, including irrigation wells, domestic drinking water wells, geothermal wells, and industrial wells.

• The drilling rig's parameters can be adjusted as needed to adapt to different drilling tools and construction techniques, easily handling various complex geological conditions.
• It features a fully hydraulic top-drive rotary propulsion and lifting system, offering flexible control, short auxiliary operation time, and high overall operating efficiency; drill pipe connection and disassembly are convenient, and the machine is equipped with a 3.4-meter long stroke and a 12-ton twin-cylinder lifting capacity, while high-position hydraulic outriggers facilitate equipment loading, unloading, and transportation.
• Equipped with a powerful 55 KW diesel engine, and a flexible rubber track chassis, it can adapt to various outdoor work sites.
