Name: RCF200T Truck-Mounted Drilling Rig With A 6*4 Configuration And A Drilling Depth Of 200 Meters
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200T
Availability: InStock

Home > Products > Water Well Drilling Rig >

RCF200T Truck-Mounted Drilling Rig With A 6*4 Configuration And A Drilling Depth Of 200 Meters

truck-mounted water well drilling rig

6x4 configuration drilling rig

200-meter depth drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200T

Request A Quote

Product Details

Model:

RCF200T

Bore Depth:

200m

Bore Diameter:

300mm

Car Power:

260HP

Driving Form:

6X4

Weight:

18000kg

Highlight:

truck-mounted water well drilling rig

6x4 configuration drilling rig

200-meter depth drilling rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by ro-ro ship

Delivery Time

10-15 working days

Payment Terms

T/T,Western Union

Supply Ability

100sets per Month

RCF200T Truck-Mounted Water Well Drilling Rig With A Drilling Depth Of 200 Meters

Get Best Price

Video

The RCF350T Truck-Mounted Water Well Drilling Rig Has A Drilling Depth Of 350 Meters

Get Best Price

Video

RCF300T Vehicle Mounted Drilling Rig A Popular Model Available For Direct Sale

Get Best Price

Video

1000m Depth Truck Mounted Borehole Water Well Drilling Rig Machine For Sale

Get Best Price

Contact Now

Product Description

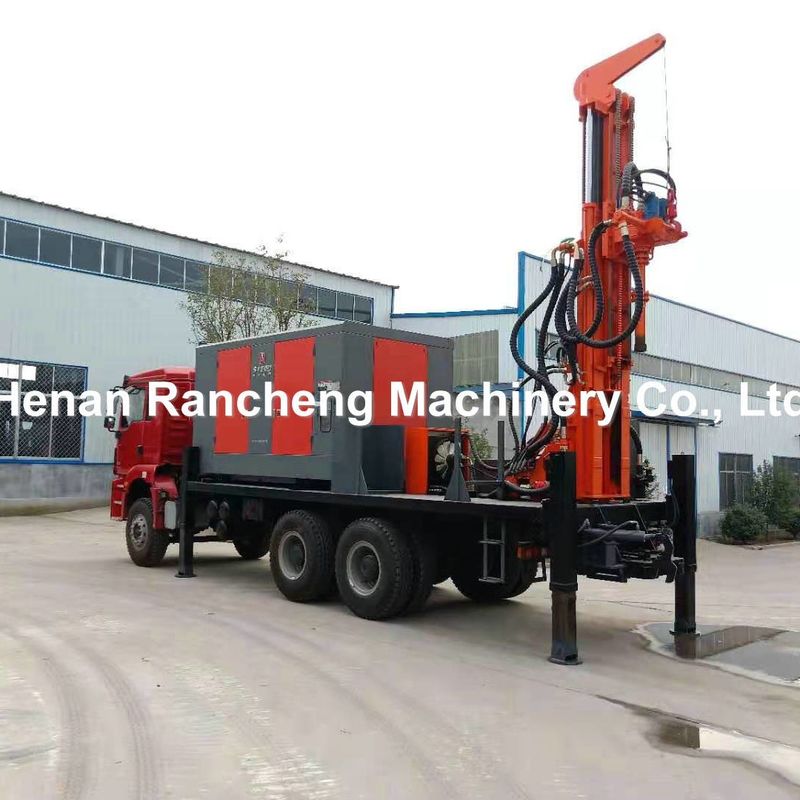

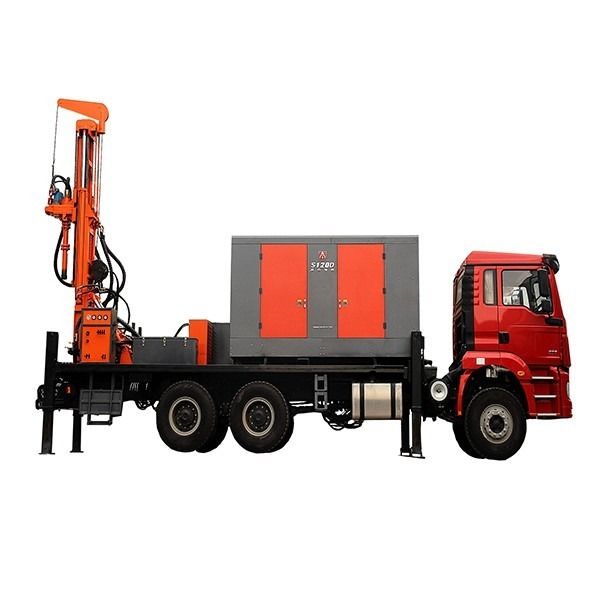

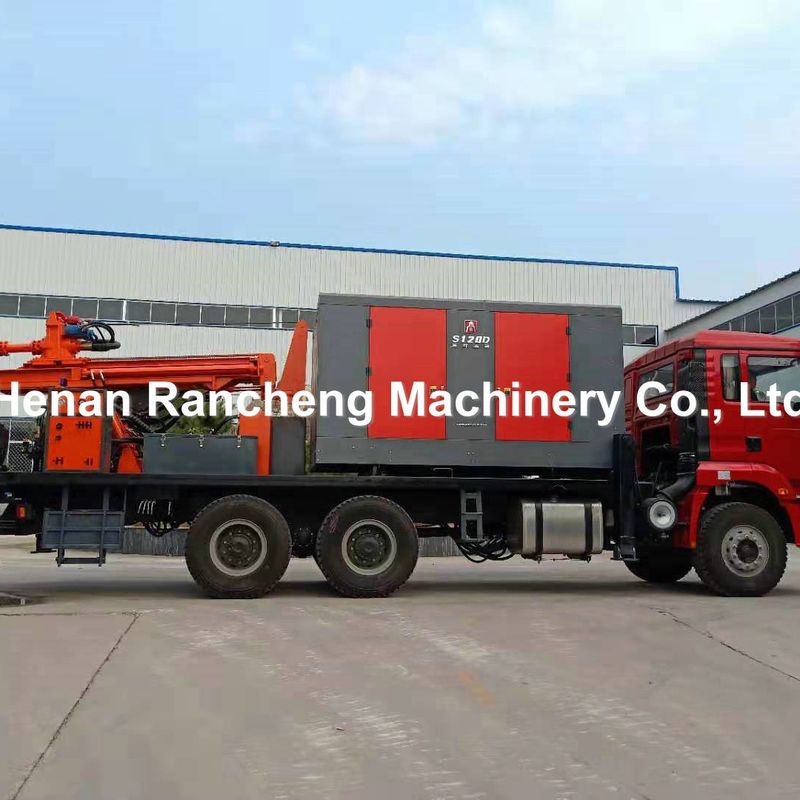

RCF200T Truck-Mounted Drilling Rig

The RCF200T truck-mounted drilling rig features a flexible 6x4 vehicle-mounted design, capable of drilling to a depth of 200 meters with a drilling diameter of 140-300mm. It adapts to both mud pump and pneumatic down-the-hole hammer drilling modes, efficiently handling various geological conditions.

Equipped with a 260 horsepower engine, combined with a thrust lifting cylinder and a high-impact down-the-hole hammer, it achieves efficient drilling with low energy consumption, making it energy-efficient and durable.

Whether for deep well drilling, agricultural irrigation wells, geothermal wells, monitoring wells, anchoring and grouting holes, or open-pit mining operations, this new fully hydraulic drilling rig can easily handle various drilling engineering needs.

Technical Specifications

Drilling Type	Mud pump drilling and air DTH drilling
Geology Drilled	All kinds
Drill System and Operation	Hydraulic
Drilling Diameter (mm)	115-350
Drilling Depth (m)	200
Work Pressure (Mpa)	1.05-3.5
Consumption (m³/min)	16-40
Drill Pipe Length (m)	3
Drill Pipe Diameter (mm)	89
Axle Pressure (N)	57000
Lifting Power (T)	12T
Rotary Torque (Nm)	5600
Rotary Speed	0-100
Truck Chassis	DONGFENG
Discharge Standard	Euro III
Horsepower	180HP
Rated Speed	2500r/min
Fuel Type	Diesel
Tire Size	90.00-20R
Drive Form	4*2
Dimension (mm)	890021003300
Total Weight (T)	12

Key Advantages

The RCF200T truck-mounted drilling rig features flexible, fully hydraulic control, allowing for real-time adjustment of parameters such as speed and torque to adapt to various drilling conditions. It is equipped with a top-drive rotary propulsion system, simplifying operation and improving drilling efficiency.

It supports multiple drilling methods, including air down-the-hole hammer and mud pump circulation, and can be optionally equipped with a mud pump, foam pump, and generator as needed.

The equipment integrates hydraulic control and top-drive propulsion design, resulting in fast drilling speed, flexible operation, and high overall efficiency. It is equipped with safety devices such as a lifting arm limiter and cylinder protector, and also features positive and negative axial pressure regulating valves to optimize impact efficiency according to drilling depth.

The entire machine is mounted on a 6x4 Dongfeng truck powered by a 260-horsepower engine, providing powerful locomotion and excellent maneuverability.

Product Images

Manufacturer Information

Henan Rancheng Machinery Co., LTD is a professional supplier of drilling rigs in China, dedicated to designing and manufacturing water well drilling rigs, rotary drilling rigs, anchor drilling rigs, core drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors, and drilling tools.

We have advanced technology, modern equipment, first-class team and rich experience. Our products have passed ISO9001 and CE certifications and are exported to around 200 countries and areas worldwide, receiving excellent feedback from our clients.

We pursue the principle of "Customer First, Integrity First" and sincerely look forward to cooperating with you!
