Name: A 160-Meter Deep Small Tracked Portable Water Well Drilling Rig Is Used For Drilling Operations
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS260C
Availability: InStock

Home > Products > Portable Water Well Drilling Machine >

A 160-Meter Deep Small Tracked Portable Water Well Drilling Rig Is Used For Drilling Operations

160-meter deep portable drilling rig

small tracked well drilling machine

portable water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS260C

Request A Quote

Product Details

Walking Way:

Rubber Crawler Mounted Water Drilling Rig

Model:

RCS260C

Drilling Depth(m):

200m

Drilling Hole Diameter(mm):

450mm

Rod Change Method:

Full Automatic Screw Thread

Diesel Motor Power (Hp/kw):

35HP

Highlight:

160-meter deep portable drilling rig

small tracked well drilling machine

portable water well drilling rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

A 160-Meter Deep Small Tracked Portable Water Well Drilling Rig Is Used For Drilling Operations

Get Best Price

Video

RCS200C Mini Drilling Rig For Drilling 150-Meter Water Wells / 25hp Diesel Engine With Water Pump

Get Best Price

Video

Rubber Track-Mounted Portable Drilling Rig RCS260C Deep Well Drilling Rig

Get Best Price

Video

The RCS200C Hydraulic Water Well Drilling Rig Has A Drilling Depth Of 200 Meters

Get Best Price

Contact Now

Product Description

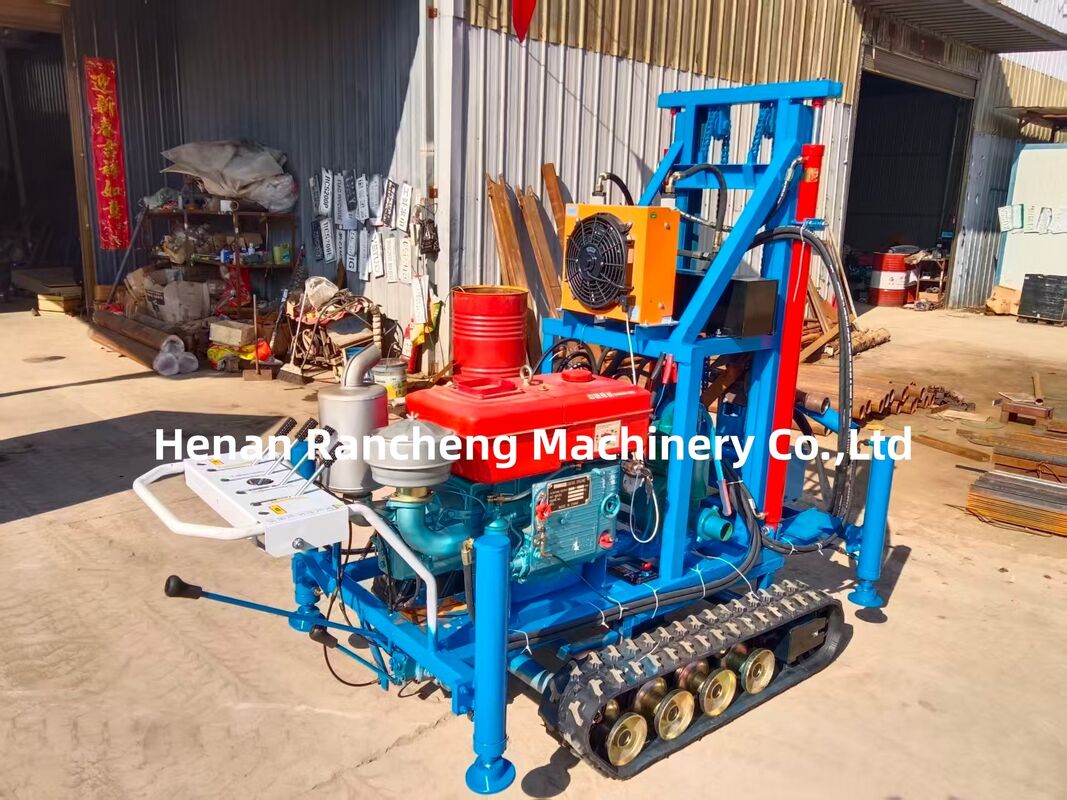

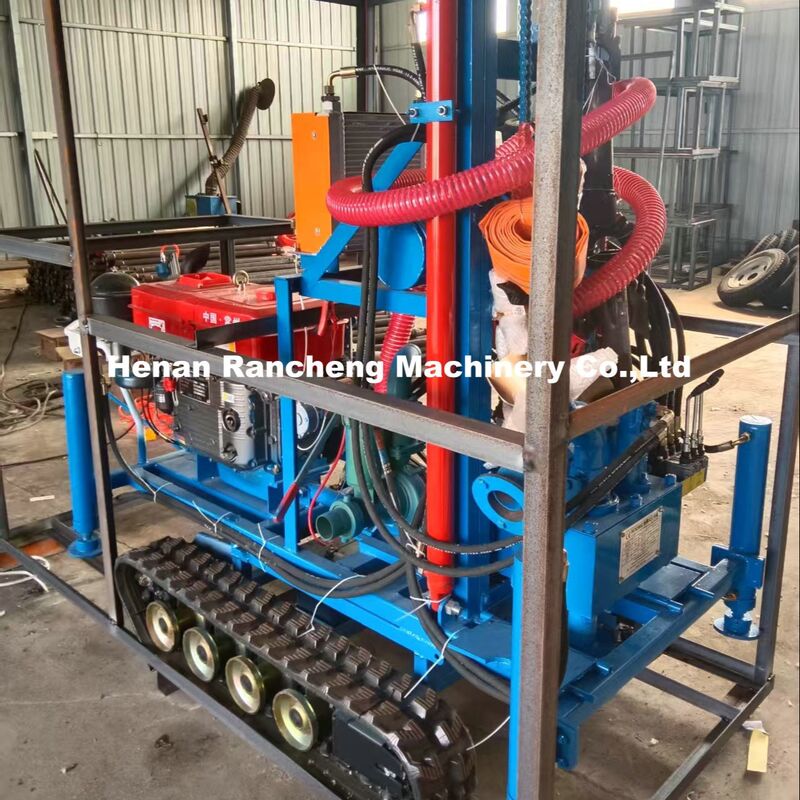

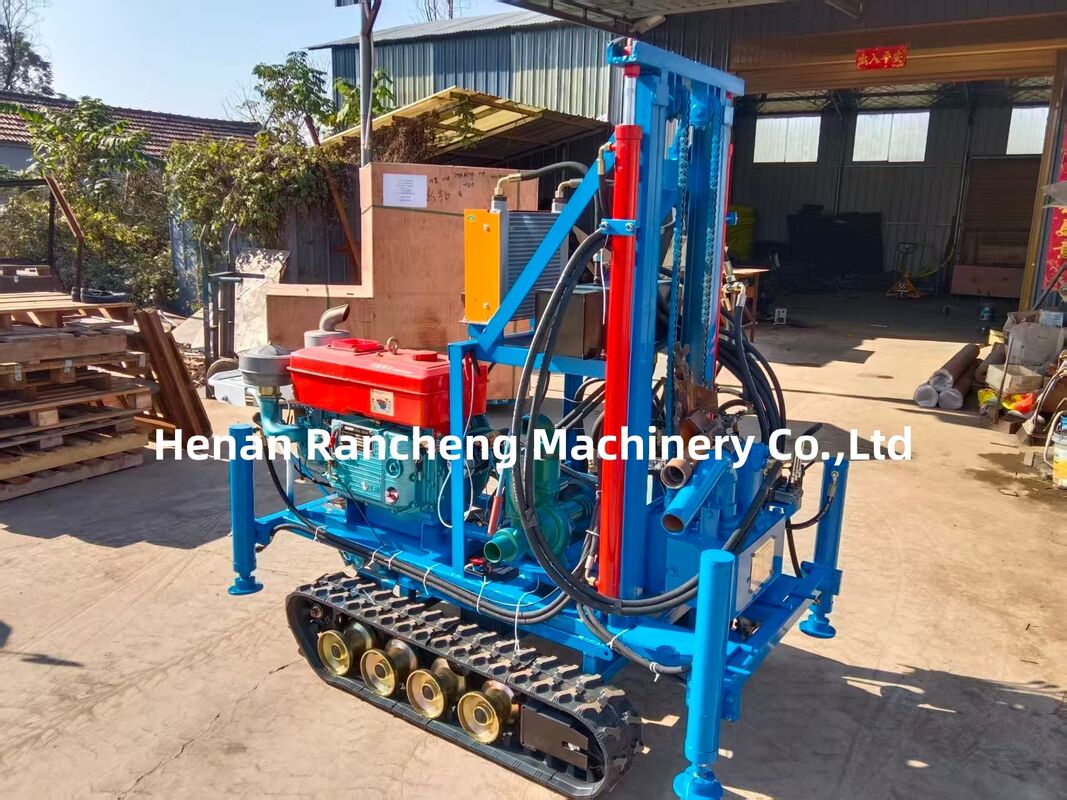

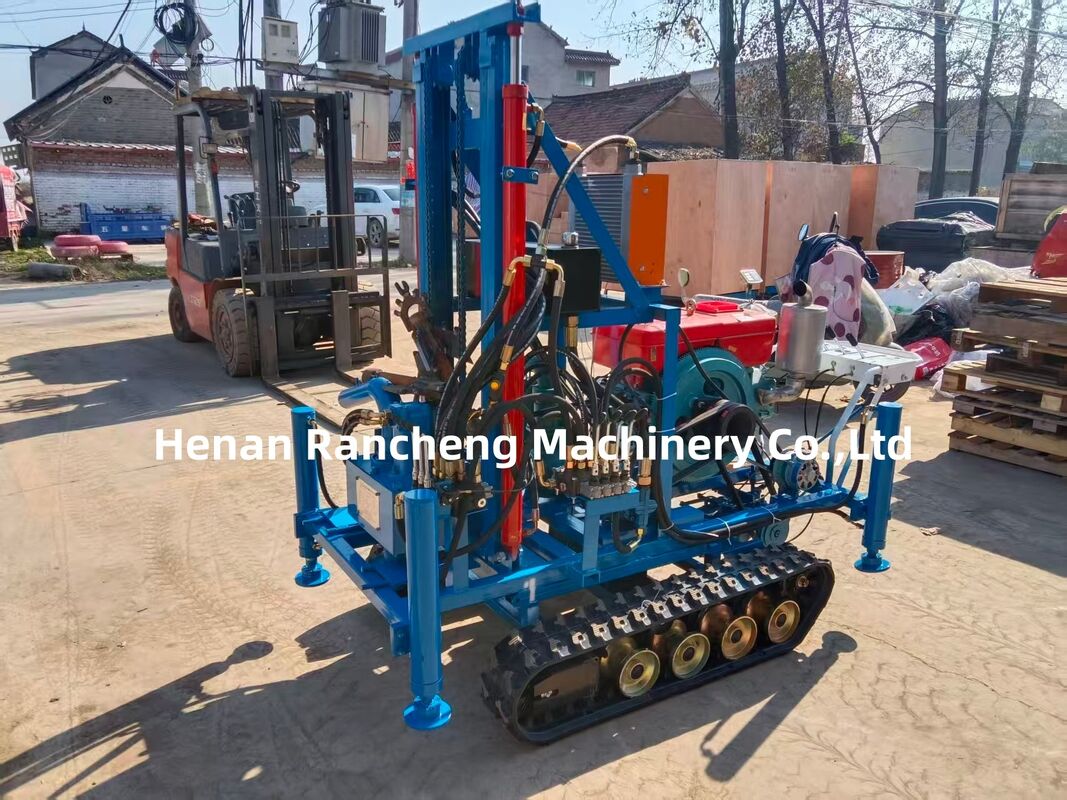

RCS260C Portable Water Well Drilling Rig

The RCS260C portable water well drilling rig is a lightweight, tracked hydraulic drilling system equipped with a powerful 35-horsepower diesel engine. This versatile machine supports both impact and rotary drilling methods, achieving maximum drilling depths of 160 meters and borehole diameters up to 450 millimeters.

Key Features

Lightweight & Mobile: Weighing only 1000 kg with rubber tracks for flexible movement and easy transportation
Efficient Operation: Automatic rod changing system enables single-person operation, reducing labor intensity
Powerful Performance: 35 horsepower diesel engine supports impact and rotary drilling for various geological conditions

Technical Specifications

Parameter	Specification
Model	RCS260C
Walking Method	Rubber crawler mounted
Overall Dimensions (mm)	2300 × 1080 × 2000
Weight (kg)	1000
Drill Rod Diameter (mm)	Ø64
Drill Rod Length (mm)	1500
Rod Change Method	Full automatic screw thread
Maximum Drilling Depth (m)	160
Diesel Motor Power	35HP / 25.8KW
Drilling Method	Percussive and rotating type
Drilling Hole Diameter (mm)	Within Ø450mm
Stroke Distance (mm)	2000
Hosting Capacity (kg)	4000KG

Applications

The RCS260C is designed for geothermal drilling, agricultural irrigation, and water well drilling applications. It can also be utilized for piling in small structures such as farmhouses or factories, as well as drilling in yards and gardens.

Support & Services

24/7 Support: Available via chat and phone
Technical Support: Lifelong and free technical assistance
Overseas Service: On-site engineer dispatch available upon request

Shipping & Delivery

Delivery Time: 10-15 days
Packing: Standard export packaging

Frequently Asked Questions

Are you the manufacturer? Yes, we are the factory with over 10 years of manufacturing experience.
What is the warranty? Main machine enjoys 1-year warranty with installation and operation videos provided.
How long is delivery time? Approximately 10-15 working days after payment receipt.
How do you maintain business relationships? We ensure customer benefits through quality products and competitive pricing.
Do you have certificates? All products come with CE and ISO 9001:2000 certifications.

Product Gallery
