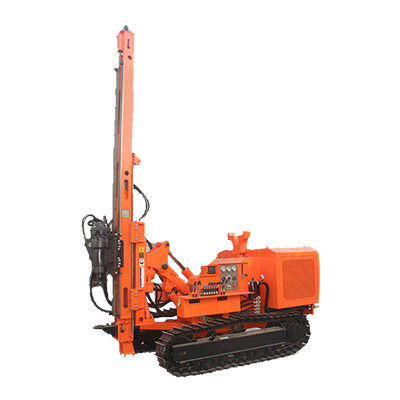

Name: 84kw Solar Powered Pile Driver Equipment 20 - 100m Bore Depth 90 - 300mm Bore Dia
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RC185Y
Availability: InStock

Home > products > Solar Pile Driver >

84kw Solar Powered Pile Driver Equipment 20 - 100m Bore Depth 90 - 300mm Bore Dia

84kw Pile Driver Equipment

Solar Powered Pile Driver Equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC185Y

Request A Quote

Product Details

Name:

Solar Pile Drive

Model:

RC185Y

Bore Diameter:

90-300mm

Bore Depth:

20-100mm

Air Consumption:

10-26m³/min

Dimension:

5300*1970*2620mm

Weight:

5800kg

Host Power:

84kw

Highlight:

84kw Pile Driver Equipment

Solar Powered Pile Driver Equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price

Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price

Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price

Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price

Contact Now

Product Description

20 - 100m Bore Depth 90 - 300mm Bore Diameter Solar Pile Drive 84kw Power

Machine Description

RC185Y solar pile drive is a versatile drilling rig that can be flexibly used in different drilling methods, such as mud pump rotary drilling, air down - the - hole drilling, auger pile drilling, solar pile installation, and photovoltaic solar pile ground screwing. It is widely used in projects in various fields, adopts advanced hydraulic technology, and has the characteristics of low energy consumption, high rotation torque and convenient hole deflection. This machine is suitable for water well drilling, solar pile installation, spiral pile foundation, geotechnical engineering foundation, blast hole drilling construction and other fields, providing an efficient and reliable solution for engineering projects.

Machine Specifications

Bore diameter(hammer)	90-300mm
Bore depth	20-100m
Air consumption	10-26m³/min
Air pressure	0.7-1.6Mpa(medium)
Air pressure	1.6-2.46Mpa(high)
Pipe diameter	76mm/89mm
For rock	F=6-20
Bore diameter(screw)	Max 400mm
Bore depth	0-30m
Screw pipe diameter	130-400mm
Once promotion	3200mm
Skid pitch	120º
The swinging angle of the drilling boom	Left and right total 50º
The swinging angle of the skid	Left and right total 40º
Rotation speed	0-110r/min
Host power	84Kw
Climb ability	35º
Dimension(LWH)	530019702620mm
weight	5800Kg
Walk speed	0-2.5km/h

Machine Advantages

RC185Y hydraulic crawler solar pile drive is based on new hydraulic technology and features low energy consumption, high torque and flexible hole deflection. Its compact structure and mast with adjustable compensation ensures drilling stability. Under various working conditions, the machine performs reliably and efficiently, effectively reducing costs and improving operating efficiency. Its multifunctional design makes it suitable for many fields such as piling anchors, water wells, photovoltaic solar spiral piles, and down - the - hole blasting construction.

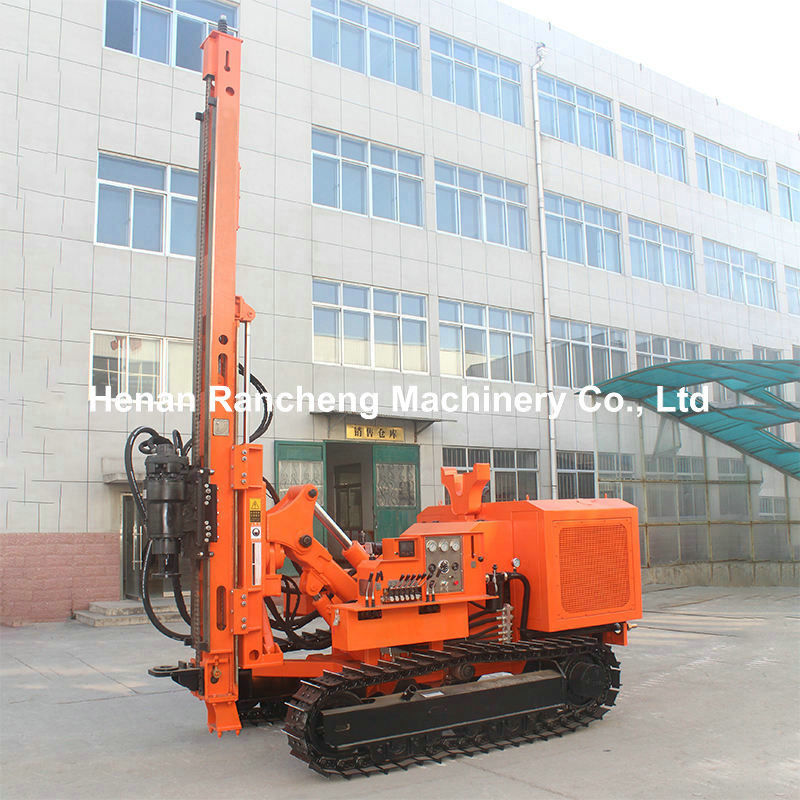

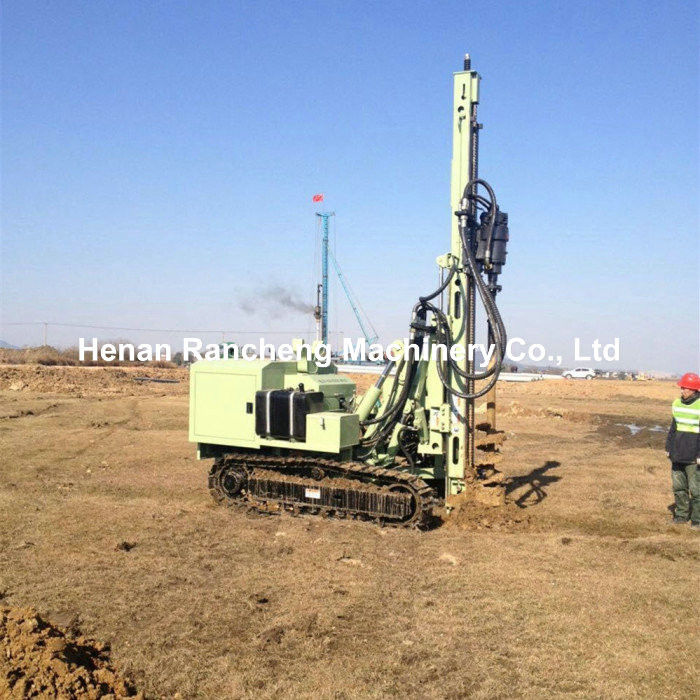

Machine Pictures
