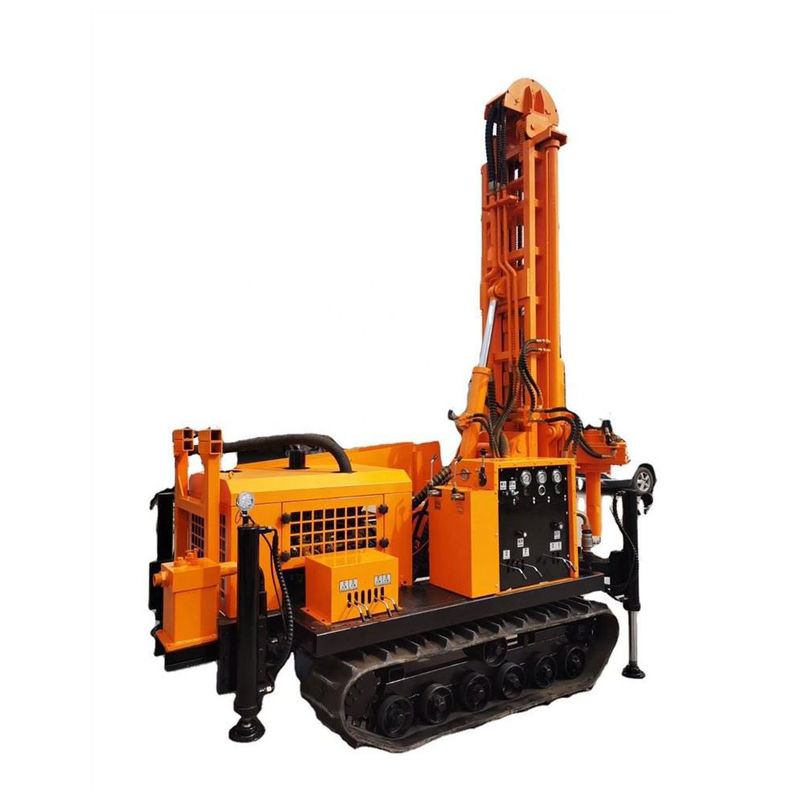

Name: 150m Depth Crawler Walking Water Well Drilling Rig Machine With 42KW Diesel Enigine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF150C
Availability: InStock

Home > products > Water Well Drilling Machine >

150m Depth Crawler Walking Water Well Drilling Rig Machine With 42KW Diesel Enigine

150m water well drilling rig machine

water well drilling rig machine 42KW

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150C

Request A Quote

Product Details

Name:

Water Well Drilling Machine

Model:

RCF150C

Bore Diameter:

90 - 300mm

Bore Depth:

150m

Air Consumption:

17 - 31m³/min

Air Pressure:

1.7 - 2.5Mpa

Rotary Speed:

40 - 65r/min

Dimension（L*W*H):

3500X1700X2250mm

Weight:

4500Kg

Diesel Engine:

42KW

Highlight:

150m water well drilling rig machine

water well drilling rig machine 42KW

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth

Get Best Price

Video

RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3

Get Best Price

Video

500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine

Get Best Price

Video

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

Get Best Price

Contact Now

Product Description

150m Depth Crawler Walking Water Well Drilling Machine with 42KW Diesel Enigine

Product Description

This 150m deep water well drilling rig is specially designed for deepwater well drilling and has excellent drilling capabilities. Equipped with a high - performance drill bit and drive system, it can quickly and efficiently break through various geological layers, including rock, soil and gravel. Its exquisite design, compact structure and lightweight materials make it easy to carry and operate. Stable performance and reliable work efficiency make it suitable for work under various environmental conditions. This drilling rig is a powerful, stable, easy-to-operate, safe and reliable equipment that provides important support for the development and utilization of modern water resources.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	150m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	3m
Push force	4T
Lifting force	12T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	18m/min
Fast feeding speed	35m/min
Max torque of rotary	3500-3800Nm
Rotary speed	40-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	3500×1700×2250MM
Weight	3700kg
Diesel engine	42KW

Product advantages

Small and lightweight, easy to install. It is suitable for existing transportation and exploration tunnels, protecting the overall structure of the mine and capable of surface drilling at 0-90 ° . The rig has a compact structure, flexible layout, mechanized drill rod handling, reduces labor intensity, and improves work efficiency. It adopts a box - type feed frame and cylinder traction to send drill tools, saving equipment. With linkage function, centralized control, simple and safe operation, and stepless speed regulation. The hollow shaft design allows drilling rods to be of unlimited length, enabling drilling at any angle up to 360 ° .

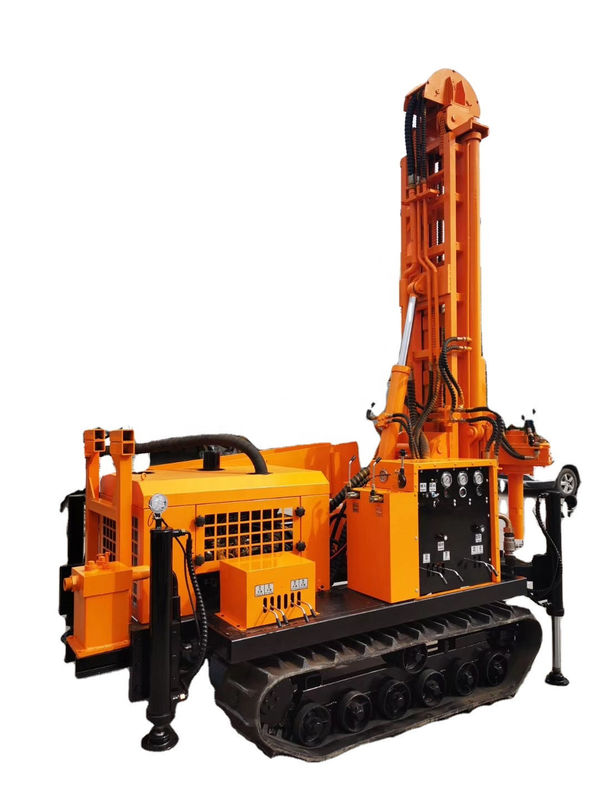

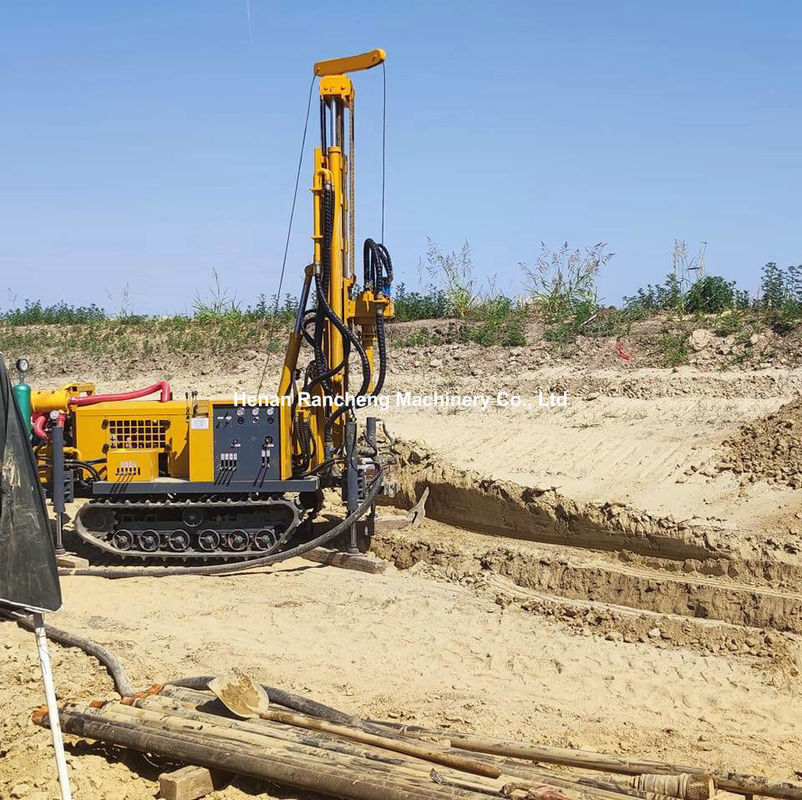

Machine pictures
