300m Bore Depth Water Well Crawler Type Drilling Rig Machine 85KW Yuchai Engine

300m Bore Depth Water Well Crawler Type Drilling Rig Machine 85KW Yuchai Engine

85kw crawler type drilling rig

85kw crawler type water well drilling rig

350mm crawler type drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF300C

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCF300C
Bore Diameter:
100-350mm
Bore Depth:
300m
Air Consumption:
17-35m³/min
Air Pressure:
1.7-3.0Mpa
Pipe Diameter:
89mm/102mm
Pipe Length:
1m/2m/3m
Weight:
7200Kg
Diesel Engine:
85KW Yuchai Engine
Highlight:

85kw crawler type drilling rig

,

85kw crawler type water well drilling rig

,

350mm crawler type drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

300m Bore Depth Crawler Type Water Well Drilling Machine 85KW Yuchai Engine



Product Description



The RCF300C crawler water well drilling rig adopts advanced hydraulic technology and is driven by the head. The rotation torque can reach 5700-7500N . m. The drilling rig has a compact structure and the mast has an adjustable compensation function. When drilling, the mast is supported on the ground to improve the stability of the drilling rig during the drilling process. The rotation speed can reach 40 - 70r / min. With 85kw Yuchai diesel power, the machine works stably and with high efficiency.



Application


Mainly suitable for drilling projects such as irrigation wells, domestic water wells, geothermal wells, hydrological wells, civil water wells, industrial wells, etc.



Technical Parameters



Model RCF300C
Bore diameter(Hammer) 100-350mm
Bore depth 300m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m
Lifting force 18T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 7000-9000Nm
Rotary speed 40-70r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4200×2200×2600mm
Weight 7200Kg
Diesel engine 85KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling







Advantages



Full hydraulic control, easy and flexible operation. Its rotation speed, torque, propulsion axial pressure, reverse axial pressure, propulsion speed, and lifting speed can be adjusted at any time to adapt to various working conditions and process requirements. The top-driven rotary propulsion lift design makes it easy to connect and disconnect the drill pipe, saving auxiliary time. The drilling rig supports a variety of drilling processes and is equipped with mud pumps, foam pumps and other equipment. The machine is fully hydraulic, top - driven, rotary, propelled and lifted. It is suitable for various drilling techniques and drilling tools and has high operating efficiency. Equipped with four high hydraulic outriggers for easy loading, unloading and transportation. The chassis adopts a professional excavator chassis and can adapt to various terrains. The main components and hydraulic system are made of well-known brands, and the main frame is made of high-quality low-carbon alloy steel, which is wear - resistant. The hydraulic system is uniquely designed and has low maintenance costs. Equipped with an 85KW Yuchai engine, it provides powerful power and a lifting capacity of 18 tons.

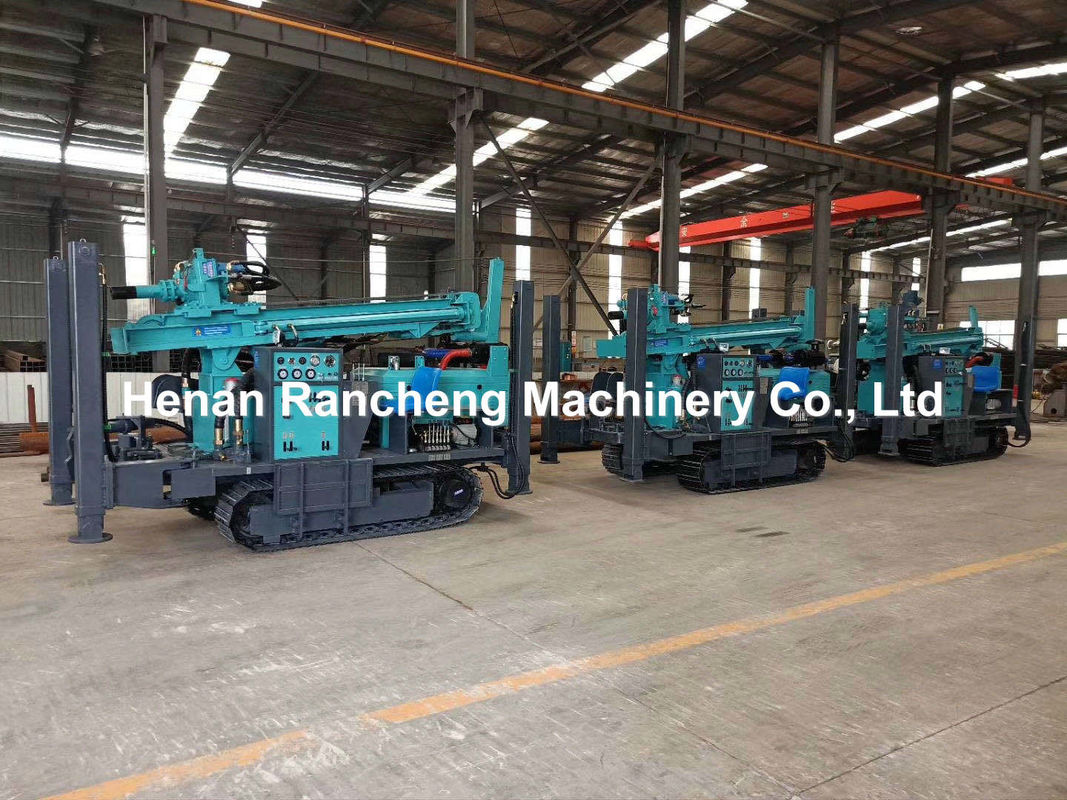

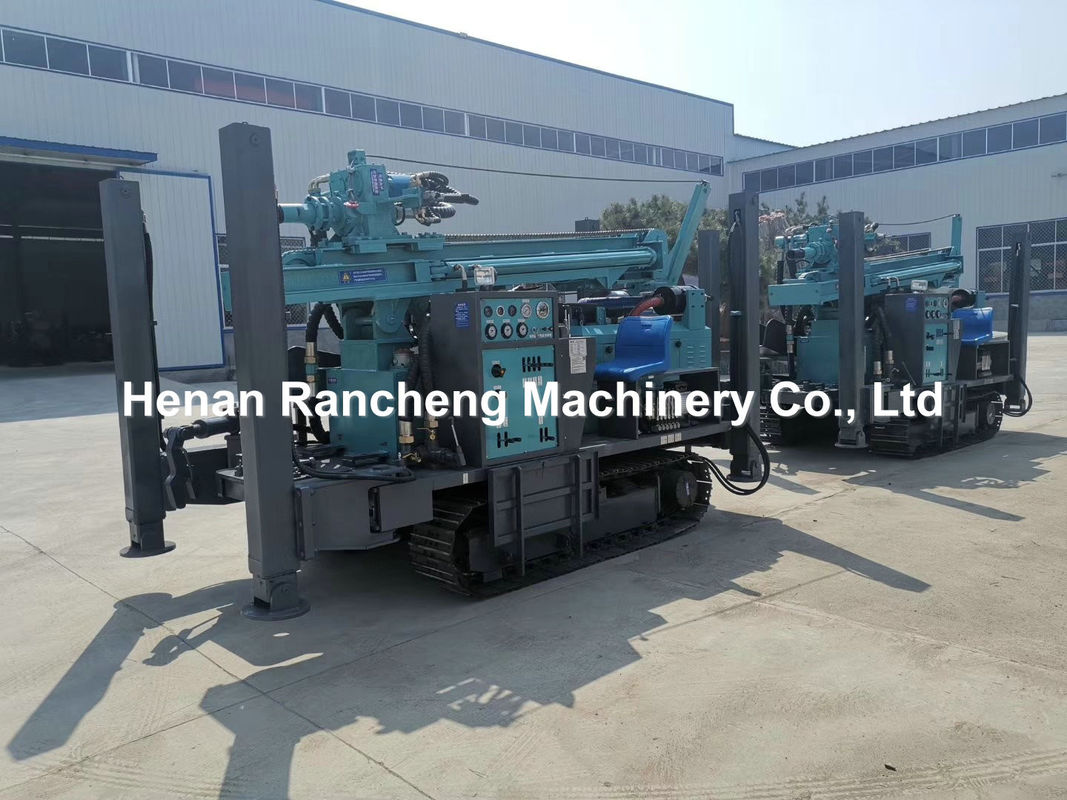

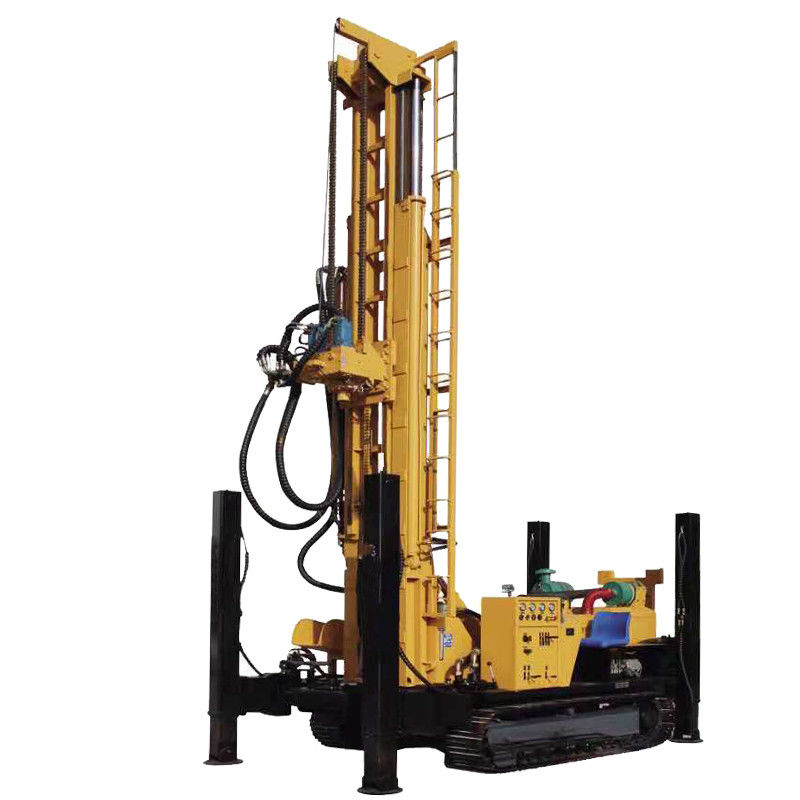

Machine picture display



300m Bore Depth Water Well Crawler Type Drilling Rig Machine 85KW Yuchai Engine 0300m Bore Depth Water Well Crawler Type Drilling Rig Machine 85KW Yuchai Engine 1

300m Bore Depth Water Well Crawler Type Drilling Rig Machine 85KW Yuchai Engine 2

300m Bore Depth Water Well Crawler Type Drilling Rig Machine 85KW Yuchai Engine 3
