Hydraulic Pneumatic Water Well Drilling Equipment 500m Bore Depth 118KW Engine

Hydraulic Pneumatic Water Well Drilling Equipment 500m Bore Depth 118KW Engine

hydraulic pneumatic water well drilling

pneumatic water well drilling equipment

hydraulic water well drilling equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF500C

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCF500C
Drilling Depth:
500m
One-time Advance Length:
6.6m
Air Consumption:
17-42m³/min
The Penetration Efficiency:
15-35m/h
Drill Pipe Length:
1.5m 2.0m 3.0m 6.0m
Drill Pipe Diameter:
Φ102mm Φ108mm Φ114mm
Weigh:
11500kg
Equipped Capacitor:
118kw
Highlight:

hydraulic pneumatic water well drilling

,

pneumatic water well drilling equipment

,

hydraulic water well drilling equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

500m Bore Depth Hydraulic Pneumatic Water Well Drilling Machine 118KW Engine



Product Description



The RCF500C ydraulic crawler mounted water well drilling machine is a fully functional and high - performance drilling rig with many advantages. Its efficient drilling system enables rapid drilling; the 118KW engine provides strong power and can easily cope with various working conditions; the drilling depth range is wide, up to 500 meters; high - quality components and materials are manufactured to ensure its durability and reliability ; The operation is simple and intuitive, suitable for all kinds of operators; environmentally friendly design, using low - emission engines; economical and efficient, it is a wise choice for drilling projects. Therefore, the RCF500C water well drilling rig is a multi - functional, high - performance equipment suitable for various drilling needs.



The RCF500C hydraulic crawler mounted water well drilling machine is an efficient and multifunctional down - the - hole water well drilling equipment, suitable for drilling water wells, agricultural irrigation wells, geothermal wells and other types of wells. It performs particularly well in water intake projects in mountainous areas and rock formations.



Technical Parameters



Model RCF500C
Weight(kg) 11500 Drill pipe diameter(mm) Φ102 Φ108 Φ114
The hole diameter(mm) 140-350 Drill pipe length(m) 1.5m 2.0m 3.0m 6.0m
Drilling depth(m) 500 Rig lifting force(T) 26
One-time advance length(m) 6.6 Rapid rise speed(m/min) 20
Walking speed(km/h) 2.5 Fast feeding speed(m/min) 40
Climbing angles(Max.) 30° Width of loading(m) 2.85
Equipped capacitor(kw) 118 Hoisting force of winch(T) 2
Using air pressure(MPA) 1.7-3.5 Swing torque(N.m) 7500-10000
Air consumption(m³/min) 17-42 Dimension(mm) 6200×2200×2650
Swing speed(rpm) 40-130 Equipped with hammer Medium and high wind pressure series
The penetration efficiency(m/h) 15-35 High leg stroke(m) 1.7
The engine brand Yuchai engine



Our service



1. Before the sale, we will serve as your advisor and assistant to ensure you make informed investment decisions:

① Assist you in selecting the equipment model that best suits your needs;
② Design and manufacture products according to your special requirements;
③ Provide you with training technical personnel services.



2. During the sales process, we will provide the following services:

① Conduct pre-acceptance before shipment;
② Help you develop solutions.



3. After the sale, we will provide considerate services to minimize your worries:

① Provide comprehensive after-sales service, our professional engineers can repair machinery for you at home and abroad;
② 24 - hour technical support via email;
③ Provide other necessary technical services.



Machine Picture Display

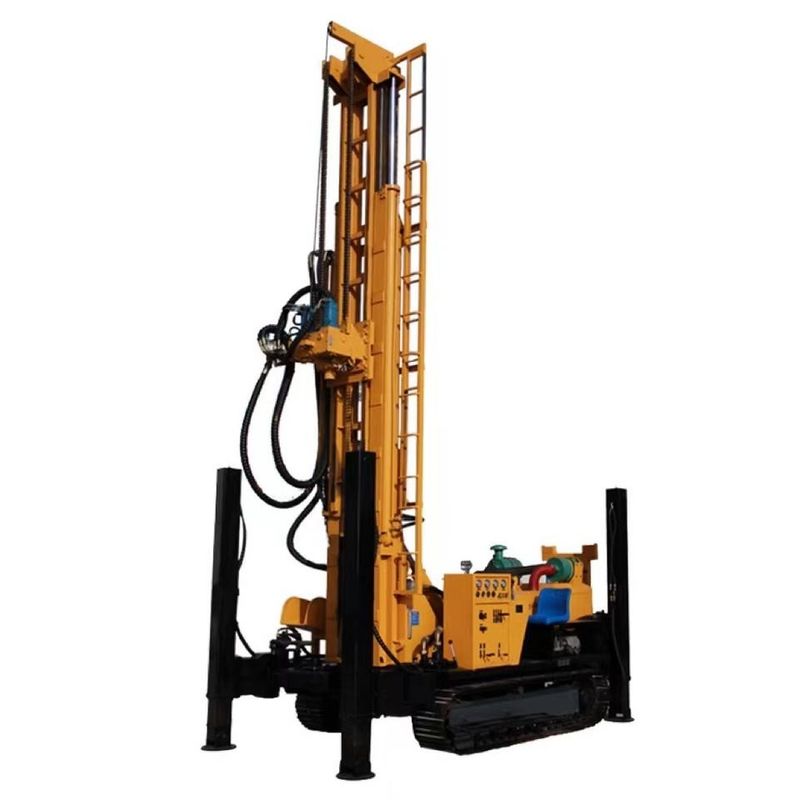

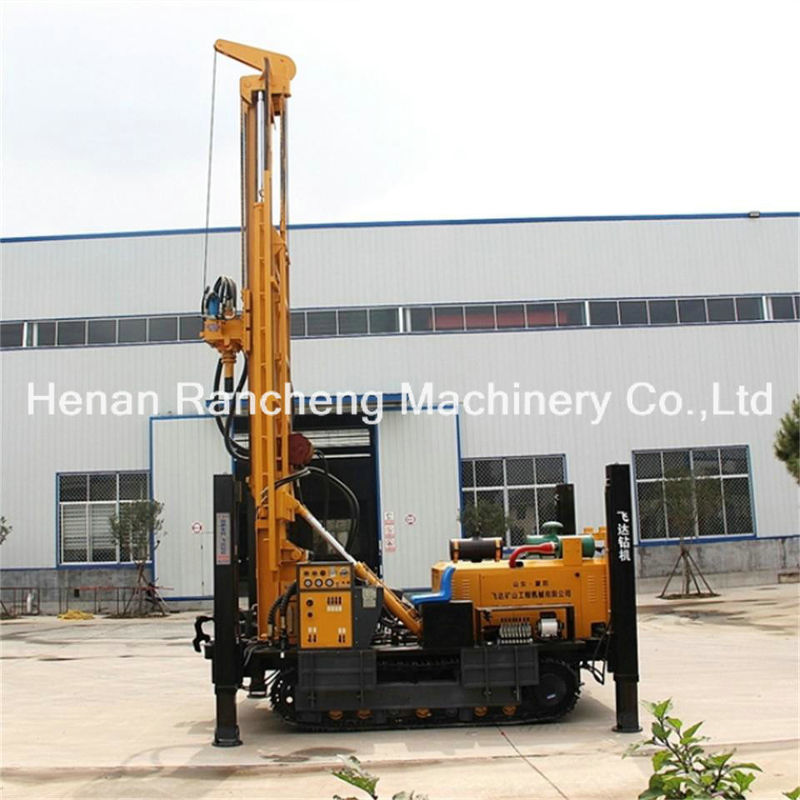

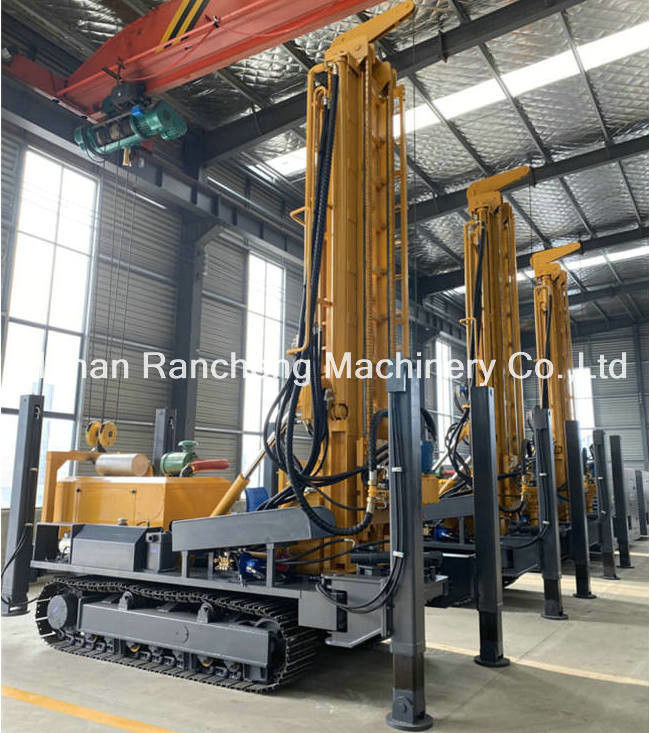

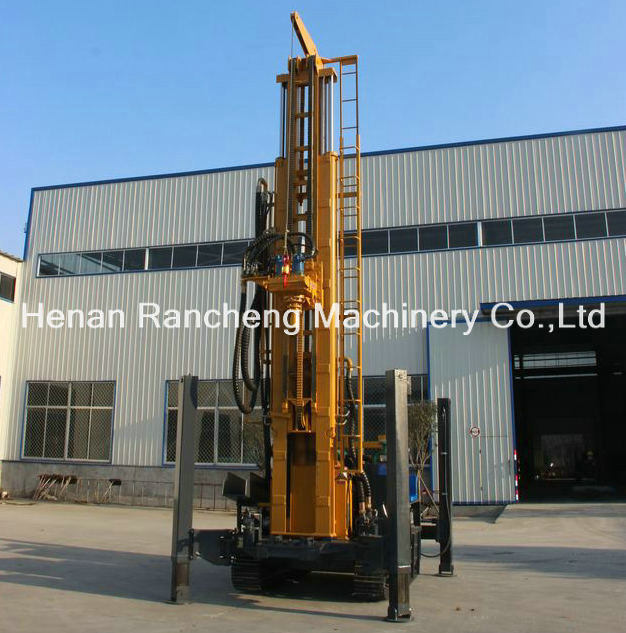

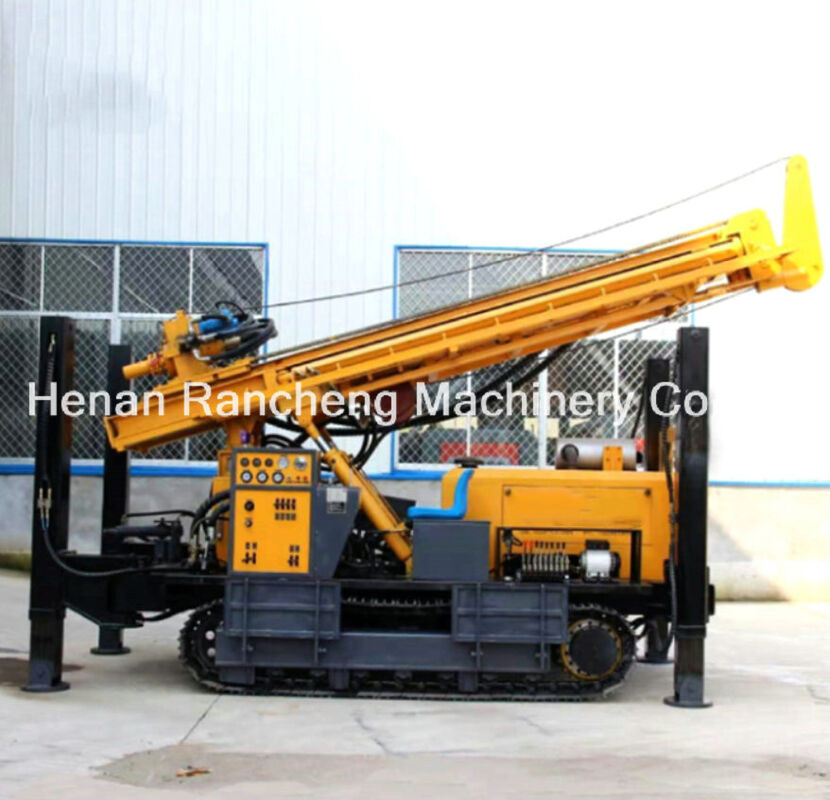

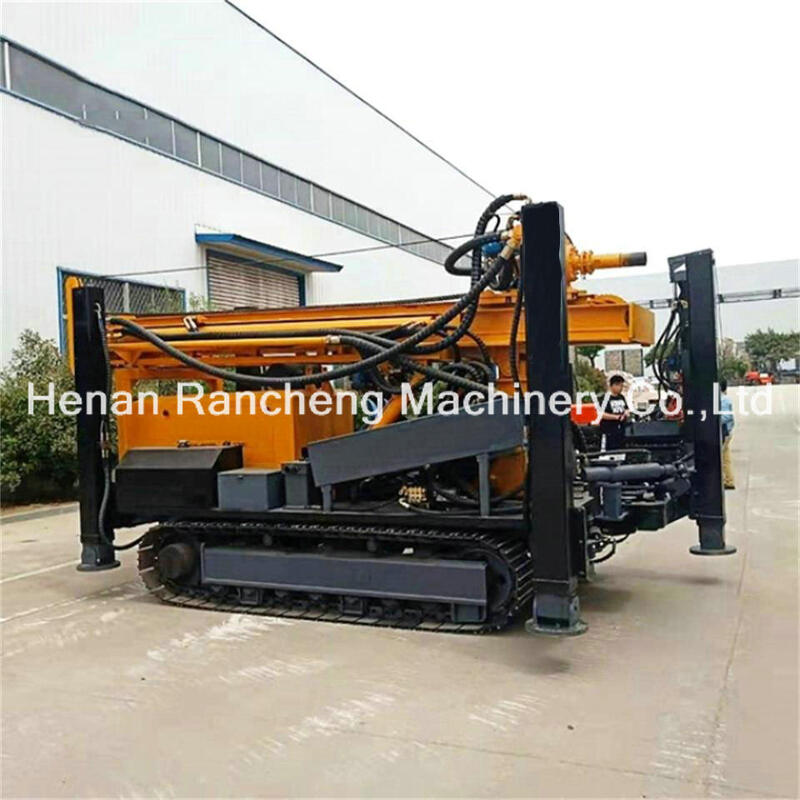

Hydraulic Pneumatic Water Well Drilling Equipment 500m Bore Depth 118KW Engine 0

Hydraulic Pneumatic Water Well Drilling Equipment 500m Bore Depth 118KW Engine 1

Hydraulic Pneumatic Water Well Drilling Equipment 500m Bore Depth 118KW Engine 2
