280m Depth 75 - 300mm Dia Water Well Drilling Machine 42KW Rated Power 3800kg

280m Depth 75 - 300mm Dia Water Well Drilling Machine 42KW Rated Power 3800kg

water well drilling machine 42kw

280m water well drilling machine

280m water well drilling rig machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ280D

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCJ280D
Drilling Depth:
Max 280m
Diesel Engine Model:
YN27/5
Rated Power:
42kw
Rated Speed:
2400rpm
Transport Dimension:
4600*1900*2540mm
Weight:
3800kg
Highlight:

water well drilling machine 42kw

,

280m water well drilling machine

,

280m water well drilling rig machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

280m Depth 75 - 300mm Diameter Water Well Drilling Machine 42KW Rated Power



Product Description



RCJ280D hydraulic multi - function drilling machine has remarkable features in functionality, design concept and scope of application. Its powerful hydraulic system can penetrate various hard materials quickly and effectively, showing excellent performance. Machine design focuses on versatility, reliability and efficiency to meet a variety of drilling needs. The highly maneuverable design makes it easier to transport and operate, and is suitable for different job sites. The equipped servo - driven feed system can accurately control the drilling process and is especially suitable for applications that require high accuracy and precision. In addition, the user - friendly design of the control panel and operating console allows users to easily set up and operate without extensive training, improving work efficiency. Overall, the RCJ280D performs well in a wide range of drilling operations, especially when drilling through challenging materials such as rock and concrete. It is the best choice for reliable and efficient drilling solutions.


Technical Parameters



Working stratum Loose soil layer and bedrock(hardness: F6~20)
Drilling method Mechanical top head rotation, hydraulic feeding,
work with mud pump or DTH.
Drilling capacity NQ wireline drilling 450m
Small hole mud pump drilling depth 500m
Φ76 air drilling 280m
Drilling diameter 75-300mm
Power Diesel engine model YN27/5
Rated power 42kw
Rated speed 2400rpm
Drive head Rotary speed 33-1120r/min
Max. torque 9800N.m
Drilling angle 90°
Feeding system Lifting capacity 100KN
Thrusting capacity 50KN
Winch capacity Hydraulic tool winch (optional) 1.5T
Mechanical winch 4.5T
Drill pipe Drill pipe dia. Φ50/Φ60/Φ76/ NQ/BQ/HQ
Drill pipe length 2000mm
Rubber Crawler chassis Walking speed 0~2km/h
Climbing angle 20°
Dimension Transport 4600*1900*2540mm
Working 3800*2200*5700mm
Weight 3800kg
Air compressor (optional) Air pressure 16~30m³/min
Air consumption 10.5~24.6bar
Mud pump Optional BW160/BW200/BW250



Machine Advantages



The RCJ280D drilling machine stands out due to several outstanding features. First of all, it is equipped with hydraulic steel tracks, which gives the machine strong off - road capabilities and allows it to operate flexibly in various complex terrains. Secondly, it is equipped with four hydraulic square tube high legs, which facilitates quick leveling on site and significantly reduces loading and unloading costs. The drill rig is equipped with drill rod brackets and foot pedals on the left and right sides, with a user - friendly design that improves the comfort and convenience of operation. In addition, the front end of the drilling rig is equipped with an auxiliary rod unloading cylinder to make the drill rod easier to loosen. Hydraulic oil pumps provide increased climbing and movement capabilities through direct connection to power. The AMT automated manual transmission is paired with an electronic transmission and an electronically controlled shifter, making shifting operations easier and smoother. Double oil pumps supply oil, and the hydraulic system adopts splitting and merging technology, making power adjustment faster and more efficient. Finally, the machine is equipped with a foldable auxiliary tower that can lift two 3m drill pipes at one time, greatly improving operating efficiency.

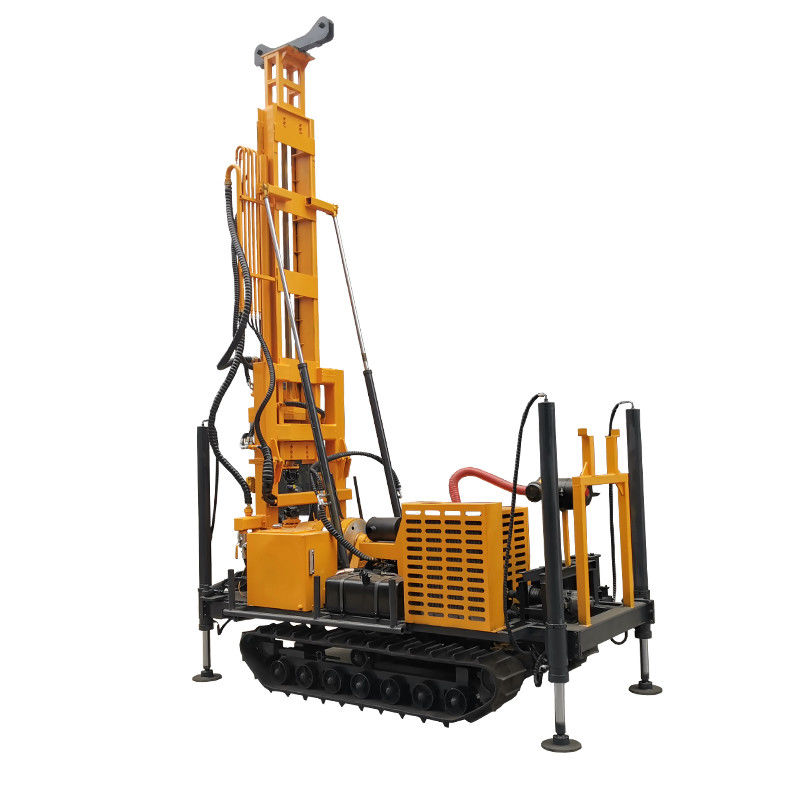

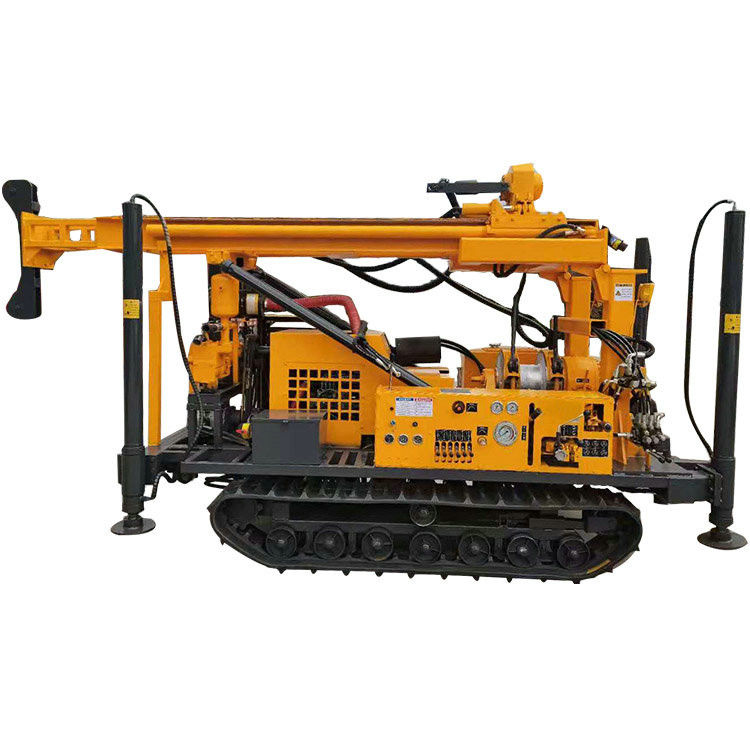

Machine Pictures



280m Depth 75 - 300mm Dia Water Well Drilling Machine 42KW Rated Power 3800kg 0280m Depth 75 - 300mm Dia Water Well Drilling Machine 42KW Rated Power 3800kg 1280m Depth 75 - 300mm Dia Water Well Drilling Machine 42KW Rated Power 3800kg 2280m Depth 75 - 300mm Dia Water Well Drilling Machine 42KW Rated Power 3800kg 3280m Depth 75 - 300mm Dia Water Well Drilling Machine 42KW Rated Power 3800kg 4
