300m Depth Truck Mounted Water Well Drilling Rig 80km/h 266HP Load Vehicle Engine

300m Depth Truck Mounted Water Well Drilling Rig 80km/h 266HP Load Vehicle Engine

truck mounted water well drilling rig 80km/h

300m water well drilling rig truck

300m truck mounted water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF300T

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Rig
Model:
RCF300T
Drilling Depth:
300m
Travel Speed:
80km/h
Weight:
18000kg
Dimension:
10600*2500*3550mm
Highlight:

truck mounted water well drilling rig 80km/h

,

300m water well drilling rig truck

,

300m truck mounted water well drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by ro-ro ship
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

300m Depth HOWO Truck Water Well Drilling Rig 266HP Load Vehicle Engine



Machine Introduction



The RCF300T truck - mounted water well  drilling rig stands out for its excellent portability and high efficiency and stability. Its compact and lightweight design makes handling and setup easier, saving a lot of time and cost. The use of advanced hydraulic technology ensures the efficiency and stability of the drilling process, and the work efficiency far exceeds that of traditional drilling equipment, effectively reducing time costs. In addition, the machine has a large drilling depth of up to 300m, which can meet various drilling needs, including the detection of deeper formations. It has strong adaptability and can drill various types of formations with different densities, and can be adjusted based on real - time drilling data to improve operation quality. In addition to completing basic drilling tasks, it can also perform various tasks such as water source detection and geothermal energy detection, demonstrating its versatility. The most important thing is that this drilling rig is economical, practical and affordable, reducing equipment procurement and labor costs, while completing inspection tasks efficiently, making it an economical and practical choice.



Technical Parameters



Model RCF300T
Dimension mm 10600*2500*3550mm
weight kgs 18000
Aperture mm 140-350
Drilling depth m 300
Feed stroke mm 3400
Travel speed km/h 80
Grade ability Max. 30°
Wind pressure Mpa 1.7-3.0
Air consumption m³/min 15-35
Drill pipe diameter mm φ89/ 102
Drill pipe length m 3
Lifting force T 18
Rotary speed rpm 40-70
Rotation torque N.m 5700-7500
Mud pump 450L/min BW450/2 (optional item )
Carrying vehicle   HOWO truck
Load vehicle engine   266 HP
Driving form   6X4
Steering wheel   Right position (optional item )
Air compressor

S100DB

Matching diesel engine:Yuchai

Rated Power (KW):295

Capacity(m3/min):31

Working Pressure(bar):25



Machine Advantages



First of all, we adopted the 6X4 truck chassis of the well-known brand HOWO, and integrated the drilling rig, mud pump and air compressor into the chassis, creating a compact structure and a convenient operating environment. Secondly, we have introduced a PTO system, where customers can choose to use truck engine power or configure an independent engine on demand. In addition, we are also equipped with high - pressure screw air compressors and mud pumps, which can be flexibly switched to cope with different geological environments and are suitable for various drilling projects. For the drilling tower, we adopted an integrated welded molding design and selected high - temperature and low - temperature - resistant Q345B material. Through years of actual use and market testing, we ensure stable and reliable performance. Finally, we offer a choice of different models within the depth range of 200 - 800m to meet the diverse needs of our customers.

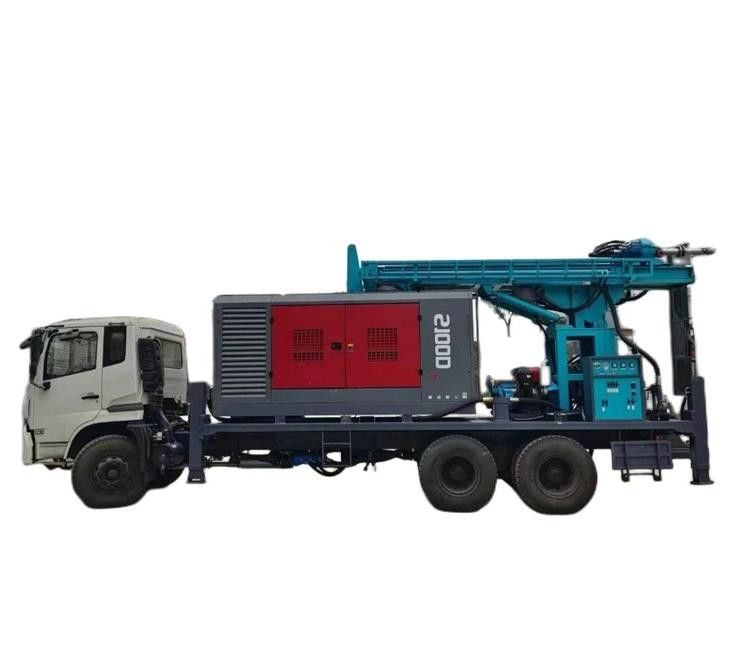

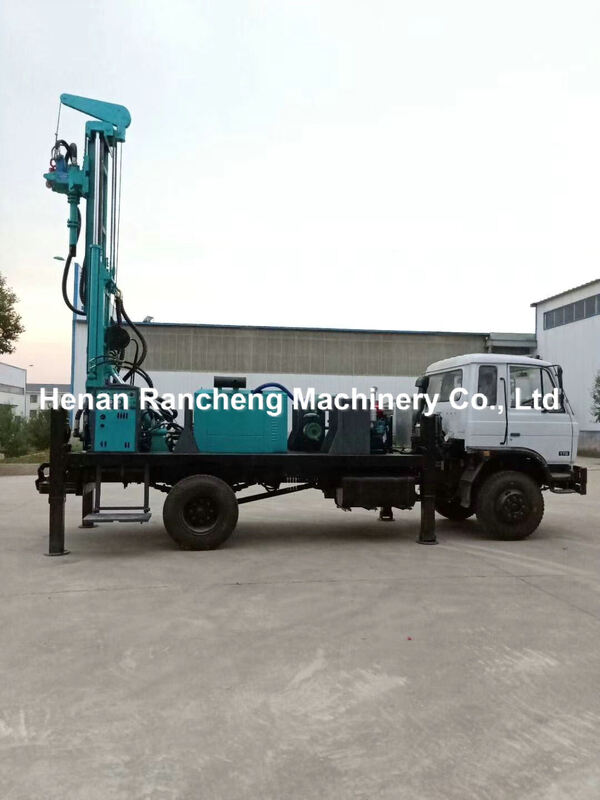

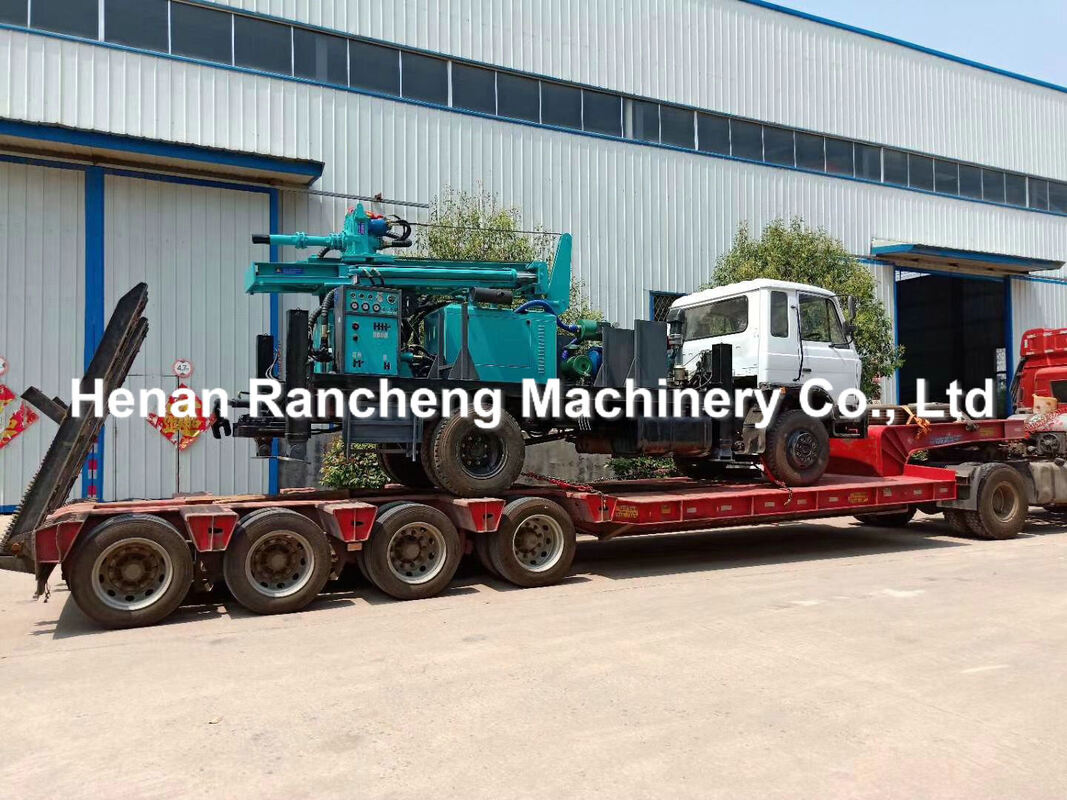

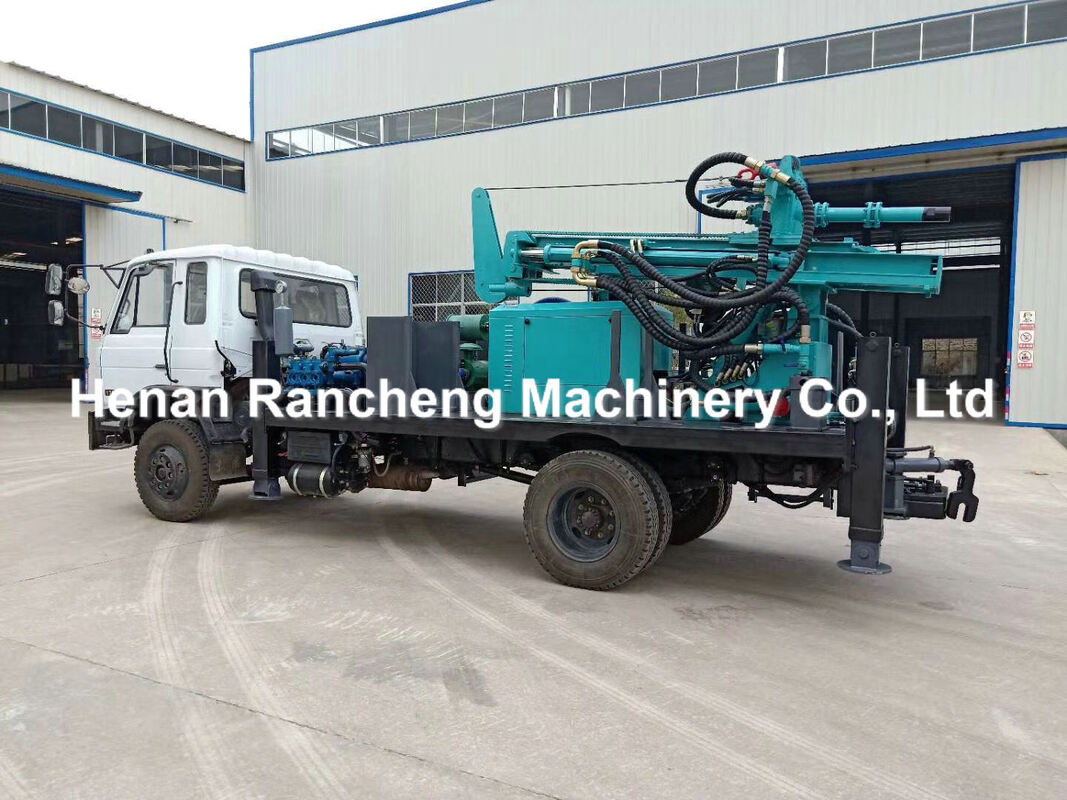

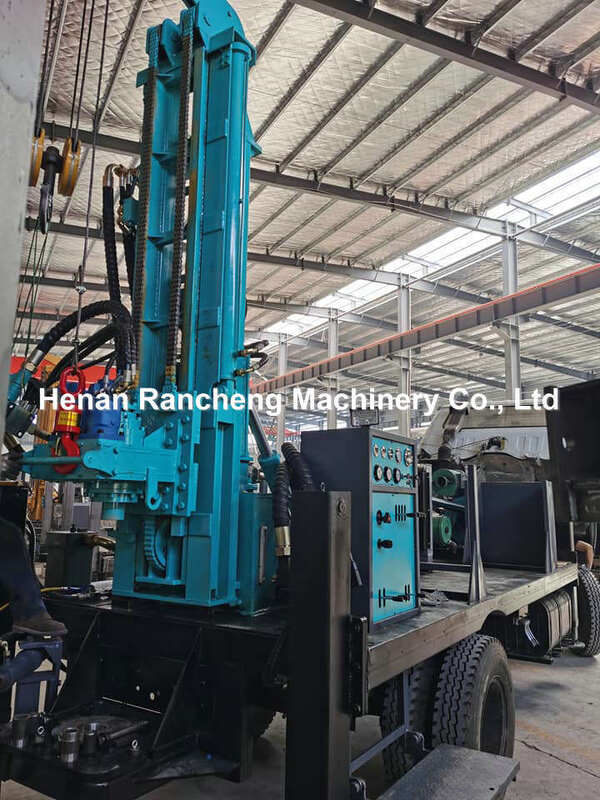

Machine Pictures



300m Depth Truck Mounted Water Well Drilling Rig 80km/h 266HP Load Vehicle Engine 0300m Depth Truck Mounted Water Well Drilling Rig 80km/h 266HP Load Vehicle Engine 1300m Depth Truck Mounted Water Well Drilling Rig 80km/h 266HP Load Vehicle Engine 2300m Depth Truck Mounted Water Well Drilling Rig 80km/h 266HP Load Vehicle Engine 3300m Depth Truck Mounted Water Well Drilling Rig 80km/h 266HP Load Vehicle Engine 4
