Wheeled Borehole Drilling Machine 51HP Diesel Engine Borehole Drilling Rig 1600kg

Wheeled Borehole Drilling Machine 51HP Diesel Engine Borehole Drilling Rig 1600kg

wheeled borehole drilling machine

borehole drilling machine 51hp

borehole drilling rig 1600kg

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ-3W

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RCJ-3W
Drilling Depth:
100 -500m
Drill Diameter:
75-300mm
Weight:
1600kg
Dimension:
2500X900X1800mm
Highlight:

wheeled borehole drilling machine

,

borehole drilling machine 51hp

,

borehole drilling rig 1600kg

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

100 - 500m Drilling Depth Wheeled Borehole Drilling Machine 51HP Diesel Engine



Machine Introduction



RCJ - 3W hydraulic drilling machine stands out in the field of drilling with its unique advantages. First of all, it is equipped with a wheeled traveling mechanism and a hydraulic cylinder bracket, which makes the whole machine easy to relocate and can be easily adjusted horizontally, making the operation more convenient. Secondly, the use of a hydraulic feeding mechanism greatly improves drilling efficiency and ensures that the operation is completed efficiently. The unique ball clamping mechanism realizes non - stop reversing rods, improving work efficiency while ensuring convenient and safe operation. In addition, the equipped pressure gauge can indicate the pressure at the bottom of the hole at any time, making it easier for the operator to grasp the situation inside the hole. The hydraulically operated lifting tower ensures reliable and convenient operation. Finally, the reasonable and compact joystick layout and centralized operation make the operation easier, more flexible and more reliable.



Technical Parameters



Drilling depth m 100 -500m
Drill Diameter Mm 75-300mm
Open diameter mm 300mm
End diameter mm 75mm
Drilling rod mm Φ60
Drilling angle   90°-65°
Spindle
Spindle forward speed r/min 30-1050
Spindle reverse speed r/min 29-137
Spindle stroke mm 600
Spindle inner diameter mm 96
Spindle lifting capacity KG 6000
Hoist
Single line lifting speed m/s 0.5-1.9m/s
Hug floodgate belt width mm 90
Tightrope caliber mm 12.5
Hoist single line lifting capacity KG 4000
Reel caliber mm 300
Reel cubic measure m 50
Mud pump
Horizontal double actuator
Displacement L/min 250
Triangle conveyer belt type   B×5
Work pressure Mpa 7
Water inlet caliber mm 75
Water to exit caliber mm 50
Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure   63L/min 20Mpa
Behind displacement,pressure   25L/min 20Mpa
Drilling rig Power
Diesel engine HP Yunnei 490 ,51HP
Drilling rig weight and size
Weight kg 1600
Dimension mm 2500X900X1800mm



Machine Advantages



RCJ - 3W hydraulic drilling machine demonstrates excellent advantages in many aspects. First of all, it is equipped with wheeled lifting device and hydraulic support cylinder, which makes the transportation and level adjustment of the drilling rig extremely convenient. Secondly, the use of hydraulic oil feeding device greatly improves drilling efficiency. In addition, it is equipped with a normally closed hydraulic chuck, making the operation more flexible and reliable. The pressure gauge at the bottom of the borehole provides real - time monitoring to help the operator understand the conditions inside the hole. The hydraulic cylinder control of the drill frame further improves work efficiency. Finally, the diesel engine uses electric start, which effectively reduces labor intensity and improves operating comfort and convenience.

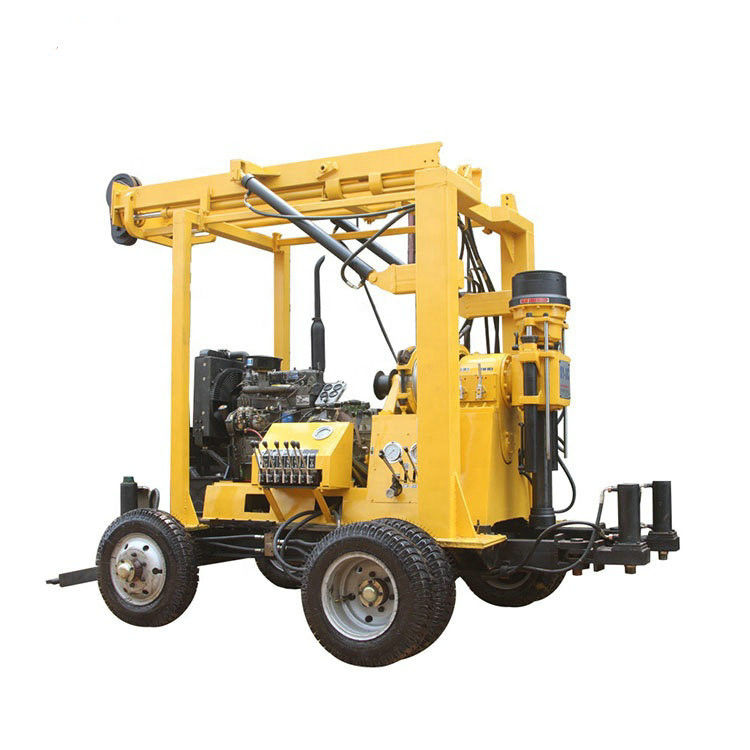

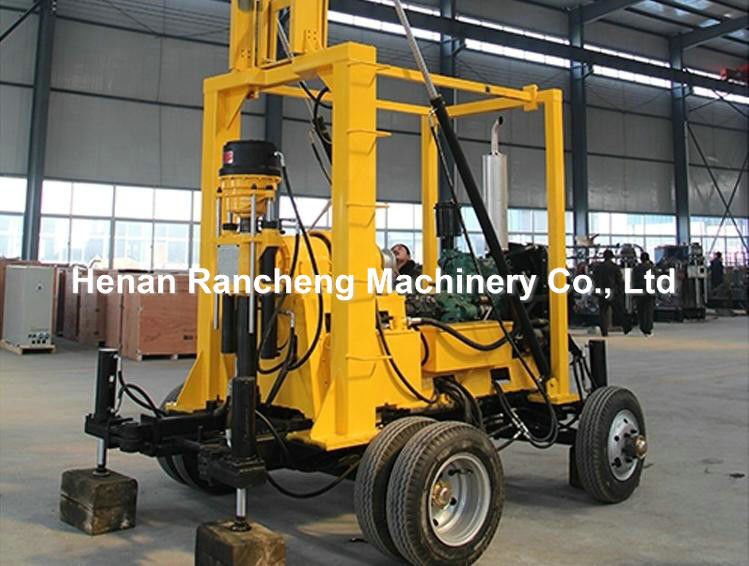

Machine Pictures



Wheeled Borehole Drilling Machine 51HP Diesel Engine Borehole Drilling Rig 1600kg 0Wheeled Borehole Drilling Machine 51HP Diesel Engine Borehole Drilling Rig 1600kg 1Wheeled Borehole Drilling Machine 51HP Diesel Engine Borehole Drilling Rig 1600kg 2

Wheeled Borehole Drilling Machine 51HP Diesel Engine Borehole Drilling Rig 1600kg 3
