Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine

Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine

diesel engine drilling rig

wheeled borehole drilling machine

RCJ-3W drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ-3W

Contact Us
Request A Quote
Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine
Product Details
Name:
Borehole Drilling Machine
Model:
RCJ-3W
Drilling Depth:
100 -500m
Drill Diameter:
75-300mm
Weight:
1600kg
Diesel Engine:
YN27,42KW ,58HP
Highlight:

diesel engine drilling rig

,

wheeled borehole drilling machine

,

RCJ-3W drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine online

Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine

Get Best Price
Good price 200-Meter RCF200WT 40 Horsepower Tractor-Mounted Water Well Drilling Rig online Video

200-Meter RCF200WT 40 Horsepower Tractor-Mounted Water Well Drilling Rig

Get Best Price
Good price Direct Sale Of Popular RCF150W Trailer Mounted Water Well Drilling Rig online Video

Direct Sale Of Popular RCF150W Trailer Mounted Water Well Drilling Rig

Get Best Price
Good price Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump online Video

Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump

Get Best Price
CONTACT US
Contact Now
Product Description
Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W
This advanced drilling rig features a wheeled chassis with hydraulic support cylinders for easy transport and precise leveling. Equipped with hydraulic feeding technology and a hydraulically controlled lifting mast, it delivers exceptional drilling efficiency and operational reliability.
Key Features
  • Wheeled chassis with hydraulic support cylinders for easy transportation and leveling
  • Hydraulic feeding system and lifting mast for improved drilling efficiency
  • Normally closed hydraulic chuck enables rod changes without machine shutdown
  • Integrated pressure gauge for real-time downhole pressure monitoring
  • Centrally located control levers for simple and flexible operation
  • Diesel engine with electric start reduces operator workload
Technical Specifications
Parameter Value
Drilling Depth 100-500 m
Drill Diameter 75-300 mm
Open Diameter 300 mm
End Diameter 75 mm
Drilling Rod Φ60 mm
Drilling Angle 90°-65°
Spindle Forward Speed 30-1050 r/min
Spindle Reverse Speed 29-137 r/min
Spindle Stroke 600 mm
Spindle Lifting Capacity 6000 KG
Hoist Single Line Lifting Speed 0.5-1.9 m/s
Hoist Single Line Lifting Capacity 4000 KG
Mud Pump Displacement 250 L/min
Work Pressure 7 Mpa
Diesel Engine Yunnei 490, 51 HP
Weight 1600 kg
Dimensions 2500 × 900 × 1800 mm
Operational Advantages
  • Mobile wheeled chassis with hydraulic supports for quick site positioning and leveling
  • Hydraulic feeding system and spherical clamping chuck for efficient, non-stop rod changes
  • Hydraulic mast control and pressure monitoring for stable, reliable operation
  • Ergonomic control layout and electric start diesel engine reduce operator fatigue

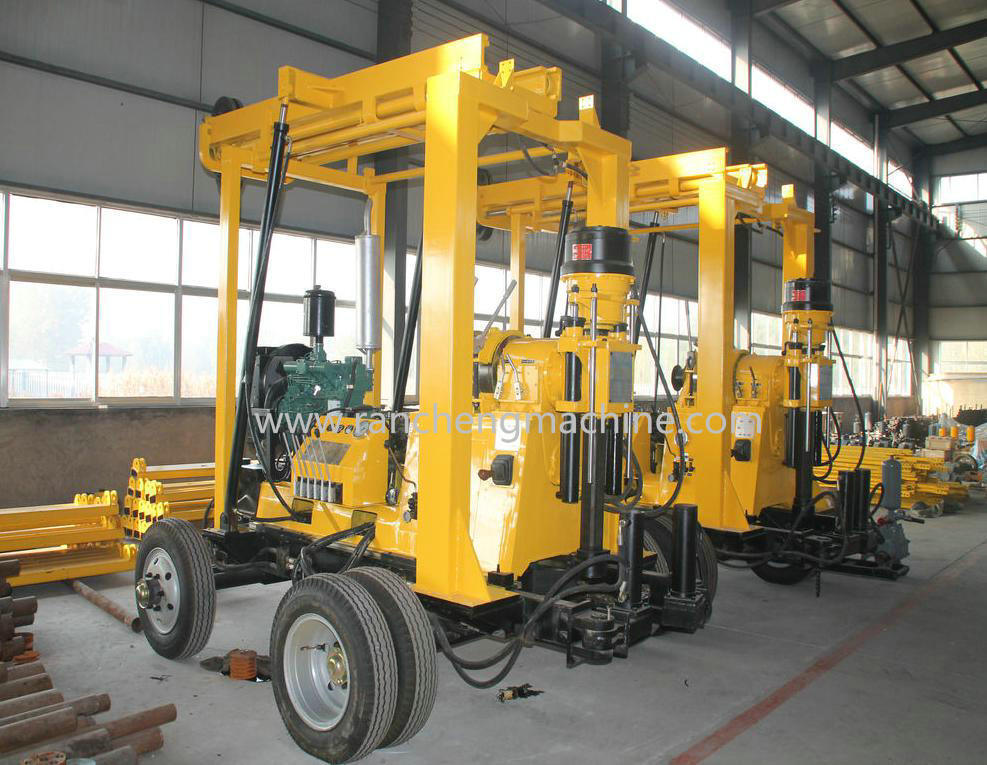

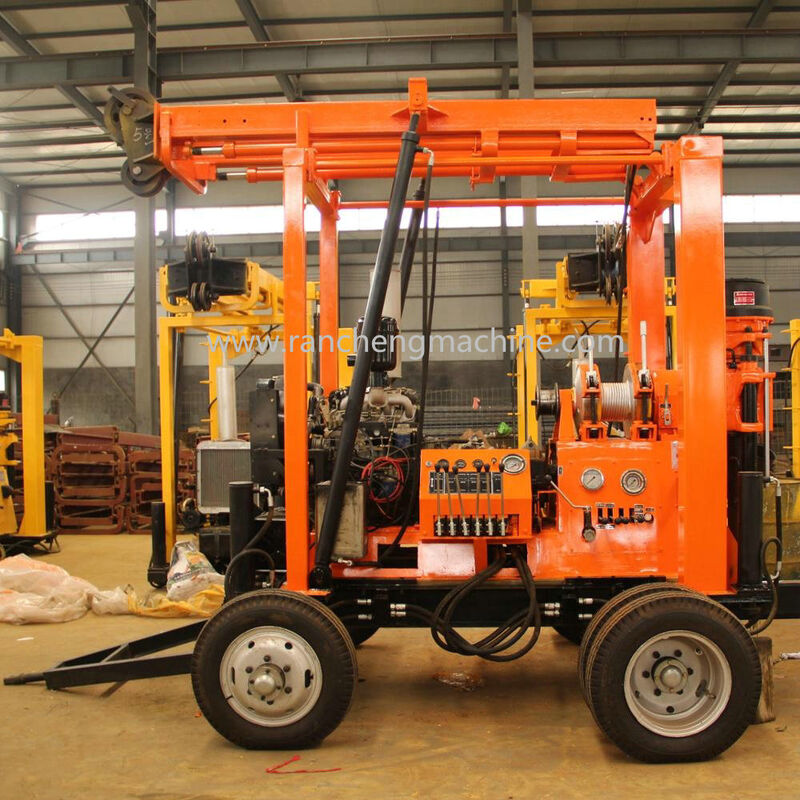

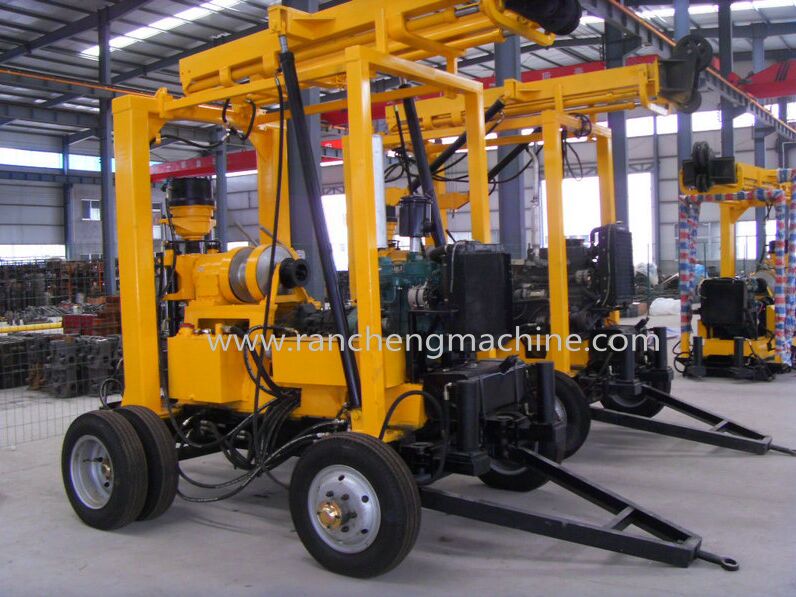

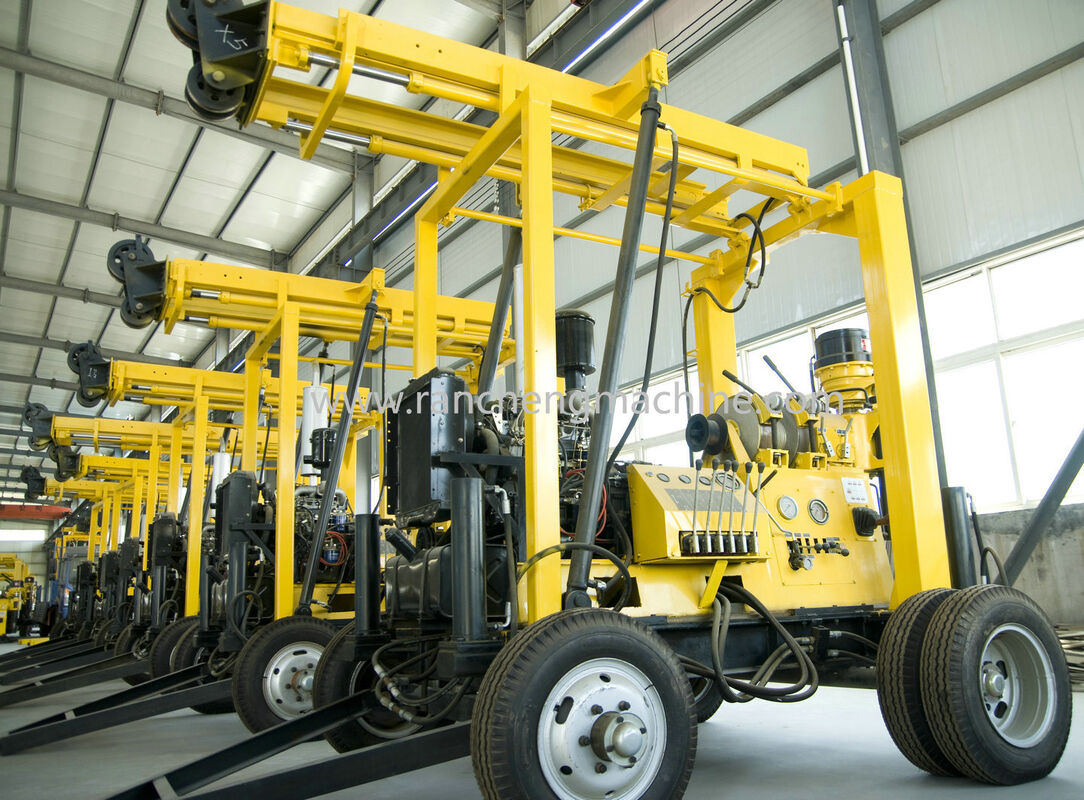

Product Images
Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine 0 Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine 1 Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine 2 Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine 3
