Hydraulic Solar Pile Driver 84KW Turbocharges Engine Pile Driving Machine

Hydraulic Solar Pile Driver 84KW Turbocharges Engine Pile Driving Machine

Solar Pile Driver 84KW

Turbocharges Engine Solar Pile Driver

Pile Driving Machine 84KW

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC260Y

Contact Us
Request A Quote
Product Details
Name:
Solar Pile Drive
Model:
RC260Y
Bore Depth:
20 - 100m
Impact Frequency:
450-800bpm
Dimension:
6410*1970*2830mm
Weight:
5800kg
Highlight:

Solar Pile Driver 84KW

,

Turbocharges Engine Solar Pile Driver

,

Pile Driving Machine 84KW

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" high container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

20 - 100m Bore Depth Hydraulic Solar Pile Driver 84KW Turbocharges Engine



Product Description



The RC260Y hydraulic solar pile hammer is an advanced equipment specially designed for the construction of photovoltaic power stations. What is unique from traditional pile hammers is that it uses imported original accessories to ensure optimal performance and stability. Its construction technology and climbing mechanism design allow for flexible adjustment according to slope height, making it excellent in the construction of photovoltaic projects with slopes up to 45 degrees. The pile hammer can be flexibly used in various photovoltaic construction technologies, including helical pile drilling, helical hole drilling, rock DTH hammer and pile driving, etc., and can cover boreholes with diameters ranging from 100 - 400 mm and depths of 20 - 100 meters.



In addition to its advantages of high efficiency, wide application and excellent stability, RC260Y ’ s biggest differentiating feature is its powerful hydraulic system, which can quickly install a large number of solar panels and remain stable and stable even on slopes and uneven ground. In addition, its simple design, convenient operation and low maintenance cost ensure the continuous and efficient operation of the equipment, making it an indispensable tool in the construction of photovoltaic power stations.



Product Specifications



Impact frequency(bpm) 450-800
Impact(j) 1000
Skid pitch(º) 120
Boom swing angle(º) left and right total 50
Swinging angle of the skid(º) left and right total 40
Climb ability(º) 35
Dimension(L*W*H)(mm) 6410*1970*2830
Weight(kg) 5800
Walk speed(km/h) 0--2.5
For rotary drilling
Bore diameter(DTH hammer) 90-300mm
Bore depth 20-100m
Air consumption 10-26m³/min
Air pressure

0.7-1.6Mpa(medium)

1.6-2.46Mpa(high)

Bore diameter(screw) Max 600mm
Bore depth 0-30m
Rotation speed 0-110r/min
Torque 7000N.m



Product Features



The RC260Y hydraulic solar pile hammer has excellent performance and reliability. The combination of its 84kW turbocharged engine, new traveling motor and reducer ensures long - term and efficient operation of the equipment. In particular, the gearbox design of the hydraulic oil pump adopts oil pump isolation, which not only achieves sufficient and reasonable power distribution, but also simplifies the maintenance process and reduces costs. The machine has a compact structure, and the mast has a telescopic compensation function and is supported by the ground during operation, which greatly improves the stability of drilling.



Product Image

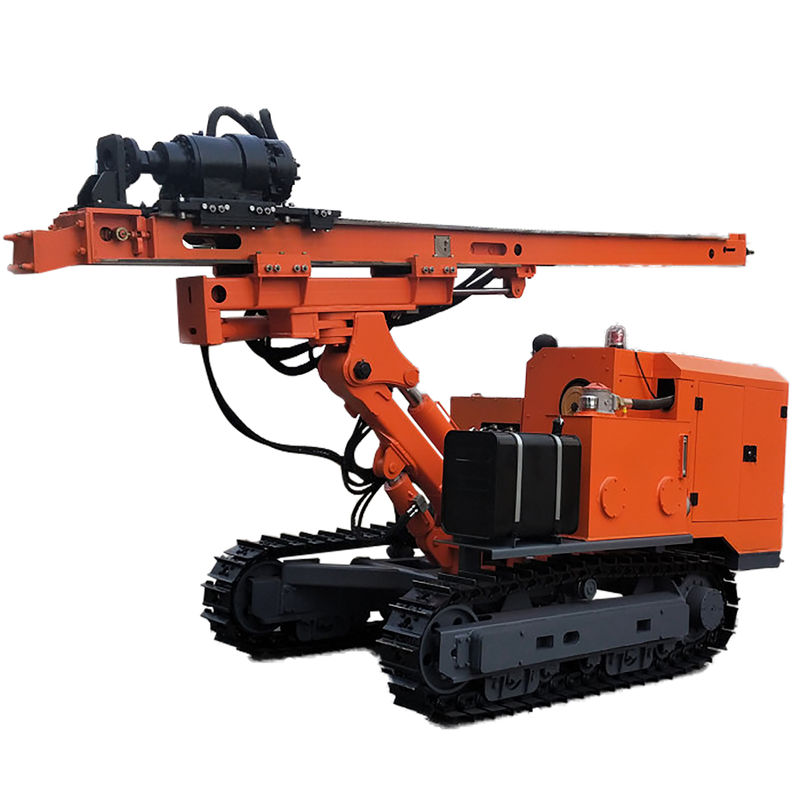

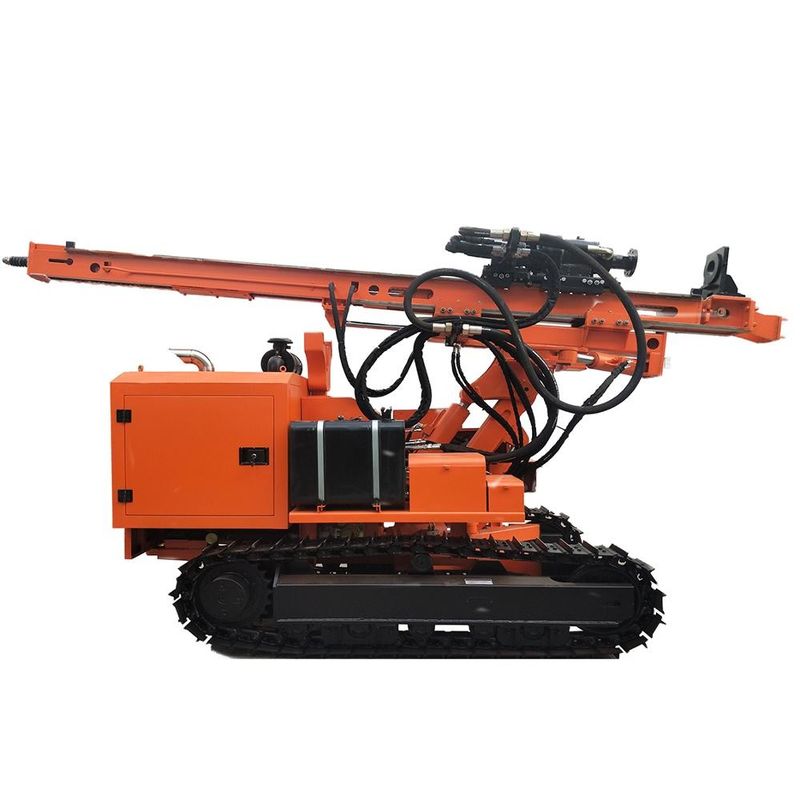

Hydraulic Solar Pile Driver 84KW Turbocharges Engine Pile Driving Machine 0Hydraulic Solar Pile Driver 84KW Turbocharges Engine Pile Driving Machine 1Hydraulic Solar Pile Driver 84KW Turbocharges Engine Pile Driving Machine 2

Hydraulic Solar Pile Driver 84KW Turbocharges Engine Pile Driving Machine 3

Hydraulic Solar Pile Driver 84KW Turbocharges Engine Pile Driving Machine 4
