Solar Pile Driving Equipment 39KW Engine 170 cm Drilling Depth 260cm Piling Height

Solar Pile Driving Equipment 39KW Engine 170 cm Drilling Depth 260cm Piling Height

Pile Driving Equipment 39KW

Solar Pile Driving Equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCH360W

Contact Us
Request A Quote
Product Details
Name:
Solar Pile Drive
Model:
RCH360W
Drilling Depth:
1.7m
Piling Height:
2.6m
Transportation Dimension:
2900*2250*2550mm
Vehicle Weight:
2.8T
Highlight:

Pile Driving Equipment 39KW

,

Solar Pile Driving Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

170 cm Drilling Depth 260cm Piling Height Solar Pile Driver 39KW Engine Power



Product Description



The RCH360W piling equipment is a multi-functional construction machine that is widely used in many fields such as highway guardrail column installation, garden fence construction, and small foundation construction. It integrates the three major functions of stamping, down - the - hole impact drilling and column extraction. It has strong construction capabilities and can meet the needs of most engineering projects.



This equipment has a highly flexible movement pattern that can be adjusted to the terrain and road conditions, allowing it to perform well in a variety of working conditions. At the same time, its outstanding driving performance and easy operation allow operators to complete engineering tasks efficiently, thus improving the overall construction progress. In general, the RCH360W piling equipment is a construction tool with high flexibility, efficiency and adaptability, and is deeply loved by the construction team.



Product Specifications



Model RCH360W
Working Dimension (mm) 2900*2650*4200
Transportation Dimension (mm) 2900*2250*2550
Wheelbase (mm) 1950
Vehicle Weight (Ton) 2.8
Engine Power (KW) 39
Flow Rate of Hydraulic System (L/min) 90
Hydraulic System Pressure (Mpa) 20
Mast stroke(mm) 2300
Piling Height (mm) 2600
Impact Power (J) 1960
Hydraulic Hammer Type YC360, Imported from South Korea
Piling efficiency (mm/min) 2500
Drilling Depth (m) 1.7
Drilling Diameter (mm) 50-300
Max. Climbing Ability (°/%) 10°/ 17.6%
Max. Walking Speed (km/h) 11
Max traction speed (km/h) 30
Tire specifications 7.0-9
Left and Right Sliding Stroke (mm) ≤400
Max. Adjustment Angle of Sliding Guide Frame left 30 / right 8
Front and Rear Adjustment Angle of Sliding Guide Frame Front 75 / Back 15
Hydraulic Tank Capacity (L) 80
Diesel Tank Capacity (L) 40



Product Features



Solar pile drivers have two modes of movement, wheeled and crawler, and are suitable for various terrains and construction environments. Its drive system is flexible and diverse, and diesel engines or other drive devices can be selected according to needs, which improves the equipment's applicable scope and operational flexibility. It is easy to operate, equipped with an angle gauge and a spacious cockpit, and the operator can easily perform precise operations through the intelligent control system. In addition, the equipment shows excellent and efficient capabilities during construction, can quickly complete drilling tasks, and uses energy - saving technology to reduce energy consumption, meeting the requirements of sustainable development. The equipment has a vertical drilling function to ensure the verticality of the hole and improve the quality of the project. The smart design also enables the device to be equipped with different adapters and drill bits to fit a variety of post shapes, enhancing its versatility and adaptability. In general, solar pile drivers play an indispensable role in photovoltaic projects and are vital construction equipment.

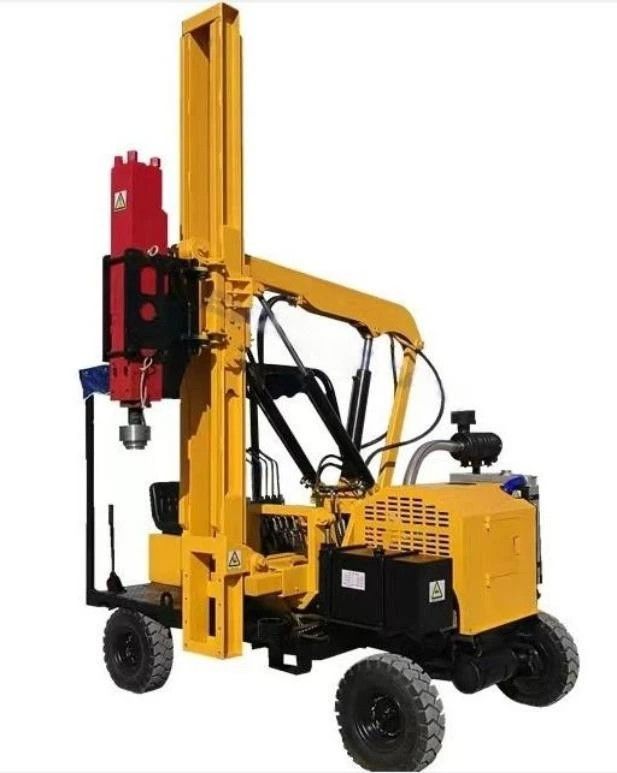

Product Image



Solar Pile Driving Equipment 39KW Engine 170 cm Drilling Depth 260cm Piling Height 0Solar Pile Driving Equipment 39KW Engine 170 cm Drilling Depth 260cm Piling Height 1Solar Pile Driving Equipment 39KW Engine 170 cm Drilling Depth 260cm Piling Height 2

Solar Pile Driving Equipment 39KW Engine 170 cm Drilling Depth 260cm Piling Height 3

Solar Pile Driving Equipment 39KW Engine 170 cm Drilling Depth 260cm Piling Height 4
