Solar Hydraulic Crawler Pile Driver 70KW Rated Power Max 3500mm Drilling Depth

Solar Hydraulic Crawler Pile Driver 70KW Rated Power Max 3500mm Drilling Depth

Solar Hydraulic Crawler Pile Driver

Hydraulic Crawler Pile Driver 70KW

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCH530D

Contact Us
Request A Quote
Product Details
Name:
Solar Pile Drive
Model:
RCH530D
Drilling Depth:
3500mm
Borehole Diameter:
50-300mm
Transportation Size:
6500mm*2200mm*2700mm
Vehicle Weight:
4500-5200kg
Highlight:

Solar Hydraulic Crawler Pile Driver

,

Hydraulic Crawler Pile Driver 70KW

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Max 3500mm Drilling Depth Hydraulic Crawler Solar Pile Driver 70KW Rated Power



Product Description



The RCH530D hydraulic pile driver is an efficient guardrail installation equipment with fast and precise piling capabilities. Its core components include high - efficiency hydraulic pumps and motors, which provide strong power output. Multi - directional control valves and centralized hydraulic control levers make the equipment flexible to operate and can easily complete a variety of construction tasks.



The Changchai diesel engine equipped with this pile driver ensures a stable power supply, while the special hydraulic hammer and hammer joint design ensures powerful and smooth piling results. In addition, the equipment is suitable for a variety of road materials, such as asphalt, cement, etc., and is widely used in various construction situations such as highway guardrail installation.



RCH530D is not only suitable for highways and ordinary roads, but can also be used flexibly in complex environments such as farms and pastures. Its versatility and high efficiency make it ideal for infrastructure construction.



Product Specifications



Model RCH530D
Transportation size (L*W*H) 6500mm*2200mm*2700mm
Working Size (L*W*H) 3500mm*2200mm*7500mm
Crawler Size 2550mm*1700mm*530mm
Vehicle Weight 4500-5200KG
Diesel Engine Rated Power 70KW
Flow Rate of Hydraulic System 113.4L/Min
Hydraulic Pressure(Max) 20Mpa
Mast Stroke 200-5500
Hydraulic Hammer YC360 (85MM borehole rod)
Impact 1300J
Piling efficiency 3200mm/Min
Drilling Depth(Max) 3500mm
Borehole Diameter 50-300mm
Climbing Ability(Max) 30°
Speed 3.8KM/H
Left/Right Sliding Stroke(Max) 500mm
Max Inclination Angle of Sliding Guide Frame Left 30°/Right 8°
Front / Rear Adjusting angle of frame Front 75°/ Rear 15°
Min Ground Clearance 230mm
Capacity of Hydraulic Oil Tank 80L
Capacity of Diesel Tank 80L



Product Features



The equipment has wide construction applicability and can adapt to construction sites with various geological conditions and hardness, including clay, soft soil, medium-hard soft rock and gravel, etc. The column height can be flexibly customized according to the special needs of different projects. The maximum column height can reach 4.0 meters, and column heights of 5 meters or 6 meters can be customized according to needs. In addition, the drive head can be customized to the size and shape of the column, ensuring that it can accommodate various column shapes. For hard construction sites, such as marble, hard rock and impact gravel, it is recommended to use drilling accessories to drill holes first and then perform piling operations. At the same time, the hammer and drilling units can share a chassis, which improves the versatility and utilization of the equipment. Rate.



Product Image

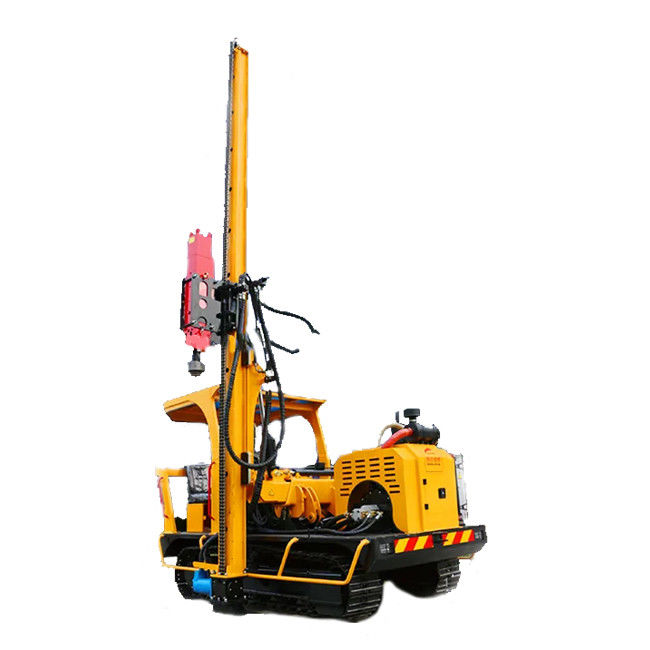

Solar Hydraulic Crawler Pile Driver 70KW Rated Power Max 3500mm Drilling Depth 0

Solar Hydraulic Crawler Pile Driver 70KW Rated Power Max 3500mm Drilling Depth 1Solar Hydraulic Crawler Pile Driver 70KW Rated Power Max 3500mm Drilling Depth 2Solar Hydraulic Crawler Pile Driver 70KW Rated Power Max 3500mm Drilling Depth 3

Solar Hydraulic Crawler Pile Driver 70KW Rated Power Max 3500mm Drilling Depth 4
