84KW Crawler Mounted Solar Pile Driver 4 Cylinders 20 - 100m Bore Depth

Product Description

RC185Y crawler hydraulic solar pile driver stands out among many pile drivers with its innovative construction method and climbing mechanism design. The biggest highlight of this equipment is that it can be flexibly adjusted according to different terrain slopes, and the maximum adaptable slope can reach 35 degrees, making it excellent in the field of solar engineering.
This equipment integrates a variety of cutting - edge photovoltaic construction technologies, including helical pile drilling, auger hole drilling, rock down - the - hole hammer piling, and ramming piles. In terms of hydraulic components, RC185Y uses imported original parts to ensure the excellent performance and stability of the equipment.

It has a wide range of applications. The RC185Y solar pile driver not only performs well in fields such as solar ground construction and solar power station construction, but is also suitable for anchoring, water well construction, water conservancy projects, power plant open - pit mining, road construction and other engineering fields to provide blast hole construction. a reliable solution.

Product Specifications



Product Features

The RC185Y crawler hydraulic solar pile driver has excellent performance in the field of solar engineering. With its wide range of impact frequencies and efficient impact energy, it ensures excellent performance under various construction conditions. The flow rate of its hydraulic ramming system can be adjusted between 50 - 110 liters / minute, providing stable operating performance and efficiency. At the same time, the maximum ramming length reaches 6000 mm, which is suitable for deep construction. The equipment is equipped with an oil pump configuration of 40 / 40 / 32 and the hydraulic system pressure is controlled at 25 - 30 MPa, ensuring stable operation. The 84kW four - cylinder Yuchai engine provides strong and reliable power. The drill floor inclination angle and drill pipe swing angle are 120 degrees and 150 degrees respectively, giving the operation a high degree of flexibility. The equipment has good climbing ability and can adapt to complex terrain above 30 degrees. The 400 mm wide crawler chassis ensures stable driving on the construction site. The device dimensions are 5300x1970x2620 mm and weighs 5800 kg, making it easy to transport and operate. The walking speed is up to 3 kilometers / hour, allowing it to quickly move to different work locations. The rotary drilling torque is 13000N · m, the rotation speed is 180 rpm, the DTH hammer drilling diameter range is 90 - 300 mm, and the depth is 20 - 100 meters. The air consumption is 10 - 26 cubic meters per minute, and the air pressure can be adjusted between 0 . 7 - 1 . 6 MPa and 1 . 6 - 2 . 46 MPa. The maximum diameter of auger drilling can reach 600 mm, the maximum depth is 30 meters, and the rotation speed is adjustable.

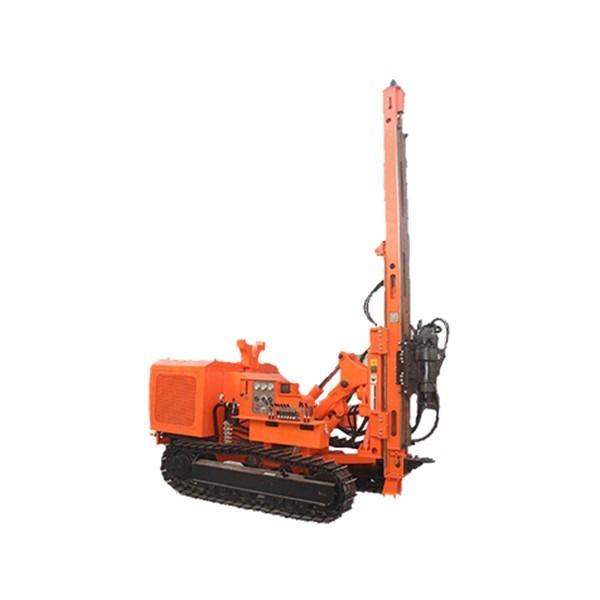

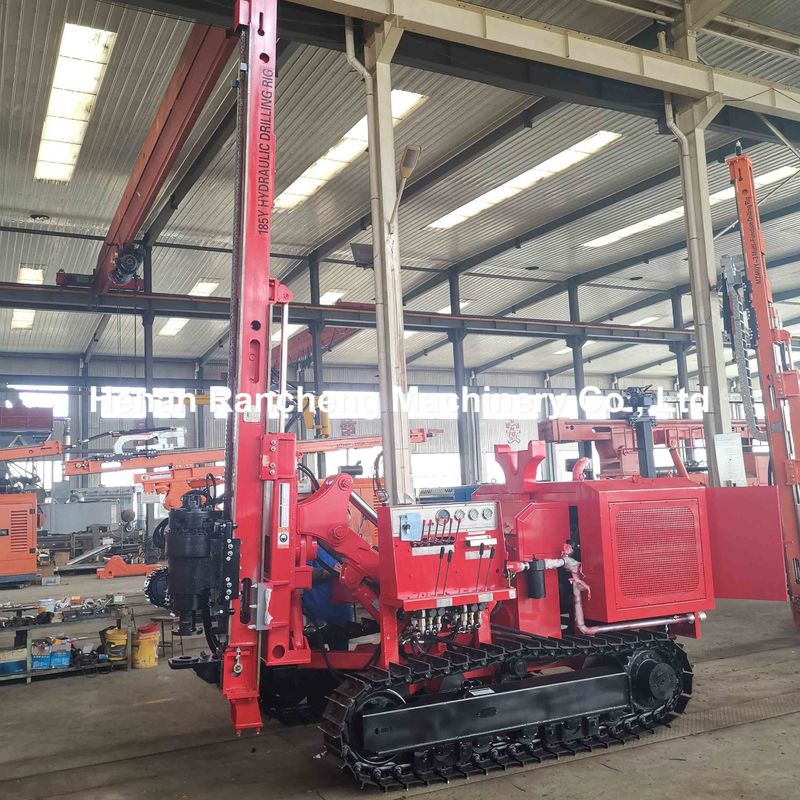

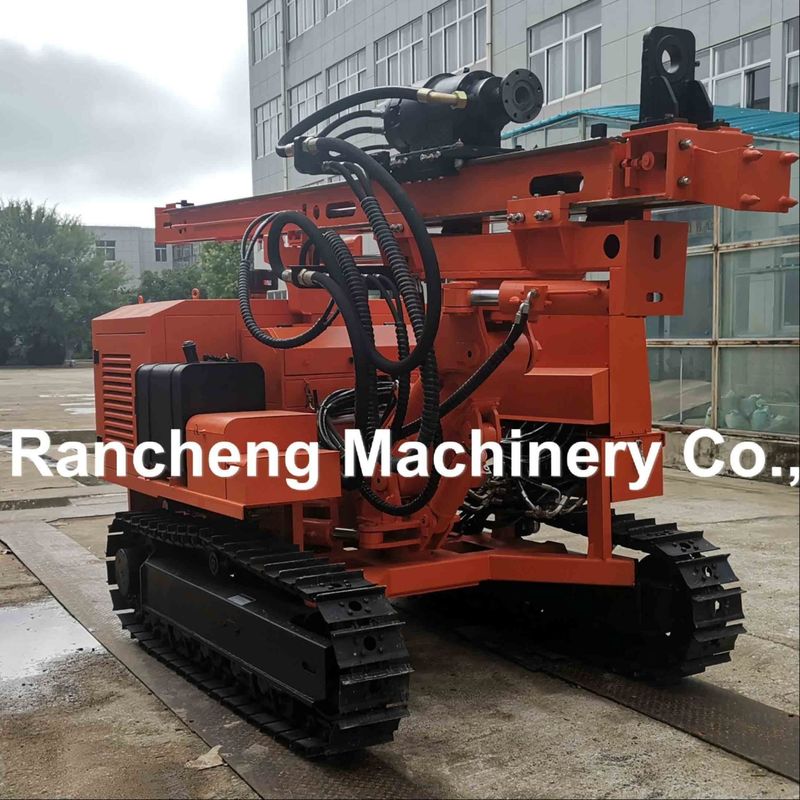

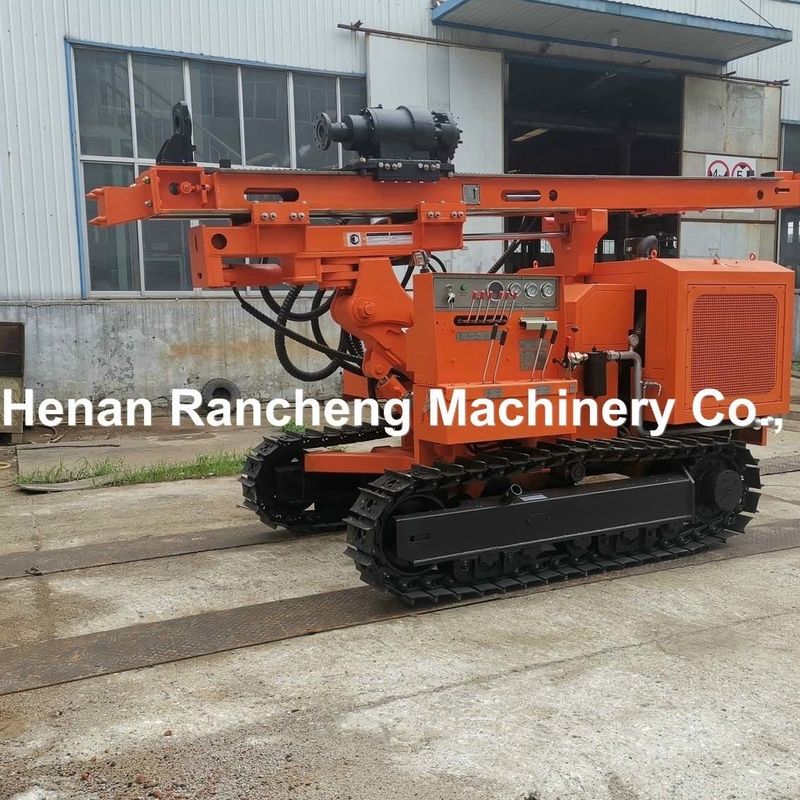

Product Image
