Small Rubber Crawler Solar Pile Driver Single Pump 1m - 30m Borehole Depth

Small Rubber Crawler Solar Pile Driver Single Pump 1m - 30m Borehole Depth

CE Solar Pile Driver

Small Solar Pile Driver

Rubber Crawler Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-30S Rubber Crawler Mounted Mini Pile Driver

Contact Us
Request A Quote
Product Details
Name:
Solar Pile Driver
Model:
RCKM-30S Rubber Crawler Mounted Mini Pile Driver
Hydraulic Oil Pump:
Single Pump
Hydraulic Loading System:
Hydraulic Loading System
Highlight:

CE Solar Pile Driver

,

Small Solar Pile Driver

,

Rubber Crawler Pile Driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

1 - 30m Borehole Depth Rubber Crawler Mounted Solar Pile Driver Single Pump



Machine Introduction



The RCKM - 30S small crawler - type solar pile driver has strong versatility and is suitable for driving small piles such as solar piles and road guardrail piles. Equipped with a 30 - horsepower diesel engine and hydro - mechanical transmission system, the operation is efficient and smooth. Multi - angle piling function and high precision ensure flexible and precise work. High durability, saving time and labor, suitable for field projects. This hydraulic ground anchor pile driver is the first choice for solar power generation projects. Advanced crawler walking device and hydraulic traveling motor technology provide excellent maneuverability and adapt to harsh construction environments. Branded engines provide strong power and reliable performance. The drilling frame is reasonably designed and uses thickened steel plates and secondary welding technology to ensure operational stability and safety.



Technical Parameters



Model RCKM-30S rubber crawler mounted mini pile driver
Rig weight 1.2t
Dimensions (L×W×H) 2300*1300*2200mm
Engine power 25HP
Rotary head torque 3500N.m
Hydraulic oil pump Single pump
Hydraulic loading system Cylinder chain pressure
Hydraulic working pressure 20Mpa
Way of walking Crawler gearbox walking
Walking speed 7-15km/h
Cooling system Hydraulic cooler
Carriage travel distance 2.8m
Piling height 1-3m
Borehole diameter 50-300mm
Borehole depth  1-30m
Air consumption 6m3/min
Adapt to rock types Medium hard rock ,F=8-12
Climbing ability 35°
Hydraulic legs 4



Machine Advantages



The photovoltaic drilling rig has strong drilling capabilities and can drill to a depth of 30 meters and a diameter of 50 to 300 mm. Precise positioning, angle adjustment from 45° to 90°, easy and efficient operation. Advanced hydraulic technology, high - quality hydraulic components, long - life hydraulic system. High - torque hydraulic power head for fast drilling and can be used with an impactor to drill rocks. Branded single - cylinder diesel engine, powerful, reliable and stable. The rubber track chassis adapts to complex terrain, does not damage the road, and is maneuverable and flexible.

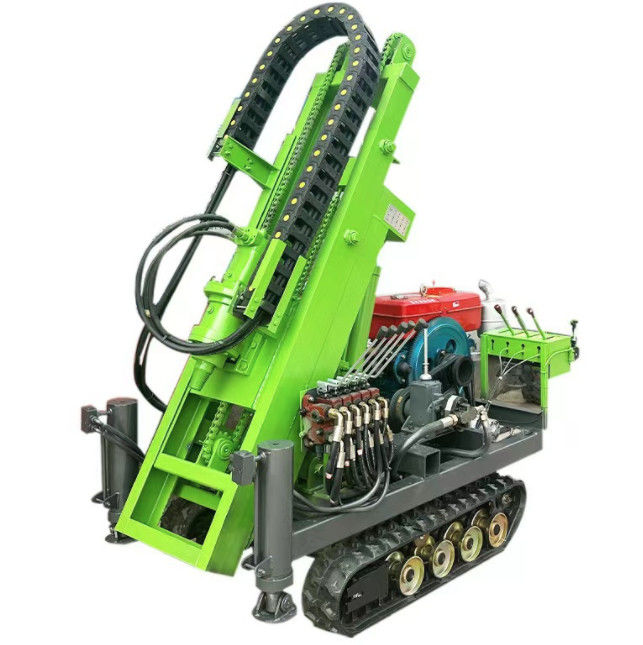

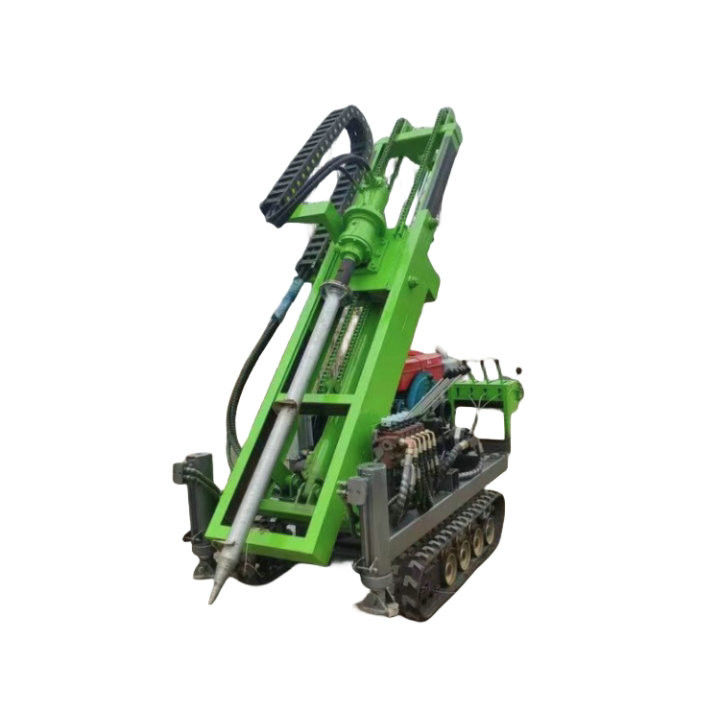

Machine Pictures



Small Rubber Crawler Solar Pile Driver Single Pump 1m - 30m Borehole Depth 0Small Rubber Crawler Solar Pile Driver Single Pump 1m - 30m Borehole Depth 1Small Rubber Crawler Solar Pile Driver Single Pump 1m - 30m Borehole Depth 2

Small Rubber Crawler Solar Pile Driver Single Pump 1m - 30m Borehole Depth 3
