150m Depth 30m Piling Depth Solar Pile Driving Equipment 75KW Yuchai Turbo Charging

150m Depth 30m Piling Depth Solar Pile Driver 75KW Yuchai Turbo Charging

Machine Introduction

The RCF150D multifunctional crawler drilling rig is famous for its integrated operation capabilities and multi - field drilling performance. The equipment uses single - rib high - strength crawler chain plates and durable excavator travel motors to improve climbing capabilities and reduce the risk of damage. Equipped with a 75KW Yuchai supercharged diesel engine, new hydraulic technology, dual motor system and high torque gearbox to achieve low energy consumption and high efficiency. The compact and portable design is easy to move and deploy, and the telescopic compensation function of the propulsion frame ensures drilling stability. The drilling diameter range is 150 - 400 mm and 90 - 200 mm, and the high - torque motor supports efficient rotation operations. The RCF150D excels in operational flexibility, gradeability, power output and versatility in drilling applications, making it ideal for all types of construction projects.

Technical Parameters

Machine Advantages

The RCF150D multifunctional crawler drilling rig provides flexible drilling diameter ( DTH drilling 90 - 200 mm, pile foundation drilling 100 - 400 mm ) and stable drilling performance ( drilling depth 150 meters, pile foundation depth 30 meters ) to meet Engineering requirements. The 75KW Yuchai supercharged diesel engine provides powerful power and efficient drilling. With a climbing ability of 35 degrees and a walking speed of 3 kilometers / hour, it is suitable for complex terrain. Adapts to air consumption and pressure settings for different working environments, providing 76 mm and 89 mm drill pipe diameter options. Compact structure and easy operation make it an ideal choice for efficient drilling.

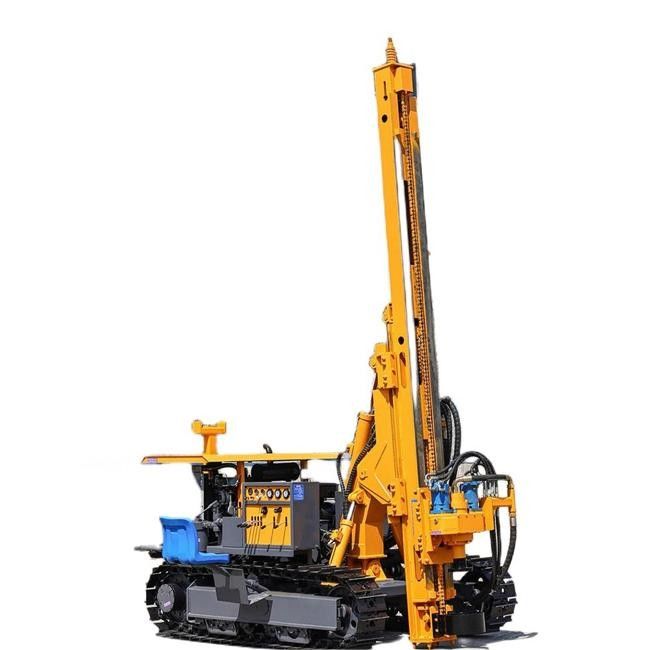

Machine Pictures
