Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth

Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth

Solar Pile Driver 88KW

Ramming Solar Pile Driver

Pile Driver Equipment 88KW

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC260Y Solar Pile Driving

Contact Us
Request A Quote
Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth
Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth
Product Details
Name:
Solar Pile Driver
Model:
RC260Y Solar Pile Driving
Engine Power:
88KW Yuchai Engine
Solar Pile Shape:
O,U,H,C Type Solar Pile Installation
Highlight:

Solar Pile Driver 88KW

,

Ramming Solar Pile Driver

,

Pile Driver Equipment 88KW

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe online Video

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price
Good price RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine online Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price
Good price Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System online Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price
Good price 20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch online Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price
Contact Us
Contact Now
Product Description

20 - 100m Bore Depth Hydraulic Ramming Solar Pile Driver 88KW Yuchai Engine



Machine Introduction



The RC260Y hydraulic solar pile hammer is specially designed for photovoltaic power stations and uses original imported accessories to ensure performance and stability. Its construction technology and climbing mechanism can adapt to slopes up to 45 degrees and are suitable for various photovoltaic construction technologies, such as spiral pile drilling, rock DTH hammering, etc., and are suitable for drilling holes with a diameter of 100 - 400 mm and a depth of 20 - 100 meters. RC260Y is known for its high efficiency, wide applicability and stability. Its powerful hydraulic system supports the rapid installation of solar panels and maintains stability and safety on slopes and uneven ground. The equipment has simple design, easy operation and low maintenance cost, making it an ideal choice for photovoltaic power station construction.



Technical Parameters



Impact frequency(bpm) 450-800
Impact(j) 1300
Skid pitch(º) 120
boom swing angle(º) Left and right total 50
swinging angle of the skid(º) Left and right total 40
Climb ability(º) 35
Dimension(L*W*H)(mm) 6240*2250*3000
Weight(kg) 7350
Walk speed(km/h) 0--2.5
For rotary drilling
Bore diameter(DTH hammer) 90-300mm
Bore depth 20-100m
Air consumption 10-26m³/min
Air pressure

0.7-1.6Mpa(medium)

1.6-2.46Mpa(high)
Bore diameter(screw) Max 600mm
Bore depth 0-30m
Rotation speed 0-110r/min
Torque 7000N.m



Machine Advantages



The RC260Y hydraulic solar pile hammer has excellent performance and is equipped with an 84kW turbocharged engine, new traveling motor and reducer to ensure long - term and efficient operation. The hydraulic oil pump gearbox is uniquely designed to achieve effective power distribution, simplify maintenance and reduce costs. The structure is compact and the mast is equipped with telescopic compensation to provide stable grounding support and enhance drilling stability.

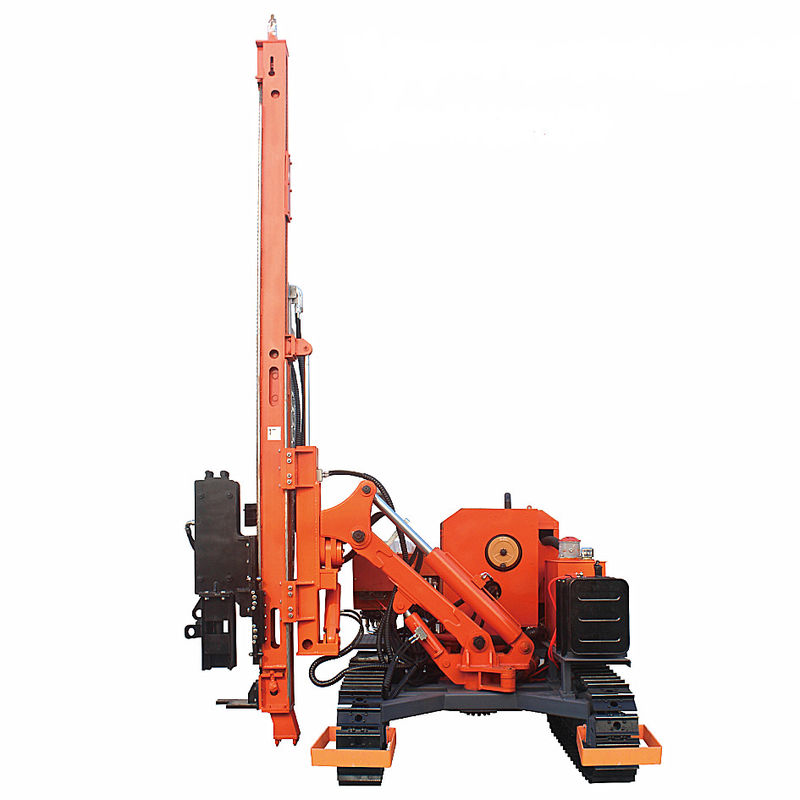

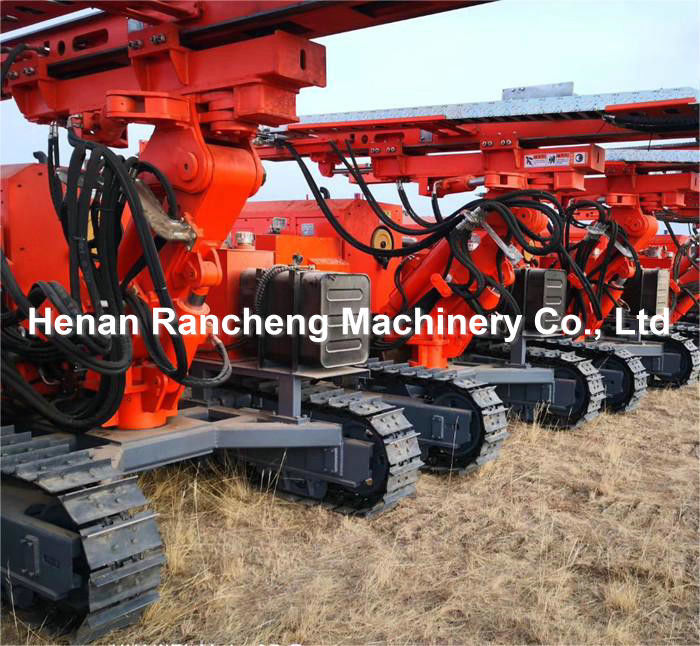

Machine Pictures



Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth 0Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth 1Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth 2Hydraulic Ramming Solar Pile Driver Equipment 88KW Yuchai Engine 20 - 100m Bore Depth 3
