Name: Hydraulic Hydrostatic Solar Pile Driver 70KW Engine Power 50mm - 300mm Bore Dia
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCH530D Solar Pile Driver
Availability: InStock

Home > products > Solar Pile Driver >

Hydraulic Hydrostatic Solar Pile Driver 70KW Engine Power 50mm - 300mm Bore Dia

Solar Pile Driver 70KW

Hydrostatic Solar Pile Driver

Hydraulic Pile Driver 70KW

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCH530D Solar Pile Driver

Request A Quote

Hydraulic Hydrostatic Solar Pile Driver 70KW Engine Power 50mm - 300mm Bore Dia

Product Details

Name:

Solar Pile Drive

Model:

RCH530D Solar Pile Driver

Engine Power:

70KW

Speed:

3.8km/h

Highlight:

Solar Pile Driver 70KW

Hydrostatic Solar Pile Driver

Hydraulic Pile Driver 70KW

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price

Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price

Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price

Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price

Contact Now

Product Description

3 . 5 Drill Depth 50 - 300mm Bore Dia Solar Pile Driver 70KW Engine Power

Product Description

RCH530D hydraulic hydrostatic pile driver is specially designed for guardrail installation and can drive piles efficiently and accurately. Equipped with high - efficiency hydraulic pump and motor to provide strong power. The multi - directional control valve and centralized hydraulic control lever are flexible in operation and adaptable to a variety of construction tasks. Providing stable power to the diesel engine, the design of the hydraulic hammer and hammer joint ensures powerful and smooth piling results. It is suitable for a variety of road materials, such as asphalt and cement, and is widely used in highway guardrail installation, etc. RCH530D is suitable for highways and ordinary roads, and can also be used in complex environments such as farms and pastures. Versatility and high efficiency make it ideal for infrastructure construction.

Product Specifications

Model	RCH530D
Transportation size (LWH)	6500mm2200mm2700mm
Working Size (LWH)	3500mm2200mm7500mm
Crawler Size	2550mm1700mm530mm
Vehicle Weight	4500-5200KG
Diesel Engine Rated Power	70KW
Flow Rate of Hydraulic System	113.4L/Min
Hydraulic Pressure(Max)	20Mpa
Mast Stroke	200-5500
Hydraulic Hammer	YC360 (85MM borehole rod)
Impact	1300J
Piling efficiency	3200mm/Min
Drilling Depth(Max)	3500mm
Borehole Diameter	50-300mm
Climbing Ability(Max)	30°
Speed	3.8km/h
Left/Right Sliding Stroke(Max)	500mm
Max Inclination Angle of Sliding Guide Frame	Left 30°/Right 8°
Front / Rear Adjusting angle of frame	Front 75°/ Rear 15°
Min Ground Clearance	230mm
Capacity of Hydraulic Oil Tank	80L
Capacity of Diesel Tank	80L

Product Features

The equipment is suitable for a variety of geological and hardness conditions, such as clay, soft soil, medium - hard soft rock and gravel, etc. The column height can be customized, up to 4 meters, and can also be customized to 5 meters or 6 meters. The drive head can be customized to fit the column size and shape. For hard sites such as marble, hard rock and impact gravel, it is recommended to drill before piling. The drilling accessories and piling hammer can share the chassis to improve the versatility and utilization of the equipment.

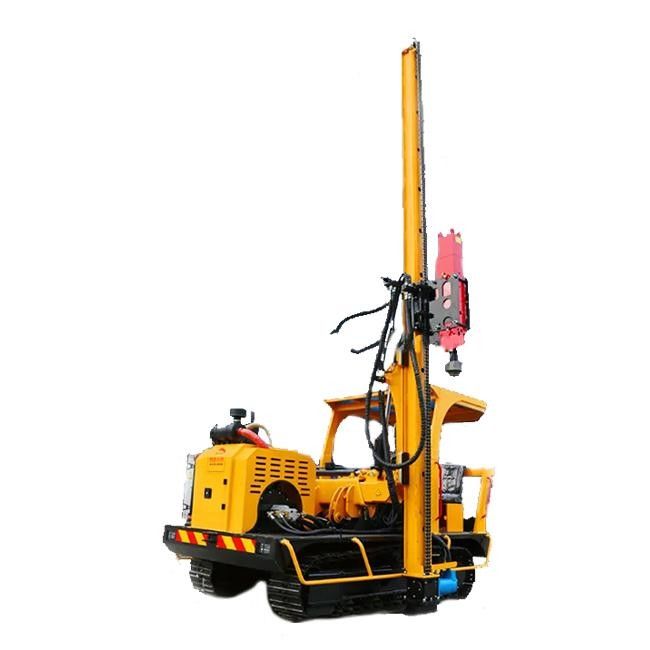

Product Image
